Paper X/XX/XXX Paper Reinforced Phenolic - natural (tan) Technical Data Sheet
This grade is composed of a paper base impregnated with a phenolic resin binder. It has good electric strength properties with fair mechanical strength. Outstanding for use as template material and or backup material.
NEMA X certs to MIL-I-24768/12 PBM, IEC 60893-3 Type 4 PF CP 201
NEMA XX certs to MIL-I-24768/11 PBG, IEC 60893-3 Type 4 PF CP 203
NEMA XXX certs to MIL-I-24768/10 PBE, IEC 60893-3 Type 4 PF CP 201

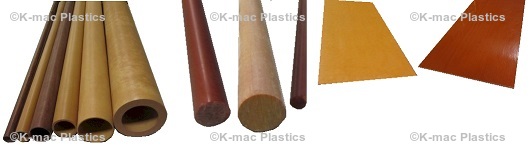

NEMA grades X, XX and XXX Paper Reinforced Phenolic -- natural color is typically light tan to brown. These grades are composed of a paper base impregnated with a phenolic resin binder. (Phenolics are the oldest, best-known general purpose thermoset resins. They are among the lowest in cost and easiest to process. Phenolics are quite adequate for a fair percentage of electrical applications. Generally speaking, they are not equivalent to epoxies in resistance to moisture, humidity, dimensional stability, shrinkage and retention of electrical properties in extreme environments.) The paper reinforced phenolic has good electric strength properties with fair mechanical strength and are outstanding for use as template material and/or back-up material.

Click Here for X, XX, XXX Tubes or #Sheets Bars, 90º Angles

Chemical Resistance Chart

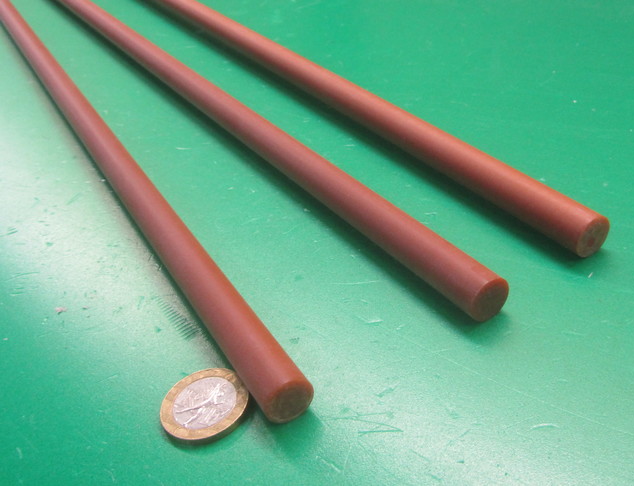

Paper Phenolic Rods

X, XX, XXX Paper Reinforced Rods
Stock # / Image Diameter Inches Price/Ft. Purchase Online
KR-1289

.062"

$1.22 Buy Now
KR-1290

.093"

$1.10 Buy Now
KR-1291

.125"

$1.14 Buy Now
KR-1292

.156"

$1.26 Buy Now
KR-1293

.187"

$1.44 Buy Now
KR-1294

.250"

$1.80 Buy Now
KR-1295

.312"

$2.20 Buy Now
KR-1296

.375"

$2.46 Buy Now
KR-1297

.437"

$3.18 Buy Now
KR-1298

.500"

$4.02 Buy Now
KR-1299

.562"

$4.70 Buy Now
KR-1300

.625"

$5.38 Buy Now
KR-1301

.750"

$7.18 Buy Now
KR-3159

.875"

$9.16 Buy Now
KR-1302

1.000"

$11.74 Buy Now
KR-1303

1.125"

$14.30 Buy Now
KR-1304

1.250"

$16.56 Buy Now
KR-1305

1.375"

$19.56 Buy Now
KR-1306

1.500"

$23.02 Buy Now
KR-1307

1.625"

$26.00 Buy Now
KR-1308

1.750"

$31.72 Buy Now
KR-1309

2.000"

$43.96 Buy Now
Tolerances

Under 1.375" Dia.

±.001"

1.375" Dia. & Over

±.003"

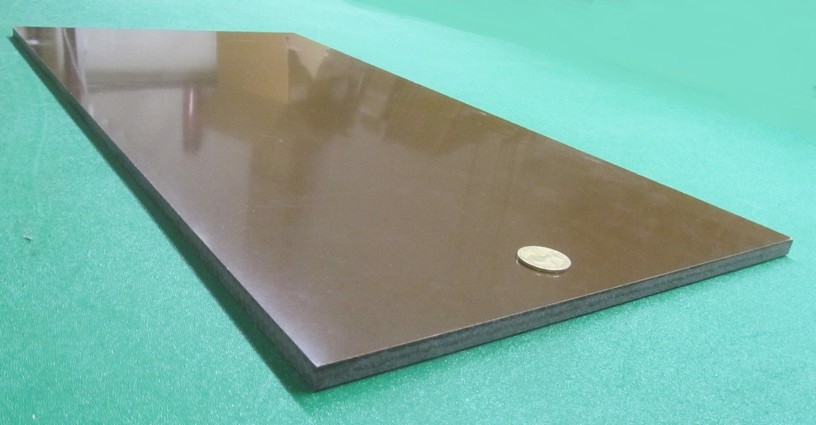

  Paper Phenolic Sheets
