Polycarbonate Tubes
Polycarbonate gives extraordinary design and
fabrication opportunities. It can be machined, drilled, cut and sawed,
and is easily joined with solvents and adhesives.
Weather
Resistant, Underwriters Laboratories (UL) 94HB Ratings
Technical Data Sheet
Chemical Resistance Chart

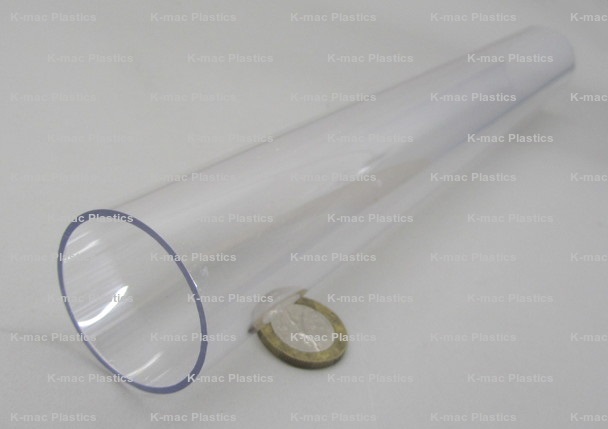

Larger Photos - 1/16", 1/8" and 1/4" Wall Thickness's

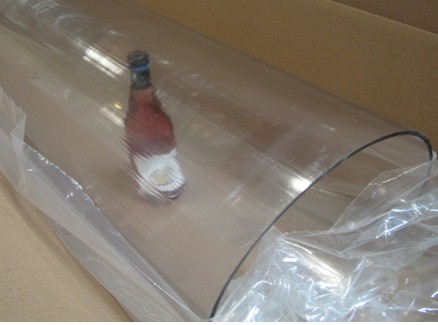

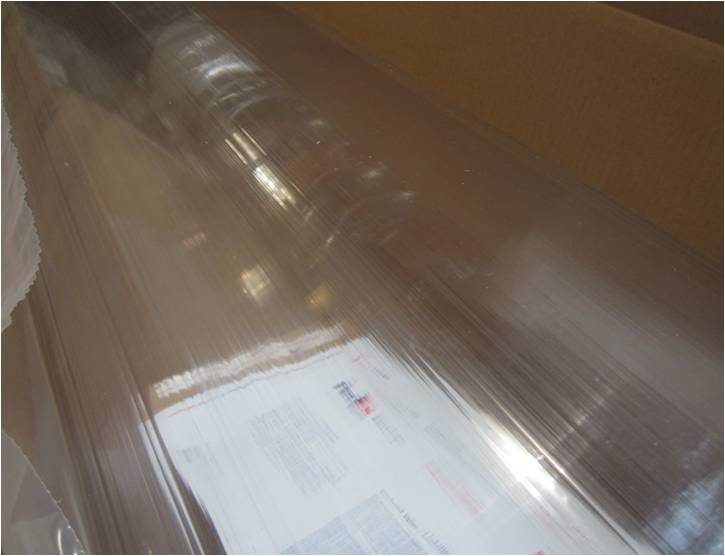

Note: larger diameters have heavier extrusion lines, and less clarity.
|
Polycarbonate Round Tubing 8 Foot Standard Length - Cut lengths available for tubes under 7" wide. Permitted cut lengths: 1ft, 2ft, 3ft, 4ft, 5ft, 6ft, 7ft |
|||||
| Part # | OD (in.) | ID (in.) | Wall (in.) | Price Per Foot | Order Online |
|---|---|---|---|---|---|
| KM-8024Z | .250 | .125 | .062 | $1.80 | Add to Order |
| KM-8025Z | .312 | .187 | .062 | $2.20 | Add to Order |
| KM-2100W | .312 | .250 | .031 | $4.29 | Add to Order |

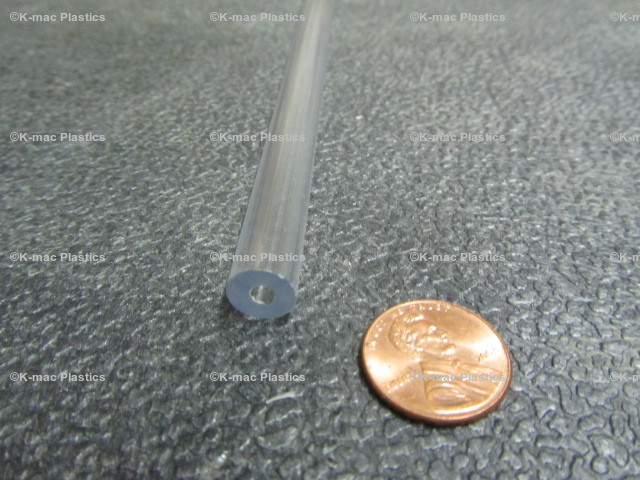

| KM-2105K | .375 | .125 | .125 | $2.14 | Add to Order |
| KM-936 | .375 | .250 | .063 | $1.01 | Add to Order |

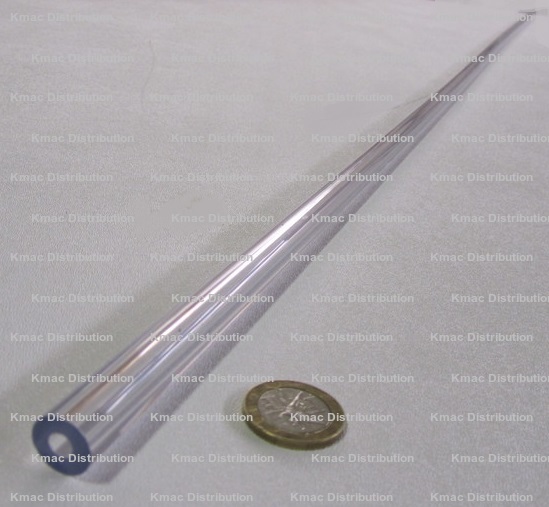

| KM-8026Z | .500 | .187 | .156 | $5.42 | Add to Order |

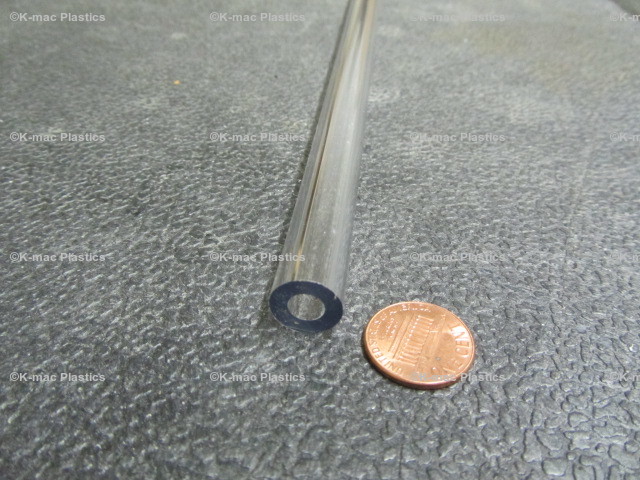

| KM-2105L | .500 | .250 | .125 | $3.95 | Add to Order |
| KM-8450Z | .500 | .250 | .125 BLACK | $3.39 /4 Ft Min. | Add to Order |
| KM-937 | .500 | .375 | .063 | $1.35 | Add to Order |

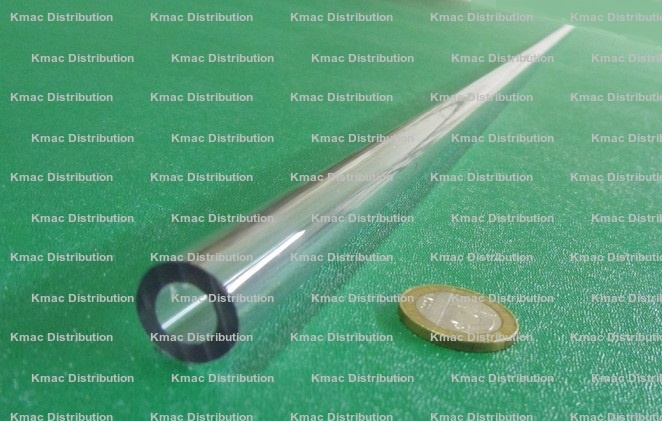

| KM-2105M | .625 | .375 | .125 | $3.49 | Add to Order |

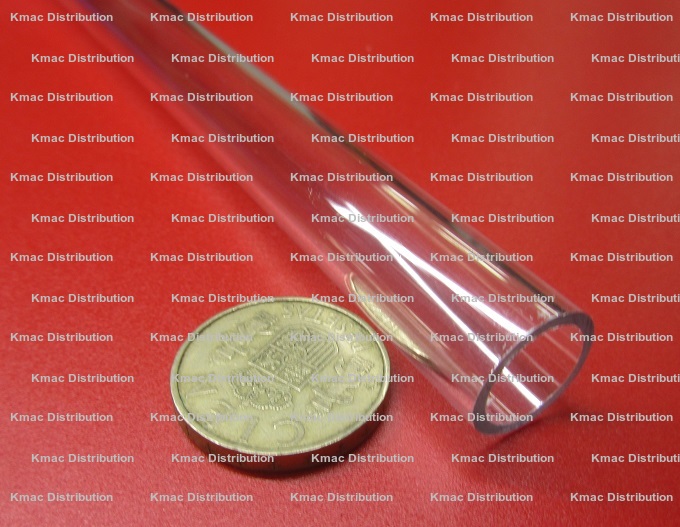

| KM-938 | .625 | .500 | .063 | $1.29 | Add to Order |
| KM-9000-P | .750 | .250 | .250 | $6.10 | Add to Order |

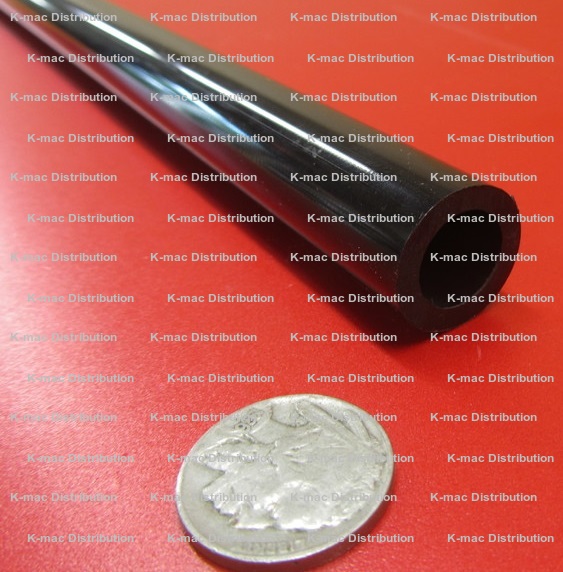

| KM-8454Z | .750 | .500 | .125 BLACK | $6.58 /4 Ft Min. | Add to Order |
| KM-2100G | .750 | .500 | .125 | $3.23 | Add to Order |

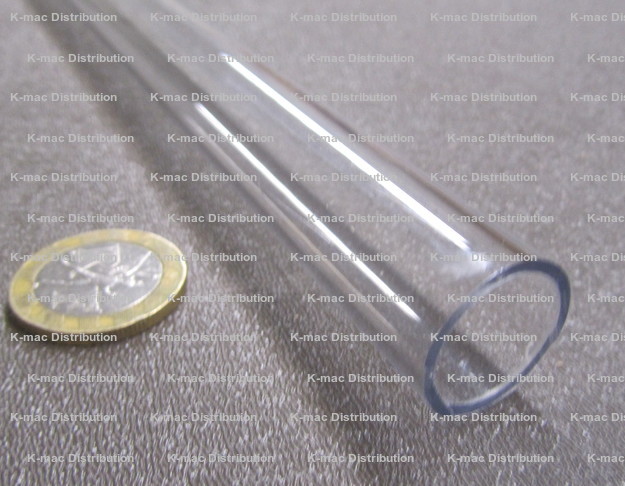

| KM-939 | .750 | .625 | .063 | $1.74 | Add to Order |

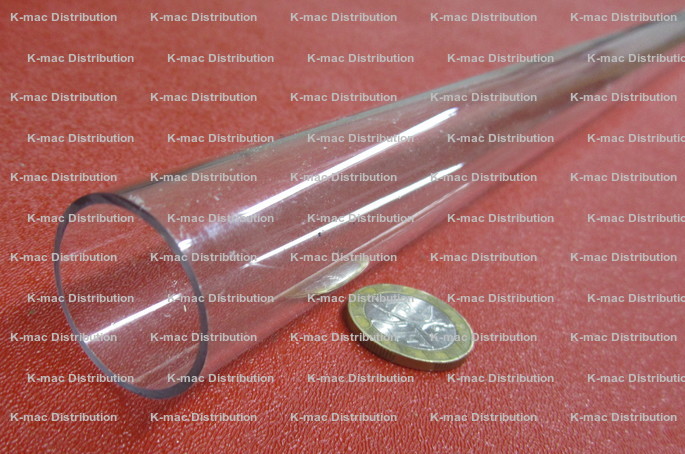

| KM-2170 | .875 | .750 | .063 | $2.37 | Add to Order |

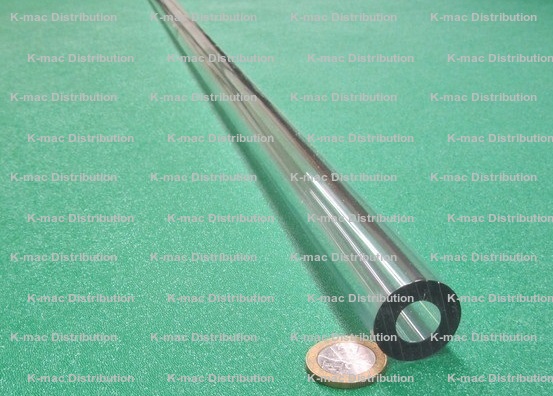

| KM-8045Z | 1.00 | .500 | .250 | $15.95 | Add to Order |

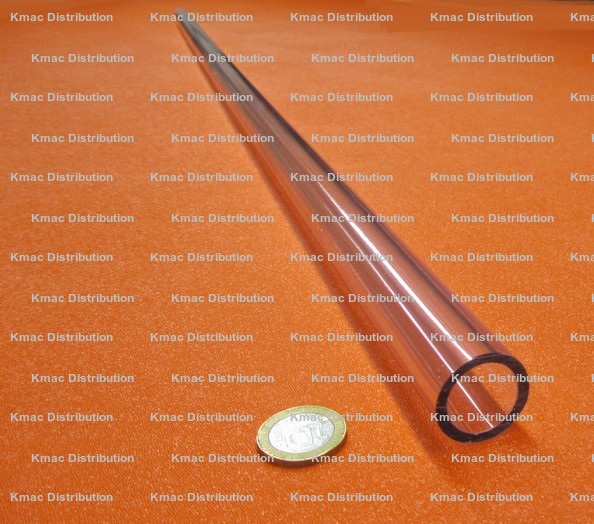

| KM-940 | 1.00 | .750 | .125 | $4.45 | Add to Order |

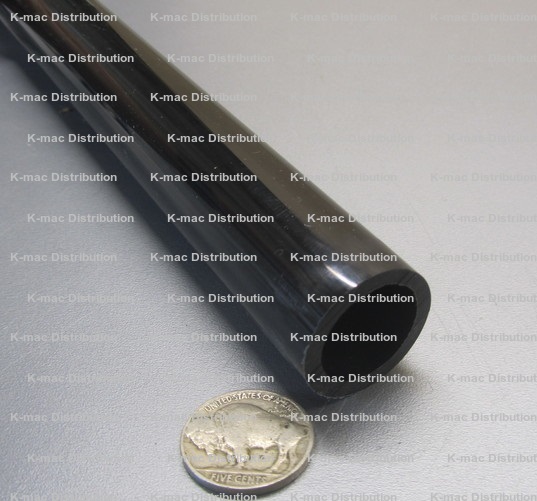

| KM-8449Z | 1.00 | .750 | .125 BLACK | $8.42 /4 Ft Min. | Add to Order |

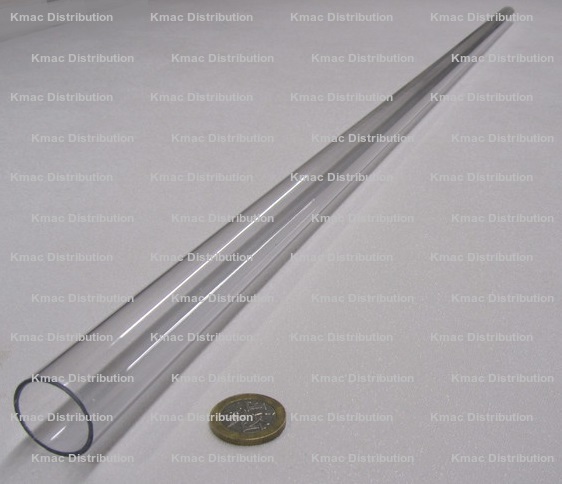

| KM-941 | 1.00 | .875 | .063 | $2.61 | Add to Order |
| KM-5323 | 1.125 | .875 | .187 | $11.49 | Add to Order |

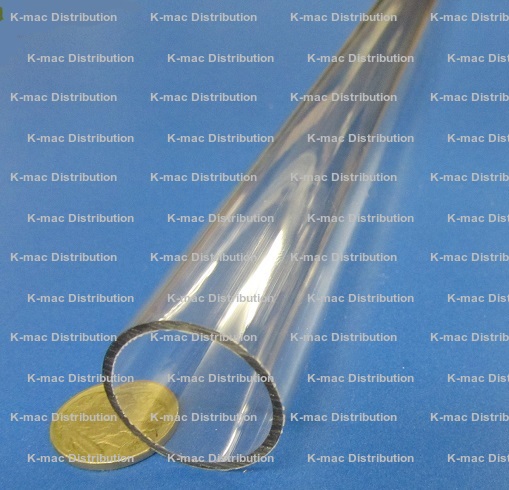

| KM-2171 | 1.125 | 1.00 | .063 | $3.22 | Add to Order |
| KM-8046Z | 1.25 | .750 | .250 | $16.46 | Add to Order |

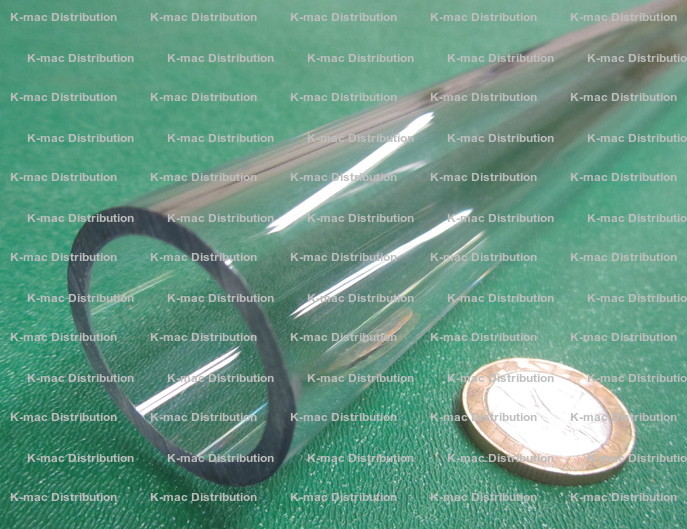

| KM-942 | 1.25 | 1.00 | .125 | $6.88 | Add to Order |

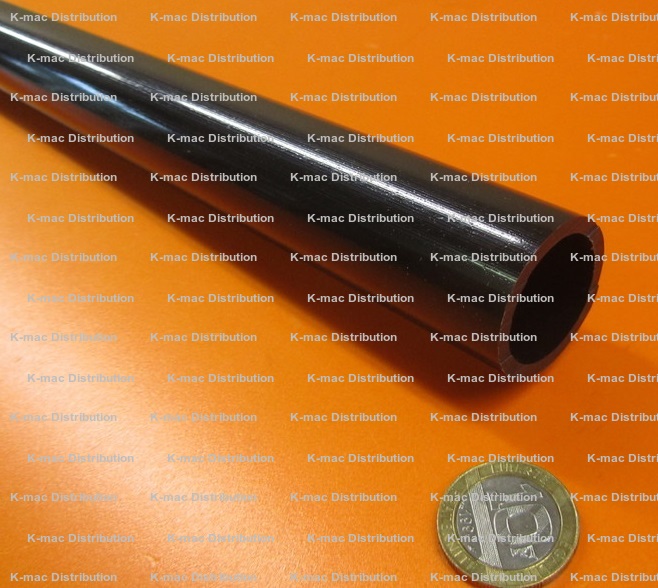

| KM-8447Z | 1.25 | 1.00 | .125 BLACK | $13.79 / 4 Ft Min. | Add to Order |
| KM-2172 | 1.25 | 1.125 | .063 | $2.91 | Add to Order |

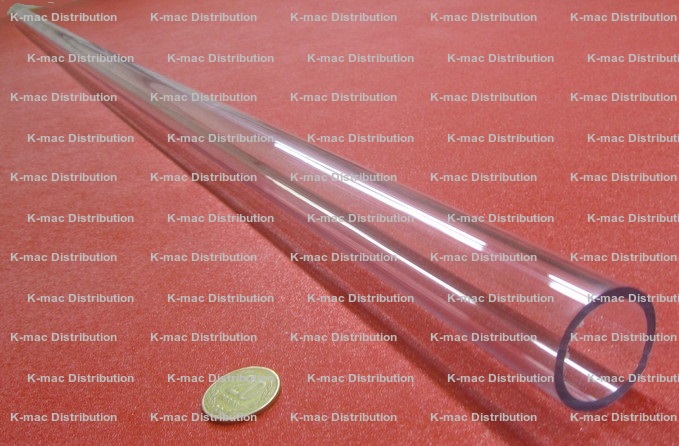

| KM-8028Z | 1.375 | 1.125 | .125 | $12.57 | Add to Order |
| KM-8047Z | 1.50 | 1.00 | .250 | $38.18 | Add to Order |

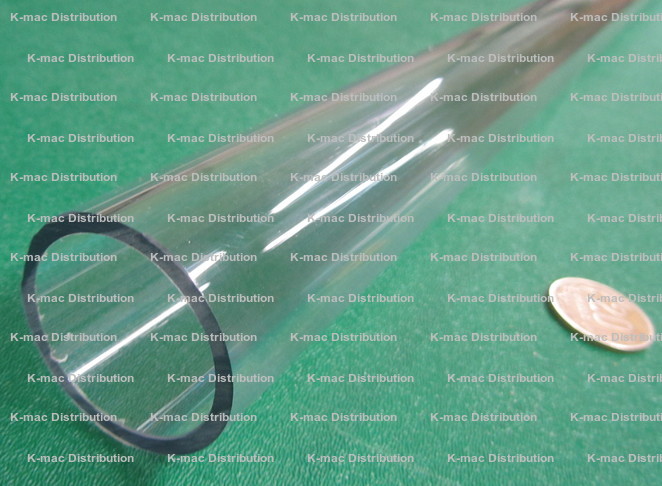

| KM-943 | 1.50 | 1.25 | .125 | $8.22 | Add to Order |

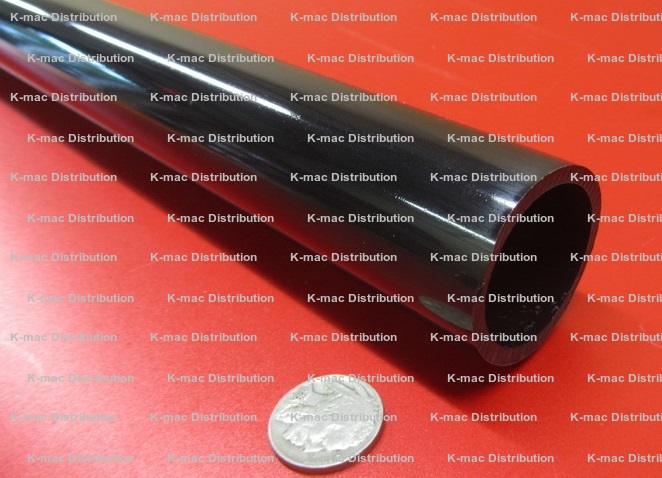

| KM-8446Z | 1.50 | 1.25 | .125 BLACK | $14.52 / 4 Ft Min. | Add to Order |

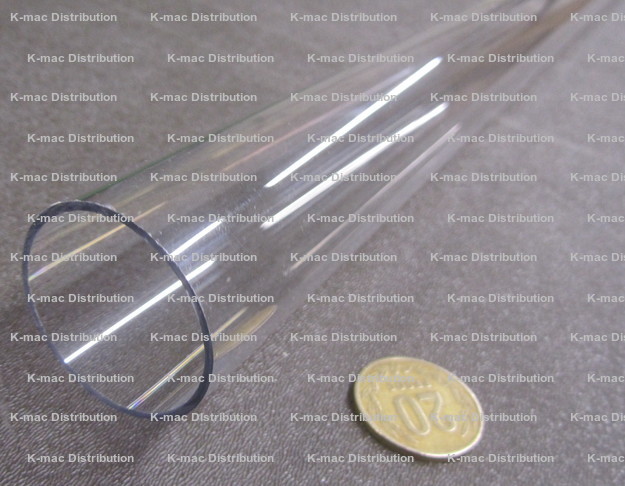

| KM-944 | 1.50 | 1.375 | .063 | $3.84 | Add to Order |
| KM-8029Z | 1.625 | 1.375 | .125 | $16.42 | Add to Order |
| KM-8027Z | 1.625 | 1.50 | .062 | $9.79 | Add to Order |
| KM-945 | 1.75 | 1.50 | .125 | $9.21 | Add to Order |
| KM-8448Z | 1.75 | 1.50 | .125 BLACK | $17.13 /4 Ft Min. | Add to Order |
| KM-2173 | 1.75 | 1.625 | .063 | $5.73 | Add to Order |
| KM-9001-P | 1.75 | 1.25 | .250 | $23.75 | Add to Order |
| KM-8030Z | 1.875 | 1.625 | .125 | $21.35 | Add to Order |
| KM-8048Z | 2.00 | 1.50 | .250 | $44.01 | Add to Order |
| KM-946 | 2.00 | 1.75 | .125 | $10.65 | Add to Order |
| KM-8453Z | 2.00 | 1.75 | .125 BLACK | $19.80 /4 Ft Min. | Add to Order |
| KM-2174 | 2.00 | 1.875 | .063 | $5.69 | Add to Order |
| KM-8049Z | 2.25 | 1.75 | .250 | $28.79 | Add to Order |
| KM-947 | 2.25 | 2.00 | .125 | $10.79 | Add to Order |
| KM-8452Z | 2.25 | 2.00 | .125 BLACK | $24.20 4 Ft Min. | Add to Order |
| KM-2175 | 2.25 | 2.125 | .063 | $8.39 | Add to Order |
| KM-8050Z | 2.50 | 2.00 | .250 | $30.34 | Add to Order |
| KM-948 | 2.50 | 2.25 | .125 | $9.31 | Add to Order |
| KM-8451Z | 2.50 | 2.25 | .125 BLACK | $29.48 / 4 Ft Min | Add to Order |
| KM-2176 | 2.50 | 2.375 | .063 | $7.10 | Add to Order |
| KM-8051Z | 2.75 | 2.25 | .250 | $67.36 | Add to Order |
| KM-949 | 2.75 | 2.50 | .125 | $14.48 | Add to Order |
| KM-2177 | 2.75 | 2.625 | .063 | $8.20 | Add to Order |
| KM-8052Z | 3.00 | 2.50 | .250 | $66.59 | Add to Order |
| KM-950 | 3.00 | 2.75 | .125 | $14.98 | Add to Order |
| KM-2178 | 3.00 | 2.875 | .063 | $7.78 | Add to Order |
| KM-4704 | 3.125 | 3.00 | .063 | $10.56 | Add to Order |
| KM-8053Z | 3.25 | 2.75 | .250 | $72.00 | Add to Order |
| KM-682 | 3.25 | 3.00 | .125 | $17.39 | Add to Order |
| KM-8054Z | 3.50 | 3.00 | .250 | $42.59 | Add to Order |
| KM-951 | 3.50 | 3.25 | .125 | $22.32 | Add to Order |
| KM-8055Z | 3.75 | 3.25 | .250 | $85.41 | Add to Order |
| KM-8031Z | 3.75 | 3.50 | .125 | $43.20 | Add to Order |
| KM-8056Z | 4.00 | 3.50 | .250 | $53.17 | Add to Order |
| KM-6831 | 4.00 | 3.75 | .125 | $20.26 | Add to Order |
| KM-8032Z | 4.25 | 4.00 | .125 | $57.47 | Add to Order |
| KM-8033Z | 4.50 | 4.25 | .125 | $41.92 | Add to Order |
| KM-8057Z | 4.50 | 4.00 | .250 | $66.89 | Add to Order |

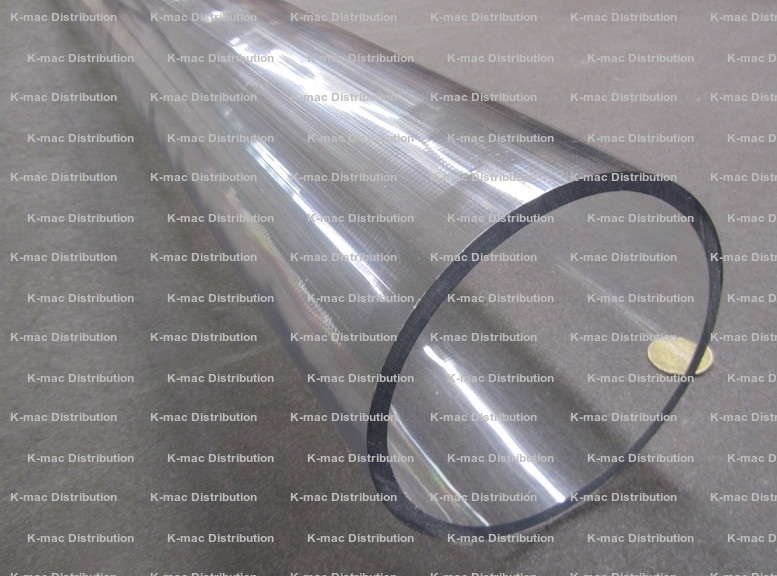

| KM-8058Z | 4.75 | 4.25 | .250 | $105.54 | Add to Order |

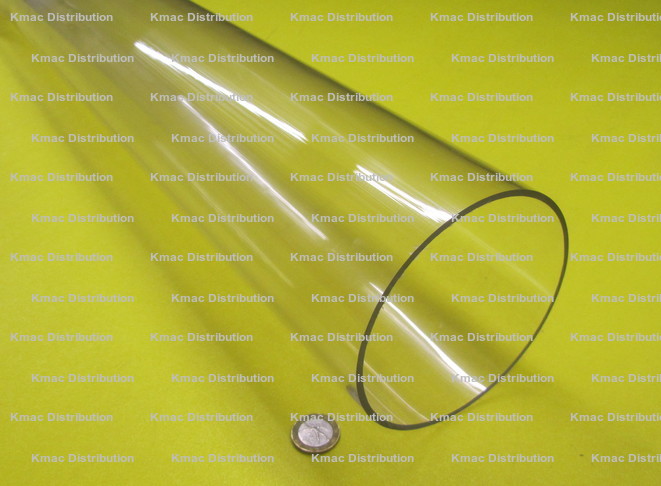

| KM-8034Z | 4.75 | 4.50 | .125 | $64.42 | Add to Order |

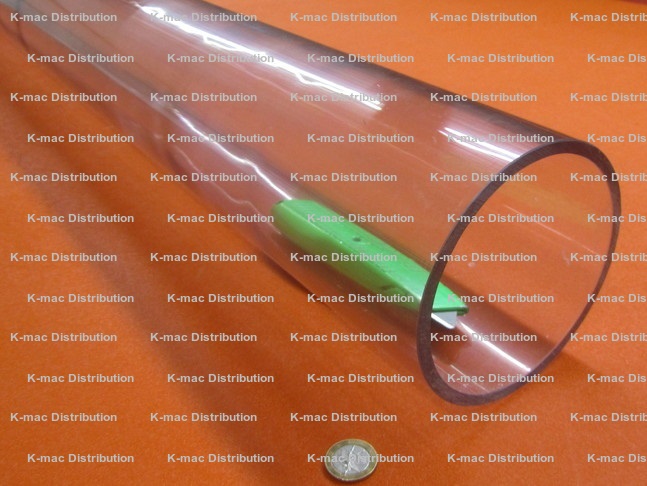

| KM-8059Z | 5.00 | 4.50 | .250 | $69.90 | Add to Order |

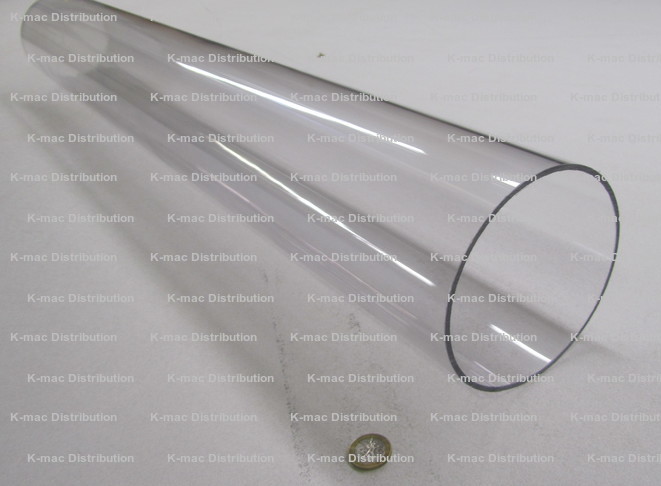

| KM-953 | 5.00 | 4.75 | .125 | $35.55 | Add to Order |

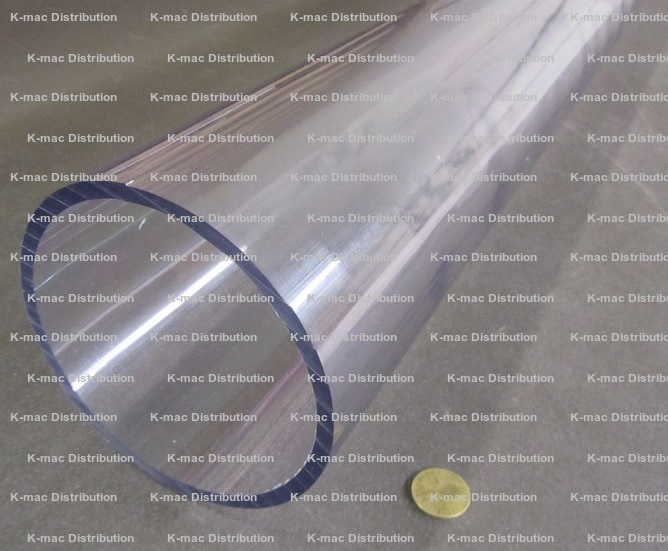

| KM-8060Z | 5.25 | 4.75 | .250 | $121.84 | Add to Order |
| KM-8036Z | 5.25 | 5.00 | .125 | $69.67 | Add to Order |

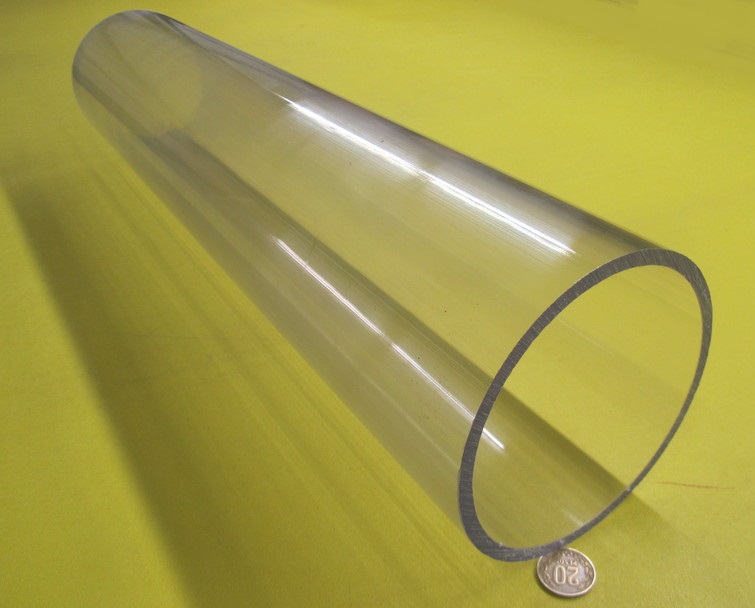

| KM-8061Z | 5.50 | 5.00 | .250 | $79.99 | Add to Order |

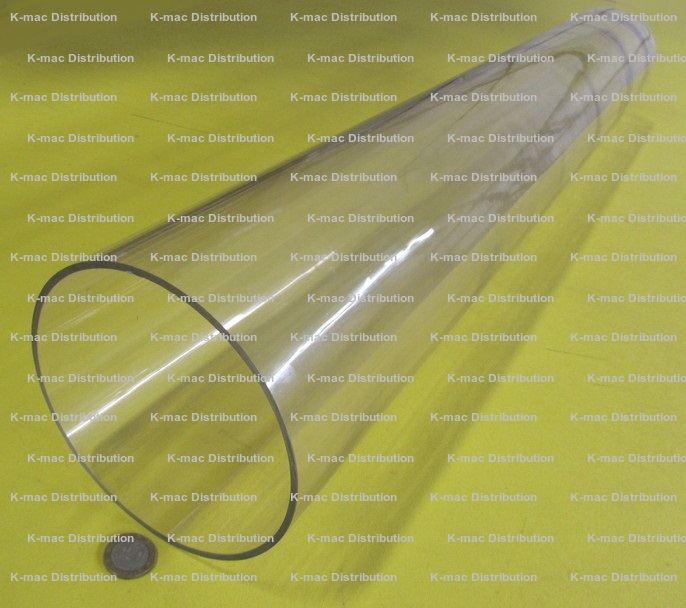

| KM-8037Z | 5.50 | 5.25 | .125 | $87.13 | Add to Order |

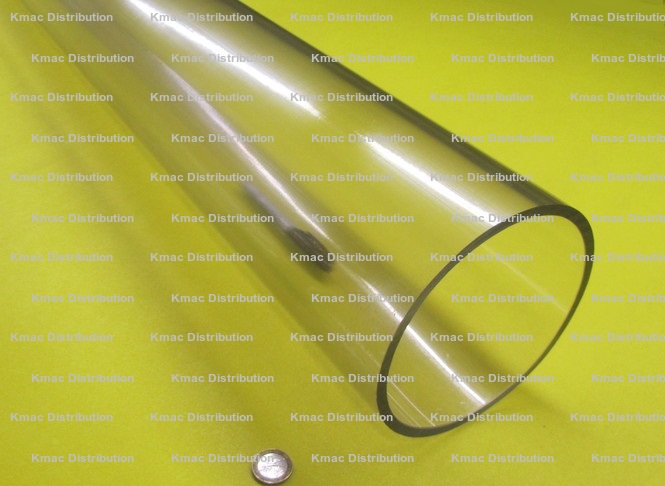

| KM-8062Z | 6.00 | 5.50 | .250 | $134.64 | Add to Order |
| KM-8069Z | 6.00 | 5.625 | .187 | $129.19 | Add to Order |

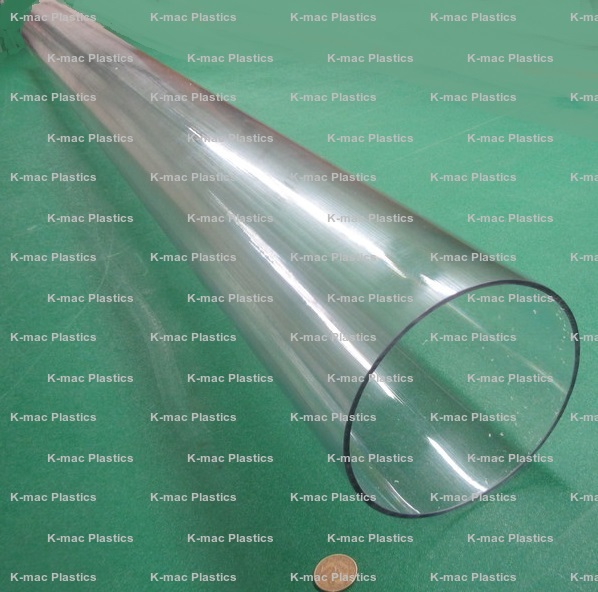

| KM-954 | 6.00 | 5.75 | .125 | $39.56 | Add to Order |

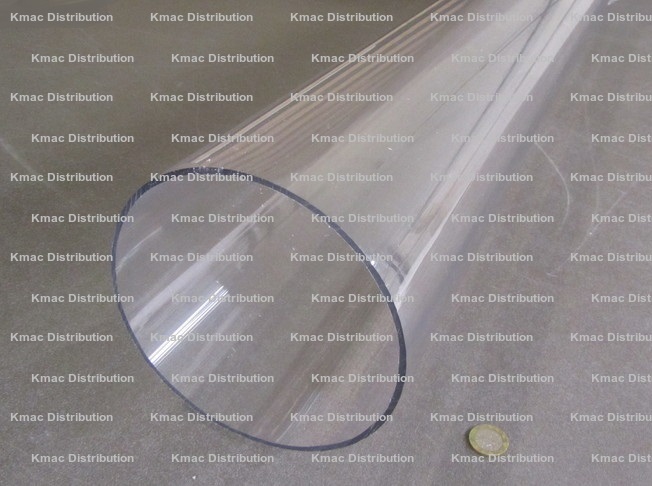

| KM-8038Z | 6.50 | 6.25 | .125 | $150.35 | Add to Order |

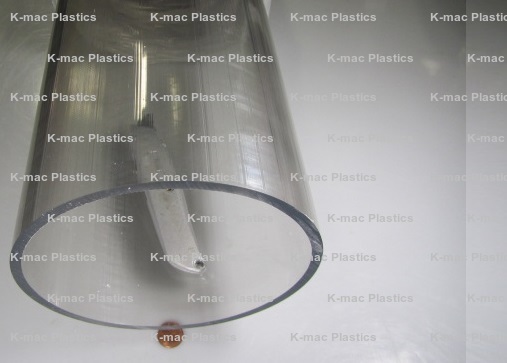

| KM-8063Z | 7.00 | 6.50 | .250 | $157.86 | Add to Order |

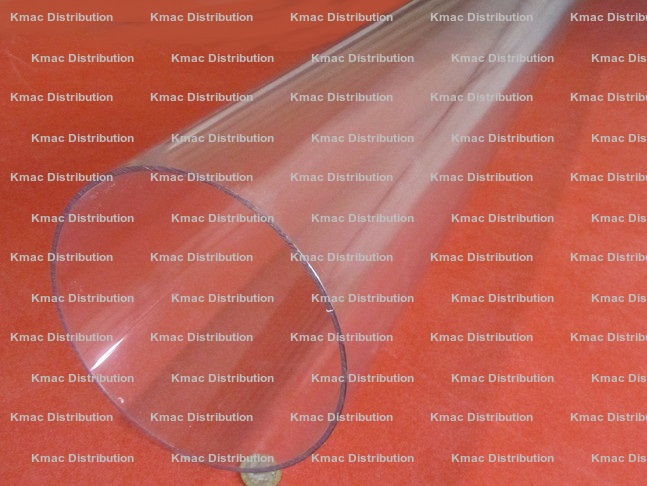

| KM-2100J | 7.00 | 6.75 | .125 | $65.27 | Add to Order |

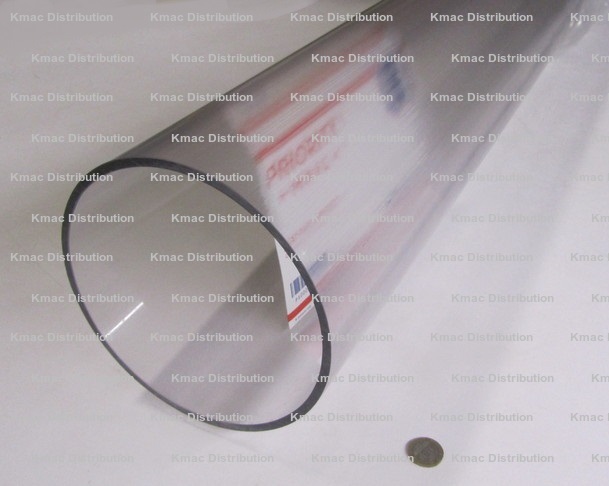

| KM-8064Z | 7.50 | 7.00 | .250 | $163.00 / 8 Ft Min.. | Add to Order |
| KM-8039Z | 7.50 | 7.25 | .125 | $178.47 / 8 Ft Min.. | Add to Order |

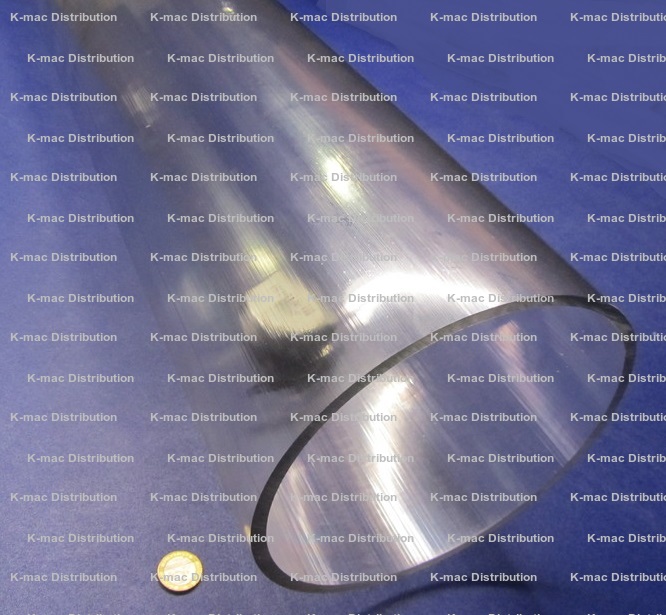

| KM-8065Z | 8.00 | 7.50 | .250 | $204.37 / 8 Ft Min.. | Add to Order |

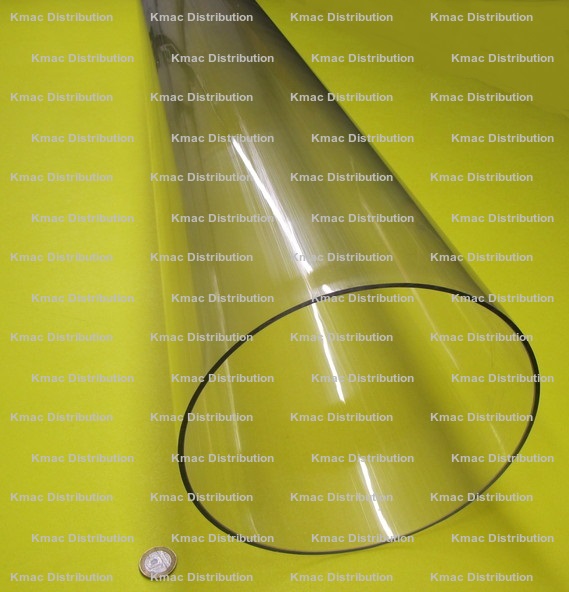

| KM-955 | 8.00 | 7.75 | .125 | $55.77 / 8 Ft Min.. | Add to Order |
| KM-8040Z | 8.50 | 8.25 | .125 | $222.26 / 8 Ft Min.. | Add to Order |
| KM-8066Z | 9.00 | 8.50 | .250 | $241.83 / 8 Ft Min.. | Add to Order |

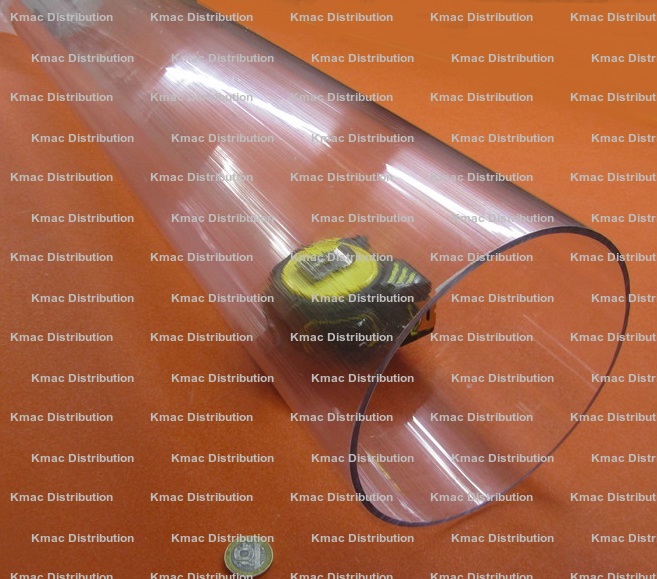

| KM-8041Z | 9.00 | 8.75 | .125 | $265.07 / 8 Ft Min.. | Add to Order |

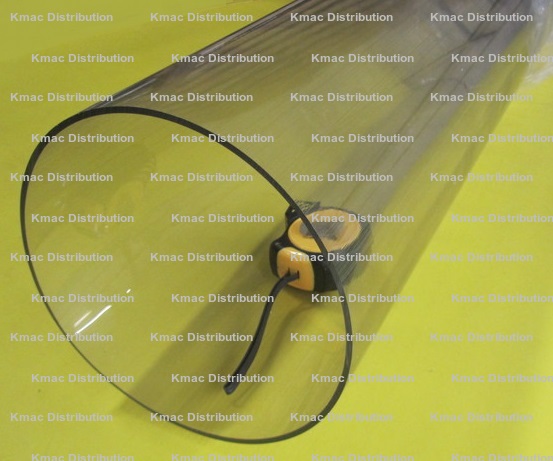

| KM-8042Z | 9.50 | 9.25 | .125 | $298.11 / 8 Ft Min.. | Add to Order |

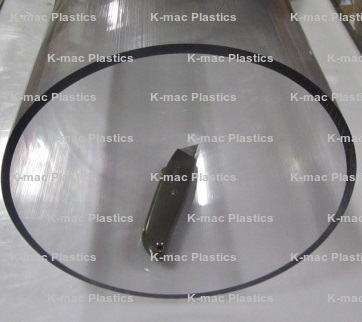

| KM-5606Z | 10.00 | 9.50 | .250 | $233.89 / 8 Ft Min.. | Add to Order |
| KM-8043Z | 10.00 | 9.75 | .125 | $268.08 / 8 Ft Min.. | Add to Order |

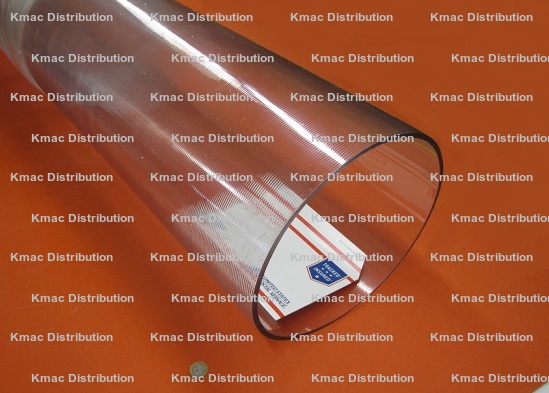

| KM-8067Z | 12.00 | 11.50 | .250 | $303.43 / 8 Ft Min.. | Add to Order |
| KM-8044Z | 12.00 | 11.75 | .125 | $386.61 / 8Ft Min | Add to Order |
| KM-24075 | 14.00 | 13.75 | .125 | $571.55 / 8 Ft Min.. | Add to Order |
| KM-24076 | 14.00 | 13.50 | .250 | $1,028.71 / 8 Ft Min.. | Add to Order |
| Rev. 06-24, 03-24, 01-24, 08-23 | |||||
Polycarbonate Tubes are not Pressure or Vacuum Rated
Tolerances:
.375"-2.00" OD Dia Tol +/-.025", ID Tol +/-.025"
2.125"-4.00" OD Dia +/-.045", ID Tol +/-.035"
4.25"-5.00" OD Dia +/-.065", ID Tol +/-.045"
5.25"-7.75" OD Dia +/-.070", ID Tol +/-.060"
8.00"-9.00" +Dia +/-.095", ID Tol +/-.100"
10.0"-14.0" Dia +/-.250"
|

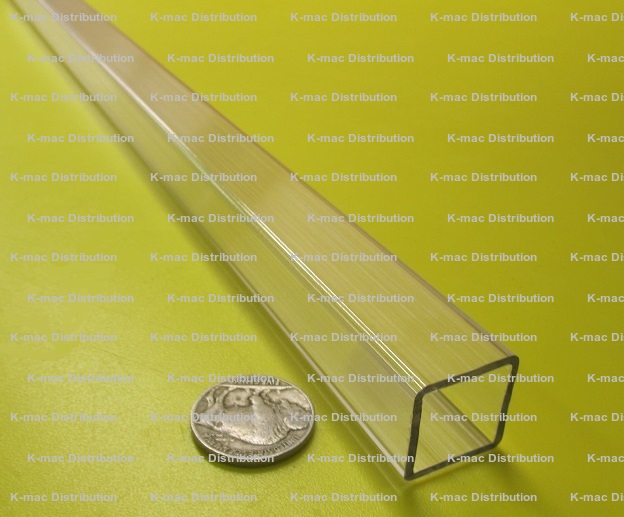

Polycarbonate Extruded Square Tubing, Clear
Wall Thickness Tolerance: +/-.008" 6 Foot Standard Lengths |
|||||||
| Part # | Outer Width (in.) | Inside Width (in.) | Wall Thickness (in.) | Width Tolerance | Price Each | Length (ft) | Order Online |
|---|---|---|---|---|---|---|---|

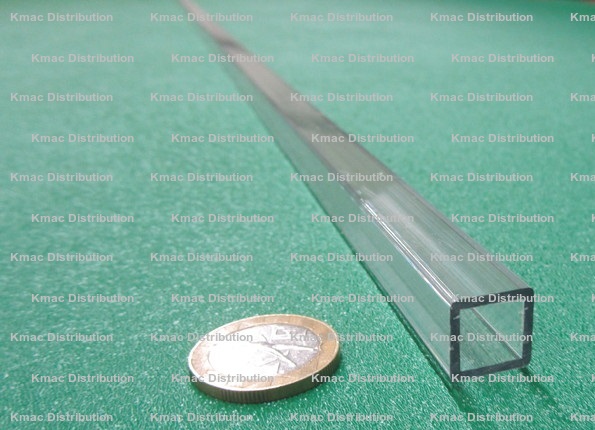

| KTBS-086 | 0.500 | 0.375 | 0.062 | +/-.010" | $68.11 | 6 | Add to Order |

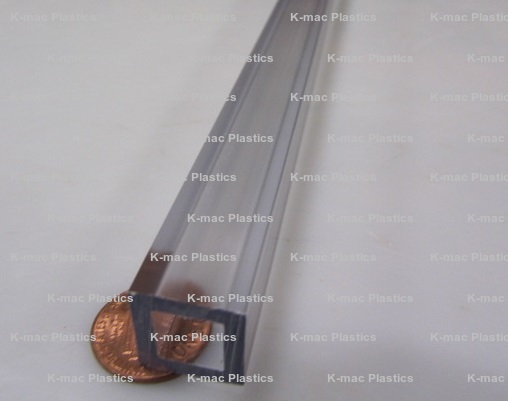

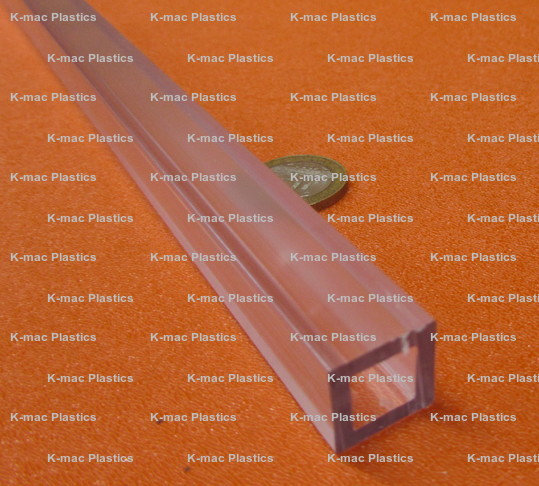

| KTBS-120 | 0.625 | 0.375 | 0.125 | +/-.020" | $62.92 | 8 | Add to Order |
| KTBS-087 | 0.750 | 0.625 | 0.062 | +/-.020" | $63.94 | 6 | Add to Order |

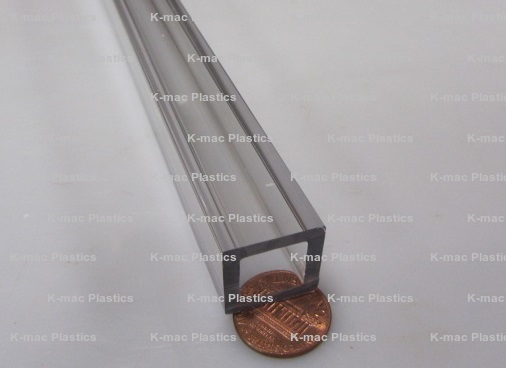

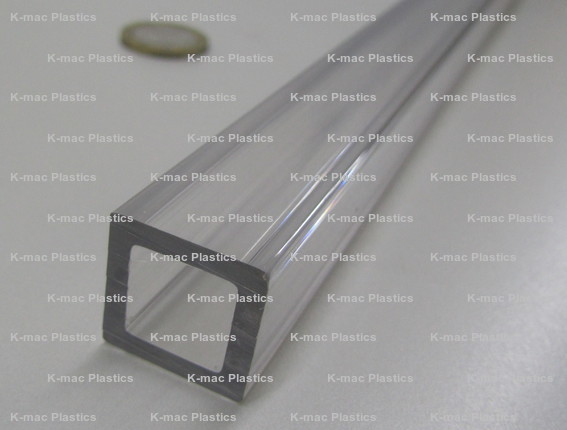

| KTBS-121 | 0.750 | 0.500 | 0.125 | +/-.020" | $61.75 | 8 | Add to Order |

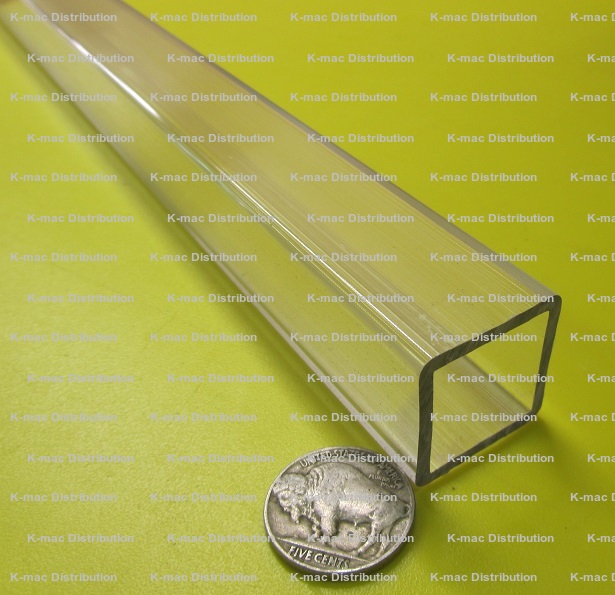

| KTBS-088 | 1.00 | 0.840 | 0.080 | +/-.020" | $99.36 | 6 | Add to Order |

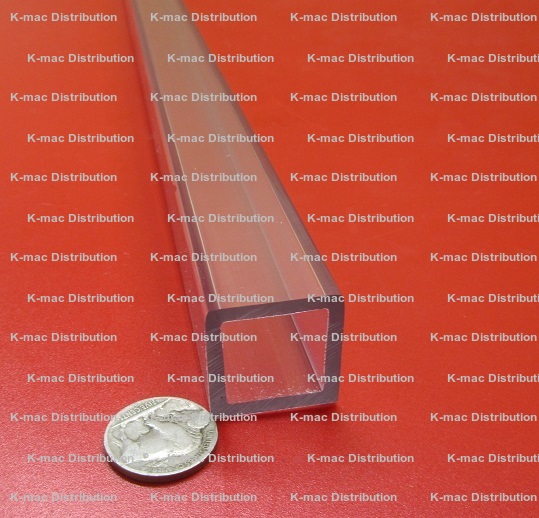

| KTBS-122 | 1.00 | 0.750 | 0.125 | +/-.020" | $73.61 | 8 | Add to Order |

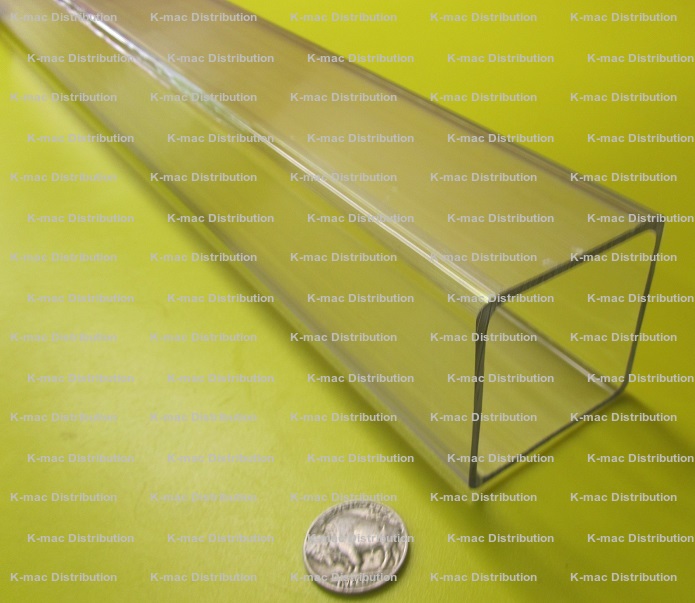

| KTBS-089 | 2.00 | 1.840 | 0.080 | +/-.030" | $198.72 | 6 | Add to Order |

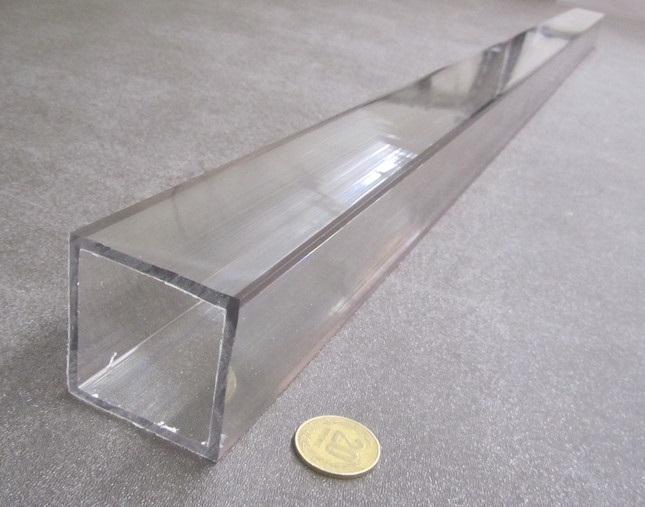

| KTBS-123 | 2.00 | 1.750 | 0.125 | +/-.030" | $171.78 | 8 | Add to Order |
| Rev. 08-23, 04-23, 10-22, 09-22 | |||||||
