Paper X, XX, XXX Reinforced Phenolic Laminate Tubes- .375" Wall Thickness

 Paper Phenolic Tube .375 Inch Wall

Paper X/XX/XXX Reinforced Phenolic Tubes - natural (tan) Technical Data Sheet
This grade is composed of a paper base impregnated with a phenolic resin binder. It has good electric strength properties with fair mechanical strength. Outstanding for use as template material and or backup material.
NEMA X certs to MIL-I-24768/12 PBM, IEC 60893-3 Type 4 PF CP 201
NEMA XX certs to MIL-I-24768/11 PBG, IEC 60893-3 Type 4 PF CP 203
NEMA XXX certs to MIL-I-24768/10 PBE, IEC 60893-3 Type 4 PF CP 201

NEMA grades X, XX and XXX Paper Reinforced Phenolic -- natural color is typically light tan to brown. These grades are composed of a paper base impregnated with a phenolic resin binder. (Phenolics are the oldest, best-known general purpose thermoset resins. They are among the lowest in cost and easiest to process. Phenolics are quite adequate for a fair percentage of electrical applications. Generally speaking, they are not equivalent to epoxies in resistance to moisture, humidity, dimensional stability, shrinkage and retention of electrical properties in extreme environments.) The paper reinforced phenolic has good electric strength properties with fair mechanical strength and are outstanding for use as template material and/or back-up material.

Click Here for X, XX, XXX  or Sheets Bar Stock

Chemical Resistance Chart

Select X, XX, XXX Tubing Wall Thickness
.031" .062" .093"
.125" .187" .250"
.375" .500" .750"
1.00"

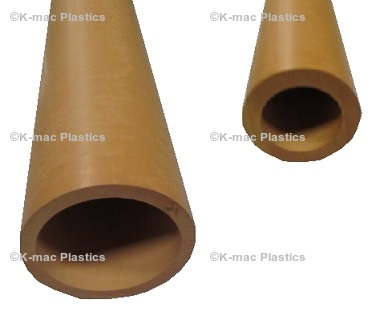

Paper Phenolic Tubes .375" Wall Thickness
Stock # OD Inch ID Inch Wall Actual Min Purchase Feet  Price/Ft Purchase Online
KM-22896 1.250 .500 .375 12 $28.53 Buy Now
KM-22885 1.312 .562 .375 12 $30.58 Buy Now
KM-22884 1.375 .625 .375 12 $32.60 Buy Now
KM-22883BQ 1.437 .687 .375 12 $34.33 Buy Now
KM-22882BQ 1.500 .750 .375 12 $35.98 Buy Now
KM-22881 1.562 .812 .375 12 $37.63 Buy Now
KM-22880BQ 1.625 .875 .375 12 $39.20 Buy Now
KM-22879 1.688 .937 .375 9 $40.75 Buy Now
KM-22851 1.750 1.00 .375 9 $41.85 Buy Now
KM-22823 1.812 1.062 .375 9 $43.75 Buy Now
KM-22860 1.875 1.125 .375 9 $45.65 Buy Now
KM-22838 1.937 1.187 .375 9 $47.55 Buy Now
KM-1921 2.000 1.250 .375 9 $49.45 Buy Now
KM-22836BQ 2.062 1.312 .375 9 $51.35 Buy Now
KM-21437 2.125 1.375 .375 9 $53.25 Buy Now
KM-21436 2.188 1.437 .375 9 $55.15 Buy Now
KM-1925 2.250 1.500 .375 9 $57.05 Buy Now
KM-21434 2.312 1.562 .375 6 $58.98 Buy Now
KM-21433 2.375 1.625 .375 6 $60.88 Buy Now
KM-21404 2.437 1.687 .375 6 $62.78 Buy Now
KM-1930 2.500 1.750 .375 6 $64.68 Buy Now
KM-21414 2.562 1.812 .375 6 $66.58 Buy Now
KM-21391 2.625 1.875 .375 6 $68.48 Buy Now
KM-21390 2.688 1.937 .375 6 $70.38 Buy Now
KM-1935 2.750 2.000 .375 6 $72.93 Buy Now
KM-21388 2.812 2.062 .375 6 $74.18 Buy Now
KM-21387 2.875 2.125 .375 6 $76.08 Buy Now
KM-21386 2.937 2.187 .375 6 $77.98 Buy Now
KM-1940 3.000 2.250 .375 6 $80.11 Buy Now
KM-21384 3.062 2.312 .375 6 $81.80 Buy Now
KM-21393 3.125 2.375 .375 6 $83.70 Buy Now
KM-21382 3.188 2.437 .375 6 $85.60 Buy Now
KM-1945 3.250 2.500 .375 6 $87.72 Buy Now
KM-21380 3.312 2.562 .375 6 $89.40 Buy Now
KM-21379 3.375 2.625 .375 6 $91.30 Buy Now
KM-21378 3.437 2.687 .375 6 $93.20 Buy Now
KM-1950 3.500 2.750 .375 6 $95.10 Buy Now
KM-21402 3.562 2.812 .375 6 $97.00 Buy Now
KM-21383 3.625 2.875 .375 6 $98.90 Buy Now
KM-21385 3.687 2.937 .375 6 $100.80 Buy Now
KM-1955 3.750 3.000 .375 6 $102.70 Buy Now
KM-21410 3.812 3.062 .375 6 $104.60 Buy Now
KM-21409 3.875 3.125 .375 6 $106.53 Buy Now
KM-21408 3.937 3.187 .375 6 $108.43 Buy Now
KM-1960 4.000 3.250 .375 6 $109.63 Buy Now
KM-21406 4.062 3.312 .375 6 $112.23 Buy Now
KM-21405 4.125 3.375 .375 3 $114.13 Buy Now
KM-21394 4.187 3.437 .375 3 $116.03 Buy Now
KM-1965 4.250 3.500 .375 3 $117.93 Buy Now
KM-21412 4.312 3.562 .375 3 $119.83 Buy Now
KM-21401 4.375 3.625 .375 3 $121.73 Buy Now
KM-21400 4.437 3.687 .375 3 $123.63 Buy Now
KM-1970 4.500 3.750 .375 3 $125.53 Buy Now
KM-21398 4.562 3.812 .375 3 $126.53 Buy Now
KM-21397 4.625 3.875 .375 3 $127.43 Buy Now
KM-21396 4.687 3.937 .375 3 $131.25 Buy Now
KM-21395 4.750 4.000 .375 3 $133.15 Buy Now
KM-21623 4.812 4.062 .375 3 $135.05 Buy Now
KM-21851 4.875 4.125 .375 3 $136.95 Buy Now
KM-21594 4.937 4.187 .375 3 $138.85 Buy Now
KM-21809 5.000 4.250 .375 3 $140.75 Buy Now
KM-21808 5.062 4.312 .375 3 $142.65 Buy Now
KM-21807 5.125 4.375 .375 3 $144.55 Buy Now
KM-21806 5.187 4.438 .375 3 $146.45 Buy Now
KM-21805 5.250 4.500 .375 3 $148.35 Buy Now
KM-21804 5.312 4.562 .375 3 $150.25 Buy Now
KM-21793 5.375 4.625 .375 3 $152.18 Buy Now
KM-21802 5.437 4.687 .375 3 $154.08 Buy Now
KM-21811 5.500 4.750 .375 3 $155.98 Buy Now
KM-21800 5.562 4.812 .375 3 $157.88 Buy Now
KM-21799 5.625 4.875 .375 3 $159.78 Buy Now
KM-21722 5.688 4.937 .375 3 $161.68 Buy Now
KM-21798 5.750 5.000 .375 3 $163.58 Buy Now
KM-21797 5.812 5.062 .375 3 $165.48 Buy Now
KM-21796 5.875 5.125 .375 3 $167.38 Buy Now
KM-21795 5.938 5.187 .375 3 $169.28 Buy Now
KM-21820 6.000 5.250 .375 3 $171.18 Buy Now
KM-21801 6.063 5.313 .375 3 $173.08 Buy Now
KM-21803 6.125 5.375 .375 3 $175.00 Buy Now
KM-21829 6.187 5.437 .375 3 $176.90 Buy Now
KM-21828 6.250 5.500 .375 3 $178.80 Buy Now
KM-21827 6.312 5.562 .375 3 $180.70 Buy Now
KM-21826 6.375 5.625 .375 3 $182.60 Buy Now
KM-21825 6.437 5.687 .375 3 $184.25 Buy Now
KM-21824 6.500 5.750 .375 3 $185.90 Buy Now
KM-21823 6.562 5.812 .375 3 $187.58 Buy Now
KM-21812 6.625 5.875 .375 3 $189.20 Buy Now
KM-21821 6.688 5.937 .375 3 $190.85 Buy Now
KM-21830 6.750 6.000 .375 3 $192.48 Buy Now
KM-21819 6.812 6.062 .375 3 $194.13 Buy Now
KM-21818 6.875 6.125 .375 3 $195.75 Buy Now
KM-21817 6.938 6.187 .375 3 $197.38 Buy Now
KM-21816 7.000 6.250 .375 3 $198.98 Buy Now
KM-21815 7.062 6.312 .375 3 $200.60 Buy Now
KM-21814 7.125 6.375 .375 3 $202.20 Buy Now
KM-21813 7.187 6.437 .375 3 $203.80 Buy Now
KM-21784 7.250 6.500 .375 3 $205.40 Buy Now
KM-21756 7.312 6.562 .375 3 $206.98 Buy Now
KM-21794 7.375 6.625 .375 3 $208.58 Buy Now
KM-21771 7.437 6.687 .375 3 $210.15 Buy Now
KM-21770 7.500 6.750 .375 3 $211.73 Buy Now
KM-21769 7.562 6.812 .375 3 $213.30 Buy Now
KM-21768 7.625 6.875 .375 3 $214.88 Buy Now
KM-21767 7.688 6.938 .375 3 $216.43 Buy Now
KM-21766 7.750 7.000 .375 3 $217.98 Buy Now
KM-21755 7.812 7.062 .375 3 $219.53 Buy Now
KM-21764 7.875 7.125 .375 3 $221.08 Buy Now
KM-21773 7.938 7.187 .375 3 $222.63 Buy Now
KM-21762 8.000 7.250 .375 3 $224.15 Buy Now
KM-21761 8.062 7.312 .375 3 $225.70 Buy Now
KM-21760 8.125 7.375 .375 3 $227.23 Buy Now
KM-21759 8.188 7.437 .375 3 $228.73 Buy Now
KM-21758 8.250 7.500 .375 3 $230.25 Buy Now
KM-21757 8.312 7.562 .375 3 $231.78 Buy Now
KM-21782 8.375 7.625 .375 3 $233.28 Buy Now
KM-21763 8.437 7.687 .375 3 $234.78 Buy Now
KM-21765 8.500 7.750 .375 3 $236.28 Buy Now
KM-21791 8.562 7.812 .375 3 $237.75 Buy Now
KM-21790 8.625 7.875 .375 3 $239.25 Buy Now
KM-21789 8.688 7.937 .375 3 $240.73 Buy Now
KM-21788 8.750 8.000 .375 3 $242.20 Buy Now
KM-21787 8.812 8.062 .375 3 $243.68 Buy Now
KM-21786 8.875 8.125 .375 3 $245.15 Buy Now
KM-21785 8.938 8.187 .375 3 $246.60 Buy Now
KM-21774 9.000 8.250 .375 3 $249.10 Buy Now
KM-21783 9.062 8.312 .375 3 $312.95 Buy Now
KM-21792 9.125 8.375 .375 3 $315.05 Buy Now
KM-21781 9.188 8.437 .375 3 $317.18 Buy Now
KM-21780 9.250 8.500 .375 3 $319.28 Buy Now
KM-21779 9.312 8.562 .375 3 $321.40 Buy Now
KM-21778 9.375 8.625 .375 3 $323.50 Buy Now
KM-21777 9.437 8.687 .375 3 $325.60 Buy Now
KM-21776 9.500 8.75 .375 3 $327.70 Buy Now
KM-21775 9.563 8.812 .375 3 $329.83 Buy Now
KM-21832 9.625 8.875 .375 3 $331.93 Buy Now
KM-21889 9.688 8.937 .375 3 $334.00 Buy Now
KM-21822 9.750 9.000 .375 3 $336.10 Buy Now
KM-21885 9.812 9.062 .375 3 $338.20 Buy Now
KM-21884 9.875 9.125 .375 3 $340.30 Buy Now
KM-21883 9.937 9.187 .375 3 $342.38 Buy Now
KM-21882 10.000 9.250 .375 3 $344.48 Buy Now
KM-21881 10.062 9.312 .375 3 $346.55 Buy Now
KM-21880 10.125 9.375 .375 3 $348.65 Buy Now
KM-21869 10.187 9.437 .375 3 $350.73 Buy Now
KM-21878 10.250 9.500 .375 3 $352.80 Buy Now
KM-21887 10.313 9.562 .375 3 $354.88 Buy Now
KM-21876 10.375 9.625 .375 3 $356.98 Buy Now
KM-21875 10.437 9.687 .375 3 $359.05 Buy Now
KM-21874 10.500 9.750 .375 3 $361.10 Buy Now
KM-21873 10.563 9.813 .375 3 $363.18 Buy Now
KM-21872 10.625 9.875 .375 3 $365.25 Buy Now
KM-21871 10.688 9.937 .375 3 $367.33 Buy Now
KM-21870 10.750 10.000 .375 3 $369.38 Buy Now
KM-21896 10.813 10.062 .375 3 $371.45 Buy Now
KM-21898 10.875 10.125 .375 3 $373.50 Buy Now
KM-21879 10.937 10.187 .375 3 $375.58 Buy Now
KM-21905 11.000 10.250 .375 3 $377.63 Buy Now
KM-21904 11.062 10.312 .375 3 $379.68 Buy Now
KM-21903 11.125 10.375 .375 3 $381.73 Buy Now
KM-21902 11.188 10.437 .375 3 $383.78 Buy Now
KM-21901 11.250 10.500 .375 3 $385.00 Buy Now
KM-21900 11.313 10.562 .375 3 $387.20 Buy Now
KM-21899 11.375 10.625 .375 3 $389.43 Buy Now
KM-21888 11.437 10.687 .375 3 $391.63 Buy Now
KM-21897 11.500 10.750 .375 3 $393.85 Buy Now
KM-21907 11.562 10.812 .375 3 $396.05 Buy Now
KM-21895 11.625 10.875 .375 3 $398.28 Buy Now
KM-21894 11.687 10.937 .375 3 $400.48 Buy Now
KM-21893 11.750 11.000 .375 3 $402.70 Buy Now
KM-21892 11.812 11.062 .375 3 $404.90 Buy Now
KM-21891 11.875 11.125 .375 3 $406.45 Buy Now
KM-21890 11.937 11.187 .375 3 $409.33 Buy Now
KM-21860 12.000 11.250 .375 3 $411.55 Buy Now
KM-21906 12.062 11.312 .375 3 $413.75 Buy Now
KM-21877 12.125 11.375 .375 3 $415.98 Buy Now
KM-21848 12.187 11.437 .375 3 $418.18 Buy Now
KM-21847 12.250 11.500 .375 3 $420.40 Buy Now
KM-21846 12.313 11.562 .375 3 $422.60 Buy Now
KM-21845 12.375 11.625 .375 3 $424.83 Buy Now
KM-21844 12.437 11.687 .375 3 $427.03 Buy Now
KM-21843 12.500 11.750 .375 3 $429.25 Buy Now
KM-21842 12.562 11.812 .375 3 $431.45 Buy Now
KM-21831 12.625 11.875 .375 3 $433.68 Buy Now
KM-21840 12.687 11.937 .375 3 $435.88 Buy Now
KM-21849 12.750 12.000 .375 3 $438.10 Buy Now
KM-21838 12.812 12.062 .375 3 $440.30 Buy Now
KM-21837 12.875 12.125 .375 3 $442.53 Buy Now
KM-21836 12.937 12.187 .375 3 $444.73 Buy Now
KM-21835 13.000 12.250 .375 3 $446.95 Buy Now
KM-21834 13.062 12.312 .375 3 $449.15 Buy Now
KM-21833 13.125 12.375 .375 3 $451.38 Buy Now
KM-21858 13.187 12.437 .375 3 $453.58 Buy Now
KM-21839 13.250 12.500 .375 3 $455.80 Buy Now
KM-21841 13.312 12.562 .375 3 $458.00 Buy Now
KM-21867 13.375 12.625 .375 3 $460.23 Buy Now
KM-21866 13.437 12.687 .375 3 $462.43 Buy Now
KM-21865 13.500 12.750 .375 3 $464.65 Buy Now
KM-21864 13.562 12.813 .375 3 $466.85 Buy Now
KM-21863 13.625 12.875 .375 3 $469.08 Buy Now
KM-21862 13.687 12.937 .375 3 $471.28 Buy Now
KM-21861 13.750 13.000 .375 3 $473.50 Buy Now
KM-21850 13.812 13.062 .375 3 $475.70 Buy Now
KM-21859 13.875 13.125 .375 3 $477.93 Buy Now
KM-21868 13.937 13.187 .375 3 $480.13 Buy Now
KM-21857 14.000 13.250 .375 3 $482.35 Buy Now
KM-21856 14.062 13.312 .375 3 $484.55 Buy Now
KM-21855 14.125 13.375 .375 3 $486.78 Buy Now
KM-21854 14.187 13.437 .375 3 $488.98 Buy Now
KM-21853 14.250 13.500 .375 3 $491.20 Buy Now
KM-21852 14.312 13.562 .375 3 $493.40 Buy Now
KM-21746 14.375 13.625 .375 3 $495.63 Buy Now
KM-21886 14.437 13.687 .375 3 $497.83 Buy Now
KM-21772 14.500 13.750 .375 3 $500.05 Buy Now
KM-21658 14.562 13.812 .375 3 $502.25 Buy Now
KM-21657 14.625 13.875 .375 3 $504.48 Buy Now
KM-21656 14.687 13.937 .375 3 $506.68 Buy Now
KM-21655 14.750 14.000 .375 3 $508.90 Buy Now
KM-21654 14.812 14.062 .375 3 $511.10 Buy Now
KM-21653 14.875 14.125 .375 3 $513.33 Buy Now
KM-21652 14.937 14.187 .375 3 $515.53 Buy Now
KM-21641 15.000 14.250 .375 3 $517.75 Buy Now
KM-21650 15.062 14.312 .375 3 $519.95 Buy Now
KM-21659 15.125 14.375 .375 3 $522.18 Buy Now
KM-21648 15.187 14.437 .375 3 $524.38 Buy Now
KM-21647 15.250 14.500 .375 3 $526.60 Buy Now
KM-21646 15.312 14.562 .375 3 $528.80 Buy Now
KM-21645 15.375 14.625 .375 3 $531.03 Buy Now
KM-21644 15.437 14.687 .375 3 $533.23 Buy Now
KM-21643 15.500 14.750 .375 3 $535.45 Buy Now
KM-21668 15.562 14.812 .375 3 $537.65 Buy Now
KM-21649 15.625 14.875 .375 3 $539.88 Buy Now
KM-21651 15.687 14.937 .375 3 $542.08 Buy Now
KM-21677 15.750 15.000 .375 3 $544.30 Buy Now
KM-21676 15.812 15.062 .375 3 $546.50 Buy Now
KM-21675 15.875 15.125 .375 3 $548.73 Buy Now
KM-21674 15.937 15.187 .375 3 $550.93 Buy Now
KM-21673 16.000 15.250 .375 3 $553.15 Buy Now
KM-21672 16.062 15.312 .375 3 $555.35 Buy Now
KM-21671 16.125 15.375 .375 3 $557.58 Buy Now
KM-21660 16.187 15.437 .375 3 $559.78 Buy Now
KM-21669 16.250 15.500 .375 3 $562.00 Buy Now
KM-21678 16.312 15.562 .375 3 $564.20 Buy Now
KM-21667 16.375 15.625 .375 3 $566.43 Buy Now
KM-21666 16.437 15.687 .375 3 $568.63 Buy Now
KM-21665 16.500 15.750 .375 3 $570.85 Buy Now
KM-21664 16.562 15.812 .375 3 $573.05 Buy Now
KM-21663 16.625 15.875 .375 3 $575.28 Buy Now
KM-21662 16.687 15.937 .375 3 $577.48 Buy Now
KM-21661 16.750 16.000 .375 3 $579.70 Buy Now
KM-21632 16.812 16.062 .375 3 $581.90 Buy Now
KM-21604 16.875 16.125 .375 3 $584.13 Buy Now
KM-21642 16.937 16.187 .375 3 $586.33 Buy Now
KM-21619 17.000 16.250 .375 3 $588.55 Buy Now
KM-21618 17.062 16.312 .375 3 $590.75 Buy Now
KM-21617 17.125 16.375 .375 3 $592.98 Buy Now
KM-21616 17.187 16.437 .375 3 $595.18 Buy Now
KM-21615 17.250 16.500 .375 3 $597.40 Buy Now
KM-21614 17.312 16.562 .375 3 $599.60 Buy Now
KM-21603 17.375 16.625 .375 3 $601.83 Buy Now
KM-21612 17.437 16.687 .375 3 $604.03 Buy Now
KM-21621 17.500 16.750 .375 3 $606.25 Buy Now
KM-21610 17.562 16.812 .375 3 $609.70 Buy Now
KM-21609 17.625 16.875 .375 3 $610.68 Buy Now
KM-21608 17.687 16.937 .375 3 $612.88 Buy Now
KM-21607 17.750 17.000 .375 3 $615.10 Buy Now
KM-21606 17.812 17.062 .375 3 $617.30 Buy Now
KM-21605 17.875 17.125 .375 3 $619.53 Buy Now
KM-21630 17.937 17.187 .375 3 $621.73 Buy Now
KM-21611 18.000 17.250 .375 3 $623.95 Buy Now
KM-21613 18.062 17.312 .375 3 $626.15 Buy Now
KM-21639 18.125 17.375 .375 3 $628.38 Buy Now
KM-21638 18.187 17.437 .375 3 $630.58 Buy Now
KM-21637 18.250 17.500 .375 3 $632.80 Buy Now
KM-21636 18.312 17.562 .375 3 $635.00 Buy Now
KM-21635 18.375 17.625 .375 3 $637.23 Buy Now
KM-21634 18.437 17.687 .375 3 $639.43 Buy Now
KM-21633 18.500 17.750 .375 3 $641.65 Buy Now
KM-21622 18.562 17.812 .375 3 $643.85 Buy Now
KM-21631 18.625 17.875 .375 3 $646.08 Buy Now
KM-21640 18.687 17.937 .375 3 $648.28 Buy Now
KM-21629 18.750 18.000 .375 3 $650.50 Buy Now
KM-21628 18.812 18.062 .375 3 $652.70 Buy Now
KM-21627 18.875 18.125 .375 3 $654.93 Buy Now
KM-21626 18.937 18.187 .375 3 $657.13 Buy Now
KM-21625 19.000 18.250 .375 3 $659.35 Buy Now
KM-21624 19.062 18.312 .375 3 $661.55 Buy Now
KM-21696 19.125 18.375 .375 3 $663.78 Buy Now
KM-21620 19.187 18.437 .375 3 $665.98 Buy Now
KM-21670 19.250 18.500 .375 3 $668.20 Buy Now
KM-21734 19.312 18.563 .375 3 $670.40 Buy Now
KM-21733 19.375 18.625 .375 3 $672.63 Buy Now
KM-22691 19.437 19.687 .375 3 $674.83 Buy Now
KM-21731 19.500 18.750 .375 3 $677.05 Buy Now
KM-22309 19.562 18.812 .375 3 $679.25 Buy Now
KM-21729 19.625 18.875 .375 3 $681.48 Buy Now
KM-21728 19.687 18.875 .375 3 $683.68 Buy Now
KM-21717 19.750 19.000 .375 3 $685.90 Buy Now
KM-21726 19.812 19.062 .375 3 $688.10 Buy Now
KM-21735 19.875 19.125 .375 3 $690.33 Buy Now
KM-21724 19.937 19.187 .375 3 $692.53 Buy Now
KM-21723 20.000 19.250 .375 3 $694.75 Buy Now

diameter

plus or minus (±) tolerance, inches

ID inside diameter

OD outside diameter

steel
mandrel

built-up
mandrel

.125" -.749"

.003"

-

.005"

.750" - 1.999"

.004"

-

.005"

2.000" - 4.000"

.006"

-

.008"



*turned

*as wound

4.001" - 12.000"

.010"

-

.025"

plus only

12.001" - 18.000"

.030"

.060"

.030"

plus only

18.001" - 24.000"

.040"

.075"

.035"

plus only

24.001" - 48.000"

.060"

.090"

.040"

plus only

*Note: tubing over 8.000" OD supplied as wound (turned OD quoted on request)
