Paper X, XX, XXX Reinforced Phenolic Laminate Tubes - .125" Wall Thickness

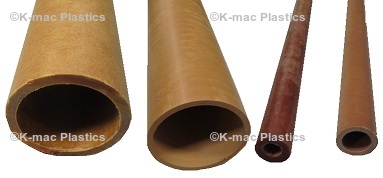

 Paper Phenolic Tubes .125 inch Wall

Paper X/XX/XXX Reinforced Phenolic Tubes - natural (tan) Technical Data Sheet
This grade is composed of a paper base impregnated with a phenolic resin binder. It has good electric strength properties with fair mechanical strength. Outstanding for use as template material and or backup material.
NEMA X certs to MIL-I-24768/12 PBM, IEC 60893-3 Type 4 PF CP 201
NEMA XX certs to MIL-I-24768/11 PBG, IEC 60893-3 Type 4 PF CP 203
NEMA XXX certs to MIL-I-24768/10 PBE, IEC 60893-3 Type 4 PF CP 201

NEMA grades X, XX and XXX Paper Reinforced Phenolic -- natural color is typically light tan to brown. These grades are composed of a paper base impregnated with a phenolic resin binder. (Phenolics are the oldest, best-known general purpose thermoset resins. They are among the lowest in cost and easiest to process. Phenolics are quite adequate for a fair percentage of electrical applications. Generally speaking, they are not equivalent to epoxies in resistance to moisture, humidity, dimensional stability, shrinkage and retention of electrical properties in extreme environments.) The paper reinforced phenolic has good electric strength properties with fair mechanical strength and are outstanding for use as template material and/or back-up material.

Click Here for X, XX, XXX  or Sheets Bar Stock

Chemical Resistance Chart

Select X, XX, XXX Tubing Wall Thickness
.031" .062" .093"
.125" .187" .250"
.375" .500" .750"
1.00"



Paper Phenolic Tubes .125" Wall Thickness
Stock # OD Inch ID Inch Min Purchase Feet  Price/Ft Purchase Online
KM-1866 .438 .187 51 $7.45 Buy Now
KM-1870 .500 .250 45 $8.20 Buy Now
KM-1874 .563 .312 42 $8.70 Buy Now
KM-1164 .625 .375 39 $7.54 Buy Now
KM-1878 .688 .437 36 $10.03 Buy Now
KM-1882 .750 .500 36 $10.23 Buy Now
KM-1887 .813 .562 36 $10.75 Buy Now
KM-1893 .875 .625 36 $10.80 Buy Now
KM-1898 .938 .687 30 $12.03 Buy Now
KM-1902 1.000 .750 30 $12.60 Buy Now
KM-22525 1.062 .812 30 $13.35 Buy Now
KM-1908 1.125 .875 27 $14.13 Buy Now
KM-22538 1.187 .937 27 $14.85 Buy Now
KM-1914 1.250 1.000 24 $15.58 Buy Now
KM-22536 1.312 1.062 24 $16.28 Buy Now
KM-22535 1.375 1.125 24 $16.98 Buy Now
KM-22534 1.437 1.187 21 $17.63 Buy Now
KM-1918 1.500 1.250 21 $18.28 Buy Now
KM-22532 1.562 1.312 21 $18.93 Buy Now
KM-22540 1.625 1.375 21 $19.55 Buy Now
KM-22530 1.688 1.437 18 $20.15 Buy Now
KM-1923 1.750 1.500 18 $20.73 Buy Now
KM-22528 1.812 1.562 18 $21.30 Buy Now

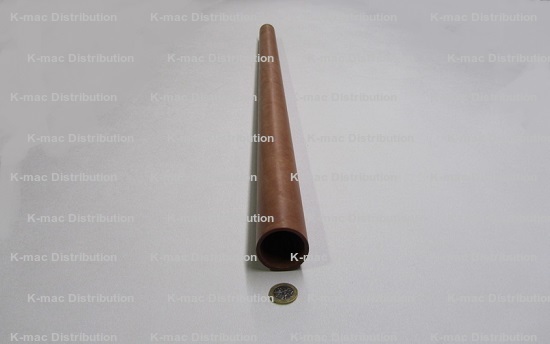

KM-22527 1.875 1.625 18 $21.85 Buy Now

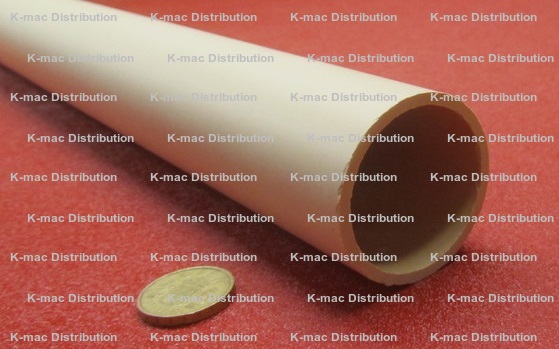

KM-22526 1.937 1.687 18 $22.38 Buy Now
KM-1928 2.000 1.750 15 $22.70 Buy Now

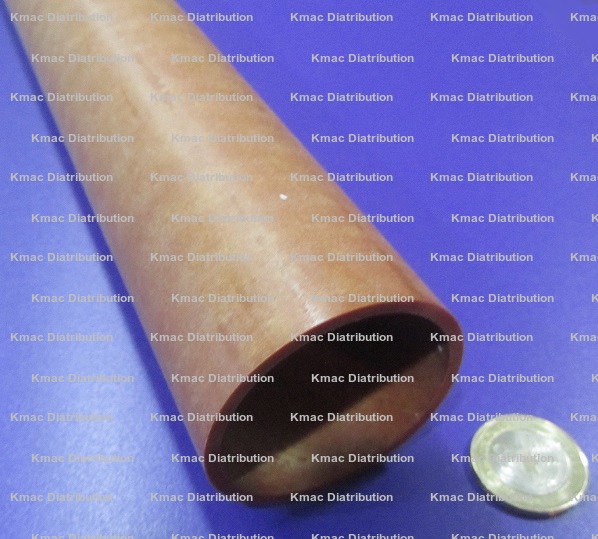

KM-22531 2.062 1.812 18 $23.45 Buy Now

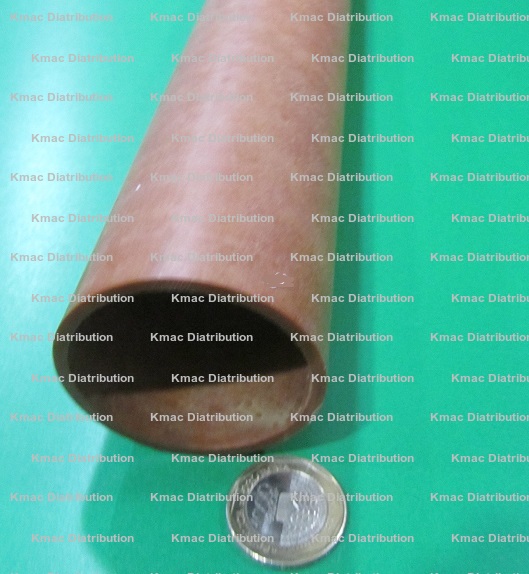

KM-22533 2.125 1.875 15 $24.18 Buy Now

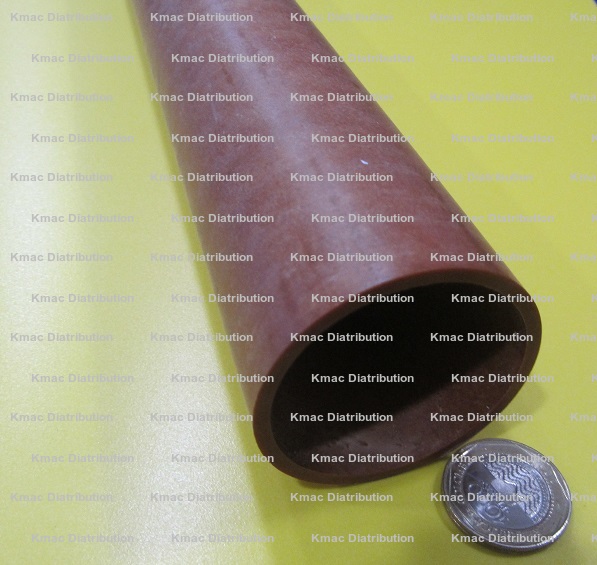

KM-22556 2.188 1.937 15 $24.90 Buy Now

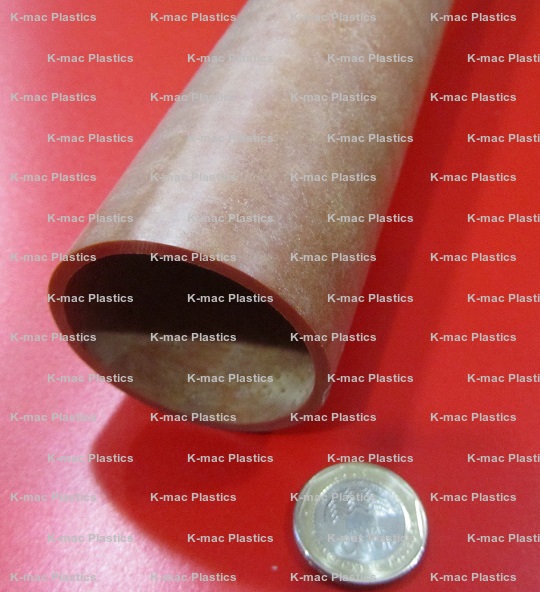

KM-1933 2.250 2.000 15 $25.63 Buy Now

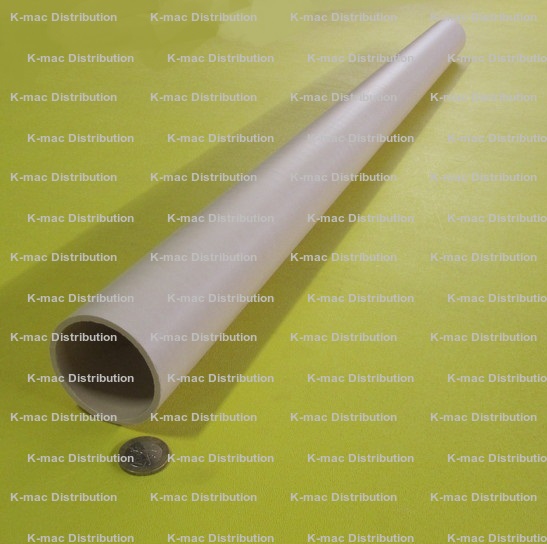

KM-22554 2.312 2.062 15 $26.35 Buy Now

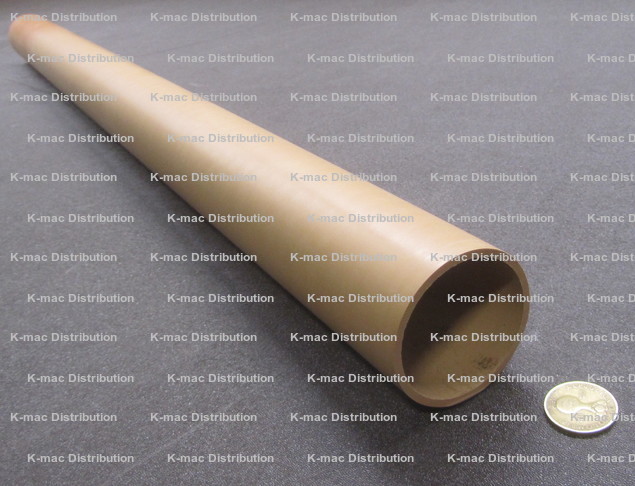

KM-22553 2.375 2.125 15 $27.08 Buy Now

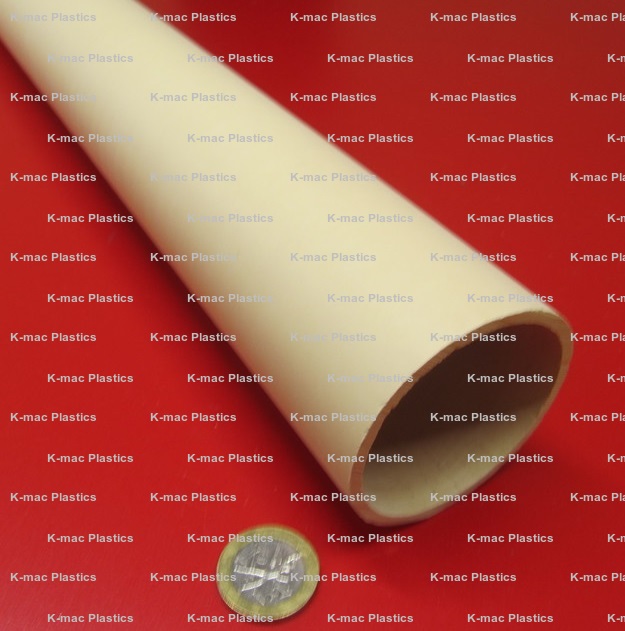

KM-22552 2.437 2.187 15 $27.80 Buy Now

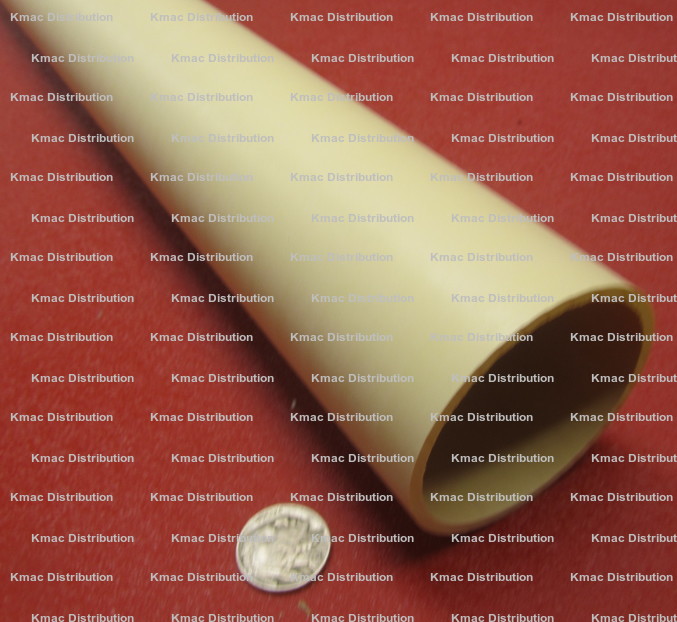

KM-1938 2.500 2.250 15 $28.50 Buy Now
KM-22541 2.562 2.312 15 $29.23 Buy Now
KM-4759 2.625 2.375 15 $35.94 Buy Now
KM-22557 2.688 2.437 12 $30.65 Buy Now
KM-1943 2.750 2.500 12 $31.38 Buy Now
KM-22546 2.812 2.562 12 $32.08 Buy Now
KM-22545 2.875 2.625 12 $32.80 Buy Now
KM-22544 2.937 2.687 12 $33.50 Buy Now
KM-1948 3.000 2.750 12 $33.85 Buy Now
KM-22834BQ 3.062 2.812 12 $34.20 Buy Now
KM-22833BQ 3.125 2.875 12 $35.63 Buy Now
KM-22822 3.188 2.937 12 $36.33 Buy Now
KM-1953 3.250 3.000 18 $37.03 Buy Now
KM-22840 3.312 3.062 12 $37.73 Buy Now
KM-22829BQ 3.375 3.125 12 $38.40 Buy Now
KM-22828 3.437 3.187 12 $39.10 Buy Now
KM-1958 3.500 3.250 9 $39.80 Buy Now
KM-22746 3.562 3.312 9 $40.50 Buy Now
KM-22755BQ 3.625 3.375 9 $41.18 Buy Now
KM-22764BQ 3.687 3.437 9 $41.88 Buy Now
KM-1963 3.750 3.500 9 $42.88 Buy Now
KM-22752BQ 3.812 3.500 9 $43.25 Buy Now
KM-22751 3.875 3.625 9 $43.93 Buy Now
KM-22750 3.937 3.687 9 $44.60 Buy Now
KM-1968 4.000 3.750 9 $45.28 Buy Now
KM-22748 4.062 3.812 9 $45.98 Buy Now
KM-22773BQ 4.125 3.875 9 $45.98 Buy Now
KM-22754 4.187 3.937 9 $47.33 Buy Now
KM-1973 4.250 4.000 9 $47.98 Buy Now
KM-22782BQ 4.312 4.062 9 $48.65 Buy Now
KM-22781BQ 4.375 4.125 9 $49.28 Buy Now
KM-22780BQ 4.437 4.187 9 $49.85 Buy Now
KM-22779 4.500 4.250 9 $50.45 Buy Now
KM-22778 4.562 4.312 9 $51.03 Buy Now
KM-22777BQ 4.625 4.375 9 $51.60 Buy Now
KM-22776BQ 4.687 4.438 9 $52.15 Buy Now
KM-1978 4.750 4.500 9 $52.73 Buy Now
KM-22774 4.812 4.562 9 $53.28 Buy Now
KM-22783 4.875 4.625 9 $53.85 Buy Now
KM-22772BQ 4.937 4.687 9 $54.40 Buy Now
KM-22771BQ 5.000 4.750 9 $54.95 Buy Now
KM-22770BQ 5.062 4.812 9 $55.48 Buy Now
KM-22769BQ 5.125 4.875 9 $56.03 Buy Now
KM-22768BQ 5.187 4.937 9 $56.58 Buy Now
KM-1983 5.250 5.000 9 $57.10 Buy Now
KM-22766BQ 5.312 5.062 9 $57.63 Buy Now
KM-22661BQ 5.375 5.125 9 $58.15 Buy Now
KM-22538 5.437 5.187 6 $58.68 Buy Now
KM-22690 5.500 5.250 6 $59.18 Buy Now
KM-22522 5.562 5.313 6 $59.70 Buy Now
KM-22572 5.625 5.375 6 $60.20 Buy Now
KM-22571 5.688 5.437 6 $60.70 Buy Now
KM-1989 5.750 5.500 6 $61.20 Buy Now
KM-22569 5.812 5.562 6 $61.70 Buy Now
KM-22826BQ 5.875 5.625 6 $62.20 Buy Now
KM-22825 5.938 5.687 6 $62.68 Buy Now

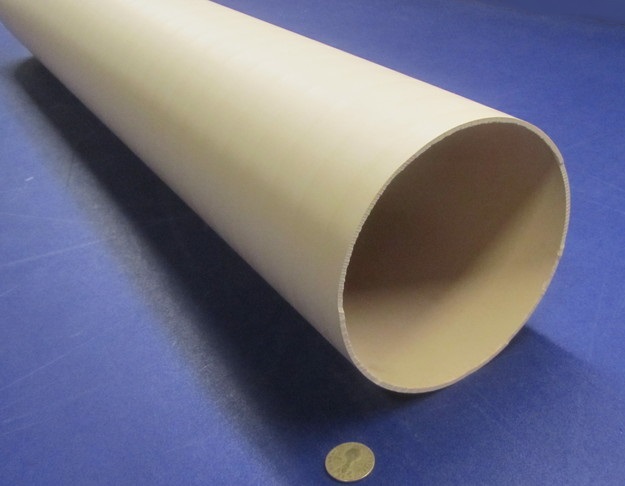

KM-22824BQ 6.000 5.750 6 $63.18 Buy Now
KM-22849 6.063 5.812 6 $63.65 Buy Now
KM-22830BQ 6.125 5.875 6 $64.13 Buy Now
KM-22832BQ 6.187 5.937 6 $64.60 Buy Now

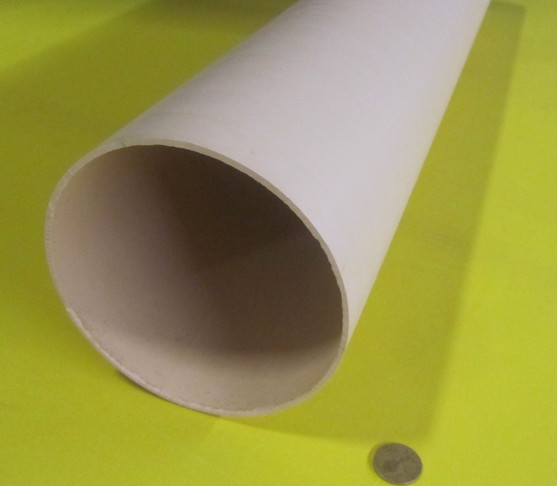

KM-1995 6.250 6.000 6 $65.08 Buy Now

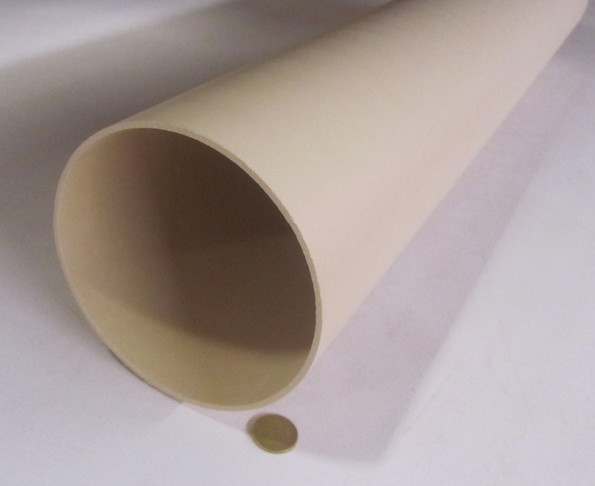

KM-22857 6.312 6.062 6 $65.53 Buy Now

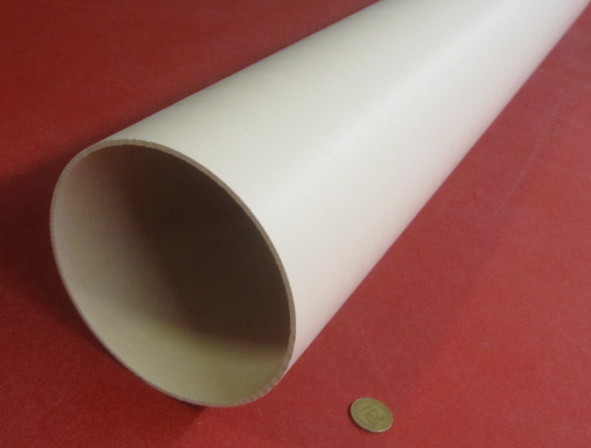

KM-22856BQ 6.375 6.125 6 $66.00 Buy Now

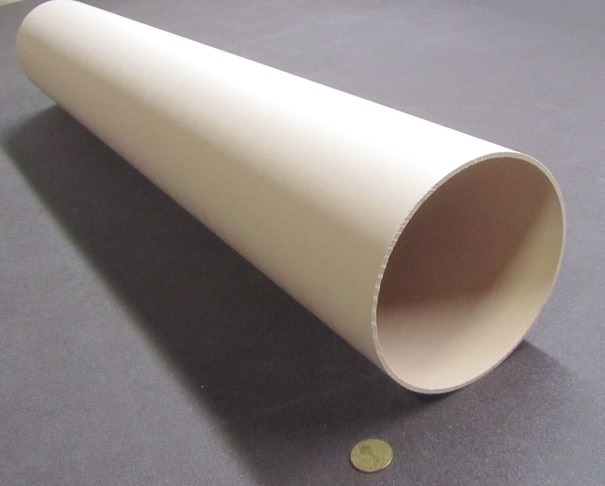

KM-22855BQ 6.437 6.187 6 $66.45 Buy Now

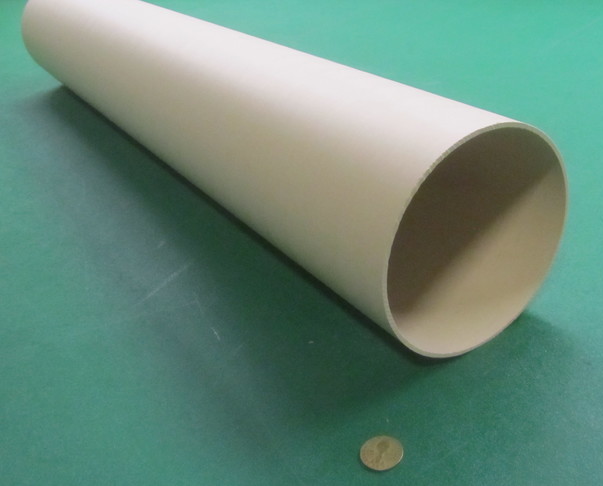

KM-22854BQ 6.500 6.250 6 $66.90 Buy Now

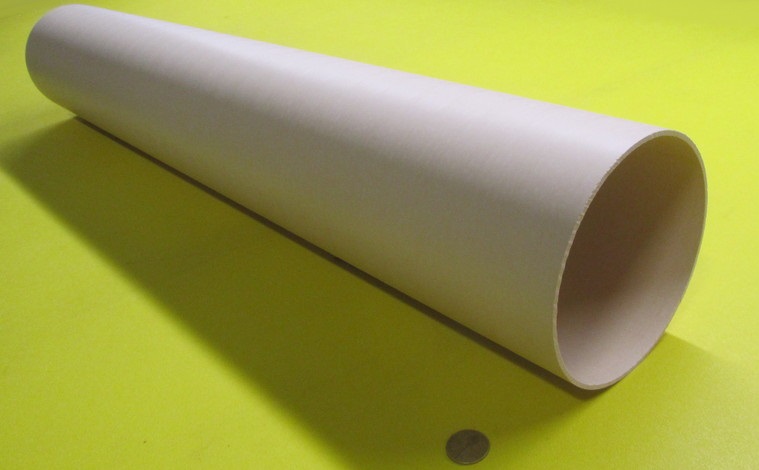

KM-22853 6.562 6.312 6 $67.35 Buy Now
KM-22852 6.625 6.375 6 $67.80 Buy Now
KM-22841 6.688 6.437 6 $68.23 Buy Now
KM-22850BQ 6.750 6.500 6 $69.95 Buy Now
KM-22858 6.812 6.562 6 $70.60 Buy Now
KM-22848BQ 6.875 6.625 6 $71.28 Buy Now
KM-22847 6.938 6.687 6 $71.93 Buy Now
KM-22543 7.000 6.750 6 $72.60 Buy Now
KM-22607 7.062 6.812 6 $73.25 Buy Now
KM-22539BQ 7.125 6.875 6 $73.90 Buy Now
KM-22584 7.187 6.938 6 $74.58 Buy Now
KM-22641 7.250 7.000 6 $75.23 Buy Now
KM-22640 7.312 7.062 6 $75.90 Buy Now
KM-22639 7.375 7.125 6 $76.35 Buy Now
KM-22638 7.437 7.187 6 $77.20 Buy Now
KM-22637 7.500 7.250 6 $77.88 Buy Now
KM-22636 7.562 7.312 6 $78.53 Buy Now
KM-22626 7.625 7.375 6 $79.18 Buy Now
KM-22634 7.688 7.437 6 $79.85 Buy Now
KM-22642 7.750 7.500 6 $80.50 Buy Now
KM-22632BQ 7.812 7.562 6 $81.18 Buy Now
KM-22631BQ 7.875 7.625 6 $81.83 Buy Now
KM-22630BQ 7.938 7.687 6 $82.48 Buy Now
KM-22629 8.000 7.750 6 $83.15 Buy Now
KM-22628BQ 8.062 7.812 6 $83.80 Buy Now
KM-22650BQ 8.125 7.875 6 $84.48 Buy Now
KM-22633 8.188 7.937 6 $85.13 Buy Now
KM-22635BQ 8.250 8.000 6 $85.78 Buy Now
KM-22658 8.312 8.062 6 $86.45 Buy Now
KM-22573 8.375 8.125 6 $87.10 Buy Now
KM-22725 8.437 8.187 6 $87.78 Buy Now
KM-22724BQ 8.500 8.250 6 $88.43 Buy Now
KM-22723BQ 8.562 8.312 6 $88.57 Buy Now
KM-22722 8.625 8.375 6 $89.08 Buy Now
KM-22721 8.688 8.437 6 $90.40 Buy Now
KM-22720 8.750 8.500 6 $91.08 Buy Now
KM-22719 8.812 8.562 6 $91.73 Buy Now
KM-22708BQ 8.875 8.625 6 $92.38 Buy Now
KM-22717BQ 8.938 8.687 6 $93.05 Buy Now
KM-22726 9.000 8.750 6 $93.70 Buy Now
KM-22715BQ 9.062 8.812 6 $151.73 Buy Now
KM-22714BQ 9.125 8.875 6 $152.78 Buy Now
KM-22713 9.188 8.937 6 $153.85 Buy Now
KM-22712BQ 9.250 9.000 6 $154.90 Buy Now
KM-22711 9.312 9.062 6 $155.98 Buy Now
KM-22710BQ 9.375 9.125 6 $157.03 Buy Now
KM-22735BQ 9.437 9.187 6 $158.10 Buy Now
KM-22716 9.500 9.250 6 $159.15 Buy Now
KM-22718BQ 9.563 9.312 6 $160.20 Buy Now
KM-22744 9.625 9.375 6 $161.28 Buy Now
KM-22743 9.688 9.437 6 $162.33 Buy Now
KM-22742BQ 9.750 9.500 6 $163.40 Buy Now
KM-22741 9.812 9.562 6 $164.45 Buy Now
KM-22740BQ 9.875 9.625 6 $165.53 Buy Now
KM-22739BQ 9.937 9.687 6 $166.58 Buy Now
KM-22738 10.000 9.750 6 $167.65 Buy Now
KM-22727BQ 10.062 9.813 6 $168.70 Buy Now
KM-22736BQ 10.125 9.875 6 $169.75 Buy Now
KM-22745BQ 10.187 9.937 6 $170.83 Buy Now
KM-22734BQ 10.250 10.00 6 $171.88 Buy Now
KM-22733BQ 10.313 10.062 6 $172.95 Buy Now
KM-22732 10.375 10.125 6 $174.00 Buy Now
KM-22731BQ 10.437 10.187 6 $175.08 Buy Now
KM-22730 10.500 10.250 6 $176.13 Buy Now
KM-22729BQ 10.563 10.312 6 $177.20 Buy Now
KM-22728 10.625 10.375 6 $178.25 Buy Now
KM-22699 10.688 10.437 6 $179.30 Buy Now
KM-22671BQ 10.750 10.500 6 $180.38 Buy Now
KM-22709BQ 10.813 10.562 6 $181.43 Buy Now
KM-22686BQ 10.875 10.625 6 $182.50 Buy Now
KM-22685 10.937 10.687 6 $183.55 Buy Now
KM-22684 11.000 10.750 6 $184.63 Buy Now
KM-22683BQ 11.062 10.812 6 $185.68 Buy Now
KM-22682BQ 11.125 10.875 3 $186.73 Buy Now
KM-22681 11.188 10.937 3 $187.80 Buy Now
KM-22670 11.250 11.000 3 $188.85 Buy Now
KM-22679 11.313 11.062 3 $189.93 Buy Now
KM-22688 11.375 11.125 3 $190.98 Buy Now
KM-22677BQ 11.437 11.187 3 $192.05 Buy Now
KM-22676 11.500 11.250 3 $193.10 Buy Now
KM-22675BQ 11.562 11.312 3 $194.18 Buy Now
KM-22674BQ 11.625 11.375 3 $195.23 Buy Now
KM-22673BQ 11.687 11.437 3 $196.28 Buy Now
KM-22672 11.750 11.500 3 $197.35 Buy Now
KM-22697BQ 11.812 11.562 3 $198.40 Buy Now
KM-22680BQ 11.937 11.687 3 $200.53 Buy Now
KM-22706 12.000 11.750 3 $201.60 Buy Now
KM-22705 12.062 11.812 3 $202.65 Buy Now
KM-22704 12.125 11.875 3 $203.73 Buy Now
KM-22703BQ 12.187 11.937 3 $204.78 Buy Now
KM-22702BQ 12.250 12.000 3 $205.83 Buy Now
KM-22701BQ 12.313 12.062 3 $206.90 Buy Now
KM-22700 12.375 12.125 3 $207.95 Buy Now
KM-22689BQ 12.437 12.187 3 $209.03 Buy Now
KM-22698 12.500 12.250 3 $210.08 Buy Now
KM-22707 12.562 12.312 3 $211.15 Buy Now
KM-22696 12.625 12.375 3 $212.20 Buy Now
KM-22695 12.687 12.437 3 $213.25 Buy Now
KM-22694BQ 12.750 12.500 3 $214.33 Buy Now
KM-22605 12.812 12.562 3 $215.38 Buy Now
KM-22692 12.875 12.625 3 $216.45 Buy Now
KM-22603BQ 12.937 12.687 3 $217.50 Buy Now
KM-22763 13.000 12.750 3 $218.58 Buy Now
KM-22687 13.062 12.813 3 $219.63 Buy Now
KM-22737BQ 13.125 12.875 3 $220.70 Buy Now
KM-22801 13.187 12.937 3 $221.75 Buy Now
KM-22800BQ 13.250 13.000 3 $222.80 Buy Now
KM-22799BQ 13.312 13.062 3 $223.88 Buy Now
KM-22798BQ 13.375 13.125 3 $224.11 Buy Now
KM-22797BQ 13.437 13.187 3 $224.93 Buy Now
KM-22796 13.500 13.250 3 $226.00 Buy Now
KM-22795 13.562 13.312 3 $228.13 Buy Now
KM-22784 13.625 13.375 3 $229.18 Buy Now
KM-22793 13.687 13.437 3 $230.25 Buy Now
KM-22802BQ 13.750 13.500 3 $231.30 Buy Now
KM-22791BQ 13.812 13.562 3 $232.35 Buy Now
KM-22790 13.875 13.625 3 $233.43 Buy Now
KM-22789BQ 13.937 13.687 3 $234.48 Buy Now
KM-22788 14.000 13.750 3 $235.55 Buy Now
KM-22787 14.062 13.812 3 $236.60 Buy Now
KM-22786 14.125 13.875 3 $237.68 Buy Now
KM-22811 14.187 13.937 3 $238.73 Buy Now
KM-22792BQ 14.250 14.000 3 $239.78 Buy Now
KM-22794BQ 14.312 14.062 3 $240.85 Buy Now
KM-22820BQ 14.375 14.125 3 $241.90 Buy Now
KM-22819BQ 14.437 14.187 3 $242.98 Buy Now
KM-22818BQ 14.500 14.250 3 $244.03 Buy Now
KM-22817 14.562 14.312 3 $245.10 Buy Now
KM-22816 14.625 14.375 3 $246.15 Buy Now
KM-22815 14.687 14.437 3 $247.23 Buy Now
KM-22814 14.750 14.500 3 $248.28 Buy Now
KM-22803 14.812 14.562 3 $249.33 Buy Now
KM-22812BQ 14.875 14.625 3 $250.40 Buy Now
KM-22821BQ 14.937 14.687 3 $251.45 Buy Now
KM-22810 15.000 14.750 3 $252.53 Buy Now
KM-22809 15.062 14.812 3 $253.58 Buy Now
KM-22808 15.125 14.875 3 $254.65 Buy Now
KM-22807 15.187 14.937 3 $255.70 Buy Now
KM-22806 15.250 15.000 3 $256.78 Buy Now
KM-22805BQ 15.312 15.062 3 $257.83 Buy Now
KM-22804 15.375 15.125 3 $258.88 Buy Now
KM-22775BQ 15.437 15.187 3 $259.95 Buy Now
KM-22747 15.500 15.250 3 $261.00 Buy Now
KM-22785BQ 15.562 15.312 3 $262.08 Buy Now
KM-22762 15.625 15.375 3 $263.13 Buy Now
KM-22761BQ 15.687 15.437 3 $264.20 Buy Now
KM-22760BQ 15.750 15.500 3 $265.25 Buy Now
KM-22759BQ 15.812 15.562 3 $266.30 Buy Now
KM-22758BQ 15.875 15.625 3 $267.38 Buy Now
KM-22757 15.937 15.687 3 $268.43 Buy Now
KM-22846 16.000 15.750 3 $269.50 Buy Now
KM-22845 16.062 15.812 3 $270.55 Buy Now
KM-22844BQ 16.125 15.875 3 $271.63 Buy Now
KM-22843BQ 16.187 15.937 3 $272.68 Buy Now
KM-22914 16.250 16.000 3 $273.75 Buy Now
KM-22839BQ 16.312 16.062 3 $274.80 Buy Now
KM-22888 16.375 16.125 3 $275.85 Buy Now
KM-22866BQ 16.437 16.187 3 $276.93 Buy Now
KM-22865BQ 16.500 16.250 3 $277.98 Buy Now
KM-22950BQ 16.562 16.312 3 $279.05 Buy Now
KM-22949 16.625 16.375 3 $280.10 Buy Now
KM-22948 16.687 16.437 3 $281.18 Buy Now
KM-22947BQ 16.750 16.500 3 $282.23 Buy Now
KM-22946 16.812 16.562 3 $283.30 Buy Now
KM-22935BQ 16.875 16.625 3 $284.35 Buy Now
KM-22944 16.937 16.687 3 $285.40 Buy Now
KM-22864BQ 17.000 16.750 3 $286.48 Buy Now
KM-22942BQ 17.062 16.812 3 $287.53 Buy Now
KM-22568 17.125 16.875 3 $288.60 Buy Now
KM-22567 17.187 16.937 3 $289.65 Buy Now
KM-22556 17.250 17.000 3 $290.73 Buy Now
KM-22565 17.312 17.062 3 $291.78 Buy Now
KM-22574 17.375 17.125 3 $292.83 Buy Now
KM-22563 17.437 17.187 3 $293.97 Buy Now
KM-22562 17.500 17.250 3 $294.95 Buy Now
KM-22561 17.562 17.312 3 $296.03 Buy Now
KM-22560 17.625 17.375 3 $297.08 Buy Now
KM-22559 17.687 17.437 3 $298.15 Buy Now
KM-22558 17.750 17.500 3 $299.20 Buy Now
KM-22583 17.812 17.562 3 $300.28 Buy Now
KM-22564 17.875 17.625 3 $301.33 Buy Now
KM-22566 17.937 17.687 3 $302.38 Buy Now
KM-22592 18.000 17.750 3 $303.45 Buy Now
KM-22591 18.062 17.812 3 $304.50 Buy Now
KM-22590 18.125 17.875 3 $305.58 Buy Now
KM-22589 18.187 17.937 3 $306.63 Buy Now
KM-22588 18.250 18.000 3 $307.70 Buy Now
KM-22587 18.312 18.062 3 $308.75 Buy Now
KM-22586 18.375 18.125 3 $309.83 Buy Now
KM-22575 18.437 18.187 3 $310.88 Buy Now
KM-22584 18.500 18.250 3 $311.93 Buy Now
KM-22593 18.562 18.312 3 $313.00 Buy Now
KM-22582 18.625 18.375 3 $314.05 Buy Now
KM-22581 18.687 18.437 3 $315.13 Buy Now
KM-22580 18.750 18.500 3 $316.18 Buy Now
KM-22579 18.812 18.563 3 $317.25 Buy Now
KM-22578 18.875 18.625 3 $318.30 Buy Now
KM-22577 18.937 19.687 3 $319.35 Buy Now
KM-22576 19.000 18.750 3 $320.43 Buy Now
KM-22547 19.062 18.812 3 $321.48 Buy Now
KM-22519 19.125 18.875 3 $322.55 Buy Now
KM-22557 19.187 18.937 3 $323.60 Buy Now
KM-22534 19.250 19.000 3 $324.68 Buy Now
KM-22533 19.312 19.062 3 $325.73 Buy Now
KM-22532 19.375 19.125 3 $326.80 Buy Now
KM-23051 19.437 19.187 3 $327.85 Buy Now
KM-22531 19.500 19.250 3 $328.90 Buy Now
KM-22530 19.562 19.312 3 $329.98 Buy Now
KM-22529 19.625 13.375 3 $331.03 Buy Now
KM-22518 19.687 19.437 3 $332.10 Buy Now
KM-22527 19.750 19.500 6 $333.15 Buy Now
KM-22536 19.812 19.562 3 $334.23 Buy Now
KM-22525 19.875 19.625 3 $335.28 Buy Now
KM-22524 19.937 19.687 3 $336.35 Buy Now
KM-22523 20.000 19.750 3 $337.40 Buy Now



diameter

plus or minus (±) tolerance, inches

ID inside diameter

OD outside diameter

steel
mandrel

built-up
mandrel

.125" -.749"

.003"

-

.005"

.750" - 1.999"

.004"

-

.005"

2.000" - 4.000"

.006"

-

.008"



*turned

*as wound

4.001" - 12.000"

.010"

-

.025"

plus only

12.001" - 18.000"

.030"

.060"

.030"

plus only

18.001" - 24.000"

.040"

.075"

.035"

plus only

24.001" - 48.000"

.060"

.090"

.040"

plus only

*Note: tubing over 8.000" OD supplied as wound (turned OD quoted on request)
