Paper X, XX, XXX Reinforced Phenolic Laminate Tubes- 1.00" Wall Thickness

Paper Phenolic 1.0 Inch Wall Tubes

Paper X/XX/XXX Reinforced Phenolic Tubes - natural (tan) Technical Data Sheet
This grade is composed of a paper base impregnated with a phenolic resin binder. It has good electric strength properties with fair mechanical strength. Outstanding for use as template material and or backup material.
NEMA X certs to MIL-I-24768/12 PBM, IEC 60893-3 Type 4 PF CP 201
NEMA XX certs to MIL-I-24768/11 PBG, IEC 60893-3 Type 4 PF CP 203
NEMA XXX certs to MIL-I-24768/10 PBE, IEC 60893-3 Type 4 PF CP 201

NEMA grades X, XX and XXX Paper Reinforced Phenolic -- natural color is typically light tan to brown. These grades are composed of a paper base impregnated with a phenolic resin binder. (Phenolics are the oldest, best-known general purpose thermoset resins. They are among the lowest in cost and easiest to process. Phenolics are quite adequate for a fair percentage of electrical applications. Generally speaking, they are not equivalent to epoxies in resistance to moisture, humidity, dimensional stability, shrinkage and retention of electrical properties in extreme environments.) The paper reinforced phenolic has good electric strength properties with fair mechanical strength and are outstanding for use as template material and/or back-up material.

Click Here for X, XX, XXX  or Sheets Bar Stock

Chemical Resistance Chart



Select X, XX, XXX Tubing Wall Thickness
.031" .062" .093"
.125" .187" .250"
.375" .500" .750"
1.00"



Paper Phenolic Tubes, 1.00" Wall Thickness
Stock # OD Inch ID Inch Min Purchase Feet  Price/Ft Purchase Online
KM-22109 2.500 .500 3 $113.03 Buy Now
KM-22098 2.562 .562 3 $117.63 Buy Now
KM-22107 2.625 .625 3 $122.18 Buy Now
KM-22116 2.688 .687 3 $126.75 Buy Now
KM-22105 2.750 .750 3 $131.30 Buy Now
KM-22104 2.812 .812 3 $135.83 Buy Now
KM-22103 2.875 .875 3 $140.38 Buy Now
KM-22102 2.937 .937 3 $144.73 Buy Now
KM-22101 3.000 1.000 3 $149.05 Buy Now
KM-22100 3.062 1.062 3 $153.98 Buy Now
KM-22125 3.125 1.125 3 $158.93 Buy Now
KM-22106 3.188 1.187 3 $163.88 Buy Now
KM-22108 3.250 1.250 3 $168.83 Buy Now
KM-22134 3.312 1.312 3 $173.83 Buy Now
KM-22133 3.375 1.375 3 $178.83 Buy Now
KM-22132 3.437 1.437 3 $183.85 Buy Now
KM-22131 3.500 1.500 3 $188.88 Buy Now
KM-22130 3.562 1.562 3 $193.93 Buy Now
KM-22129 3.625 1.625 3 $198.98 Buy Now
KM-22128 3.687 1.687 3 $204.08 Buy Now
KM-22117 3.750 1.750 3 $209.15 Buy Now
KM-22126 3.812 1.812 3 $214.28 Buy Now
KM-22135 3.875 1.875 3 $219.40 Buy Now
KM-22124 3.937 1.937 3 $224.55 Buy Now
KM-22123 4.000 2.000 3 $229.70 Buy Now
KM-22122 4.062 2.062 3 $234.88 Buy Now
KM-22121 4.125 2.125 3 $240.08 Buy Now
KM-22120 4.187 2.187 3 $245.28 Buy Now
KM-22119 4.250 2.250 3 $250.50 Buy Now
KM-22118 4.312 2.312 3 $255.75 Buy Now
KM-22089 4.375 2.375 3 $261.00 Buy Now
KM-22061 4.437 2.437 3 $266.28 Buy Now
KM-22099 4.500 2.500 3 $271.55 Buy Now
KM-22076 4.562 2.562 3 $276.85 Buy Now
KM-22075 4.625 2.625 3 $282.18 Buy Now
KM-22074 4.687 2.687 3 $287.50 Buy Now
KM-22073 4.750 2.750 3 $292.85 Buy Now
KM-22072 4.812 2.812 3 $298.23 Buy Now
KM-22071 4.875 2.875 3 $303.60 Buy Now
KM-22060 4.937 2.937 3 $309.00 Buy Now
KM-22069 5.000 3.000 3 $314.43 Buy Now
KM-22078 5.062 3.062 3 $319.85 Buy Now
KM-22067 5.125 3.125 3 $325.30 Buy Now
KM-22066 5.187 3.187 3 $330.75 Buy Now

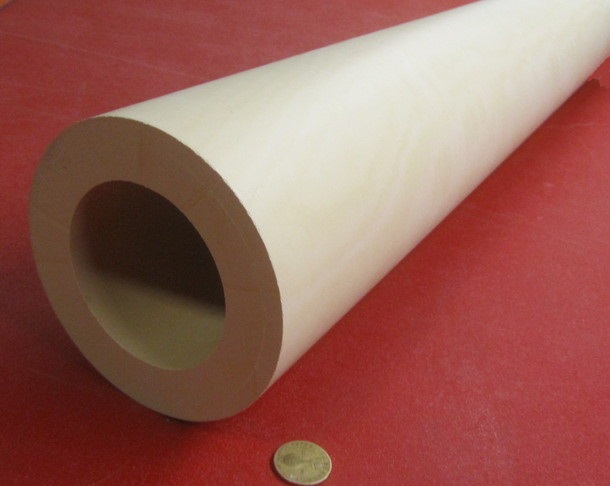

KM-22065 5.250 3.250 3 $336.25 Buy Now

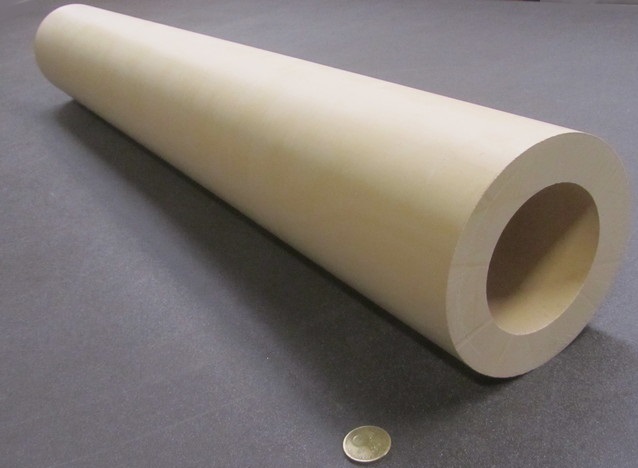

KM-22064 5.312 3.312 3 $341.73 Buy Now

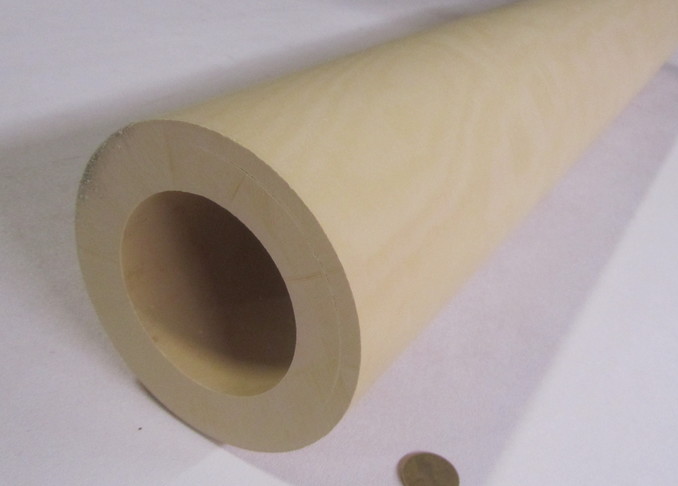

KM-22063 5.375 3.375 3 $347.80 Buy Now

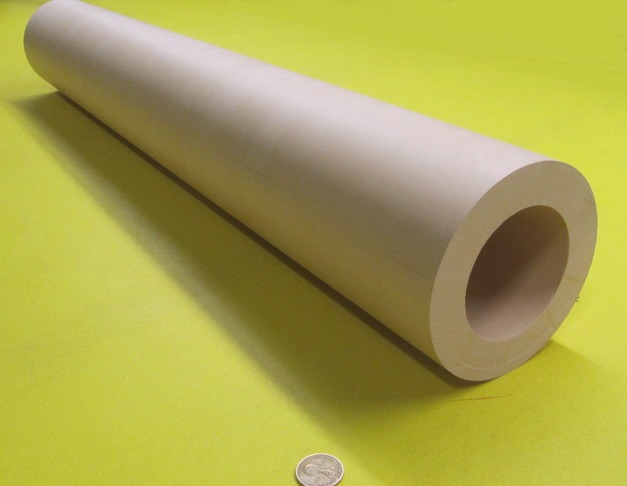

KM-22062 5.437 3.437 3 $352.78 Buy Now

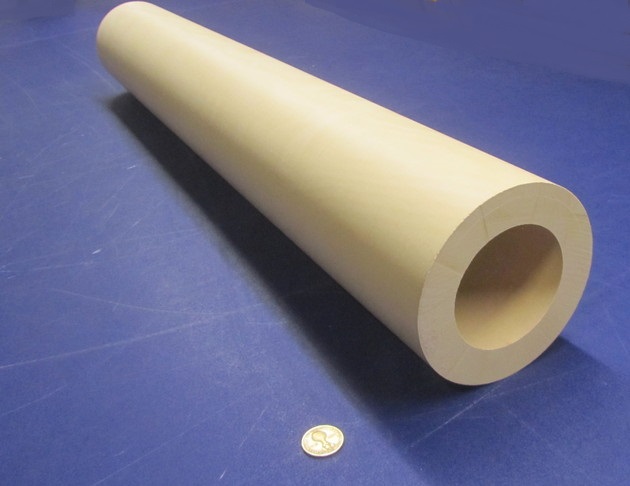

KM-22087 5.500 3.500 3 $357.75 Buy Now
KM-22068 5.562 3.562 3 $362.70 Buy Now
KM-22070 5.625 3.625 3 $367.68 Buy Now
KM-22096 5.688 3.687 3 $372.65 Buy Now
KM-22095 5.750 3.750 3 $377.63 Buy Now
KM-22094 5.812 3.812 3 $382.58 Buy Now
KM-22093 5.875 3.875 3 $387.55 Buy Now
KM-22092 5.938 3.937 3 $392.53 Buy Now
KM-22091 6.000 4.000 3 $397.50 Buy Now
KM-22090 6.063 4.062 3 $402.45 Buy Now
KM-22079 6.125 4.125 3 $405.99 Buy Now
KM-22088 6.187 4.187 3 $412.40 Buy Now
KM-22097 6.250 4.250 3 $417.35 Buy Now
KM-22086 6.312 4.312 3 $422.33 Buy Now
KM-22085 6.375 4.375 3 $427.30 Buy Now
KM-22084 6.437 4.438 3 $432.28 Buy Now
KM-22083 6.500 4.500 3 $437.23 Buy Now
KM-22082 6.562 4.562 3 $442.20 Buy Now
KM-22081 6.625 4.625 3 $447.18 Buy Now
KM-22080 6.688 4.687 3 $452.15 Buy Now
KM-22137 6.750 4.750 3 $457.10 Buy Now
KM-22194 6.812 4.812 3 $462.33 Buy Now
KM-22127 6.875 4.875 3 $467.05 Buy Now
KM-22190 6.938 4.937 3 $472.03 Buy Now
KM-1987 7.000 5.000 3 $476.98 Buy Now
KM-22188 7.062 5.062 3 $481.95 Buy Now
KM-22187 7.125 5.125 3 $486.93 Buy Now
KM-22186 7.187 5.187 3 $491.90 Buy Now
KM-22185 7.250 5.250 3 $495.35 Buy Now
KM-22174 7.312 5.313 3 $501.83 Buy Now
KM-22183 7.375 5.375 3 $506.80 Buy Now
KM-22192 7.437 5.437 3 $511.78 Buy Now
KM-1993 7.500 5.500 3 $516.73 Buy Now
KM-22180 7.562 5.562 3 $521.70 Buy Now
KM-22179 7.625 5.625 3 $526.68 Buy Now
KM-22178 7.688 5.687 3 $531.65 Buy Now
KM-22177 7.750 5.750 3 $536.60 Buy Now
KM-22176 7.812 5.812 3 $540.73 Buy Now
KM-22175 7.875 5.875 3 $544.85 Buy Now
KM-22201 7.938 5.937 3 $548.93 Buy Now
KM-1999 8.000 6.000 3 $553.00 Buy Now
KM-22184 8.062 6.062 3 $557.08 Buy Now
KM-22210 8.125 6.125 3 $561.10 Buy Now
KM-22209 8.188 6.187 3 $565.15 Buy Now
KM-22208 8.250 6.250 3 $569.15 Buy Now
KM-22207 8.312 6.312 3 $573.15 Buy Now
KM-22206 8.375 6.375 3 $577.13 Buy Now
KM-22205 8.437 6.437 3 $581.10 Buy Now
KM-22204 8.500 6.500 3 $585.05 Buy Now
KM-22193 8.562 6.562 3 $589.00 Buy Now
KM-22202 8.625 6.625 3 $592.90 Buy Now
KM-22212 8.688 6.687 3 $596.83 Buy Now
KM-22200 8.750 6.750 3 $600.70 Buy Now
KM-22199 8.812 6.812 3 $604.58 Buy Now
KM-22198 8.875 6.875 3 $608.43 Buy Now
KM-22197 8.938 6.938 3 $612.28 Buy Now
KM-22196 9.000 7.000 3 $616.10 Buy Now
KM-22165 9.125 7.125 3 $686.30 Buy Now
KM-22211 9.188 7.187 3 $691.58 Buy Now
KM-22182 9.250 7.250 3 $696.85 Buy Now
KM-22153 9.312 7.312 3 $702.13 Buy Now
KM-22152 9.375 7.375 3 $707.40 Buy Now
KM-22151 9.437 7.437 3 $712.68 Buy Now
KM-22150 9.500 7.500 3 $717.98 Buy Now
KM-22149 9.563 7.562 3 $723.25 Buy Now
KM-22148 9.625 7.625 3 $728.53 Buy Now
KM-22147 9.688 7.687 3 $733.80 Buy Now
KM-22136 9.750 7.750 3 $739.08 Buy Now
KM-22145 9.812 7.812 3 $744.35 Buy Now
KM-22154 9.875 7.875 3 $749.65 Buy Now
KM-22143 9.937 7.937 3 $754.93 Buy Now
KM-22142 10.000 8.000 3 $760.15 Buy Now
KM-22141 10.062 8.062 3 $765.43 Buy Now
KM-22140 10.125 8.125 3 $770.70 Buy Now
KM-22139 10.187 8.187 3 $776.00 Buy Now
KM-22138 10.250 8.250 3 $781.28 Buy Now
KM-21519 10.313 8.312 3 $786.55 Buy Now
KM-21508 10.375 8.375 3 $791.83 Buy Now
KM-21517 10.437 8.437 3 $797.10 Buy Now
KM-21526 10.500 8.500 3 $802.38 Buy Now
KM-21515 10.563 8.562 3 $807.68 Buy Now
KM-21514 10.625 8.625 3 $812.95 Buy Now
KM-21513 10.688 8.687 3 $818.23 Buy Now
KM-21512 10.750 8.750 3 $823.50 Buy Now
KM-21511 10.813 8.812 3 $828.78 Buy Now
KM-21510 10.875 8.875 3 $834.05 Buy Now
KM-21509 10.937 8.937 3 $839.35 Buy Now
KM-21480 11.000 9.000 3 $844.63 Buy Now
KM-21452 11.062 9.062 3 $849.90 Buy Now
KM-21490 11.125 9.125 3 $855.18 Buy Now
KM-21467 11.188 9.187 3 $860.45 Buy Now
KM-21466 11.250 9.250 3 $865.73 Buy Now
KM-21465 11.313 9.312 3 $871.03 Buy Now
KM-21464 11.375 9.375 3 $876.30 Buy Now
KM-21463 11.437 9.437 3 $881.58 Buy Now
KM-21462 11.500 9.500 3 $886.85 Buy Now
KM-21451 11.562 9.562 3 $892.13 Buy Now
KM-21460 11.625 9.625 3 $897.40 Buy Now
KM-21469 11.687 9.687 3 $902.70 Buy Now
KM-21458 11.750 9.750 3 $907.98 Buy Now
KM-21457 11.812 9.813 3 $913.25 Buy Now
KM-21456 11.875 9.875 3 $913.25 Buy Now
KM-21455 11.937 9.937 3 $918.53 Buy Now
KM-22163 12.000 10.000 3 $923.80 Buy Now
KM-22144 12.062 10.062 3 $929.08 Buy Now
KM-22146 12.125 10.125 3 $934.38 Buy Now
KM-22172 12.187 10.187 3 $939.65 Buy Now
KM-22171 12.250 10.250 3 $944.93 Buy Now
KM-22170 12.313 10.312 3 $950.20 Buy Now
KM-22169 12.375 10.375 3 $955.48 Buy Now
KM-22168 12.437 10.437 3 $960.75 Buy Now
KM-22167 12.500 10.500 3 $971.33 Buy Now
KM-22166 12.562 10.562 3 $976.60 Buy Now
KM-22155 12.625 10.625 3 $981.88 Buy Now
KM-22164 12.687 10.687 3 $987.15 Buy Now
KM-22173 12.750 10.750 3 $992.43 Buy Now
KM-22162 12.812 10.812 3 $997.73 Buy Now
KM-22161 12.875 10.875 3 $1,003.00 Buy Now
KM-22160 12.937 10.937 3 $1,008.28 Buy Now
KM-22159 13.000 11.000 3 $1,013.10 Buy Now
KM-22158 13.062 11.062 3 $1,018.83 Buy Now
KM-22157 13.125 11.125 3 $1,024.10 Buy Now
KM-22051 13.187 11.187 3 $1,029.40 Buy Now
KM-22191 13.250 11.250 3 $1,034.68 Buy Now
KM-22077 13.312 11.312 3 $1,039.95 Buy Now
KM-21963 13.375 11.375 3 $1,045.23 Buy Now
KM-21962 13.437 11.437 3 $1,050.50 Buy Now
KM-21961 13.500 11.500 3 $1,055.78 Buy Now
KM-21960 13.562 11.562 3 $1,061.08 Buy Now
KM-21959 13.625 11.625 3 $1,066.35 Buy Now
KM-21958 13.687 11.687 3 $1,071.63 Buy Now
KM-21957 13.750 11.750 3 $1,076.90 Buy Now
KM-21946 13.812 11.812 3 $1,082.18 Buy Now
KM-21955 13.875 11.875 3 $1,087.45 Buy Now
KM-21964 13.937 11.937 3 $1,092.75 Buy Now
KM-21953 14.000 12.000 3 $1,098.03 Buy Now
KM-21952 14.062 12.062 3 $1,103.30 Buy Now
KM-21951 14.125 12.125 3 $1,108.58 Buy Now
KM-21950 14.187 12.187 3 $1,113.85 Buy Now
KM-21949 14.250 12.250 3 $1,119.13 Buy Now
KM-21948 14.312 12.312 3 $1,124.43 Buy Now
KM-21973 14.375 12.375 3 $1,129.70 Buy Now
KM-21954 14.437 12.437 3 $1,134.98 Buy Now
KM-21956 14.500 12.500 3 $1,140.25 Buy Now
KM-21982 14.562 12.562 3 $1,145.53 Buy Now
KM-21981 14.625 12.625 3 $1,150.80 Buy Now
KM-21980 14.687 12.687 3 $1,156.10 Buy Now
KM-21979 14.750 12.750 3 $1,161.38 Buy Now
KM-21978 14.812 12.813 3 $1,166.65 Buy Now
KM-21977 14.875 12.875 3 $1,171.93 Buy Now
KM-21976 14.937 12.937 3 $1,177.20 Buy Now
KM-21965 15.000 13.000 3 $1,182.48 Buy Now
KM-21974 15.062 13.062 3 $1,187.78 Buy Now
KM-21983 15.125 13.125 3 $1,193.05 Buy Now
KM-21972 15.187 13.187 3 $1,198.33 Buy Now
KM-21971 15.250 13.250 3 $1,203.60 Buy Now
KM-21970 15.312 13.312 3 $1,208.88 Buy Now
KM-21969 15.375 13.375 3 $1,214.15 Buy Now
KM-21968 15.437 13.437 3 $1,219.45 Buy Now
KM-21967 15.500 13.500 3 $1,224.73 Buy Now
KM-21966 15.562 13.562 3 $1,230.00 Buy Now
KM-21937 15.625 13.625 3 $1,235.28 Buy Now
KM-21909 15.687 13.687 3 $1,240.55 Buy Now
KM-21947 15.750 13.750 3 $1,245.83 Buy Now
KM-21924 15.812 13.812 3 $1,251.13 Buy Now
KM-21923 15.875 13.875 3 $1,256.40 Buy Now
KM-21922 15.937 13.937 3 $1,261.68 Buy Now
KM-21921 16.000 14.000 3 $1,266.95 Buy Now
KM-21920 16.062 14.062 3 $1,272.23 Buy Now
KM-21919 16.125 14.125 3 $1,277.50 Buy Now
KM-21908 16.187 14.187 3 $1,282.80 Buy Now
KM-21917 16.250 14.250 3 $1,288.08 Buy Now
KM-21926 16.312 14.312 3 $1,293.35 Buy Now
KM-21915 16.375 14.375 3 $1,298.65 Buy Now
KM-21914 16.437 14.437 3 $1,303.90 Buy Now
KM-21913 16.500 14.500 3 $1,309.18 Buy Now
KM-21912 16.562 14.562 3 $1,314.48 Buy Now
KM-21911 16.625 14.625 3 $1,319.75 Buy Now
KM-21910 16.687 14.687 3 $1,325.03 Buy Now
KM-21935 16.750 14.750 3 $1,330.30 Buy Now
KM-21916 16.812 14.812 3 $1,335.58 Buy Now
KM-21918 16.875 14.875 3 $1,340.85 Buy Now
KM-21944 16.937 14.937 3 $1,346.15 Buy Now
KM-21943 17.000 15.000 3 $1,351.43 Buy Now
KM-21942 17.062 15.062 3 $1,356.70 Buy Now
KM-21941 17.125 15.125 3 $1,361.98 Buy Now
KM-21940 17.187 15.187 3 $1,367.25 Buy Now
KM-21939 17.250 15.250 3 $1,372.53 Buy Now
KM-21938 17.312 15.312 3 $1,377.83 Buy Now
KM-21927 17.375 15.375 3 $1,383.10 Buy Now
KM-21936 17.437 15.437 3 $1,388.38 Buy Now
KM-21945 17.500 15.500 3 $1,393.65 Buy Now
KM-21934 17.562 15.562 3 $1,398.93 Buy Now
KM-21933 17.625 15.625 3 $1,404.20 Buy Now
KM-21932 17.687 15.687 3 $1,409.48 Buy Now
KM-21931 17.750 15.750 3 $1,414.78 Buy Now
KM-21930 17.812 15.812 3 $1,420.05 Buy Now
KM-21929 17.875 15.875 3 $1,425.33 Buy Now
KM-22001 17.937 15.937 3 $1,430.60 Buy Now
KM-21925 18.000 16.000 3 $1,435.88 Buy Now
KM-21975 18.062 16.062 3 $1,441.15 Buy Now
KM-22039 18.125 16.125 3 $1,446.45 Buy Now
KM-22038 18.187 16.187 3 $1,451.73 Buy Now
KM-22037 18.250 16.250 3 $1,457.00 Buy Now
KM-22036 18.312 16.312 3 $1,462.28 Buy Now
KM-22035 18.375 16.375 3 $1,467.55 Buy Now
KM-22034 18.437 16.437 3 $1,472.83 Buy Now
KM-22033 18.500 16.500 3 $1,478.13 Buy Now
KM-22022 18.562 16.562 3 $1,483.40 Buy Now
KM-22031 18.625 16.625 3 $1,488.68 Buy Now
KM-22040 18.687 16.687 3 $1,493.95 Buy Now
KM-22029 18.750 16.750 3 $1,499.23 Buy Now
KM-22028 18.812 16.812 3 $1,504.50 Buy Now
KM-22027 18.875 16.875 3 $1,509.80 Buy Now
KM-22026 18.937 16.937 3 $1,515.08 Buy Now
KM-22025 19.000 17.000 3 $1,520.35 Buy Now
KM-22024 19.062 17.062 3 $1,525.63 Buy Now
KM-22049 19.125 17.125 3 $1,530.90 Buy Now
KM-22030 19.187 17.187 3 $1,536.18 Buy Now
KM-22032 19.250 17.250 3 $1,541.48 Buy Now
KM-22058 19.312 17.312 3 $1,546.75 Buy Now
KM-22057 19.375 17.375 3 $1,552.03 Buy Now
KM-22056 19.437 17.437 3 $1,557.30 Buy Now
KM-22055 19.500 17.500 3 $1,562.58 Buy Now
KM-22054 19.562 17.562 3 $1,567.85 Buy Now
KM-22053 19.625 17.625 3 $1,573.15 Buy Now
KM-22052 19.687 17.687 3 $1,578.43 Buy Now
KM-22041 19.750 17.750 3 $1,583.70 Buy Now
KM-22050 19.812 17.812 3 $1,588.98 Buy Now
KM-22059 19.875 17.875 3 $1,594.25 Buy Now
KM-22048 19.937 17.937 3 $1,599.53 Buy Now
KM-22047 20.000 18.000 3 $1,604.83 Buy Now



diameter

plus or minus (±) tolerance, inches

ID inside diameter

OD outside diameter

steel
mandrel

built-up
mandrel

.125" -.749"

.003"

-

.005"

.750" - 1.999"

.004"

-

.005"

2.000" - 4.000"

.006"

-

.008"



*turned

*as wound

4.001" - 12.000"

.010"

-

.025"

plus only

12.001" - 18.000"

.030"

.060"

.030"

plus only

18.001" - 24.000"

.040"

.075"

.035"

plus only

24.001" - 48.000"

.060"

.090"

.040"

plus only

*Note: tubing over 8.000" OD supplied as wound (turned OD quoted on request)
