Paper X, XX, XXX Reinforced Phenolic Laminate Tubes - .031" Wall Thickness

.031 Wall Paper Phenolic Tubes

Paper X/XX/XXX Reinforced Phenolic Tubes - natural (tan) Technical Data Sheet
This grade is composed of a paper base impregnated with a phenolic resin binder. It has good electric strength properties with fair mechanical strength. Outstanding for use as template material and or backup material.
NEMA X certs to MIL-I-24768/12 PBM, IEC 60893-3 Type 4 PF CP 201
NEMA XX certs to MIL-I-24768/11 PBG, IEC 60893-3 Type 4 PF CP 203
NEMA XXX certs to MIL-I-24768/10 PBE, IEC 60893-3 Type 4 PF CP 201

NEMA grades X, XX and XXX Paper Reinforced Phenolic -- natural color is typically light tan to brown. These grades are composed of a paper base impregnated with a phenolic resin binder. (Phenolics are the oldest, best-known general purpose thermoset resins. They are among the lowest in cost and easiest to process. Phenolics are quite adequate for a fair percentage of electrical applications. Generally speaking, they are not equivalent to epoxies in resistance to moisture, humidity, dimensional stability, shrinkage and retention of electrical properties in extreme environments.) The paper reinforced phenolic has good electric strength properties with fair mechanical strength and are outstanding for use as template material and/or back-up material.

Click Here for X, XX, XXX  or Sheets Bar Stock

Chemical Resistance Chart

Select X, XX, XXX Tubing Wall Thickness
.031" .062" .093"
.125" .187" .250"
.375" .500" .750"
1.00"

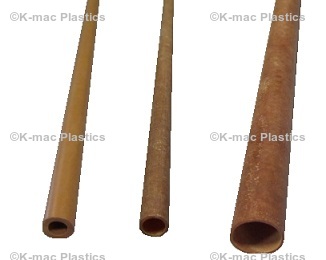

Paper Phenolic Tubes .031" Wall Thickness
Stock # OD Inch ID Inch Min Purchase Feet  Price/Ft Purchase Online

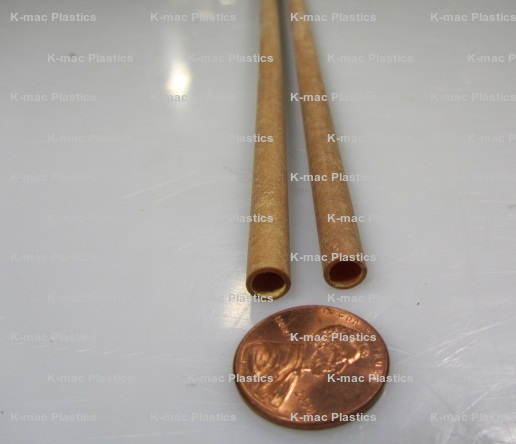

KM-1863 .250 .187 60 $6.18 Buy Now

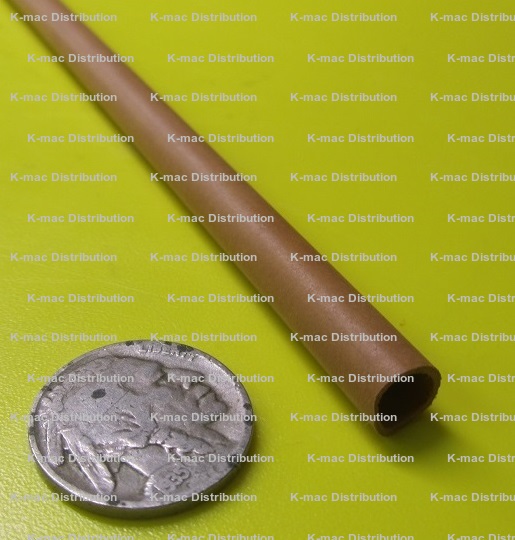

KM-1867 .313 .250 60 $6.15 Buy Now

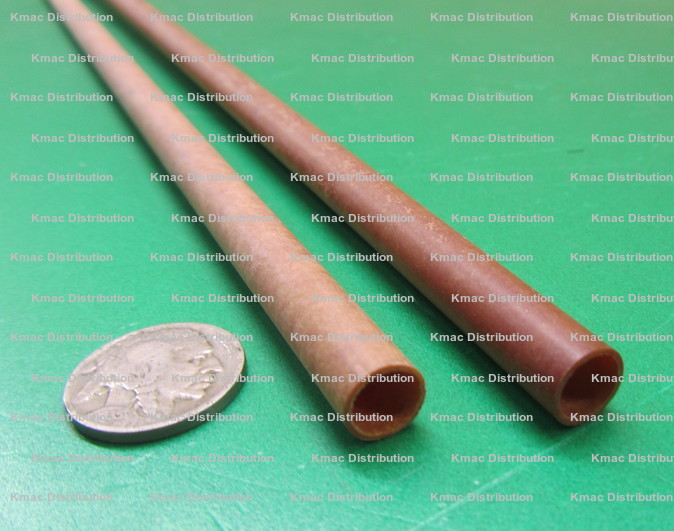

KM-1871 .375 .312 60 $6.35 Buy Now

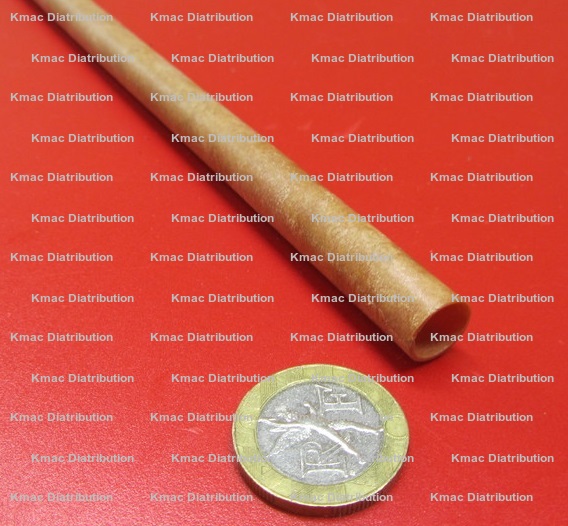

KM-1155 .438 .375 54 $6.64 Buy Now

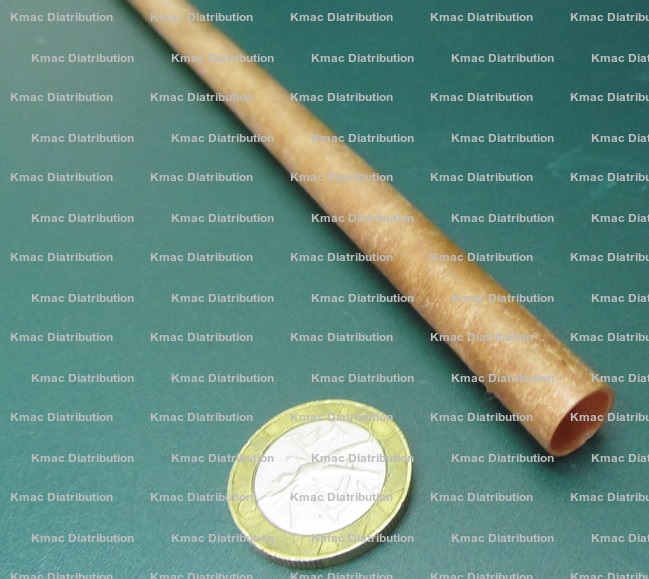

KM-1875 .500 .437 54 $6.88 Buy Now

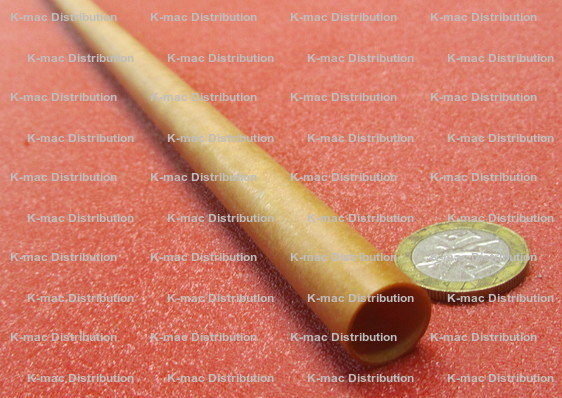

KM-1879 .563 .500 54 $6.95 Buy Now

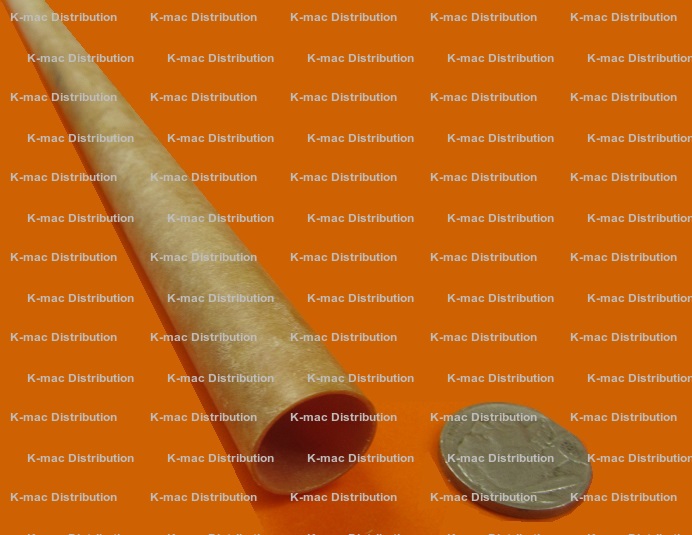

KM-1885 .625 .562 54 $6.95 Buy Now

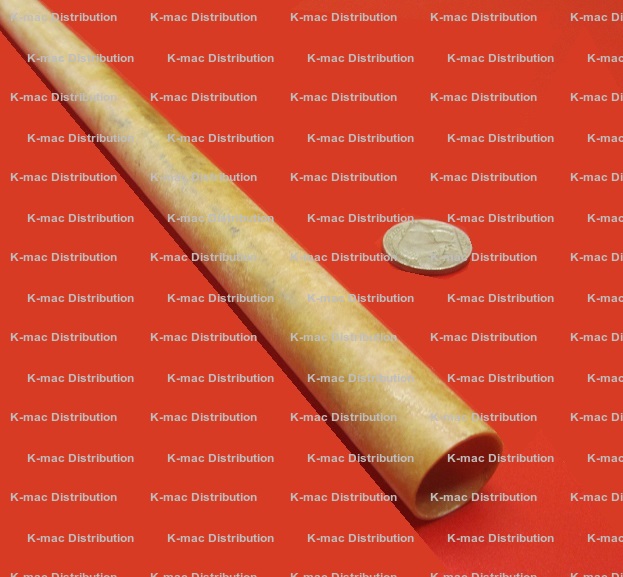

KM-1890 .688 .625 54 $7.08 Buy Now

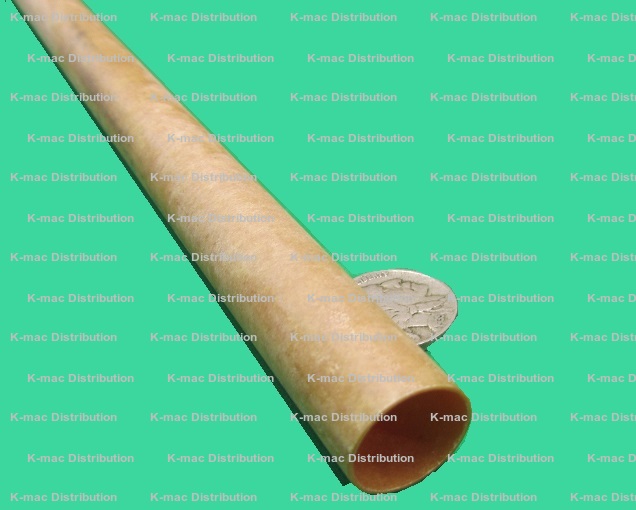

KM-1896 .750 .687 51 $7.38 Buy Now

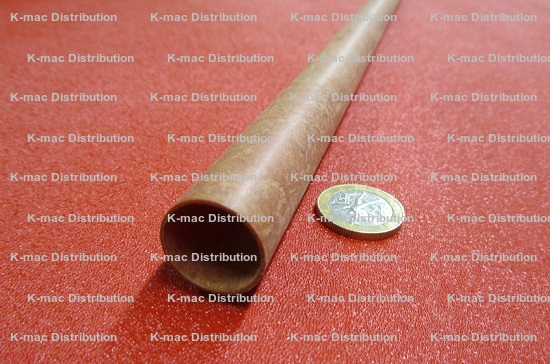

KM-1899 .813 .750 48 $7.63 Buy Now
KM-19741 .875 .812 48 $7.80 Buy Now
KM-1905 .938 .875 45 $8.15 Buy Now
KM-19747 1.000 .937 45 $8.45 Buy Now
KM-1911 1.062 1.00 45 $8.60 Buy Now
KM-19775 1.125 1.062 42 $8.70 Buy Now
KM-19774 1.187 1.125 42 $8.90 Buy Now
KM-19773 1.250 1.187 42 $9.08 Buy Now
KM-5061 1.312 1.25 39 $9.53 Buy Now
KM-19771 1.375 1.312 39 $9.83 Buy Now
KM-19770 1.437 1.375 63 $10.10 Buy Now
KM-19769 1.500 1.437 36 $10.18 Buy Now
KM-5064 1.563 1.500 36 $10.35 Buy Now
KM-19767 1.625 1.562 36 $10.68 Buy Now
KM-23039 1.687 1.625 33 $10.98 Buy Now
KM-19776 1.688 1.625 33 $10.98 Buy Now
KM-19765 1.750 1.687 33 $11.25 Buy Now
KM-19764 1.812 1.750 33 $11.53 Buy Now
KM-19763 1.875 1.812 33 $11.78 Buy Now
KM-19762 1.937 1.875 51 $12.03 Buy Now
KM-19761 2.000 1.937 30 $12.13 Buy Now



diameter

plus or minus (±) tolerance, inches

ID inside diameter

OD outside diameter

steel
mandrel

built-up
mandrel

.125" -.749"

.003"

-

.005"

.750" - 1.999"

.004"

-

.005"

2.000" - 4.000"

.006"

-

.008"



*turned

*as wound

4.001" - 12.000"

.010"

-

.025"

plus only

12.001" - 18.000"

.030"

.060"

.030"

plus only

18.001" - 24.000"

.040"

.075"

.035"

plus only

24.001" - 48.000"

.060"

.090"

.040"

plus only

*Note: tubing over 8.000" OD supplied as wound (turned OD quoted on request)
