TYGON® ND-100-80 Microbore Tubing

  • Stiff enough for easy handling, soft enough to resist puncturing
  • Micro-diameter sizes fit needle gauges 30 to 17
  • Ideal for precision injection and dispensing applications
  • Meets USP Class VI criteria

TYGON® ND-100-80 Microbore Tubing

Select TYGON® ND-100-80 Microbore Tubing for intravenous and arterial infusion as well as other surgical, hospital and laboratory applications. It is flexible enough to permit use of a single size tubing with several different needle gauges, yet sufficiently rigid to minimize the danger of wall collapse. TYGON® ND-100-80 Microbore Tubing is non-toxic, non-pyrogenic and biocompatible. Durometer hardness: Shore A, 83.

TYGON® ND-100-80 Microbore Tubing can be sterilized by radiation, ethylene oxide, steam or chemical methods.

Technical Data

TYGON® ND-100-80

Formerly Tygon® S-54-HL

Tygon Microbore Tubing ND-100-80


Outside Diameter (in.) Inside Diameter (in.) Wall (in.) Part # Price Per 500 Feet Order Online
0.030 .010 .010 KM-5234 $620.66 Add to Order
0.060 .020 .020 KM-2721 $542.82 Add to Order
0.090 .030 .030 KM-2722 $726.15 Add to Order
0.070 .040 .015 KM-2723 $698.27 Add to Order

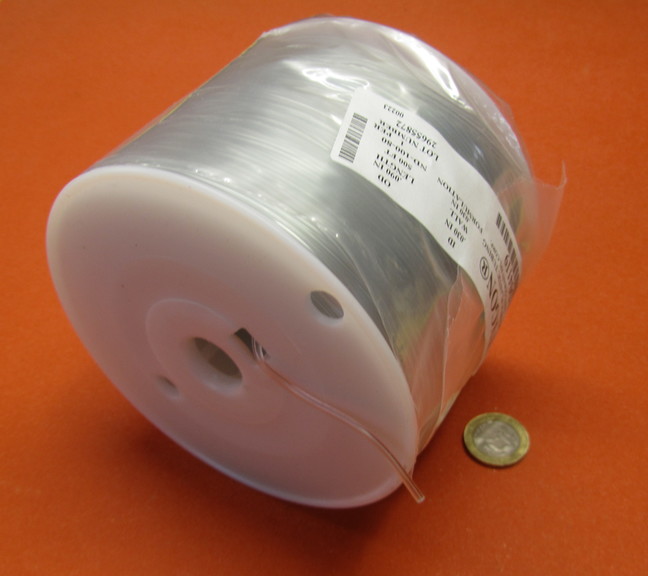

0.090 .050 .020 KM-2724 $602.04 Add to Order
Rev. 03-25, 10-23, 01-23, 03-22
