PBT Sheet (Hydex® 4101) (Valox 420, 420-SEO Glass Filled)

Pbt Sheet Hydex® 4101 is a polyester that is less brittle, more chip resistant, and easier to machine than PET. PBT has the strength & wear resistance of general purpose nylon, and a higher continuous use temperature (240° F) It is FDA/NSF/3A Compliant.

Applications

•Food processing piston pump and valve body

•Can transfer mandrel
Hydex® 4101 is a long wearing
alternative to Acetal in food
processing applications.

HYDEX® 4101 & HYDEX® 4101L

The next revolution in Stock Shape Plastics has just arrived...Hydex 4101 and Hydex 4101L (internally lubricated) represent a family of stock shape plastics with elevated performance over PET-P, Acetal and Nylon. Hydex 4101 is a PBT Polyester with an outstanding set of properties that include; wear resistance, chemical resistance and toughness. Hydex 4101L (Lubricated) is an enhanced version with improved wear, PV range and lubricity over Hydex 4101. In direct comparison to other commonly used plastics, Hydex 4101 and Hydex 4101L have:

Improved Wear and Chemical Resistance Versus Acetal

Superior Dimensional Stability Over Nylon

Best Wear and Lubricity When Compared to PET-P

Technical Data Sheet for Hydex

4101 - ASTM-D-5927 TPES0211, 1CFR177.1630, ASTM D-6261 S-TPES0111
4101L - ASTM D-6261 S-TPES0120, USDA, 3A

PBT sheets


Thickness Inches Stock # Size Price/sheet Purchase Hydex 4101 Online
.375 KS-5154K 24 x 24  $319.98 Purchase-
.500 KS-346 12 x 12  $216.00 Purchase
.500 KS-6214 12 x 24 $362.82 Purchase
.500 KS-6213 24 x 48 $788.40 Purchase
.750 KS-347 12 x 12 $289.05 Purchase
.750 KS-5152 24 x 24 $978.00 Purchase
.750 KS-4745 24 x 48 $1308.48 Purchase
1.00 KS-6215 12 x 24 $476.94 Purchase
1.00 KS-6216 24 x 24 $949.14 Purchase
1.00 KS-6217 24 x 48  $1900.41 Purchase
1.25 KS-6218 12 x 12 $324.60 Purchase
1.25 KS-6219 12 x 24 $644.34 Purchase
1.25 KS-6220 24 x 24 $1282.32 Purchase
1.25 KS-6221 24 x 48 $2569.49 Purchase
1.50 KS-6223 12 x 24 $714.99 Purchase
1.50 KS-6224 24 x 24 $1432.25 Purchase
1.50 KS-6225 24 x 48  $2867.55 Purchase
2.00 KS-350 12 x 12 $857.79 Purchase
2.00 KS-6226 12 x 24 $1072.11 Purchase
2.00 KS-6227 24 x 24  $2141.94 Purchase
2.00 KS-6228 24 x 48  $3926.86 Purchase

Hydex® 4101
Thickness Tolerances
Size Tolerance
1/2" to 3/4" +.025/-.000
1" to 2"   +.050/-.000

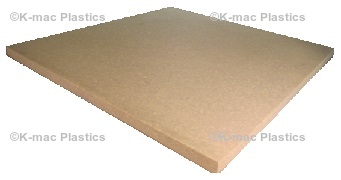

Valox 420

Valox® 420 PBT  30% Glass, Natural Sheet
Non FR (Valox 420) Minimums Required
Thickness Stock Order# Flame Retardant VO 420-SEO

2 Week lead times apply to Valox®

Inches   FR or Non-FR Size Price/sheet
.250 KS-4942GC Non FR 420 10 x 10  $792.00
.250 KS-4950BB FR 420-SEO 10 x 10  $891.00
.375 KS-4942GD Non FR 420 10 x 10  $937.20
.375 KS-4950BC FR 420-SEO 10 x 10  $1054.34
.500 KS-4942GE Non FR 420 10 x 10  $984.72
.500 KS-4950BR FR 420-SEO 10 x 10  $1112.76
.750 KS-4942GF Non FR 420 10 x 10  $1079.76
.750 KS-4950BD FR 420-SEO 10 x 10  $1214.73
1.00 KS-4949 Non FR 420 10 x 10  $1174.80
1.00 KS-4948 FR 420-SEO 10 x 10  $1321.65
1.25 KS-4947 Non FR 420 10 x 10  $1267.20
1.25 KS-4950 FR 420-SEO 10 x 10  $1425.60
1.50 KS-4946 Non FR 420 10 x 10  $1364.88
1.50 KS-4945 FR 420-SEO 10 x 10  $1535.49
1.75 KS-4944 Non FR 420 10 x 10  $1452.00
1.75 KS-4943 FR 420-SEO 10 x 10  $1633.50
2.00 KS-4942 Non FR 420 10 x 10  $1557.60
2.00 KS-4930 FR 420-SEO 10 x 10  $1752.30





PBT, Bearing and Wear (Hydex® 4101L)
Hydex 4101L is an FDA compliant, lubricated version of Hydex 4101 with a lower coefficient of friction and enhanced bearing properties.


TYPICAL PROPERTIES of HYDEX® 4101 PBT-P

ASTM or UL test Property Hydex® 4101 Hydex® 4101L
PHYSICAL
D792 Density (lb/in³)
(g/cm³)
0.047
1.31
0.049
1.36
D570 Water Absorption, 24 hrs (%) 0.07 0.07
MECHANICAL
D638 Tensile Strength (psi) 9,400 7,200
D638 Tensile Modulus (psi) 425,000 380,000
D638 Tensile Elongation at Break (%) 50 40
D790 Flexural Strength (psi) 11,600 10,600
D790 Flexural Modulus (psi) 420,000 390,000
D695 Compressive Strength (psi) 11,000 11,000
D695 Compressive Modulus (psi) - -
D785 Hardness, Rockwell R120 R110
D256 IZOD Notched Impact (ft-lb/in) 0.7 0.7
THERMAL
D696 Coefficient of Linear Thermal Expansion
(x 10-5 in./in./°F)
4.5 5.0
D648 Heat Deflection Temp (°F / °C)
at 264 psi

200 / 93

195 / 89
D3418 Melting Temperature (°F / °C) 420 / 215 420 / 215
- Max Operating Temp (°F / °C) 221 / 105 221 / 105
C177 Thermal Conductivity
(BTU-in/ft²-hr-°F)
(x 10-4 cal/cm-sec-°C)

-
-

-
-
UL94 Flammability Rating HB HB
ELECTRICAL
D149 Dielectric Strength (V/mil) short time, 1/8" thick 410 -
D150 Dielectric Constant at 60 Hz 3.3 -
D150 Dissipation Factor at 60 Hz 0.002 -
D257 Volume Resistivity (ohm-cm)at 50% RH 4.5 x 1016 -
