Nylon 30% Glass Filled Rod


30% glass filled nylon has 200% better strength than general purpose nylon but it is highly abrasive and will abraid or gall mating surfaces.



Glass filled nylon is used in high strength, structural applications.

Applications

•Structural components and stiffeners
Structural Nylon Structural Standoffs in Electrical Equipment Boxes

Techimid PA6/6 GF30 and Nylon 6 - MRG 30% Glass

Nylon 6/6 Data Sheet and Technical Data

Nylon 6 Technical Data

Chemical Resistance Chart

ASTM D-4066, PA0110G30A00000, ASTM D-5989 S-PA0101G301444440

nylon glass filled rod

Structural Nylon Rod, (30%Glass-Filled) -Black and Natural

Nylon 6/6 Lead Times May Apply for Some Sizes.

Nylon 6/6 8 and 10 ft std. lengths, Cut for shipping

Nylon 6 are cast and are 2 ft standard lengths, Nylon 66 are extruded,   Lead Times and Minimum Orders will Apply.

Diameter (in.) Part # Type Minimum Order Price Per Foot Order Online
0.250 KR-1562Y 6/6 64 Feet $6.54 Add to Order
0.375 KR-237 6/6 8 Feet $9.50 Add to Order
0.500 KR-238 6/6 8 Feet $10.30 Add to Order
0.625 KR-5273 6/6 10 Feet $13.20 Add to Order
0.750 KR-239 6/6 8 Feet $16.10 Add to Order
0.875 KR-238P 6/6 10 Feet $63.00 Add to Order
1.00 KR-240 6/6 8 Feet $57.52 Add to Order
1.50 KR-4566 6/6 4 Feet $44.00 Add to Order
1.75 KR-1333A 6/6 4 Feet $102.00 Add to Order
2.00 KR-241 6/6 4 Feet $117.90 Add to Order
2.25 KR-3201 6 16 Feet $83.84 Add to Order
2.50 KR-3200 6 16 Feet $105.88 Add to Order
2.50 KR-241Q 6/6 5 Feet $157.58 Add to Order
2.75 KR-3199 6 12 Feet $125.68 Add to Order
3.00 KR-3198 6 12 Feet $149.36 Add to Order

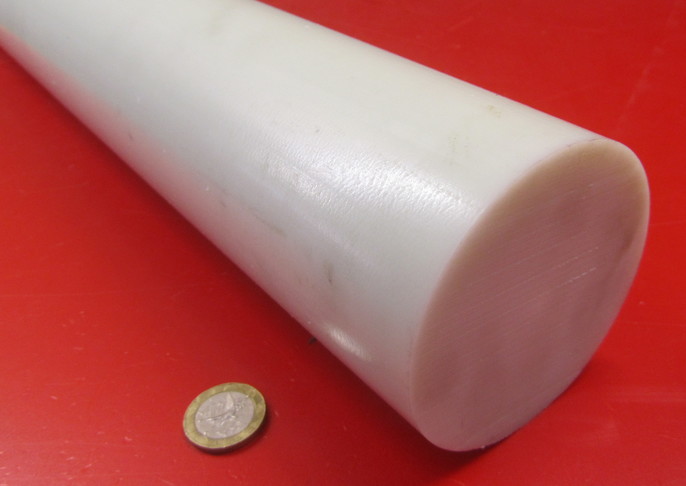

3.00 KR-242 6/6 2 Feet $296.06 Add to Order
3.25 KR-3189 6 12 Feet $166.36 Add to Order
3.50 KR-3188 6 8 Feet $242.44 Add to Order
3.50 KR-243Q 6/6 2 Feet $405.00 Add to Order
3.75 KR-3273 6 8 Feet $316.20 Add to Order
4.00 KR-243 6/6 2 Feet $520.46 Add to Order
4.25 KR-3183 6 4 Feet $348.06 Add to Order
4.50 KR-3251 6 4 Feet $388.91 Add to Order
4.75 KR-3318 6 4 Feet $434.82 Add to Order
5.00 KR-3317 6 4 Feet $481.81 Add to Order
5.50 KR-3316 6 4 Feet $567.22 Add to Order
6.00 KR-3315 6 4 Feet $675.04 Add to Order
6.00 KR-244 6/6 1 Foot $882.79 Add to Order
6.50 KR-3314 6 4 Feet $792.22 Add to Order
7.00 KR-3341 6 4 Feet $992.34 Add to Order
7.50 KR-3313 6 4 Feet $1054.73 Add to Order
8.00 KR-3436 6 4 Feet $1200.06 Add to Order
8.50 KR-3311 6 4 Feet $1354.75 Add to Order
9.00 KR-3310 6 4 Feet $1518.84 Add to Order
9.50 KR-3298 6 4 Feet $2052.29 Add to Order
10.0 KR-3277 6 4 Feet $2135.57 Add to Order
11.0 KR-3276 6 4 Feet $2268.18 Add to Order
12.0 KR-3257 6 4 Feet $2700.18 Add to Order

  Glass Filled Nylon Black Rod




Standard Tolerances
Size Tolerance
.250-1.000 +.020/-.000
1.125-2.000 +.040/-.000
2.000 and over Oversized
