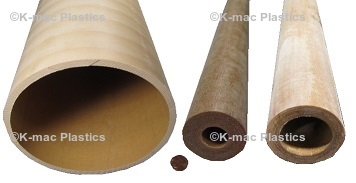

L and LE Linen Fabric Reinforced Phenolic Tubing  .250" Wall Thickness

Le Linen Tubing .250 inch wall thickness

Linen L and LE (Elecritical Grade) Linen Fabric Reinforced Phenolic Tubing - natural (light tan to brown) Technical Data Sheet
This grade is composed of a continuous Linen woven cloth impregnated with a phenolic resin binder. This grade contains a fine weave linen and, like the canvas phenolic, is known for it's mechanical properties. The finer weave allows for machining more intricate details than Canvas, like gear teeth. This grade is not recommended for primary insulation.

NEMA grades L and LE Linen Cotton-Cloth Reinforced Phenolic -- natural color is typically light tan to brown. This grade is composed of a continuous cotton woven cloth impregnated with a phenolic resin binder. This grade contains a fine weave linen and, like the canvas phenolic, is known for its mechanical properties. The finer weave allows for machining more intricate details than canvas grade, such as gear teeth, etc. These grades are not recommended for primary electrical insulation, but grade LE exhibits superior moisture resistance to grades L, C and CE, and thus is an adequate insulator for a fair number of applications.

NEMA L certs to MIL-I-24768/15- FBI, IEC 60893-3 Type 4 PF CC 305
NEMA LE certs to MIL-I-24768/13 FBE, IEC 60893-3 Type 4 PF CC 305

Chemical Resistance Chart

Click Here For L/LE Rods or Sheets

Select L and LE Tubing Wall Thickness
.031" .062" .093"
.125" .187" .250"
.375" .500" .750"
1.00"



L or LE Linen Fabric Reinforced Phenolic Tubing

.250" Wall Thickness

Lead Times May Apply for Non Stocked Items

Stock # OD Inches ID Inches Min Ft To Purchase  Price Per Foot Purchase Online
KM-5191 .688 .187 3 $43.33 Buy Now
KM-5073 .750 .250 3 $39.27 Buy Now
KM-5212 .813 .312 3 $37.75 Buy Now

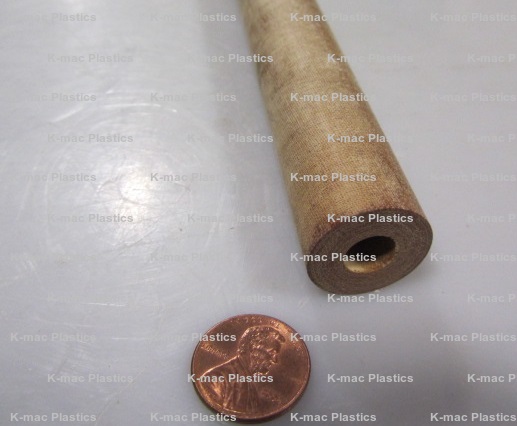

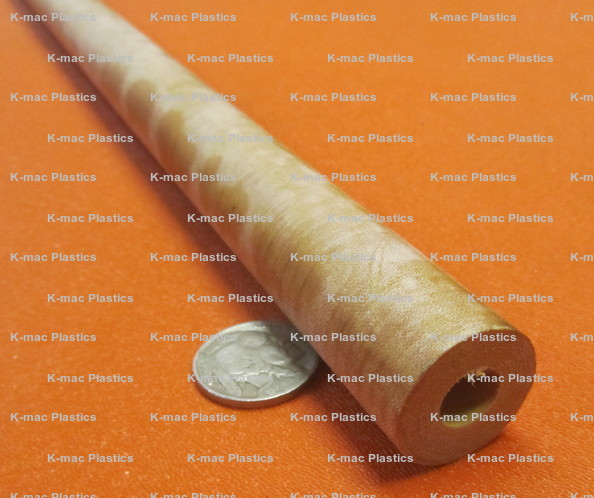

KM-5202 .875 .375 15 $38.05 Buy Now
KM-15097 .938 .437 12 $41.83 Buy Now

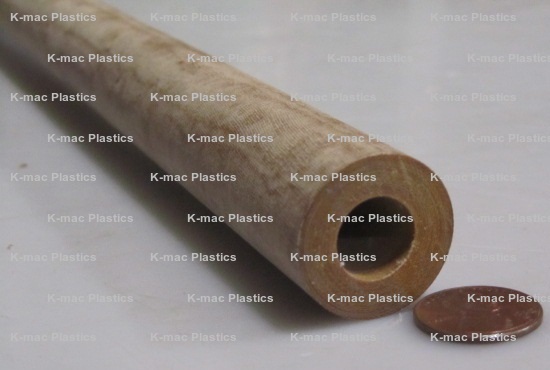

KM-2204 1.000 .500 3 $26.08 Buy Now

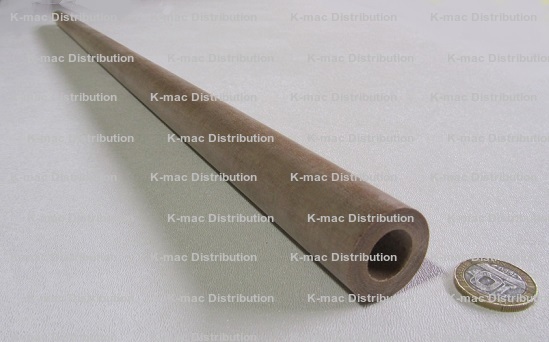

KM-2209 1.063 .562 18 $28.25 Buy Now

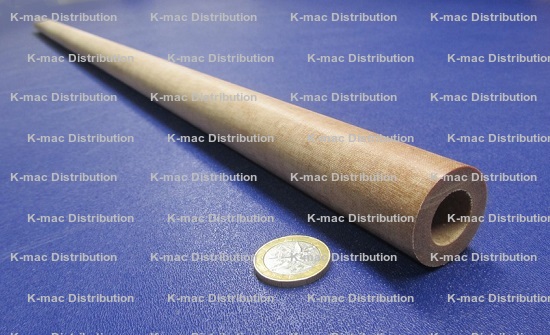

KM-2215 1.125 .625 18 $30.45 Buy Now

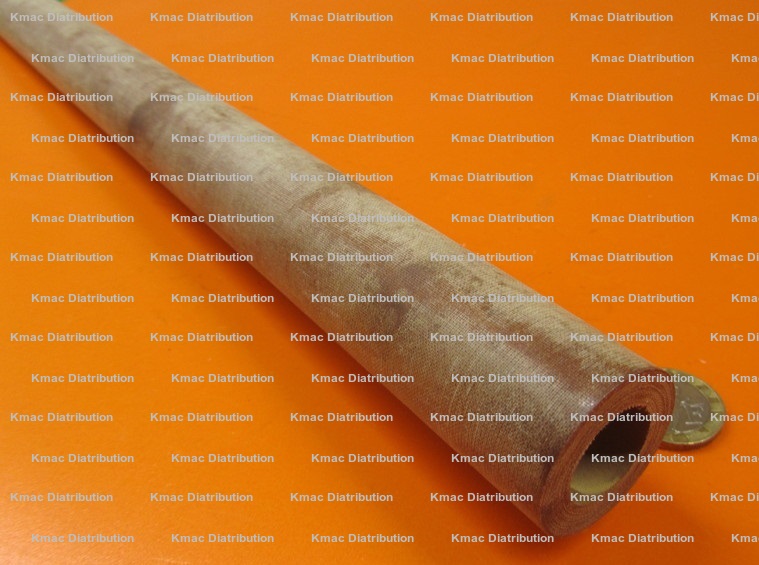

KM-13967 1.187 .687 18 $32.62 Buy Now

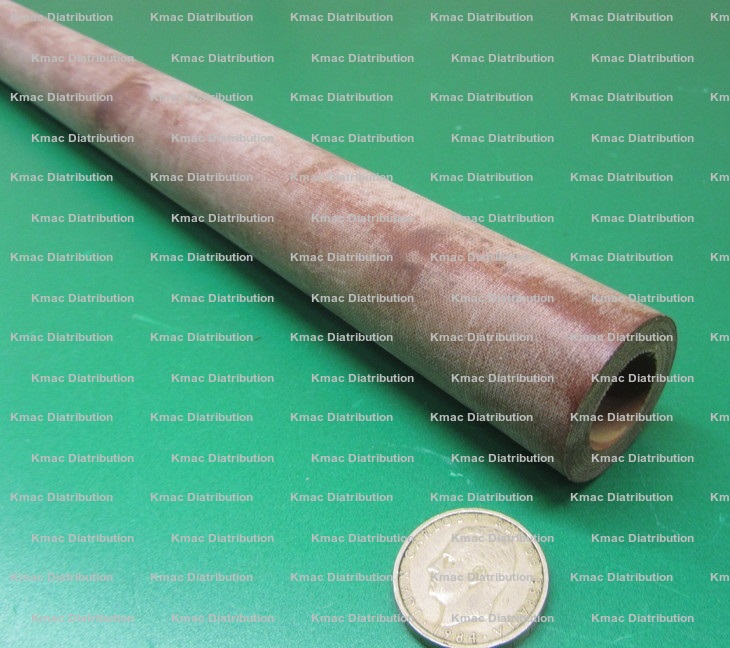

KM-2224 1.250 .750 18 $34.79 Buy Now

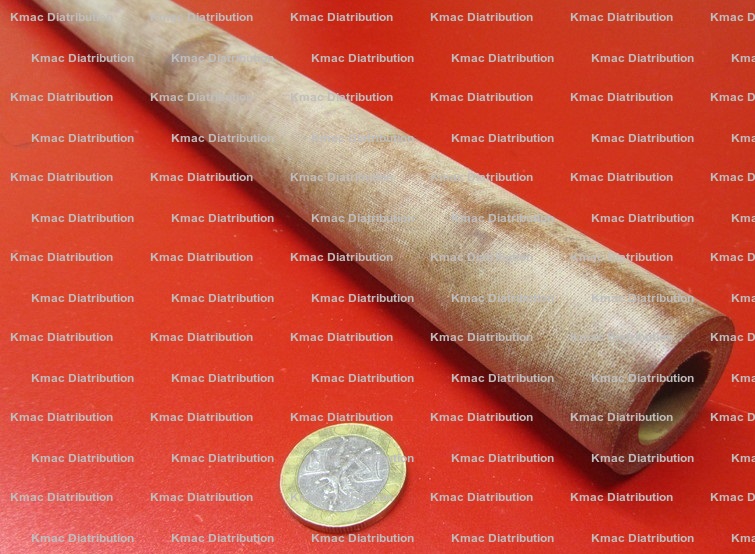

KM-13968 1.312 .812 15 $36.65 Buy Now

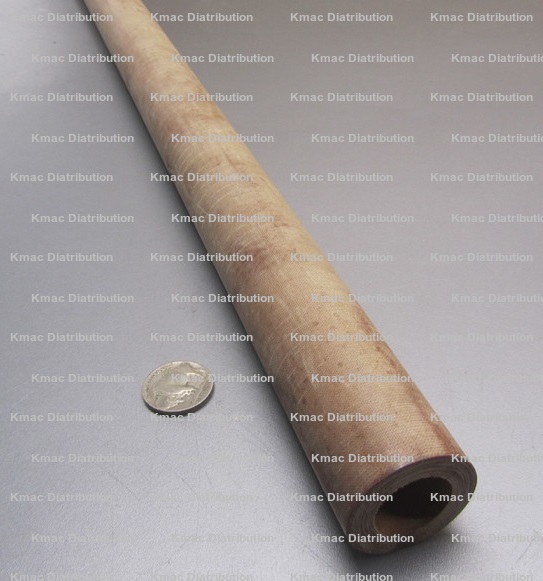

KM-2229 1.375 .875 15 $38.47 Buy Now

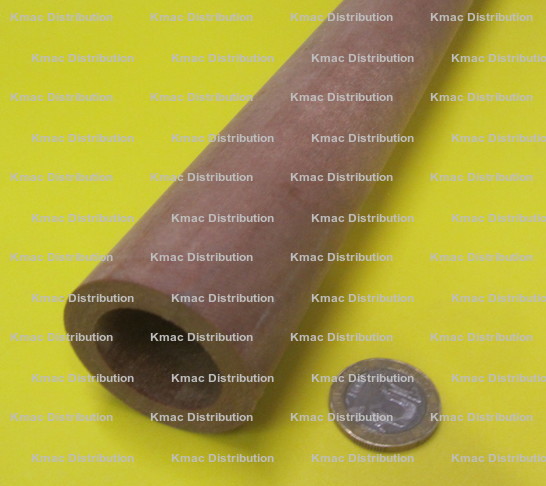

KM-13969 1.437 .937 15 $40.29 Buy Now
KM-2235 1.500 1.00 12 $42.04 Buy Now
KM-13970 1.562 1.062 12 $43.75 Buy Now
KM-13971 1.625 1.125 12 $45.43 Buy Now
KM-13972 1.688 1.187 12 $47.08 Buy Now
KM-2239 1.750 1.250 12 $48.69 Buy Now
KM-13984 1.812 1.312 12 $50.26 Buy Now
KM-13974 1.875 1.375 12 $51.80 Buy Now
KM-13965 1.937 1.437 12 $52.82 Buy Now
KM-2243 2.000 1.500 12 $53.76 Buy Now
KM-13976 2.062 1.562 12 $54.64 Buy Now
KM-13977 2.125 1.625 12 $55.44 Buy Now
KM-13978 2.188 1.687 12 $56.14 Buy Now
KM-2248 2.250 1.750 9 $57.40 Buy Now
KM-13979 2.312 1.812 9 $58.59 Buy Now
KM-13980 2.375 1.875 9 $59.75 Buy Now
KM-13981 2.437 1.937 9 $60.87 Buy Now
KM-2253 2.500 2.000 9 $61.95 Buy Now
KM-13982 2.562 2.062 9 $63.00 Buy Now
KM-13983 2.625 2.125 9 $64.02 Buy Now
KM-13955 2.688 2.187 9 $65.00 Buy Now
KM-2258 2.750 2.250 9 $65.94 Buy Now
KM-13953 2.812 2.312 9 $66.85 Buy Now
KM-13973 2.875 2.375 9 $68.46 Buy Now
KM-13947 2.937 2.437 9 $70.11 Buy Now
KM-2263 3.000 2.500 9 $71.75 Buy Now
KM-13948 3.062 2.562 9 $73.36 Buy Now
KM-13949 3.125 2.625 9 $75.01 Buy Now
KM-13950 3.188 2.687 9 $76.62 Buy Now
KM-2268 3.250 2.750 9 $78.26 Buy Now
KM-13951 3.312 2.812 9 $79.87 Buy Now
KM-13952 3.375 2.875 6 $81.52 Buy Now
KM-13964 3.437 2.937 6 $83.16 Buy Now
KM-2273 3.500 3.000 6 $84.77 Buy Now
KM-13954 3.562 3.062 6 $86.42 Buy Now

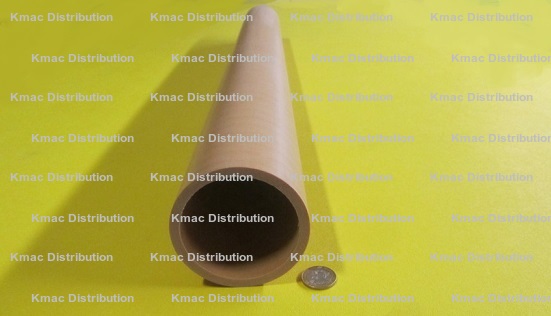

KM-13945 3.625 3.125 6 $88.03 Buy Now

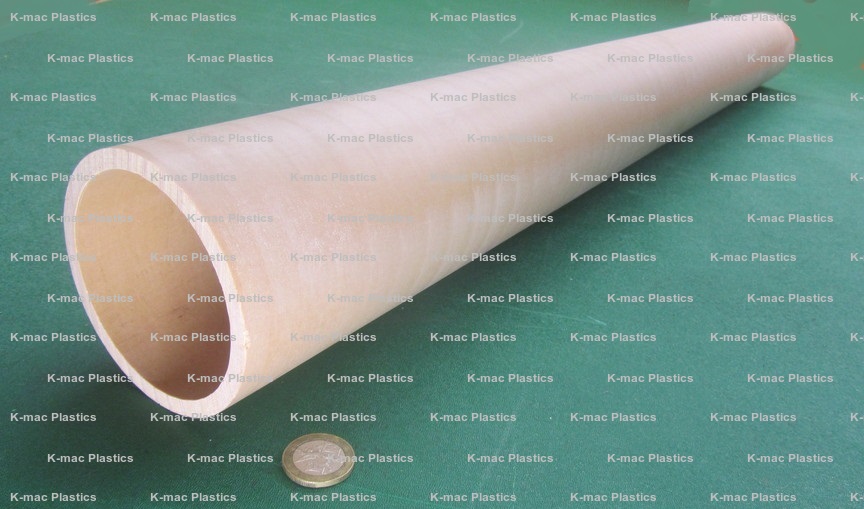

KM-13956 3.687 3.187 6 $89.67 Buy Now

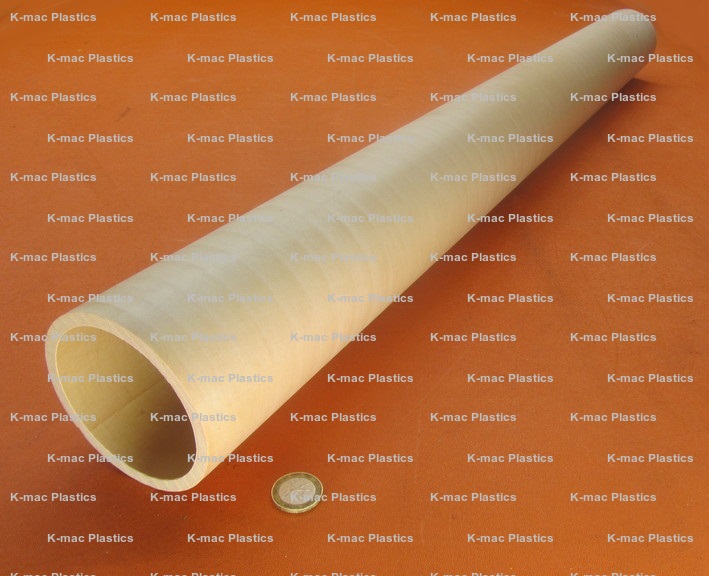

KM-2278 3.750 3.250 6 $91.32 Buy Now
KM-13957 3.812 3.312 6 $92.93 Buy Now

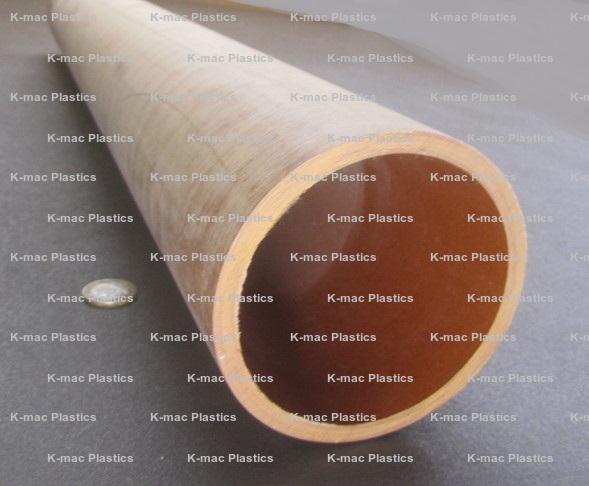

KM-13958 3.875 3.375 6 $94.57 Buy Now

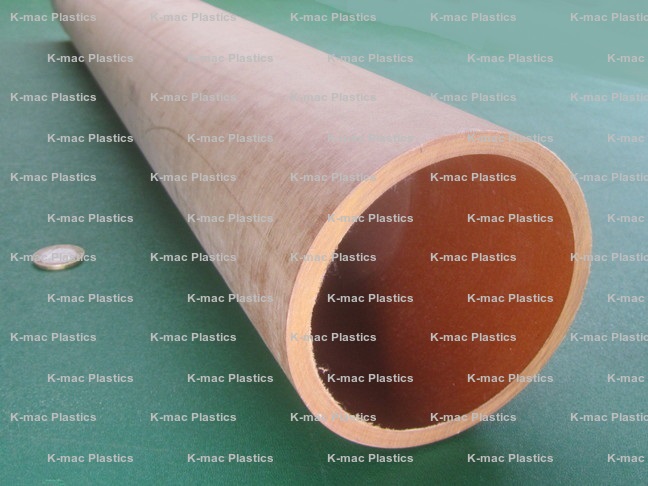

KM-13959 3.937 3.437 6 $96.18 Buy Now

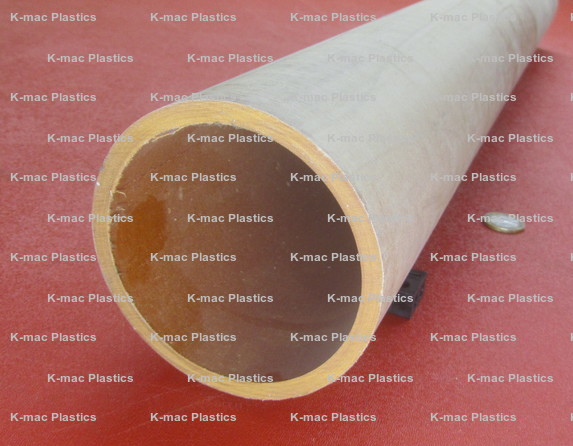

KM-2283 4.000 3.500 6 $97.83 Buy Now

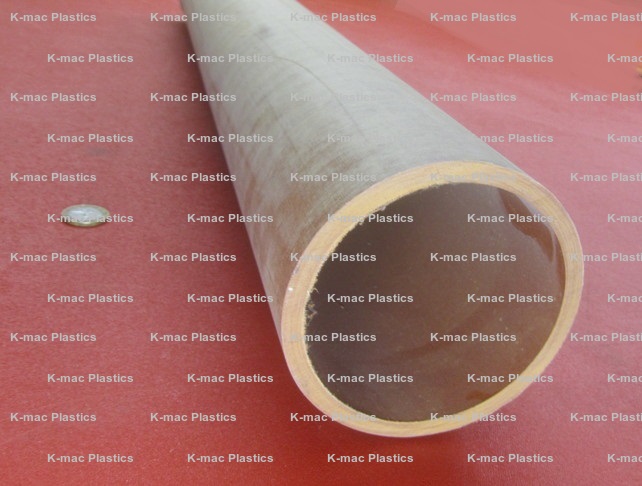

KM-13960 4.062 3.562 6 $99.44 Buy Now

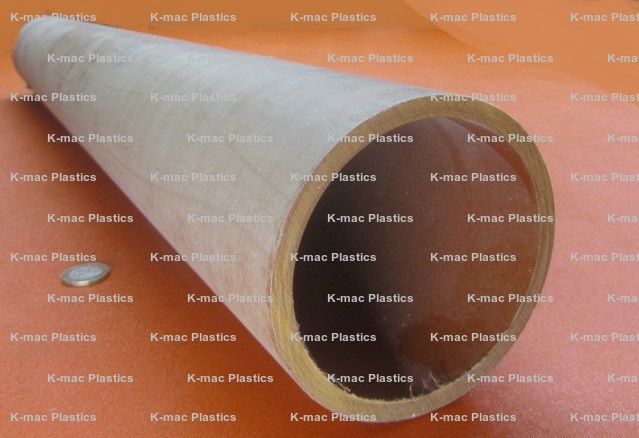

KM-13961 4.125 3.625 6 $101.08 Buy Now
KM-13962 4.187 3.687 6 $102.73 Buy Now

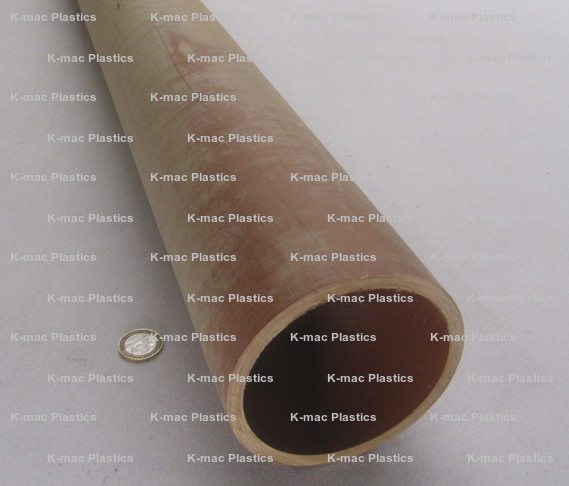

KM-2288 4.250 3.750 6 $104.34 Buy Now

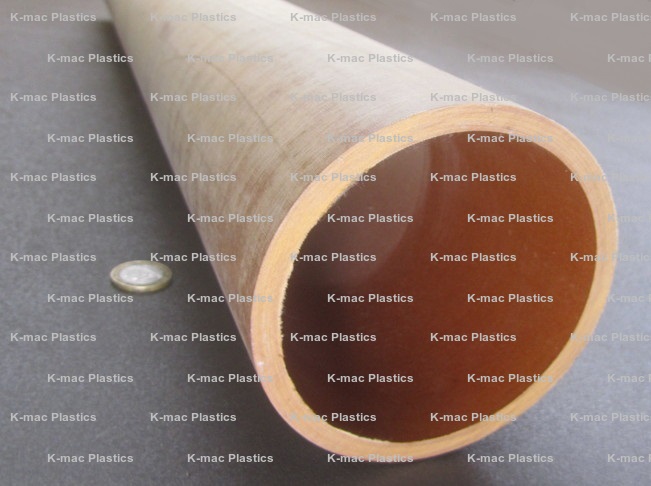

KM-13963 4.312 3.812 6 $105.98 Buy Now
KM-13993 4.375 3.875 6 $107.59 Buy Now
KM-14024 4.437 3.937 6 $109.24 Buy Now
KM-2293 4.500 4.000 6 $110.85 Buy Now
KM-13975 4.562 4.062 6 $112.49 Buy Now
KM-14007 4.625 4.125 6 $114.14 Buy Now
KM-14008 4.687 4.187 6 $115.75 Buy Now
KM-14009 4.750 4.250 6 $117.39 Buy Now
KM-14010 4.812 4.312 6 $119.00 Buy Now
KM-14011 4.875 4.438 6 $120.65 Buy Now
KM-14012 4.937 4.500 6 $122.29 Buy Now
KM-2298 5.00 4.500 6 $123.90 Buy Now
KM-14013 5.062 4.562 6 $125.55 Buy Now
KM-14025 5.125 4.625 6 $127.16 Buy Now
KM-14015 5.187 4.687 6 $128.80 Buy Now
KM-14005 5.250 4.750 6 $130.41 Buy Now
KM-14017 5.312 4.812 6 $132.06 Buy Now
KM-14018 5.375 4.875 6 $133.70 Buy Now
KM-14019 5.437 4.937 6 $135.31 Buy Now
KM-2303 5.500 5.000 6 $136.96 Buy Now
KM-14020 5.562 5.062 6 $138.57 Buy Now
KM-14021 5.625 5.125 6 $140.21 Buy Now
KM-14022 5.688 5.187 6 $141.86 Buy Now
KM-14023 5.750 5.250 6 $143.47 Buy Now
KM-13995 5.812 5.313 6 $145.11 Buy Now
KM-14016 5.875 5.375 6 $146.72 Buy Now
KM-14014 5.938 5.437 6 $148.37 Buy Now
KM-13986 6.000 5.500 6 $149.98 Buy Now
KM-13987 6.063 6.562 6 $151.62 Buy Now
KM-13988 6.125 5.625 6 $153.27 Buy Now
KM-13989 6.187 5.687 6 $154.88 Buy Now
KM-13990 6.250 5.750 6 $156.52 Buy Now
KM-13991 6.312 5.812 6 $158.13 Buy Now
KM-13992 6.375 5.875 6 $159.78 Buy Now
KM-14004 6.437 5.937 3 $161.39 Buy Now
KM-2315 6.500 6.000 3 $163.03 Buy Now
KM-14058 6.562 6.062 3 $164.68 Buy Now
KM-13994 6.625 6.125 3 $166.29 Buy Now
KM-13985 6.688 6.187 3 $167.93 Buy Now
KM-13996 6.750 6.250 3 $169.54 Buy Now
KM-13997 6.812 6.312 3 $171.19 Buy Now
KM-13998 6.875 6.375 3 $172.83 Buy Now
KM-13999 6.938 6.437 3 $174.44 Buy Now
KM-14000 7.000 6.500 3 $176.09 Buy Now
KM-14001 7.062 6.562 3 $177.70 Buy Now
KM-14002 7.125 6.625 3 $179.34 Buy Now
KM-13935 7.187 6.687 3 $180.95 Buy Now
KM-14006 7.250 6.750 3 $182.60 Buy Now
KM-13946 7.312 6.812 3 $184.24 Buy Now
KM-13886 7.375 6.875 3 $185.85 Buy Now
KM-13887 7.437 6.938 3 $187.50 Buy Now
KM-13888 7.500 7.000 3 $189.11 Buy Now
KM-13889 7.562 7.062 3 $190.75 Buy Now
KM-13890 7.625 7.125 3 $192.40 Buy Now
KM-13891 7.688 7.187 3 $194.01 Buy Now
KM-13892 7.750 7.250 3 $195.65 Buy Now
KM-13904 7.812 7.312 3 $197.26 Buy Now
KM-13894 7.875 7.375 3 $198.91 Buy Now
KM-13885 7.938 7.437 3 $200.52 Buy Now
KM-13896 8.000 7.500 3 $202.16 Buy Now
KM-13897 8.062 7.562 3 $203.81 Buy Now
KM-13898 8.125 7.625 3 $205.42 Buy Now
KM-13899 8.188 7.687 3 $207.06 Buy Now
KM-13900 8.250 7.750 3 $208.67 Buy Now
KM-13901 8.312 7.812 3 $210.32 Buy Now
KM-13902 8.375 7.875 3 $211.93 Buy Now
KM-13903 8.437 7.937 3 $213.57 Buy Now
KM-13875 8.500 8.000 3 $215.22 Buy Now
KM-13873 8.562 8.062 3 $216.83 Buy Now
KM-13893 8.625 8.125 3 $218.47 Buy Now
KM-13867 8.688 8.187 3 $220.08 Buy Now
KM-13868 8.750 8.250 3 $221.73 Buy Now
KM-13869 8.812 8.312 3 $223.37 Buy Now
KM-13870 8.875 8.375 3 $224.98 Buy Now
KM-13871 8.938 8.437 3 $226.63 Buy Now
KM-13872 9.000 8.500 3 $228.24 Buy Now
KM-13884 9.062 8.562 3 $229.88 Buy Now
KM-13874 9.125 8.625 3 $231.49 Buy Now
KM-13865 9.188 8.687 3 $233.14 Buy Now
KM-13876 9.250 8.75 3 $234.78 Buy Now
KM-13877 9.312 8.812 3 $236.39 Buy Now
KM-13878 9.375 8.875 3 $238.04 Buy Now
KM-13879 9.437 8.937 3 $239.65 Buy Now
KM-13880 9.500 9.000 3 $241.29 Buy Now
KM-13881 9.563 9.062 3 $242.94 Buy Now
KM-13882 9.625 9.125 3 $244.55 Buy Now
KM-13906 9.688 9.187 3 $246.19 Buy Now
KM-13866 9.750 9.250 3 $247.80 Buy Now
KM-13895 9.812 9.312 3 $249.45 Buy Now
KM-13926 9.875 9.375 3 $251.06 Buy Now
KM-13927 9.937 9.437 3 $252.70 Buy Now
KM-13928 10.000 9.500 3 $290.68 Buy Now
KM-13929 10.062 9.562 3 $292.52 Buy Now
KM-13930 10.125 9.625 3 $294.40 Buy Now
KM-13931 10.187 9.687 3 $296.24 Buy Now
KM-13932 10.250 9.750 3 $298.12 Buy Now
KM-13944 10.313 9.813 3 $299.96 Buy Now
KM-13934 10.375 9.875 3 $301.84 Buy Now
KM-13925 10.437 9.937 3 $303.72 Buy Now
KM-13936 10.500 10.00 3 $305.56 Buy Now
KM-13937 10.563 10.062 3 $307.44 Buy Now
KM-13938 10.625 10.125 3 $309.28 Buy Now
KM-13939 10.688 10.187 3 $311.16 Buy Now
KM-13940 10.750 10.250 3 $313.04 Buy Now
KM-13941 10.813 10.312 3 $314.88 Buy Now
KM-13942 10.875 10.375 3 $316.76 Buy Now
KM-13943 10.937 10.437 3 $318.60 Buy Now
KM-13915 11.000 10.500 3 $320.48 Buy Now
KM-13913 11.062 10.562 3 $322.32 Buy Now
KM-13933 11.125 10.625 3 $324.20 Buy Now
KM-13907 11.188 10.687 3 $326.08 Buy Now
KM-13908 11.250 10.750 3 $327.92 Buy Now
KM-13909 11.313 10.812 3 $329.80 Buy Now
KM-13910 11.375 10.875 3 $331.64 Buy Now
KM-13911 11.437 10.937 3 $333.52 Buy Now
KM-13912 11.500 11.000 3 $335.40 Buy Now
KM-13924 11.562 11.062 3 $337.24 Buy Now
KM-13914 11.625 11.125 3 $339.12 Buy Now
KM-13905 11.687 11.187 3 $340.96 Buy Now
KM-13916 11.750 11.250 3 $342.84 Buy Now
KM-13917 11.812 11.312 3 $344.68 Buy Now
KM-13918 11.875 11.375 3 $346.56 Buy Now
KM-13919 11.937 11.437 3 $348.44 Buy Now
KM-13920 12.000 11.500 3 $350.28 Buy Now
KM-13921 12.062 11.562 3 $352.16 Buy Now
KM-13922 12.125 11.625 3 $354.00 Buy Now
KM-13923 12.187 11.687 3 $355.88 Buy Now
KM-14047 12.250 11.750 3 $357.72 Buy Now
KM-14168 12.313 11.812 3 $359.60 Buy Now
KM-14003 12.375 11.875 3 $361.48 Buy Now
KM-14129 12.437 11.937 3 $363.32 Buy Now
KM-14130 12.500 12.000 3 $365.20 Buy Now
KM-14131 12.562 12.062 3 $367.04 Buy Now
KM-14132 12.625 12.125 3 $368.92 Buy Now
KM-14133 12.687 12.187 3 $370.80 Buy Now
KM-14134 12.750 12.250 3 $372.64 Buy Now
KM-14146 12.812 12.312 3 $374.52 Buy Now
KM-14136 12.875 12.375 3 $376.36 Buy Now
KM-14127 12.937 12.437 3 $378.24 Buy Now
KM-14138 13.000 12.500 3 $380.08 Buy Now
KM-14139 13.062 12.562 3 $381.96 Buy Now
KM-14140 13.125 12.625 3 $383.84 Buy Now
KM-14141 13.187 12.687 3 $385.68 Buy Now
KM-13664 13.250 12.750 3 $387.56 Buy Now
KM-13665 13.312 12.813 3 $389.40 Buy Now
KM-13666 13.375 12.875 3 $391.28 Buy Now
KM-13667 13.437 12.937 3 $393.16 Buy Now
KM-13668 13.500 13.000 3 $395.00 Buy Now
KM-13669 13.562 13.062 3 $396.88 Buy Now
KM-13681 13.625 13.125 3 $39872 Buy Now
KM-13671 13.687 13.187 3 $400.60 Buy Now
KM-13662 13.750 13.250 3 $402.44 Buy Now
KM-13673 13.812 13.312 3 $404.32 Buy Now
KM-13674 13.875 13.375 3 $406.20 Buy Now
KM-13675 13.937 13.437 3 $408.04 Buy Now
KM-13676 14.000 13.500 3 $409.92 Buy Now
KM-13677 14.062 13.562 3 $411.76 Buy Now
KM-13678 14.125 13.625 3 $413.64 Buy Now
KM-14059 14.187 13.687 3 $415.48 Buy Now
KM-13679 14.250 13.750 3 $417.36 Buy Now
KM-14057 14.312 13.812 3 $419.24 Buy Now
KM-13612 14.375 13.875 3 $421.08 Buy Now
KM-13683 14.437 13.937 3 $422.96 Buy Now
KM-13623 14.500 14.000 3 $424.80 Buy Now
KM-13563 14.562 14.062 3 $426.68 Buy Now
KM-13564 14.625 14.125 3 $428.56 Buy Now
KM-13565 14.687 14.187 3 $430.40 Buy Now
KM-13566 14.750 14.250 3 $432.28 Buy Now
KM-13567 14.812 14.312 3 $434.12 Buy Now
KM-13568 14.875 14.375 3 $436.00 Buy Now
KM-13569 14.937 14.437 3 $437.84 Buy Now
KM-13581 15.000 14.500 3 $439.72 Buy Now
KM-13571 15.062 14.562 3 $441.60 Buy Now
KM-13562 15.125 14.625 3 $443.44 Buy Now
KM-13573 15.187 14.687 3 $445.32 Buy Now
KM-14142 15.250 14.750 3 $447.16 Buy Now
KM-14143 15.312 14.812 3 $449.04 Buy Now
KM-14144 15.375 14.875 3 $450.92 Buy Now
KM-14145 15.437 14.937 3 $452.76 Buy Now
KM-14117 15.500 15.000 3 $454.64 Buy Now
KM-14115 15.562 15.062 3 $456.48 Buy Now
KM-14135 15.625 15.125 3 $458.36 Buy Now
KM-14109 15.687 15.187 3 $460.20 Buy Now
KM-14110 15.750 15.250 3 $462.08 Buy Now
KM-14111 15.812 15.312 3 $463.96 Buy Now
KM-14112 15.875 15.375 3 $465.80 Buy Now
KM-14113 15.937 15.437 3 $467.68 Buy Now
KM-14114 16.000 15.500 3 $469.52 Buy Now
KM-14126 16.062 15.562 3 $471.40 Buy Now
KM-14116 16.125 15.625 3 $473.24 Buy Now
KM-14107 16.187 15.687 3 $475.12 Buy Now
KM-14118 16.250 15.750 3 $477.00 Buy Now
KM-14119 16.312 15.812 3 $478.84 Buy Now
KM-14120 16.375 15.875 3 $480.72 Buy Now
KM-14121 16.437 15.937 3 $482.56 Buy Now
KM-14122 16.500 16.000 3 $484.44 Buy Now
KM-14123 16.562 16.062 3 $486.32 Buy Now
KM-14124 16.625 16.125 3 $488.16 Buy Now
KM-14125 16.687 16.187 3 $490.04 Buy Now
KM-14155 16.750 16.250 3 $491.88 Buy Now
KM-14186 16.812 16.312 3 $493.76 Buy Now
KM-14137 16.875 16.375 3 $495.60 Buy Now
KM-14169 16.937 16.437 3 $497.48 Buy Now
KM-14170 17.000 16.500 3 $499.36 Buy Now
KM-14171 17.062 16.562 3 $501.20 Buy Now
KM-14172 17.125 16.625 3 $503.08 Buy Now
KM-14173 17.187 16.687 3 $504.92 Buy Now
KM-14174 17.250 16.750 3 $506.80 Buy Now
KM-14175 17.312 16.812 3 $508.68 Buy Now
KM-14187 17.375 16.875 3 $510.52 Buy Now
KM-14177 17.437 16.937 3 $512.40 Buy Now
KM-14167 17.500 17.000 3 $514.24 Buy Now
KM-14179 17.562 17.062 3 $516.12 Buy Now
KM-14180 17.625 17.125 3 $517.96 Buy Now
KM-14181 17.687 17.187 3 $519.84 Buy Now
KM-14182 17.750 17.250 3 $521.72 Buy Now
KM-14183 17.812 17.312 3 $523.56 Buy Now
KM-14184 17.875 17.375 3 $525.44 Buy Now
KM-14185 17.937 17.437 3 $527.28 Buy Now
KM-14157 18.000 17.500 3 $529.16 Buy Now
KM-14178 18.062 17.562 3 $531.00 Buy Now
KM-14176 18.125 17.625 3 $532.88 Buy Now
KM-14148 18.187 17.687 3 $534.76 Buy Now
KM-14149 18.250 17.750 3 $536.60 Buy Now
KM-14150 18.312 17.812 3 $538.48 Buy Now
KM-14151 18.375 17.875 3 $540.32 Buy Now
KM-14152 18.437 17.937 3 $542.20 Buy Now
KM-14153 18.500 18.000 3 $544.08 Buy Now
KM-14154 18.562 18.062 3 $545.92 Buy Now
KM-14166 18.625 18.125 3 $547.80 Buy Now
KM-14156 18.687 18.187 3 $549.64 Buy Now
KM-14147 18.750 18.250 3 $551.52 Buy Now
KM-14158 18.812 18.312 3 $553.36 Buy Now
KM-14159 18.875 18.375 3 $555.24 Buy Now
KM-14160 18.937 18.437 3 $557.12 Buy Now
KM-14161 19.000 18.500 3 $558.96 Buy Now
KM-14162 19.062 18.563 3 $560.84 Buy Now
KM-14163 19.125 18.625 3 $562.72 Buy Now
KM-14164 19.187 19.687 3 $564.56 Buy Now
KM-14165 19.250 18.750 3 $566.44 Buy Now
KM-14087 19.312 18.812 3 $568.28 Buy Now
KM-14027 19.375 18.937 3 $570.16 Buy Now
KM-14108 19.437 18.937 3 $572.00 Buy Now
KM-14048 19.500 19.000 3 $573.88 Buy Now
KM-14049 19.562 19.062 3 $575.72 Buy Now
KM-14050 19.625 19.125 3 $577.60 Buy Now
KM-14051 19.687 19.187 3 $579.48 Buy Now
KM-14052 19.750 19.250 3 $581.32 Buy Now
KM-14053 19.812 19.312 3 $583.20 Buy Now
KM-14065 19.875 19.375 3 $585.04 Buy Now
KM-14055 19.937 19.437 3 $586.92 Buy Now
KM-14046 20.000 19.500 3 $588.76 Buy Now



nominal inches,
diameter

plus or minus (±) tolerance, inches

ID inside diameter

OD outside diameter

steel
mandrel

built-up
mandrel

.125" -.749"

.003"

-

.005"

.750" - 1.999"

.004"

-

.005"

2.000" - 4.000"

.006"

-

.008"



*turned

*as wound

4.001" - 12.000"

.010"

-

.025"

plus only

12.001" - 18.000"

.030"

.060"

.030"

plus only

18.001" - 24.000"

.040"

.075"

.035"

plus only

24.001" - 48.000"

.060"

.090"

.040"

plus only

*Note: tubing over 8.000" OD supplied as wound (turned OD quoted on request)
