L and LE Linen Fabric Reinforced Phenolic Tubing .125" Wall Thickness

Linen LE Tubes .125 Inch Wall Thickness

Linen L or LE (Elecritical Grade) Linen Fabric Reinforced Phenolic Tubing - natural (light tan to brown) Technical Data Sheet
This grade is composed of a continuous Linen woven cloth impregnated with a phenolic resin binder. This grade contains a fine weave linen and, like the canvas phenolic, is known for it's mechanical properties. The finer weave allows for machining more intricate details than Canvas, like gear teeth. This grade is not recommended for primary insulation.

NEMA grades L and LE Linen Cotton-Cloth Reinforced Phenolic -- natural color is typically light tan to brown. This grade is composed of a continuous cotton woven cloth impregnated with a phenolic resin binder. This grade contains a fine weave linen and, like the canvas phenolic, is known for its mechanical properties. The finer weave allows for machining more intricate details than canvas grade, such as gear teeth, etc. These grades are not recommended for primary electrical insulation, but grade LE exhibits superior moisture resistance to grades L, C and CE, and thus is an adequate insulator for a fair number of applications.

NEMA L certs to MIL-I-24768/15- FBI, IEC 60893-3 Type 4 PF CC 305
NEMA LE certs to MIL-I-24768/13 FBE, IEC 60893-3 Type 4 PF CC 305

Chemical Resistance Chart

Click Here For L/LE Rods or Sheets

Select L and LE Tubing Wall Thickness
.031" .062" .093"
.125" .187" .250"
.375" .500" .750"
1.00"

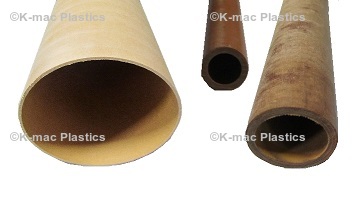

L or LE Linen Fabric Reinforced Phenolic Tubing

.125" Wall Thickness

Lead Times May Apply for Non Stocked Items

Stock # OD Inches ID Inches Min Ft To Purchase  Price Per Foot Purchase Online
KM-2182 .438 .187 6 $15.30 Buy Now
KM-2186 .500 .250 30 $19.01 Buy Now
KM-2190 .563 .312 51 $11.41 Buy Now
KM-2194 .625 .375 27 $21.00 Buy Now
KM-2198 .688 .437 27 $22.02 Buy Now
KM-2202 .750 .500 39 $14.49 Buy Now
KM-2207 .813 .562 36 $15.44 Buy Now
KM-2213 .875 .625 33 $16.31 Buy Now
KM-2218 .938 .687 33 $17.08 Buy Now
KM-2222 1.000 .750 30 $17.75 Buy Now
KM-13839 1.062 .812 27 $20.09 Buy Now
KM-2227 1.125 .875 27 $21.18 Buy Now
KM-13840 1.187 .937 27 $22.16 Buy Now
KM-4765 1.250 1.000 24 $23.14 Buy Now
KM-13841 1.312 1.062 24 $24.08 Buy Now
KM-13842 1.375 1.125 21 $24.99 Buy Now
KM-13764 1.437 1.187 21 $24.99 Buy Now
KM-2237 1.500 1.250 21 $25.90 Buy Now
KM-13704 1.562 1.312 21 $26.67 Buy Now
KM-13785 1.688 1.437 21 $28.53 Buy Now
KM-2242 1.750 1.500 18 $29.44 Buy Now
KM-13725 1.812 1.562 18 $30.07 Buy Now
KM-13726 1.875 1.625 18 $30.45 Buy Now
KM-13727 1.937 1.687 18 $31.01 Buy Now
KM-2247 2.000 1.750 18 $31.54 Buy Now
KM-13728 2.062 1.812 18 $31.75 Buy Now
KM-13729 2.125 1.875 18 $32.45 Buy Now
KM-13730 2.188 1.937 18 $33.18 Buy Now
KM-2252 2.250 2.000 15 $33.88 Buy Now
KM-13742 2.312 2.062 15 $34.55 Buy Now
KM-13732 2.375 2.125 15 $35.21 Buy Now
KM-13723 2.437 2.187 15 $35.88 Buy Now
KM-2257 2.500 2.250 15 $36.47 Buy Now
KM-13734 2.562 2.312 15 $37.10 Buy Now
KM-4797 2.625 2.375 15 $44.16 Buy Now
KM-13735 2.688 2.437 15 $38.26 Buy Now
KM-2262 2.750 2.500 15 $39.17 Buy Now
KM-13736 2.812 2.562 15 $39.73 Buy Now
KM-13737 2.875 2.625 15 $40.64 Buy Now
KM-13738 2.937 2.687 15 $41.16 Buy Now
KM-2267 3.000 2.750 15 $42.56 Buy Now
KM-13739 3.062 2.812 12 $42.07 Buy Now
KM-13740 3.125 2.875 12 $43.47 Buy Now
KM-13741 3.188 2.937 12 $43.93 Buy Now
KM-2272 3.250 3.000 12 $44.84 Buy Now
KM-13713 3.312 3.062 12 $45.26 Buy Now
KM-13711 3.375 3.125 12 $46.17 Buy Now
KM-13731 3.437 3.187 12 $46.55 Buy Now
KM-2277 3.500 3.250 12 $47.43 Buy Now
KM-13705 3.562 3.312 12 $48.34 Buy Now
KM-13706 3.625 3.375 12 $49.21 Buy Now
KM-13707 3.687 3.437 12 $49.56 Buy Now
KM-2282 3.750 3.500 12 $50.44 Buy Now
KM-13708 3.812 3.562 12 $51.31 Buy Now
KM-13709 3.875 3.625 12 $52.19 Buy Now
KM-13710 3.937 3.687 12 $52.50 Buy Now
KM-2287 4.000 3.750 9 $53.34 Buy Now
KM-13722 4.062 3.812 9 $54.22 Buy Now
KM-13712 4.125 3.875 9 $55.06 Buy Now
KM-14778 4.187 3.937 9 $55.93 Buy Now
KM-2292 4.250 4.000 9 $56.81 Buy Now
KM-14779 4.312 4.062 9 $57.65 Buy Now
KM-14780 4.375 4.125 9 $58.52 Buy Now
KM-14781 4.437 4.187 9 $59.36 Buy Now
KM-14793 4.500 4.250 9 $60.24 Buy Now
KM-14783 4.562 4.312 9 $60.45 Buy Now
KM-14774 4.625 4.375 9 $61.29 Buy Now
KM-14785 4.687 4.438 9 $62.16 Buy Now
KM-2297 4.750 4.500 9 $63.00 Buy Now
KM-13703 4.812 4.562 9 $63.84 Buy Now
KM-13714 4.875 4.625 9 $64.72 Buy Now
KM-13715 4.937 4.687 9 $65.56 Buy Now
KM-13716 5.000 4.750 9 $66.40 Buy Now
KM-13717 5.062 4.812 9 $67.27 Buy Now
KM-13718 5.125 4.875 9 $68.11 Buy Now

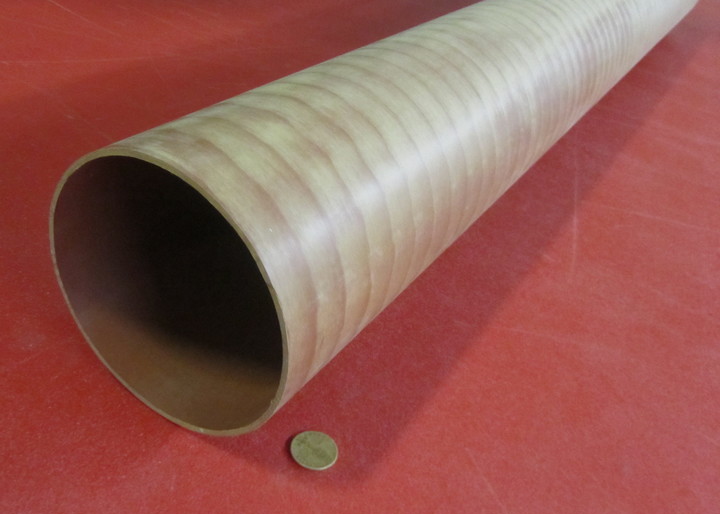

KM-13719 5.187 4.937 9 $68.95 Buy Now
KM-2302 5.250 5.000 9 $69.06 Buy Now

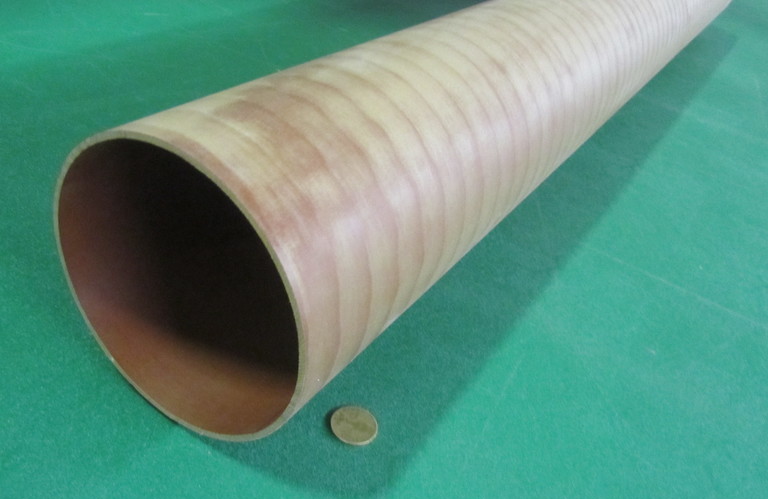

KM-13720 5.312 5.062 9 $69.93 Buy Now
KM-13721 5.375 5.125 9 $70.77 Buy Now
KM-13751 5.437 5.187 9 $71.61 Buy Now
KM-13782 5.500 5.250 9 $72.45 Buy Now
KM-14818 5.562 5.313 9 $73.29 Buy Now
KM-13733 5.625 5.375 9 $74.13 Buy Now
KM-13765 5.688 5.437 9 $74.17 Buy Now

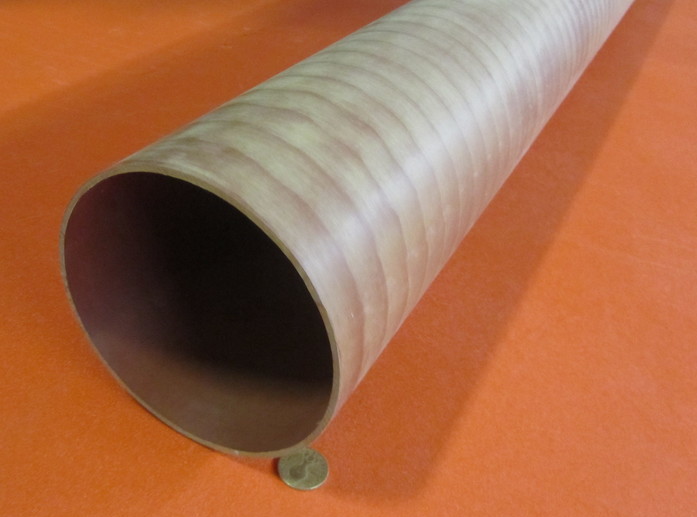

KM-2308 5.750 5.500 9 $75.01 Buy Now
KM-13766 5.812 5.562 9 $75.85 Buy Now
KM-13767 5.875 5.625 9 $76.30 Buy Now
KM-13768 5.938 5.687 9 $76.65 Buy Now
KM-13769 6.000 5.750 9 $76.97 Buy Now
KM-13770 6.063 5.812 9 $77.46 Buy Now

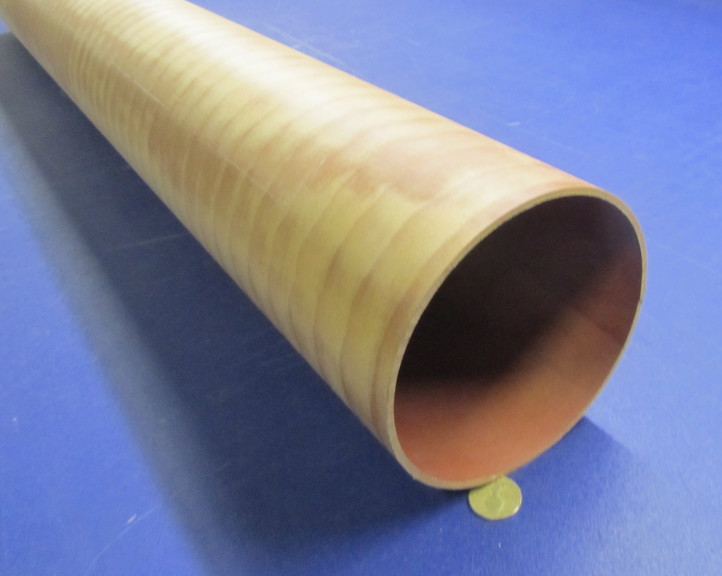

KM-13771 6.125 5.875 9 $78.26 Buy Now

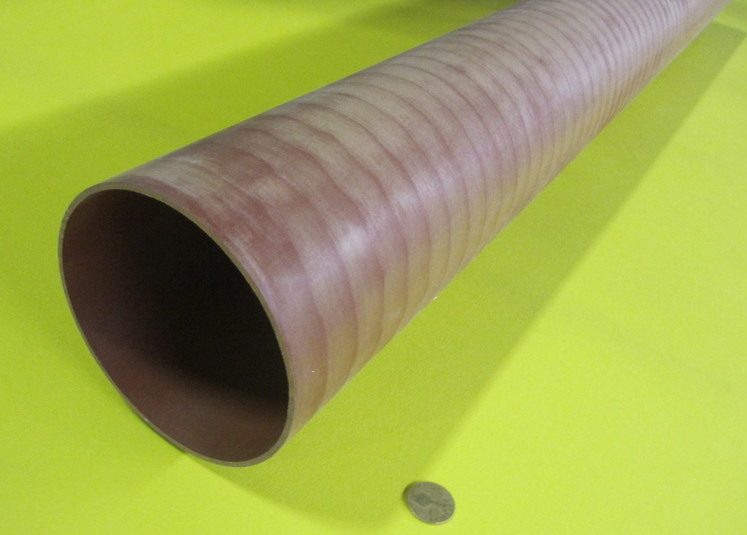

KM-13783 6.187 5.937 9 $79.07 Buy Now

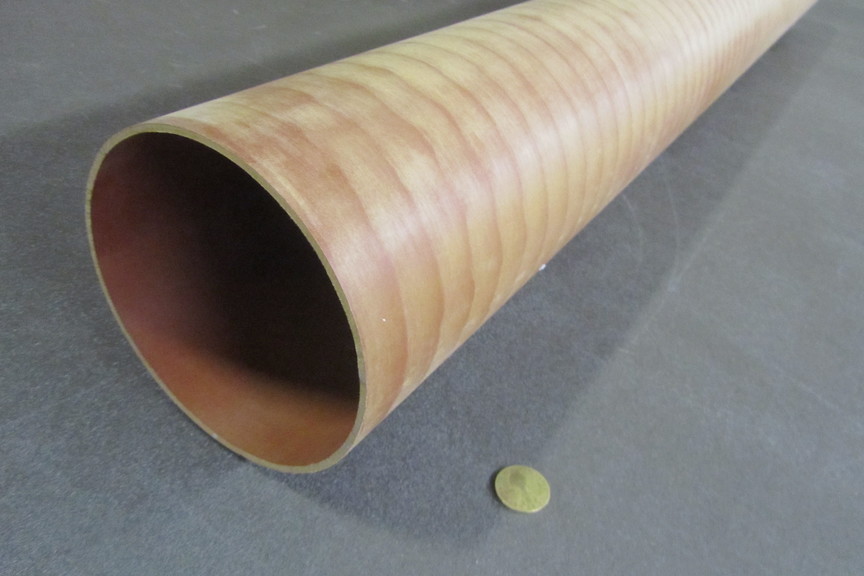

KM-2314 6.250 6.000 6 $79.87 Buy Now
KM-13773 6.312 6.062 6 $80.71 Buy Now
KM-13763 6.375 6.125 6 $81.52 Buy Now
KM-13775 6.437 6.187 6 $82.32 Buy Now
KM-13776 6.500 6.250 6 $83.16 Buy Now
KM-13777 6.562 6.312 6 $83.97 Buy Now
KM-13778 6.625 6.375 6 $84.77 Buy Now
KM-13779 6.688 6.437 6 $86.56 Buy Now
KM-13780 6.750 6.500 6 $87.36 Buy Now
KM-13781 6.812 6.562 6 $88.20 Buy Now
KM-13753 6.875 6.625 6 $89.01 Buy Now
KM-13774 6.938 6.687 6 $89.85 Buy Now
KM-13772 7.000 6.750 6 $90.65 Buy Now
KM-13744 7.062 6.812 6 $91.49 Buy Now
KM-13745 7.125 6.875 6 $92.30 Buy Now
KM-13746 7.187 6.938 6 $94.15 Buy Now
KM-13747 7.250 7.000 6 $94.99 Buy Now
KM-13748 7.312 7.062 6 $95.83 Buy Now
KM-13749 7.375 7.125 6 $96.67 Buy Now
KM-13750 7.437 7.187 6 $97.51 Buy Now
KM-13762 7.500 7.250 6 $98.32 Buy Now
KM-13752 7.562 7.312 6 $100.24 Buy Now
KM-13743 7.625 7.375 6 $101.08 Buy Now
KM-13754 7.688 7.437 6 $101.92 Buy Now
KM-13755 7.750 7.500 6 $103.88 Buy Now
KM-13756 7.812 7.562 6 $104.72 Buy Now
KM-13757 7.875 7.625 6 $105.56 Buy Now
KM-13758 7.938 7.687 6 $107.56 Buy Now
KM-13759 8.000 7.750 6 $108.43 Buy Now
KM-13760 8.062 7.812 6 $109.27 Buy Now
KM-13761 8.125 7.875 6 $110.15 Buy Now
KM-14206 8.188 7.937 6 $110.99 Buy Now
KM-14731 8.250 8.000 6 $111.86 Buy Now
KM-14128 8.312 8.062 6 $112.74 Buy Now
KM-14614 8.375 8.125 6 $113.58 Buy Now
KM-14615 8.437 8.187 6 $114.45 Buy Now
KM-14616 8.500 8.250 6 $115.29 Buy Now
KM-14617 8.562 8.312 6 $116.17 Buy Now
KM-14618 8.625 8.375 6 $117.01 Buy Now
KM-14619 8.688 8.437 6 $117.88 Buy Now
KM-14631 8.750 8.500 6 $118.76 Buy Now
KM-14621 8.812 8.562 6 $119.60 Buy Now
KM-14612 8.875 8.625 6 $120.47 Buy Now
KM-14623 8.938 8.687 6 $121.31 Buy Now
KM-14624 9.000 8.75 6 $122.19 Buy Now
KM-14625 9.062 8.812 6 $123.06 Buy Now
KM-14626 9.125 8.875 6 $123.90 Buy Now
KM-14627 9.188 8.937 6 $124.78 Buy Now
KM-14628 9.250 9.000 6 $125.62 Buy Now
KM-14629 9.312 9.062 6 $126.49 Buy Now
KM-14630 9.375 9.125 6 $127.33 Buy Now
KM-14602 9.437 9.187 6 $128.21 Buy Now
KM-14600 9.500 9.250 6 $129.08 Buy Now
KM-14620 9.563 9.312 6 $129.92 Buy Now
KM-14594 9.625 9.375 6 $130.80 Buy Now
KM-14595 9.688 9.437 6 $131.64 Buy Now
KM-14596 9.750 9.500 6 $132.51 Buy Now
KM-14597 9.812 9.562 6 $133.39 Buy Now
KM-14598 9.875 9.625 6 $134.23 Buy Now
KM-14599 9.937 9.687 6 $135.10 Buy Now
KM-14611 10.000 9.750 6 $155.36 Buy Now
KM-14601 10.062 9.813 6 $156.36 Buy Now
KM-14592 10.125 9.875 6 $157.32 Buy Now
KM-14603 10.187 9.937 6 $158.32 Buy Now
KM-14604 10.250 10.00 6 $159.32 Buy Now
KM-14605 10.313 10.062 6 $160.28 Buy Now
KM-14606 10.375 10.125 6 $161.28 Buy Now
KM-14607 10.437 10.187 6 $162.24 Buy Now
KM-14608 10.500 10.250 6 $163.24 Buy Now
KM-14609 10.563 10.312 6 $164.24 Buy Now
KM-14610 10.625 10.375 6 $165.20 Buy Now
KM-14640 10.688 10.437 6 $166.20 Buy Now
KM-14671 10.750 10.500 6 $167.16 Buy Now
KM-14622 10.813 10.562 6 $168.16 Buy Now
KM-14654 10.875 10.625 6 $169.12 Buy Now
KM-14655 10.937 10.687 6 $170.12 Buy Now
KM-14656 11.000 10.750 6 $171.12 Buy Now
KM-14657 11.062 10.812 6 $172.08 Buy Now
KM-14658 11.125 10.875 6 $173.08 Buy Now
KM-14659 11.188 10.937 6 $174.04 Buy Now
KM-14660 11.250 11.000 6 $175.04 Buy Now
KM-14672 11.313 11.062 6 $176.04 Buy Now
KM-14662 11.375 11.125 6 $177.00 Buy Now
KM-14652 11.437 11.187 6 $178.00 Buy Now
KM-14664 11.500 11.250 6 $178.96 Buy Now
KM-14665 11.562 11.312 6 $179.96 Buy Now
KM-14666 11.625 11.375 6 $180.92 Buy Now
KM-14667 11.687 11.437 6 $181.92 Buy Now
KM-14668 11.750 11.500 6 $182.92 Buy Now
KM-14669 11.812 11.562 3 $183.88 Buy Now
KM-14670 11.875 11.625 3 $184.88 Buy Now
KM-14642 11.937 11.687 3 $185.84 Buy Now
KM-14663 12.000 11.750 3 $186.84 Buy Now
KM-14661 12.062 11.812 3 $187.84 Buy Now
KM-14633 12.125 11.875 3 $188.80 Buy Now
KM-14634 12.187 11.937 3 $189.80 Buy Now
KM-14635 12.250 12.000 3 $190.76 Buy Now
KM-14636 12.313 12.062 3 $191.76 Buy Now
KM-14637 12.375 12.125 3 $192.76 Buy Now
KM-14638 12.437 12.187 3 $193.72 Buy Now
KM-14639 12.500 12.250 3 $194.72 Buy Now
KM-14651 12.562 12.312 3 $195.68 Buy Now
KM-14641 12.625 12.375 3 $196.68 Buy Now
KM-14632 12.687 12.437 3 $197.64 Buy Now
KM-14643 12.750 12.500 3 $200.72 Buy Now
KM-14644 12.812 12.562 3 $201.72 Buy Now
KM-14645 12.875 12.625 3 $202.72 Buy Now
KM-14646 12.937 12.687 3 $203.72 Buy Now
KM-14647 13.000 12.750 3 $204.72 Buy Now
KM-14648 13.062 12.813 3 $204.96 Buy Now
KM-14649 13.125 12.875 3 $205.24 Buy Now
KM-14650 13.187 12.937 3 $205.52 Buy Now
KM-14572 13.250 13.000 3 $208.68 Buy Now
KM-14512 13.312 13.062 3 $209.68 Buy Now
KM-14593 13.375 13.125 3 $210.68 Buy Now
KM-14533 13.437 13.187 3 $213.88 Buy Now
KM-14534 13.500 13.250 3 $214.88 Buy Now
KM-14535 13.562 13.312 3 $215.88 Buy Now
KM-14536 13.625 13.375 3 $219.12 Buy Now
KM-14537 13.687 13.437 3 $220.12 Buy Now
KM-14538 13.750 13.500 3 $221.16 Buy Now
KM-14550 13.812 13.562 3 $224.44 Buy Now
KM-14540 13.875 13.625 3 $225.44 Buy Now
KM-14531 13.937 13.687 3 $226.48 Buy Now
KM-14542 14.000 13.750 3 $229.80 Buy Now
KM-14543 14.062 13.812 3 $230.84 Buy Now
KM-14544 14.125 13.875 3 $231.88 Buy Now
KM-14545 14.187 13.937 3 $232.92 Buy Now
KM-14546 14.250 14.000 3 $233.92 Buy Now
KM-14547 14.312 14.062 3 $234.96 Buy Now
KM-14548 14.375 14.125 3 $236.00 Buy Now
KM-14549 14.437 14.187 3 $237.04 Buy Now
KM-14521 14.500 14.250 3 $238.08 Buy Now
KM-14519 14.562 14.312 3 $239.12 Buy Now
KM-14539 14.625 14.375 3 $242.56 Buy Now
KM-14513 14.687 14.437 3 $243.60 Buy Now
KM-14514 14.750 14.500 3 $244.64 Buy Now
KM-14515 14.812 14.562 3 $245.68 Buy Now
KM-14516 14.875 14.625 3 $246.72 Buy Now
KM-14517 14.937 14.687 3 $247.76 Buy Now
KM-14518 15.000 14.750 3 $248.84 Buy Now
KM-14530 15.062 14.812 3 $249.88 Buy Now
KM-14520 15.125 14.875 3 $253.40 Buy Now
KM-14511 15.187 14.937 3 $254.44 Buy Now
KM-14522 15.250 15.000 3 $255.52 Buy Now
KM-14523 15.312 15.062 3 $256.56 Buy Now
KM-14524 15.375 15.125 3 $257.64 Buy Now
KM-14525 15.437 15.187 3 $257.64 Buy Now
KM-14526 15.500 15.250 3 $258.68 Buy Now
KM-14527 15.562 15.312 3 $260.80 Buy Now
KM-14528 15.625 15.375 3 $261.84 Buy Now
KM-14529 15.687 15.437 3 $262.92 Buy Now
KM-14559 15.750 15.500 3 $266.56 Buy Now
KM-14590 15.812 15.562 3 $267.60 Buy Now
KM-14541 15.875 15.625 3 $268.68 Buy Now
KM-14573 15.937 15.687 3 $269.76 Buy Now
KM-14574 16.000 15.750 3 $273.44 Buy Now
KM-14575 16.062 15.812 3 $274.52 Buy Now
KM-14576 16.125 15.875 3 $275.60 Buy Now
KM-14577 16.187 15.937 3 $276.68 Buy Now
KM-14578 16.250 16.000 3 $277.76 Buy Now
KM-14579 16.312 16.062 3 $278.84 Buy Now
KM-14591 16.375 16.125 3 $279.88 Buy Now
KM-14581 16.437 16.187 3 $280.96 Buy Now
KM-14571 16.500 16.250 3 $282.04 Buy Now
KM-14583 16.562 16.312 3 $283.12 Buy Now
KM-14584 16.625 16.375 3 $284.20 Buy Now
KM-14585 16.687 16.437 3 $285.28 Buy Now
KM-14586 16.750 16.500 3 $286.36 Buy Now
KM-14587 16.812 16.562 3 $287.44 Buy Now
KM-14588 16.875 16.625 3 $288.52 Buy Now
KM-14589 16.937 16.687 3 $289.60 Buy Now
KM-14561 17.000 16.750 3 $290.68 Buy Now
KM-14582 17.062 16.812 3 $291.72 Buy Now
KM-14580 17.125 16.875 3 $292.80 Buy Now
KM-14552 17.187 16.937 3 $293.88 Buy Now
KM-14553 17.250 17.000 3 $294.96 Buy Now
KM-14554 17.312 17.062 3 $296.04 Buy Now
KM-14312 17.375 17.125 3 $297.12 Buy Now
KM-14313 17.437 17.187 3 $298.20 Buy Now
KM-14314 17.500 17.250 3 $299.28 Buy Now
KM-14315 17.562 17.312 3 $299.28 Buy Now
KM-14327 17.625 17.375 3 $300.36 Buy Now
KM-14317 17.687 17.437 3 $301.44 Buy Now
KM-14308 17.750 17.500 3 $302.52 Buy Now
KM-14319 17.812 17.562 3 $303.60 Buy Now
KM-14320 17.875 17.625 3 $304.64 Buy Now
KM-14321 17.937 17.687 3 $305.72 Buy Now
KM-14786 18.000 17.750 3 $306.80 Buy Now
KM-14787 18.062 17.812 3 $307.88 Buy Now
KM-14788 18.125 17.875 3 $308.96 Buy Now
KM-14789 18.187 17.937 3 $310.04 Buy Now
KM-14790 18.250 18.000 3 $311.12 Buy Now
KM-14791 18.312 18.062 3 $312.20 Buy Now
KM-14792 18.375 18.125 3 $313.28 Buy Now
KM-14764 18.437 18.187 3 $314.36 Buy Now
KM-14762 18.500 18.250 3 $315.44 Buy Now
KM-14782 18.562 18.312 3 $316.48 Buy Now
KM-14756 18.625 18.375 3 $317.56 Buy Now
KM-14757 18.687 18.437 3 $318.64 Buy Now
KM-14758 18.750 18.500 3 $319.72 Buy Now
KM-14759 18.812 18.563 3 $320.80 Buy Now
KM-14760 18.875 18.625 3 $321.88 Buy Now
KM-14761 18.937 19.687 3 $322.96 Buy Now
KM-14773 19.000 18.750 3 $324.04 Buy Now
KM-14763 19.062 18.812 3 $325.12 Buy Now
KM-14754 19.125 18.875 3 $326.20 Buy Now
KM-14765 19.187 18.937 3 $327.28 Buy Now
KM-14766 19.250 19.000 3 $328.36 Buy Now
KM-14767 19.312 19.062 3 $330.48 Buy Now
KM-14768 19.375 19.125 3 $331.56 Buy Now
KM-14769 19.500 19.250 3 $332.64 Buy Now
KM-14770 19.562 19.312 3 $333.72 Buy Now
KM-14771 19.625 13.375 3 $334.80 Buy Now
KM-14772 19.687 19.437 3 $335.88 Buy Now
KM-14802 19.750 19.500 3 $336.96 Buy Now
KM-14833 19.812 19.562 3 $338.04 Buy Now
KM-14784 19.875 19.625 3 $339.12 Buy Now
KM-14816 19.937 19.687 3 $340.20 Buy Now
KM-14817 20.000 19.750 3 $342.32 Buy Now







nominal inches,
diameter

plus or minus (±) tolerance, inches

ID inside diameter

OD outside diameter

steel
mandrel

built-up
mandrel

.125" -.749"

.003"

-

.005"

.750" - 1.999"

.004"

-

.005"

2.000" - 4.000"

.006"

-

.008"



*turned

*as wound

4.001" - 12.000"

.010"

-

.025"

plus only

12.001" - 18.000"

.030"

.060"

.030"

plus only

18.001" - 24.000"

.040"

.075"

.035"

plus only

24.001" - 48.000"

.060"

.090"

.040"

plus only

*Note: tubing over 8.000" OD supplied as wound (turned OD quoted on request)
