Linen Fabric Reinforced Phenolic Tubing - 1/32" Wall

LE Tubes .031 Inch Wall

NEMA grades L and LE Linen Cotton-Cloth Reinforced Phenolic has a typical natural color of light tan to brown. This grade is composed of a continuous cotton woven cloth impregnated with a phenolic resin binder. This grade contains a fine weave linen and is known for its mechanical properties. The finer weave allows for machining more intricate details than canvas grade, such as gear teeth. These grades are not recommended for primary electrical insulation, but grade LE exhibits superior moisture resistance to grades L, C and CE, and thus is an adequate insulator for a fair number of applications.

NEMA L certs to MIL-I-24768/15 FBI, IEC 60893-3 Type 4 PF CC 305
NEMA LE certs to MIL-I-24768/13 FBE, IEC 60893-3 Type 4 PF CC 305

Tube Tolerances  •  Technical Data Sheet  •  Chemical Resistance Chart

Tubes are manufactured in random lengths from 30" to 36".
Our pricing and minimum orders are based on the 36".

Tubes can also be produced in 42" to 48" random lengths for the same per-foot price.
Measured lengths of 36"±1" and 48"±1" are also available (call for pricing)

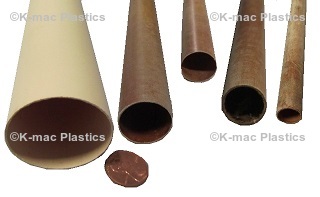

LE Phenolic Tubes - .031" Wall Thickness
Part # OD (in.) ID (in.) Wall (in.) Minimum to Order Price Per Foot Order Online
KM-2179 .250 .187 .031 24 Feet $44.38 Add to Order
KM-2183 .313 .250 .031 24 Feet $46.15 Add to Order
KM-2187 .375 .312 .031 21 Feet $47.95 Add to Order
KM-2191 .438 .375 .031 39 Feet $27.58 Add to Order
KM-2195 .500 .437 .031 36 Feet $28.58 Add to Order
KM-2199 .563 .500 .031 36 Feet $29.58 Add to Order

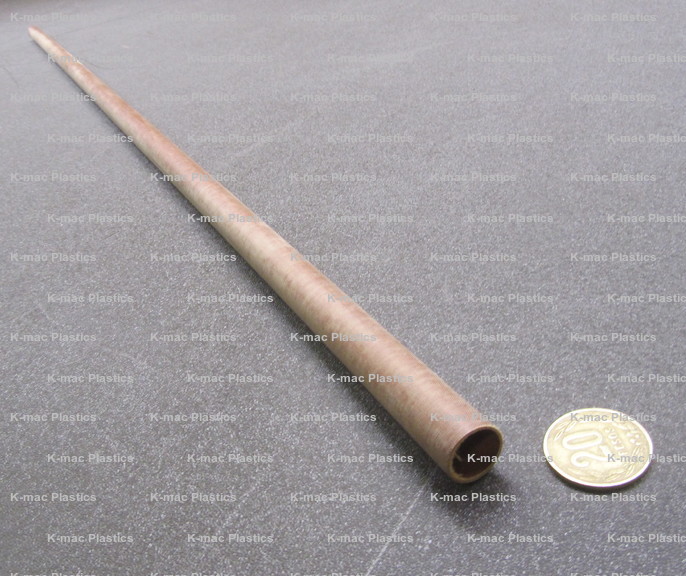

KM-2205 .625 .562 .031 33 Feet $30.58 Add to Order
KM-2210 .688 .625 .031 33 Feet $32.23 Add to Order
KM-2216 .750 .687 .031 33 Feet $33.25 Add to Order
KM-2219 .813 .750 .031 30 Feet $34.25 Add to Order
KM-14408 .875 .812 .031 30 Feet $35.28 Add to Order
KM-14398 .938 .875 .031 30 Feet $36.28 Add to Order
KM-14389 1.00 .937 .031 27 Feet $37.30 Add to Order
KM-2230 1.063 1.00 .031 27 Feet $38.33 Add to Order
KM-14400 1.125 1.062 .031 27 Feet $39.33 Add to Order
KM-14401 1.187 1.125 .031 27 Feet $40.35 Add to Order
KM-14402 1.250 1.187 .031 27 Feet $41.35 Add to Order
KM-7101K 1.312 1.250 .031 24 Feet $42.38 Add to Order
KM-14403 1.375 1.312 .031 24 Feet $43.38 Add to Order
KM-14404 1.437 1.375 .031 24 Feet $44.40 Add to Order
KM-14405 1.500 1.437 .031 24 Feet $45.40 Add to Order
KM-14406 1.562 1.500 .031 24 Feet $46.43 Add to Order
KM-14407 1.625 1.562 .031 24 Feet $47.43 Add to Order
KM-13966 1.688 1.625 .031 21 Feet $48.45 Add to Order
KM-14494 1.75 1.687 .031 21 Feet $49.45 Add to Order
KM-14495 1.812 1.750 .031 21 Feet $50.48 Add to Order
KM-14496 1.875 1.812 .031 21 Feet $51.48 Add to Order
KM-14497 1.937 1.875 .031 21 Feet $52.50 Add to Order
KM-14498 2.00 1.937 .031 21 Feet $53.53 Add to Order
Rev. 04-23, 08-22, 06-22, 04-22
