HDPE Plastics Balls



hdpe balls

High Density Polyethylene Balls

Spheres float on surface of liquid in open tank and thereby greatly reduce the exposed liquid surface area - up to 90%. Dramatically diminish objectionable fumes and odors. Blanket of spheres also insulates heated liquid reducing evaporation and heat requirements. Ideal for plating tanks and similar open tank installations where the liquid surface can be covered with a blanket of spheres without impeding access to the tank for process purposes. Spheres are hollow and will float on any liquid. No welt or rim on which chemicals can deposit, and being smooth they ensure a much tighter surface cover. Polypropylene, non-toxic and able to withstand continuous working temperatures of 110° C (230°F) Polypropylene is suitable for use in most known chemicals. High Density Polyethylene generally suitable as above but with a continuous working temperature limitation of 80° C. (176° F) softening point about 110° C (230°F). High density polyethylene has better chemical resistance to certain compounds like oil, and other hydro-carbons. Also less stress cracking at low temperatures than polypropylene. Color white translucent except 100 mm, black for outside use. All sizes are blow molded.
High Density Polyethylene balls

Virgin White HDPE Balls :

Technical Data Sheet

Chemical Resistance

Diameter Inch Tolerance Stock Number Solid or Hollow Balls per Pkg. Cost per Pkg Buy Now

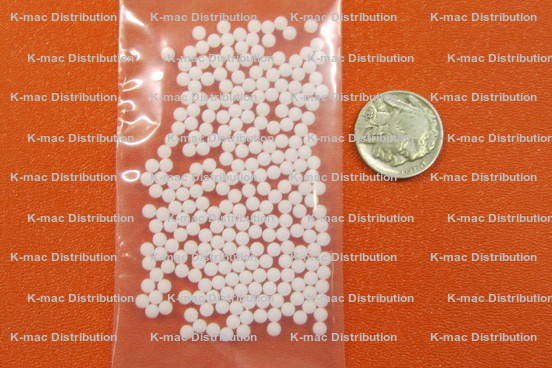

.125 ±.002" KB-069 Solid 250 $28.59 Buy Now
.188 ±.002" KB-208 Solid 500 $35.00 Buy Now

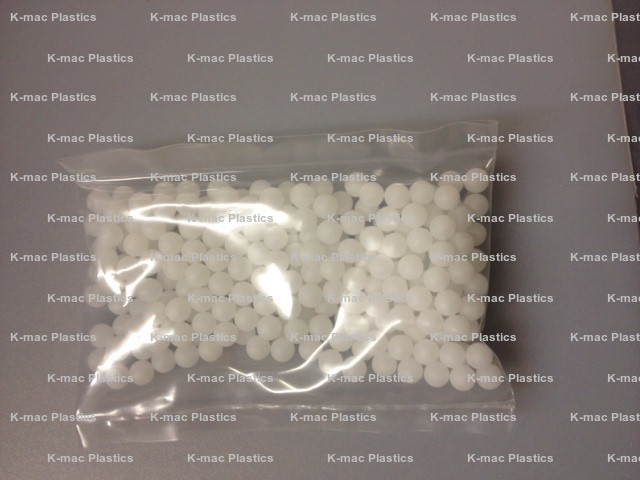

.250 ±.002" KB-070 Solid 250 $40.84 Buy Now

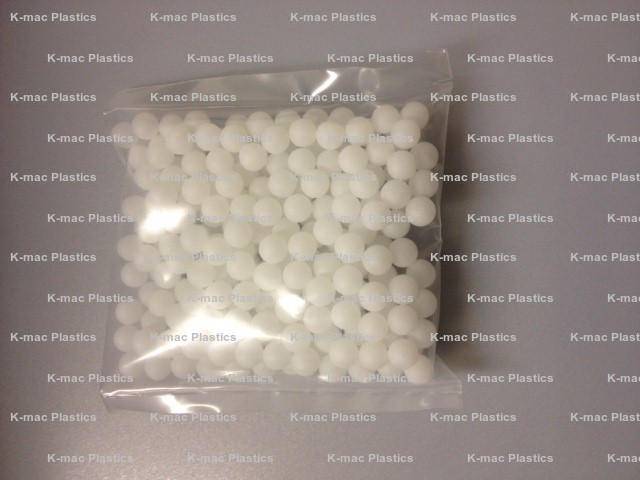

.312 ±.002" KB-071 Solid 250 $46.09 Buy Now

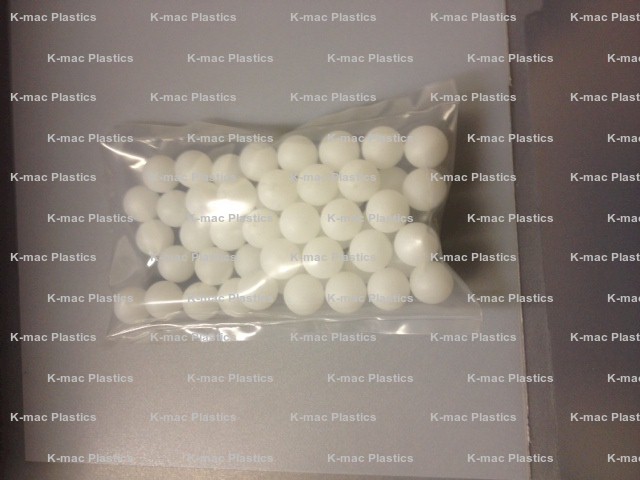

.375 ±.002" KB-072 Solid 200 $42.00 Buy Now

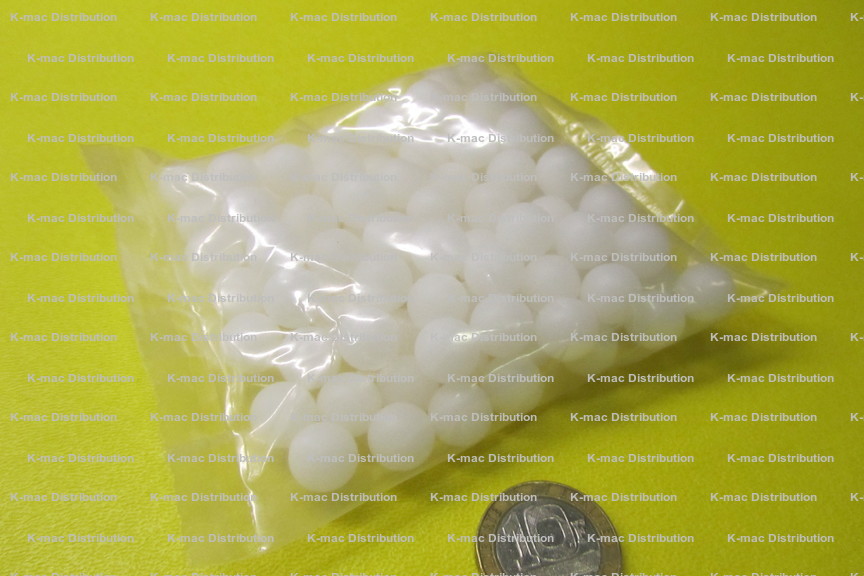

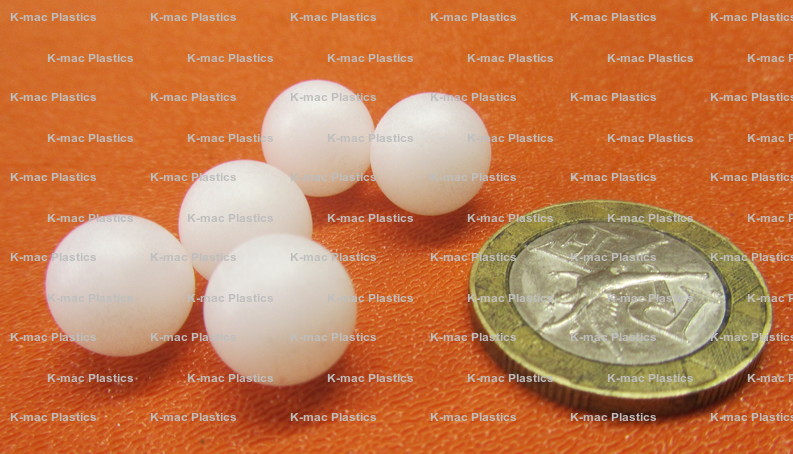

.437 ±.002" KB-073 Solid 100 $32.09 Buy Now

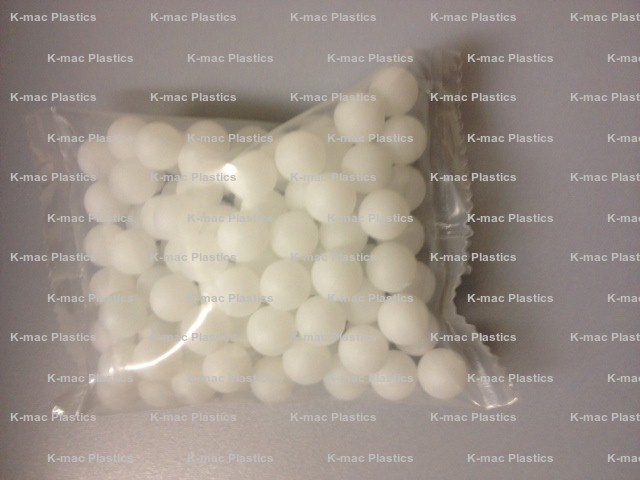

.500 ±.002" KB-074 Solid 100 $32.66 Buy Now
.562 ±.002" KB-075 Solid 100 $46.09 Buy Now

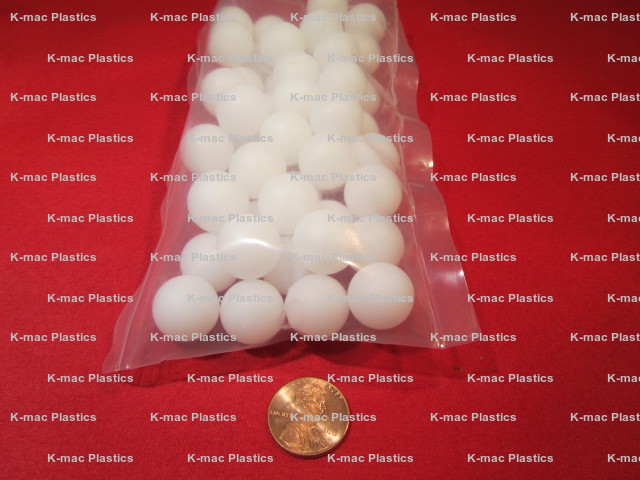

.625 ±.002" KB-076 Solid 100 $45.50 Buy Now

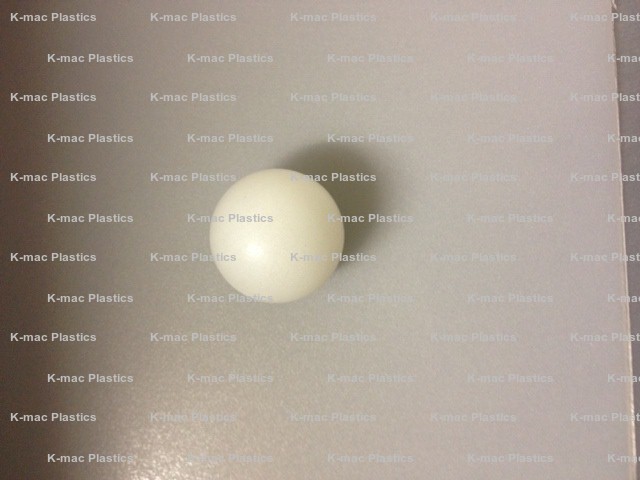

.750 ±.002" KB-077 Solid 100 $50.00 Buy Now

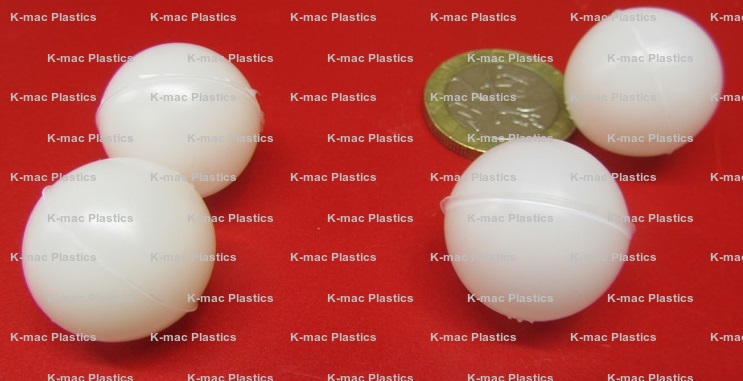

.750 ±.020" KB-077A Hollow 1000 $165.00 Buy Now
.875 ±.002" KB-078 Solid 100 $53.60 Buy Now
1.00 ±.002" KB-079 Solid 50 $46.68 Buy Now
1.50 ±.020" KB-196 Hollow 1000 $446.84 Buy Now
1.75 ±.020" KB-198 Hollow 500 $427.28 Buy Now
2.00 ±.020" KB-235 Solid 10 $412.50 Buy Now
Operating Temperature Range -180° to +190° F
Ball diameter and surface coverage
Diameter (IN) Average weight (g) Number per ft² Number per m²
3/8" 0.2 1,076 11,600
3/4" 1.0 270 2,900
1.0" 1.5 172 1,850
1 1/2" 4.5 74 800
1 3/4" 7.0 53 570
2.0" 8.0 43 465
2.25" 16.0 22 235
4.0" 40.0 10 116
4.5" 100.0 4.8 51.5
The percentage of area covered by the balls is independent of the ball diameter, being the ratio of a circle to the hexagon which surrounds it. This equates to 91% of the liquid surface area. The frictional contact points ensure that each ball remains stable when subjected to increased liquid or air turbulence.



Heat and liquid loss savings
  Open  Surface 1 layer  1.5" balls
Average Surface
Temperature oC
90       70      50 90        70      50
Energy consumption
Kwh/h
10.73    4.61    1.61 2.70    1.31    0.60
Percentage energy;
saving
-         -          - 75%    71%     65%
Evaporation
litres/m²h
13.05   4.97   1.45 1.67    0.41    0.14
Percentage
evaporation saving
-         -           - 87%    91%    90%
Test Tank Dimensions = 600mm(W) x 1850mm(L) x 1000mm(H).
