G5 G9 Glass Reinforced Glass Reinforced Melamine Tubes - .031" Wall

 G5 G9 Tubes .031 Inch Wall

G5 G9 Glass Reinforced Melamine Tubes- natural (grayish brown, cream to white)

Composed of a continuous glass woven cloth base impregnated with a melamine resin binder. Melamines are the hardest of all laminates, exhibiting good dimensional stability and arc resistance. It is also caustic resistant.
NEMA G-5 certs to MIL-I-24768/8 GMG , IEC 60893-3 Type 3 MF GC 201
NEMA G-9 certs to MIL-I-24768/1 GME, IEC 60893-3 Type 3 MF GC 201


Chemical Resistance Chart   Technical Data Sheet

NEMA G-5 certs to MIL-I-24768/8 GMG , IEC 60893-3 Type 3 MF GC 201
NEMA G-9 certs to MIL-I-24768/1 GME, IEC 60893-3 Type 3 MF GC 201

NEMA grades G5 and G9 Glass-Cloth Reinforced Melamine -- natural color is typically a grayish brown. These grades are composed of a continuous glass woven cloth base impregnated with a melamine resin binder. (Melamine resins, once cured, are the hardest, most rigid and abrasion resistant of the standard resins employed in the production of industrial laminates. However, prolonged exposure to high temperature can adversely affect its mechanical and electrical strength properties. Arc resistance, however, may remain unaffected despite excessive thermal exposure.) Melamines are the hardest of laminates, exhibiting good dimensional stability and arc resistance. It's also caustic resistant. A key difference between NEMA Grades G5 and G9 are that G9 is more resistant to the elements of the environment. Thus, G9 can be safely substituted where G5 is called for.



G5 G9 Tube Wall Thickness Options

.031" .062" .093" .125"
.187" .250" .375" .500"
.750" 1.00" G5/G9 Sheets G5/G9 Rods


G5 G9 Tubes - .031" Wall
Part # OD (in.) ID (in.) Minimum Order (ft.) Price Per Foot Order Online
KM-1611 .250 .187 21 $30.00 Add to Order

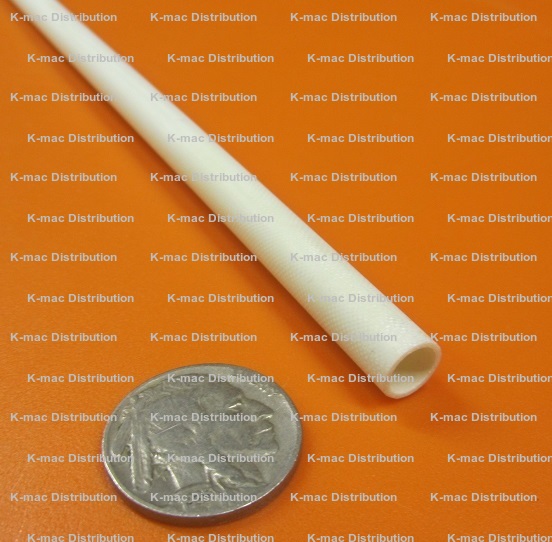

KM-1615 .313 .25 21 $33.17 Add to Order

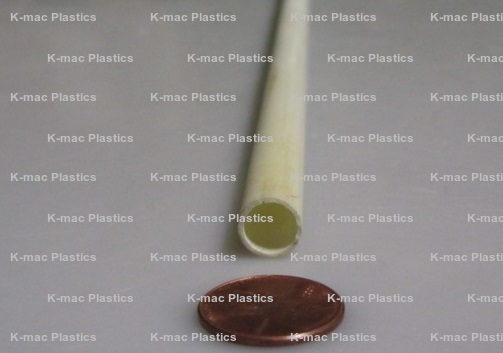

KM-1619 .375 .312 18 $35.28 Add to Order

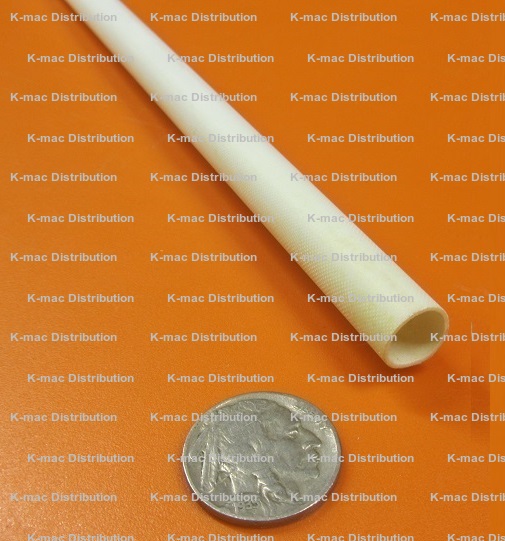

KM-1623 .438 .375 18 $36.26 Add to Order

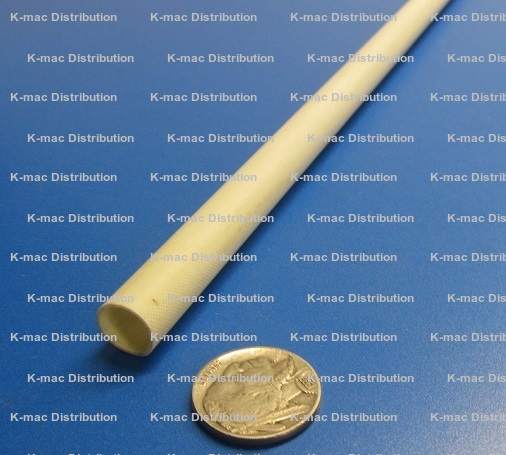

KM-1627 .500 .437 18 $37.26 Add to Order
KM-1631 .563 .500 24 $26.06 Add to Order
KM-1637 .625 .562 24 $26.91 Add to Order
KM-1646 .688 .625 24 $27.59 Add to Order
KM-1652 .750 .687 24 $28.58 Add to Order
KM-1655 .813 .750 33 $18.41 Add to Order
KM-20643 .875 .812 33 $18.72 Add to Order
KM-1661 .938 .875 33 $19.67 Add to Order
KM-20641 1.000 .937 33 $20.16 Add to Order
KM-1667 1.063 1.00 33 $20.48 Add to Order
KM-20639 1.125 1.062 30 $21.24 Add to Order

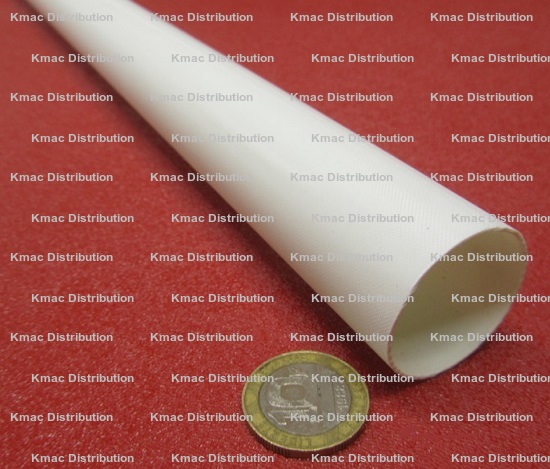

KM-20638 1.187 1.125 30 $21.92 Add to Order

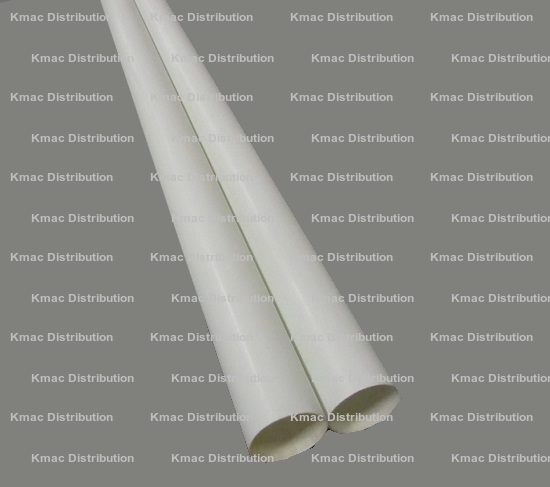

KM-20637 1.250 1.187 30 $22.55 Add to Order
KM-20636 1.312 1.250 27 $23.09 Add to Order
KM-20635 1.375 1.312 27 $23.58 Add to Order
KM-20634 1.437 1.375 27 $24.03 Add to Order
KM-20528 1.500 1.437 27 $24.44 Add to Order
KM-20668 1.562 1.500 27 $25.11 Add to Order
KM-20523 1.625 1.562 24 $25.79 Add to Order
KM-20522 1.688 1.625 24 $26.42 Add to Order
KM-20521 1.750 1.687 24 $27.00 Add to Order
KM-20520 1.812 1.750 24 $27.59 Add to Order
KM-20519 1.875 1.812 24 $28.13 Add to Order
KM-20490 1.937 1.875 24 $28.62 Add to Order
KM-20462 2.000 1.937 21 $29.12 Add to Order


nominal inches,
diameter

plus or minus (±) tolerance, inches

ID inside diameter

OD outside diameter

steel
mandrel

built-up
mandrel

.125" -.749"

.003"

-

.005"

.750" - 1.999"

.004"

-

.005"

2.000" - 4.000"

.006"

-

.008"



*turned

*as wound

4.001" - 12.000"

.010"

-

.025"

plus only

12.001" - 18.000"

.030"

.060"

.030"

plus only

18.001" - 24.000"

.040"

.075"

.035"

plus only

24.001" - 48.000"

.060"

.090"

.040"

plus only

*Note: tubing over 8.000" OD supplied as wound (turned OD quoted on request)
