G11-FR5 High Temp. Glass Reinforced Epoxy  .187" Wall Thickness

G11 FR5 Tubes .187 inch Wall Thickness

G11-FR5 Glass Reinforced Epoxy - .187 Wall Tubes natural (yellow green to amber) Technical Data Sheet
This grade is similar to G10/FR4, with the addition of a higher operating temperature and some improved mechanical strength at elevated temperatures.

The main difference between NEMA Grades G11 and FR5 is that FR5 is a fire retardant grade of G11. Therefore, FR5 can be safely substituted when G11 is called for, while G11 can never be substituted where FR5 is called for. (NEMA G-11 certs to MIL-I-24768/3 GEB, IEC 60893-3 Type 2 EP GC 203; FR5 certifies to Mil-I-24768/28 GEB-F.)

  Chemical Resistance Chart

.031" (1/32") Wall Thickness .062" (1/16")Wall Thickness .093" (3/32")Wall Thickness .125" (1/8")Wall Thickness .187" (3/16")Wall Thickness
.250" (1/4")Wall Thickness .375" (3/8")Wall Thickness .500" (1/2")Wall Thickness .750" (3/4")WallThickness 1.00" Wall Thickness (Max. Possible)



.187" Wall Thickness G11-FR5 Tubes
Stock # OD Inches ID Inches Price/Ft Min Feet to Order Purchase Online
KM-1503 0.875 0.500 $41.34 12 Buy Now
KM-1508 0.937 0.562 $43.89 12 Buy Now
KM-1514 1.000 0.625 $47.15 12 Buy Now
KM-10898 1.062 0.687 $41.72 18 Buy Now
KM-1513K 1.125 0.750 $44.73 15 Buy Now
KM-9259 1.187 0.812 $47.71 18 Buy Now
KM-1519 1.250 0.875 $59.05 9 Buy Now
KM-10732 1.312 0.937 $53.66 18 Buy Now
KM-1525 1.375 1.000 $64.72 9 Buy Now
KM-10741 1.437 1.062 $59.61 15 Buy Now
KM-10718 1.500 1.125 $59.75 15 Buy Now
KM-10083 1.562 1.187 $62.62 15 Buy Now
KM-1529 1.625 1.250 $65.45 9 Buy Now
KM-10178 1.687 1.312 $68.29 15 Buy Now
KM-10177 1.750 1.375 $67.76 15 Buy Now

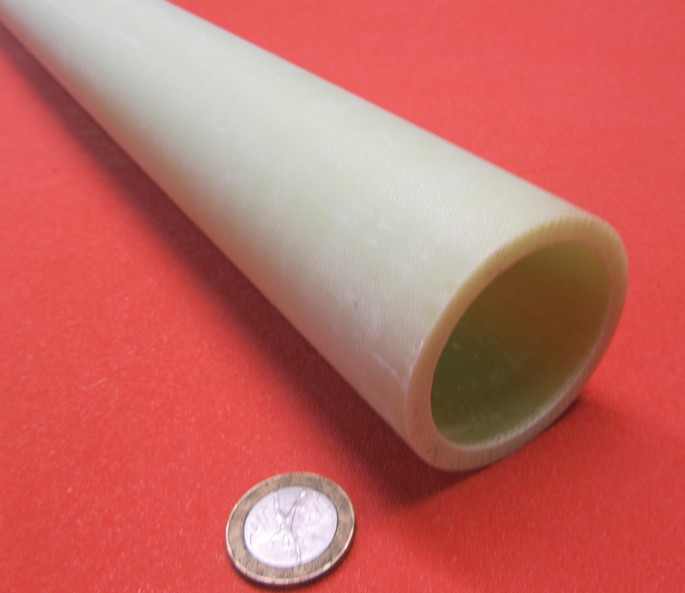

KM-10176 1.812 1.437 $70.46 12 Buy Now
KM-10175 1.875 1.500 $73.19 12 Buy Now

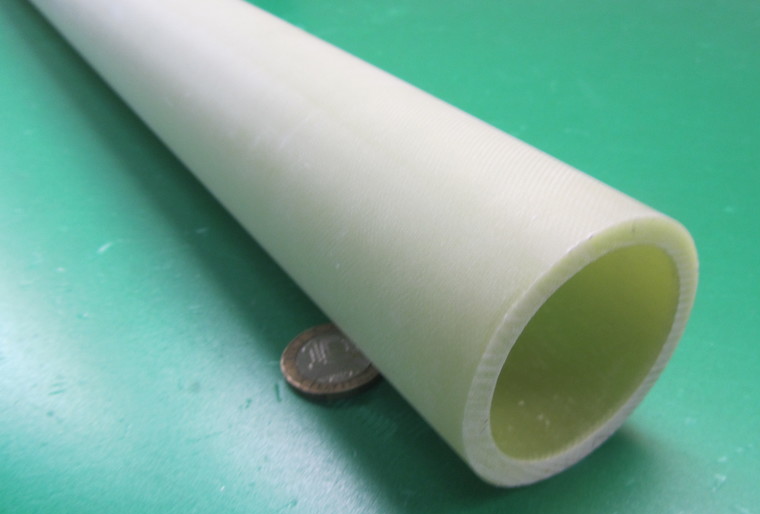

KM-10174 1.937 1.562 $75.88 12 Buy Now

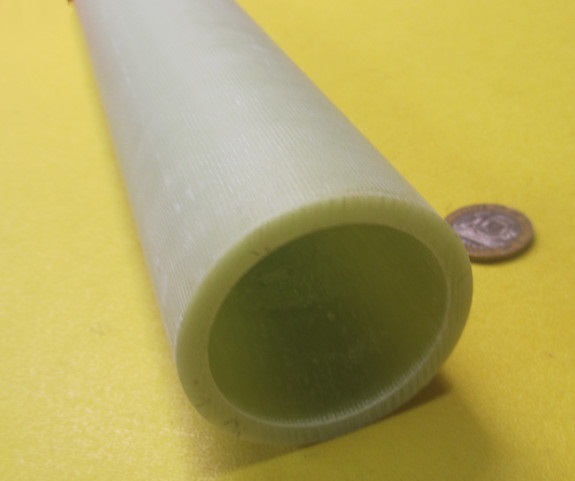

KM-10165 2.000 1.625 $78.58 12 Buy Now

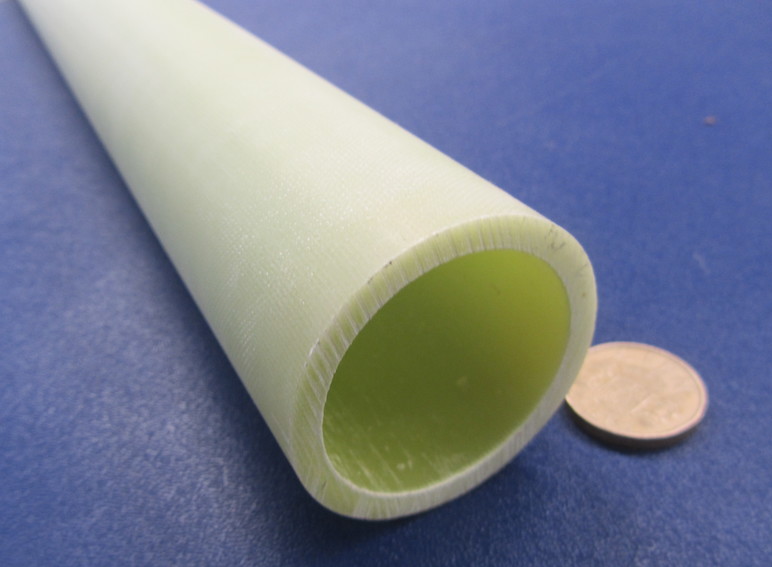

KM-10172 2.062 1.687 $81.31 12 Buy Now
KM-10180 2.125 1.750 $84.00 12 Buy Now
KM-10170 2.187 1.812 $86.73 9 Buy Now
KM-10169 2.250 1.875 $89.43 9 Buy Now
KM-9346 2.312 1.937 $92.16 9 Buy Now
KM-9345 2.375 2.000 $94.85 9 Buy Now
KM-9344 2.437 2.062 $92.68 9 Buy Now
KM-9343 2.500 2.125 $95.27 9 Buy Now
KM-9328 2.562 2.187 $97.83 9 Buy Now
KM-9341 2.625 2.250 $100.42 9 Buy Now
KM-9354 2.687 2.312 $102.97 9 Buy Now
KM-9339 2.750 2.375 $105.56 9 Buy Now
KM-9338 2.812 2.437 $108.12 9 Buy Now
KM-9337 2.875 2.500 $104.86 6 Buy Now
KM-9336 2.937 2.562 $107.31 6 Buy Now
KM-9335 3.000 2.625 $109.76 6 Buy Now
KM-9334 3.062 2.687 $112.18 6 Buy Now
KM-9162 3.125 2.750 $114.63 6 Buy Now
KM-9333 3.187 2.812 $117.08 6 Buy Now
KM-9218 3.250 2.875 $119.53 6 Buy Now
KM-9217 3.312 2.937 $121.94 6 Buy Now
KM-9216 3.375 3.000 $124.39 6 Buy Now
KM-9215 3.437 3.062 $126.84 6 Buy Now
KM-9214 3.500 3.125 $129.26 6 Buy Now
KM-9213 3.562 3.187 $131.71 6 Buy Now
KM-9212 3.625 3.250 $134.16 6 Buy Now
KM-9211 3.687 3.312 $136.57 6 Buy Now
KM-9210 3.750 3.375 $139.02 6 Buy Now
KM-9209 3.812 3.437 $141.47 6 Buy Now
KM-9208 3.875 3.500 $143.89 6 Buy Now
KM-9207 3.937 3.562 $146.34 6 Buy Now
KM-9191 4.000 3.625 $148.79 6 Buy Now
KM-9205 4.062 3.687 $151.20 6 Buy Now
KM-9084 4.125 3.750 $153.65 6 Buy Now
KM-9076 4.187 3.812 $156.10 6 Buy Now
KM-9056 4.250 3.875 $158.52 6 Buy Now
KM-9057 4.312 3.937 $160.97 6 Buy Now
KM-9058 4.375 4.000 $163.42 6 Buy Now
KM-9059 4.437 4.062 $165.87 6 Buy Now
KM-9110 4.500 4.125 $168.28 6 Buy Now
KM-9109 4.562 4.187 $170.73 6 Buy Now
KM-9108 4.625 4.250 $173.18 6 Buy Now
KM-9107 4.687 4.312 $175.60 6 Buy Now
KM-9094 4.750 4.375 $178.05 6 Buy Now
KM-9092 4.812 4.437 $180.50 6 Buy Now
KM-9106 4.875 4.500 $182.91 6 Buy Now
KM-8958 4.937 4.562 $185.36 6 Buy Now
KM-9088 5.000 4.625 $187.81 6 Buy Now
KM-9089 5.062 4.687 $190.23 6 Buy Now
KM-9090 5.125 4.750 $192.68 6 Buy Now
KM-9091 5.187 4.812 $195.13 6 Buy Now
KM-9105 5.250 4.875 $197.54 6 Buy Now
KM-9093 5.312 4.937 $199.99 6 Buy Now
KM-9086 5.375 5.000 $202.44 6 Buy Now
KM-9095 5.437 5.062 $204.89 6 Buy Now
KM-9096 5.500 5.125 $207.31 6 Buy Now
KM-9097 5.562 5.187 $198.10 6 Buy Now
KM-9098 5.625 5.250 $200.41 6 Buy Now
KM-9099 5.687 5.312 $202.72 6 Buy Now
KM-9039 5.750 5.375 $205.00 3 Buy Now
KM-9104 5.812 5.437 $207.31 6 Buy Now
KM-8985 5.875 5.500 $209.62 6 Buy Now
KM-9068 5.937 5.562 $211.93 6 Buy Now
KM-9007 6.000 5.625 $214.24 3 Buy Now
KM-8978 6.062 5.687 $216.51 6 Buy Now
KM-8979 6.125 5.750 $218.82 6 Buy Now
KM-8980 6.187 5.812 $221.13 6 Buy Now
KM-8981 6.250 5.875 $223.44 3 Buy Now
KM-8982 6.312 5.937 $225.75 6 Buy Now
KM-9008 6.375 6.000 $228.06 3 Buy Now
KM-8984 6.437 6.062 $230.34 6 Buy Now
KM-8977 6.500 6.125 $232.65 3 Buy Now
KM-8986 6.562 6.187 $234.96 3 Buy Now
KM-8987 6.625 6.250 $237.27 3 Buy Now
KM-8988 6.687 6.312 $239.58 3 Buy Now
KM-8989 6.750 6.375 $241.85 3 Buy Now
KM-8990 6.812 6.437 $244.16 3 Buy Now
KM-9009 6.875 6.500 $246.47 3 Buy Now
KM-8983 6.937 6.562 $248.78 3 Buy Now
KM-9010 7.000 6.625 $251.09 3 Buy Now
KM-9011 7.062 6.687 $253.37 3 Buy Now
KM-9021 7.125 6.750 $255.68 3 Buy Now
KM-9013 7.187 6.812 $257.99 3 Buy Now
KM-9006 7.250 6.875 $260.30 3 Buy Now
KM-9015 7.312 6.937 $262.61 3 Buy Now
KM-9016 7.375 7.000 $264.92 3 Buy Now
KM-9017 7.437 7.062 $267.19 3 Buy Now
KM-9018 7.500 7.125 $269.50 3 Buy Now
KM-8794 7.562 7.187 $271.81 3 Buy Now
KM-9019 7.625 7.250 $274.12 3 Buy Now
KM-8798 7.687 7.312 $276.43 3 Buy Now
KM-8799 7.750 7.375 $278.71 3 Buy Now
KM-8800 7.812 7.437 $281.02 3 Buy Now
KM-8801 7.875 7.500 $283.33 3 Buy Now
KM-8802 7.937 7.562 $285.64 3 Buy Now
KM-8803 8.000 7.625 $287.95 3 Buy Now
KM-8815 8.062 7.687 $290.22 3 Buy Now
KM-8805 8.125 7.750 $292.53 3 Buy Now
KM-8796 8.187 7.812 $294.04 3 Buy Now
KM-8807 8.250 7.875 $297.15 3 Buy Now
KM-8808 8.312 7.937 $299.46 3 Buy Now
KM-8809 8.375 8.000 $301.77 3 Buy Now
KM-8810 8.437 8.062 $304.05 3 Buy Now
KM-8811 8.500 8.125 $306.36 3 Buy Now
KM-8812 8.562 8.187 $308.67 3 Buy Now
KM-8813 8.625 8.250 $310.98 3 Buy Now
KM-8814 8.687 8.312 $313.29 3 Buy Now
KM-8786 8.750 8.375 $315.56 3 Buy Now
KM-8784 8.812 8.437 $317.87 3 Buy Now
KM-8804 8.875 8.500 $320.18 3 Buy Now
KM-8778 8.937 8.562 $322.49 3 Buy Now
KM-8779 9.000 8.625 $324.80 3 Buy Now
KM-8780 9.062 8.687 $327.08 3 Buy Now
KM-8781 9.125 8.750 $329.39 3 Buy Now
KM-8782 9.187 8.812 $331.70 3 Buy Now
KM-8783 9.250 8.875 $334.01 3 Buy Now
KM-8795 9.312 8.937 $336.32 3 Buy Now
KM-8785 9.375 9.000 $338.63 3 Buy Now
KM-8776 9.437 9.062 $340.90 3 Buy Now
KM-8787 9.500 9.125 $343.21 3 Buy Now
KM-8788 9.562 9.187 $345.52 3 Buy Now
KM-8789 9.625 9.250 $347.83 3 Buy Now
KM-8790 9.687 9.312 $350.14 3 Buy Now
KM-8791 9.750 9.375 $352.42 3 Buy Now
KM-8792 9.812 9.437 $354.73 3 Buy Now
KM-8793 9.875 9.500 $357.04 3 Buy Now
KM-8817 9.937 9.562 $359.35 3 Buy Now
KM-8777 10.000 9.625 $361.66 3 Buy Now
KM-8806 10.062 9.687 $363.93 3 Buy Now
KM-8837 10.125 9.750 $366.24 3 Buy Now
KM-8838 10.187 9.812 $368.55 3 Buy Now
KM-8839 10.250 9.875 $370.86 3 Buy Now
KM-8840 10.312 9.937 $373.17 3 Buy Now
KM-8991 10.375 10.000 $375.48 3 Buy Now
KM-9014 10.437 10.062 $377.76 3 Buy Now
KM-9012 10.500 10.125 $380.07 3 Buy Now
KM-9004 10.562 10.187 $382.38 3 Buy Now
KM-9003 10.625 10.250 $384.69 3 Buy Now
KM-8836 10.687 10.312 $387.00 3 Buy Now
KM-9002 10.750 10.375 $389.27 3 Buy Now
KM-9001 10.812 10.437 $391.58 3 Buy Now
KM-9000 10.875 10.500 $393.89 3 Buy Now
KM-8999 10.937 10.562 $396.20 3 Buy Now
KM-8998 11.000 10.625 $398.51 3 Buy Now
KM-8997 11.062 10.687 $458.08 3 Buy Now
KM-8996 11.125 10.750 $403.10 3 Buy Now
KM-8995 11.187 10.812 $405.41 3 Buy Now
KM-8826 11.250 10.875 $407.72 3 Buy Now
KM-8824 11.312 10.937 $410.03 3 Buy Now
KM-8994 11.375 11.000 $412.34 3 Buy Now
KM-8818 11.437 11.062 $414.61 3 Buy Now
KM-8819 11.500 11.125 $416.92 3 Buy Now
KM-8820 11.562 11.187 $419.23 3 Buy Now
KM-8821 11.625 11.250 $421.54 3 Buy Now
KM-8822 11.687 11.312 $423.85 3 Buy Now
KM-8823 11.750 11.375 $426.13 3 Buy Now
KM-8835 11.812 11.437 $428.44 3 Buy Now
KM-8825 11.875 11.500 $430.75 3 Buy Now
KM-8816 11.937 11.562 $433.06 3 Buy Now
KM-8827 12.000 11.625 $435.37 3 Buy Now
KM-8828 12.062 11.687 $437.68 3 Buy Now
KM-8829 12.125 11.750 $439.95 3 Buy Now
KM-8830 12.187 11.812 $442.26 3 Buy Now
KM-8831 12.250 11.875 $444.57 3 Buy Now
KM-8832 12.312 11.937 $446.88 3 Buy Now
KM-8833 12.375 12.000 $449.19 3 Buy Now
KM-8834 12.437 12.062 $451.47 3 Buy Now
KM-8993 12.500 12.125 $453.78 3 Buy Now
KM-8992 12.562 12.187 $456.09 3 Buy Now
KM-9023 12.625 12.250 $458.40 3 Buy Now
KM-9046 12.687 12.312 $460.71 3 Buy Now
KM-9020 12.750 12.375 $462.98 3 Buy Now
KM-9040 12.812 12.437 $465.29 3 Buy Now
KM-9041 12.875 12.500 $467.60 3 Buy Now
KM-9042 12.937 12.562 $469.91 3 Buy Now
KM-8975 13.000 12.625 $472.22 3 Buy Now
KM-8925 13.062 12.687 $474.53 3 Buy Now
KM-9043 13.125 12.750 $476.81 3 Buy Now
KM-8929 13.187 12.812 $479.12 3 Buy Now
KM-8909 13.250 12.875 $481.43 3 Buy Now
KM-8930 13.312 12.937 $483.74 3 Buy Now
KM-8931 13.375 13.000 $486.05 3 Buy Now
KM-8932 13.437 13.062 $488.32 3 Buy Now
KM-8933 13.500 13.125 $490.63 3 Buy Now
KM-8943 13.562 13.187 $492.94 3 Buy Now
KM-8935 13.625 13.250 $495.25 3 Buy Now
KM-8910 13.687 13.312 $497.56 3 Buy Now
KM-8927 13.750 13.375 $499.84 3 Buy Now
KM-8937 13.812 13.437 $502.15 3 Buy Now
KM-8938 13.875 13.500 $504.46 3 Buy Now
KM-8939 13.937 13.562 $506.77 3 Buy Now
KM-8940 14.000 13.625 $509.08 3 Buy Now
KM-8941 14.062 13.687 $511.39 3 Buy Now
KM-8919 14.125 13.750 $513.66 3 Buy Now
KM-8936 14.187 13.812 $515.97 3 Buy Now
KM-8934 14.250 13.875 $518.28 3 Buy Now
KM-8912 14.250 13.875 $518.28 3 Buy Now
KM-8913 14.312 13.937 $520.59 3 Buy Now
KM-8914 14.375 14.000 $522.90 3 Buy Now
KM-8915 14.437 14.062 $525.18 3 Buy Now
KM-8916 14.500 14.125 $527.49 3 Buy Now
KM-8926 14.562 14.187 $529.80 3 Buy Now
KM-8918 14.625 14.250 $532.11 3 Buy Now
KM-8911 14.687 14.312 $534.42 3 Buy Now
KM-8920 14.750 14.375 $536.69 3 Buy Now
KM-8921 14.812 14.437 $539.00 3 Buy Now
KM-8922 14.875 14.500 $541.31 3 Buy Now
KM-8923 14.937 14.562 $543.62 3 Buy Now
KM-8924 15.000 14.625 $545.93 3 Buy Now
KM-8950 15.062 14.687 $548.24 3 Buy Now
KM-8917 15.125 14.750 $550.52 3 Buy Now
KM-8942 15.187 14.812 $552.83 3 Buy Now
KM-8961 15.250 14.875 $555.14 3 Buy Now
KM-8962 15.312 14.937 $557.45 3 Buy Now
KM-8963 15.375 15.000 $559.76 3 Buy Now
KM-8964 15.437 15.062 $562.03 3 Buy Now
KM-8965 15.500 15.125 $564.34 3 Buy Now
KM-8966 15.562 15.187 $566.65 3 Buy Now
KM-8976 15.625 15.250 $568.96 3 Buy Now
KM-8968 15.687 15.312 $571.27 3 Buy Now
KM-8901 15.750 15.375 $573.55 3 Buy Now
KM-8856 15.812 15.437 $575.86 3 Buy Now
KM-8960 15.875 15.500 $578.17 3 Buy Now
KM-8860 15.937 15.562 $580.48 3 Buy Now
KM-8861 16.000 15.625 $582.79 3 Buy Now
KM-8862 16.062 15.687 $585.10 3 Buy Now
KM-8863 16.125 15.750 $587.37 3 Buy Now
KM-8864 16.187 15.812 $589.68 3 Buy Now
KM-8874 16.250 15.875 $591.99 3 Buy Now
KM-8866 16.312 15.937 $594.30 3 Buy Now
KM-8858 16.375 16.000 $596.61 3 Buy Now
KM-8868 16.437 16.062 $598.89 3 Buy Now
KM-8869 16.500 16.125 $601.20 3 Buy Now
KM-8870 16.562 16.187 $603.51 3 Buy Now
KM-8871 16.625 16.250 $605.82 3 Buy Now
KM-8872 16.687 16.312 $608.13 3 Buy Now
KM-8873 16.750 16.375 $610.44 3 Buy Now
KM-8850 16.812 16.437 $612.71 3 Buy Now
KM-8848 16.875 16.500 $615.02 3 Buy Now
KM-8865 16.937 16.562 $617.33 3 Buy Now
KM-8843 17.000 16.625 $619.64 3 Buy Now
KM-8844 17.062 16.687 $621.95 3 Buy Now
KM-8845 17.125 16.750 $624.23 3 Buy Now
KM-8846 17.187 16.812 $626.54 3 Buy Now
KM-8847 17.250 16.875 $628.85 3 Buy Now
KM-8857 17.312 16.937 $631.16 3 Buy Now
KM-8849 17.375 17.000 $633.47 3 Buy Now
KM-8841 17.437 17.062 $635.74 3 Buy Now
KM-8851 17.500 17.125 $638.05 3 Buy Now
KM-8852 17.562 17.187 $640.36 3 Buy Now
KM-8853 17.625 17.250 $642.67 3 Buy Now
KM-8854 17.687 17.312 $644.98 3 Buy Now
KM-8855 17.750 17.375 $647.29 3 Buy Now
KM-8876 17.812 17.437 $649.57 3 Buy Now
KM-8842 17.875 17.500 $651.88 3 Buy Now
KM-8867 17.937 17.562 $654.19 3 Buy Now
KM-8893 18.000 17.625 $656.50 3 Buy Now
KM-8894 18.062 17.687 $658.81 3 Buy Now
KM-8895 18.125 17.750 $661.08 3 Buy Now
KM-8896 18.187 17.812 $663.39 3 Buy Now
KM-8897 18.250 17.875 $665.70 3 Buy Now
KM-8898 18.312 17.937 $668.01 3 Buy Now
KM-8908 18.375 18.000 $670.32 3 Buy Now
KM-8900 18.437 18.062 $672.60 3 Buy Now
KM-8892 18.500 18.125 $674.91 3 Buy Now
KM-8902 18.562 18.187 $677.22 3 Buy Now
KM-8903 18.625 18.250 $679.53 3 Buy Now
KM-8904 18.687 18.312 $681.84 3 Buy Now
KM-8905 18.750 18.375 $684.15 3 Buy Now
KM-8906 18.812 18.437 $686.42 3 Buy Now
KM-8907 18.875 18.500 $688.73 3 Buy Now
KM-8884 18.937 18.562 $691.04 3 Buy Now
KM-8882 19.000 18.625 $693.35 3 Buy Now
KM-8899 19.062 18.687 $695.66 3 Buy Now
KM-8877 19.125 18.750 $697.94 3 Buy Now
KM-8878 19.187 18.812 $700.25 3 Buy Now
KM-8879 19.250 18.875 $702.56 3 Buy Now
KM-8880 19.312 18.937 $704.87 3 Buy Now
KM-8881 19.375 19.000 $707.18 3 Buy Now
KM-8891 19.437 19.062 $709.45 3 Buy Now
KM-8883 19.500 19.125 $711.76 3 Buy Now
KM-8875 19.562 19.187 $714.07 3 Buy Now
KM-8885 19.625 19.250 $716.38 3 Buy Now
KM-8886 19.687 19.312 $718.69 3 Buy Now
KM-8887 19.750 19.375 $721.00 3 Buy Now
KM-8888 19.812 19.437 $723.28 3 Buy Now
KM-8889 19.875 19.500 $725.59 3 Buy Now
KM-8970 19.937 19.562 $727.90 3 Buy Now
KM-9265 20.000 19.625 $730.21 3 Buy Now









nominal inches,
diameter

plus or minus (±) tolerance, inches

ID inside diameter

OD outside diameter

steel
mandrel

built-up
mandrel

.125" -.749"

.003"

-

.005"

.750" - 1.999"

.004"

-

.005"

2.000" - 4.000"

.006"

-

.008"



*turned

*as wound

4.001" - 12.000"

.010"

-

.025"

plus only

12.001" - 18.000"

.030"

.060"

.030"

plus only

18.001" - 24.000"

.040"

.075"

.035"

plus only

24.001" - 48.000"

.060"

.090"

.040"

plus only

*Note: tubing over 8.000" OD supplied as wound (turned OD quoted on request)
