G11/FR5 High Temp. Glass Reinforced Epoxy - .125" Wall Thickness

G11/FR5 Glass Reinforced Epoxy - natural (yellow green to amber) Technical Data Sheet
This grade is similar to G10/FR4, with the addition of a higher operating temperature and some improved mechanical strength at elevated temperatures.

The main difference between NEMA Grades G11 and FR5 is that FR5 is a fire retardant grade of G11. Therefore, FR5 can be safely substituted when G11 is called for, while G11 can never be substituted where FR5 is called for. (NEMA G-11 certs to MIL-I-24768/3 GEB, IEC 60893-3 Type 2 EP GC 203; FR5 certifies to Mil-I-24768/28 GEB-F.)

  Chemical Resistance Chart

.031" (1/32") Wall Thickness .062" (1/16")Wall Thickness .093" (3/32")Wall Thickness .125" (1/8")Wall Thickness .187" (3/16")Wall Thickness
.250" (1/4")Wall Thickness .375" (3/8")Wall Thickness .500" (1/2")Wall Thickness .750" (3/4")WallThickness 1.00" Wall Thickness (Max. Possible)



G11 FR5 Tubes .125" Wall Thickness
Stock # OD Inches ID Inches Price/Ft Min Ft to Purchase Purchase Online
KM-1482 0.437 0.187 $31.16 18 Buy Now
KM-1486 0.500 0.250 $35.92 15 Buy Now
KM-1490 0.562 0.312 $43.04 15 Buy Now
KM-1494 0.625 0.375 $44.76 12 Buy Now
KM-1498 0.687 0.437 $49.00 12 Buy Now

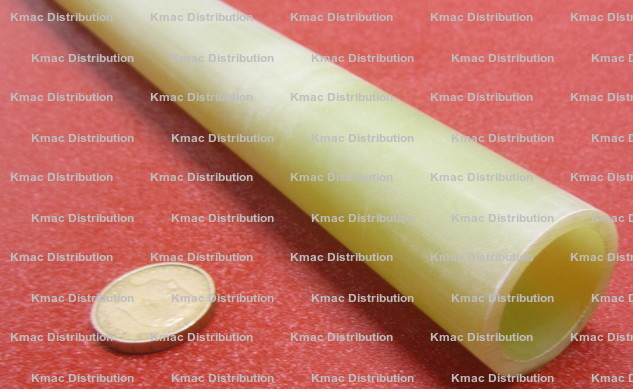

KM-1502 0.750 0.500 $29.00 24 Buy Now
KM-1507 0.812 0.562 $31.88 21 Buy Now

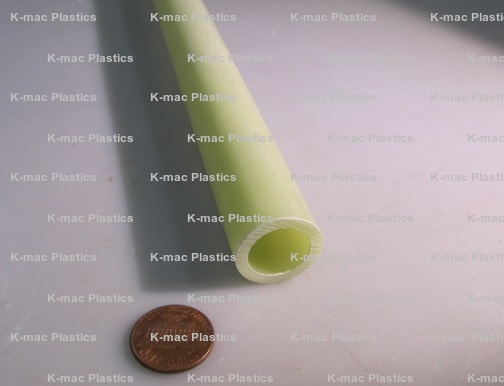

KM-1513 0.875 0.625 $33.52 18 Buy Now

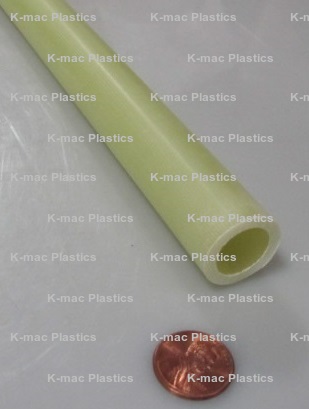

KM-1518 0.937 0.687 $35.00 18 Buy Now

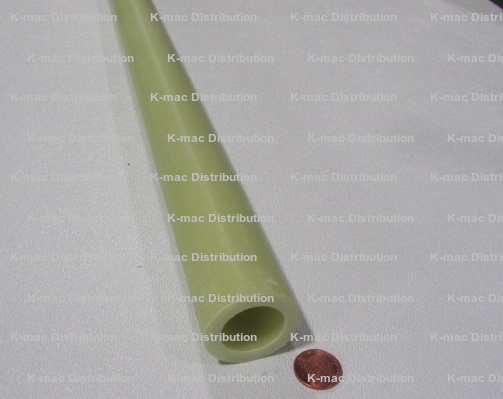

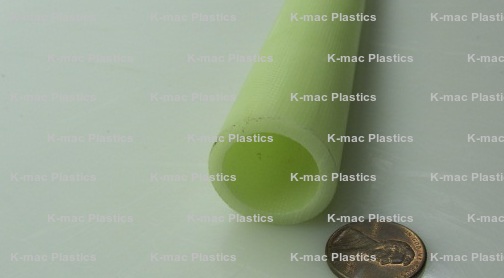

KM-10199 1.000 0.750 $36.25 24 Buy Now

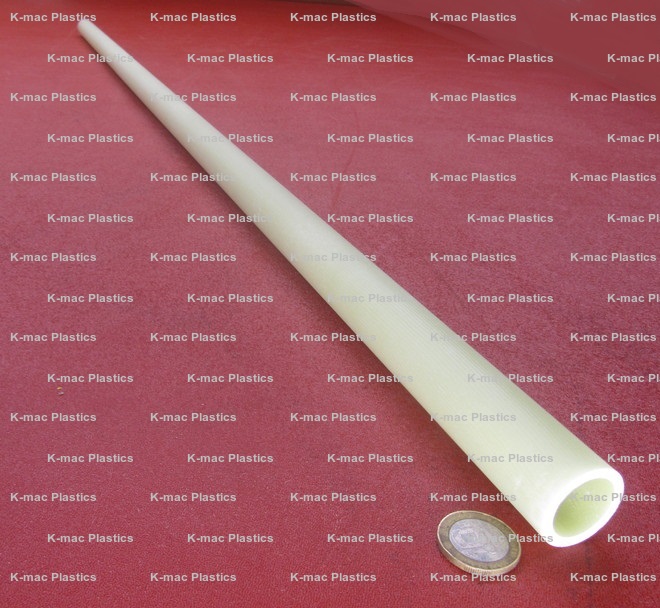

KM-10221 1.062 0.812 $37.28 24 Buy Now

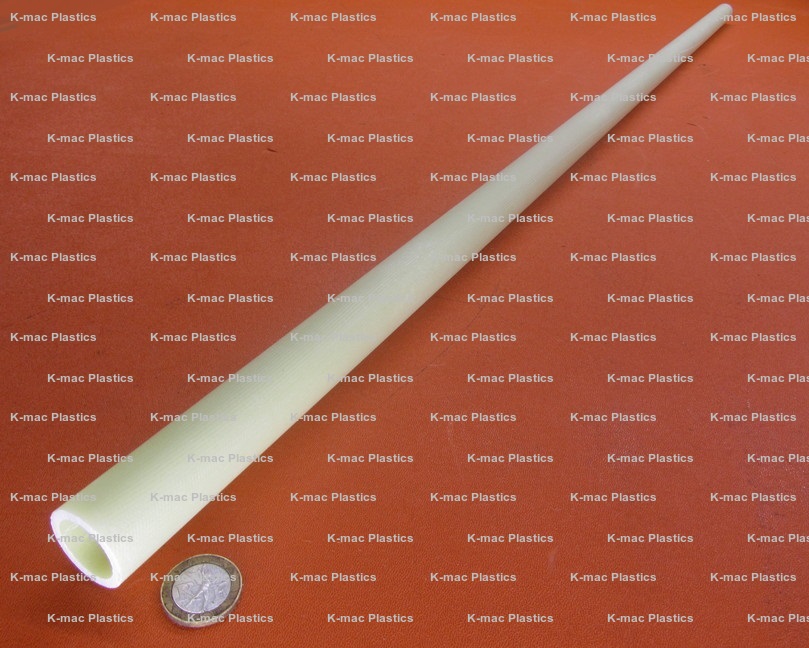

KM-1518K 1.125 0.875 $39.76 15 Buy Now
KM-10206 1.187 0.937 $40.48 24 Buy Now

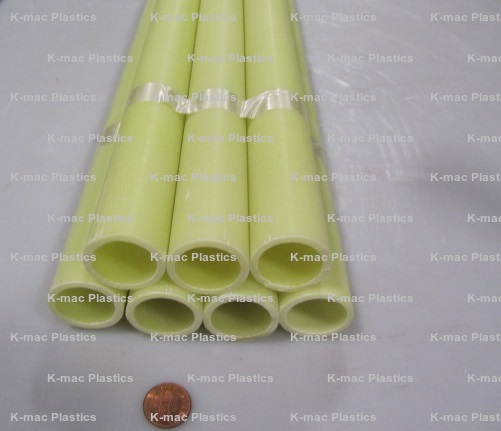

KM-1524 1.250 1.000 $42.84 15 Buy Now
KM-10227 1.312 1.062 $45.24 21 Buy Now
KM-9990 1.375 1.125 $47.60 18 Buy Now
KM-10226 1.437 1.187 $50.00 18 Buy Now
KM-1528 1.500 1.250 $52.36 12 Buy Now
KM-10224 1.562 1.312 $54.76 18 Buy Now
KM-10214 1.625 1.375 $57.12 18 Buy Now
KM-10222 1.687 1.437 $59.52 18 Buy Now
KM-1533 1.750 1.500 $61.92 12 Buy Now
KM-10000 1.812 1.562 $61.48 18 Buy Now
KM-9989 1.875 1.625 $63.76 15 Buy Now
KM-9998 1.937 1.687 $66.04 15 Buy Now
KM-1538 2.000 1.750 $65.20 9 Buy Now
KM-9996 2.062 1.812 $67.40 15 Buy Now
KM-9995 2.125 1.875 $69.56 15 Buy Now
KM-9994 2.187 1.875 $69.56 15 Buy Now
KM-1543 2.250 2.000 $70.40 9 Buy Now
KM-9992 2.312 2.062 $72.44 15 Buy Now
KM-9991 2.375 2.125 $74.52 15 Buy Now
KM-10219 2.437 2.187 $76.60 15 Buy Now
KM-1548 2.500 2.250 $78.68 9 Buy Now
KM-9999 2.562 2.312 $80.72 12 Buy Now
KM-10218 2.625 2.375 $82.80 12 Buy Now
KM-10217 2.687 2.437 $84.67 12 Buy Now
KM-1553 2.750 2.500 $82.60 6 Buy Now
KM-10113 2.812 2.562 $82.60 12 Buy Now
KM-10262 2.875 2.625 $75.71 12 Buy Now
KM-10149 2.937 2.687 $77.46 12 Buy Now
KM-1558 3.000 2.750 $79.17 6 Buy Now
KM-10046 3.062 2.812 $80.89 12 Buy Now
KM-10045 3.125 2.875 $82.60 12 Buy Now
KM-10044 3.187 2.937 $84.32 12 Buy Now
KM-1562 3.250 3.000 $86.82 9 Buy Now
KM-10042 3.312 3.062 $87.78 9 Buy Now
KM-10033 3.375 3.125 $89.50 9 Buy Now
KM-10508 3.437 3.187 $91.21 9 Buy Now
KM-1567 3.500 3.250 $92.93 9 Buy Now
KM-10611 3.562 3.312 $94.64 9 Buy Now
KM-10048 3.625 3.375 $96.36 9 Buy Now
KM-10038 3.687 3.437 $98.11 9 Buy Now
KM-1572 3.750 3.500 $99.82 9 Buy Now
KM-10036 3.812 3.562 $101.54 9 Buy Now
KM-10035 3.875 3.625 $103.25 9 Buy Now
KM-10034 3.937 3.687 $104.97 9 Buy Now
KM-1577 4.000 3.750 $106.68 9 Buy Now
KM-10058 4.062 3.812 $108.43 9 Buy Now
KM-10041 4.125 3.875 $110.15 9 Buy Now
KM-10063 4.187 3.937 $111.86 6 Buy Now
KM-1582 4.250 4.000 $114.98 9 Buy Now
KM-10061 4.312 4.062 $115.29 6 Buy Now
KM-10060 4.375 4.125 $117.01 6 Buy Now
KM-10059 4.437 4.187 $118.76 6 Buy Now
KM-10049 4.500 4.250 $120.47 6 Buy Now
KM-10057 4.562 4.312 $122.19 6 Buy Now
KM-10065 4.625 4.375 $123.90 6 Buy Now
KM-10055 4.687 4.437 $125.62 6 Buy Now
KM-1587 4.750 4.500 $127.33 9 Buy Now
KM-10053 4.812 4.562 $129.08 6 Buy Now
KM-10052 4.875 4.625 $130.08 6 Buy Now

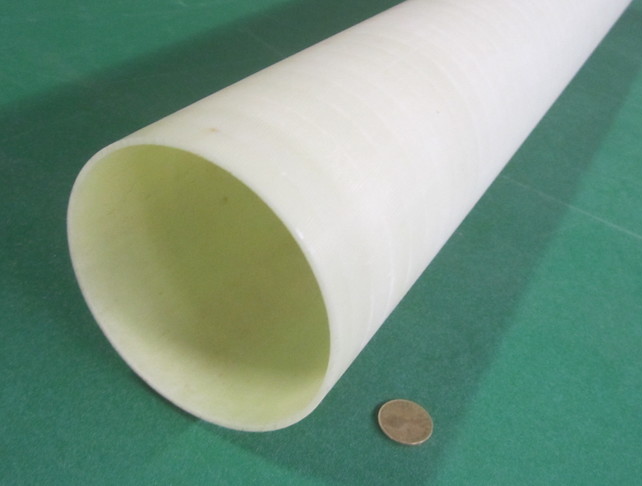

KM-10051 4.937 4.687 $132.51 6 Buy Now
KM-10025 5.000 4.750 $134.23 6 Buy Now

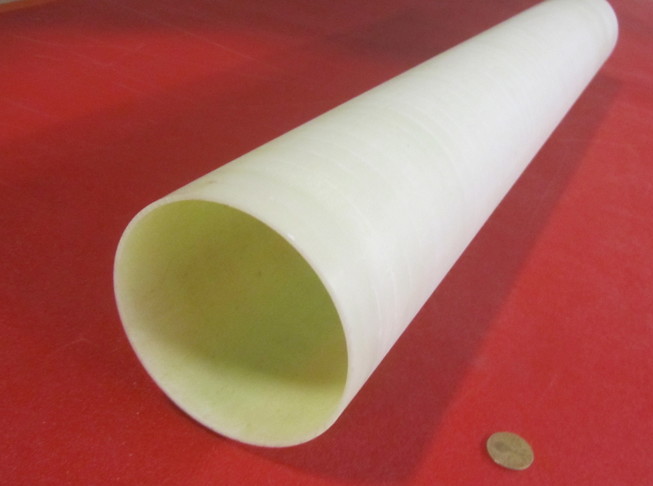

KM-10064 5.062 4.812 $135.94 6 Buy Now

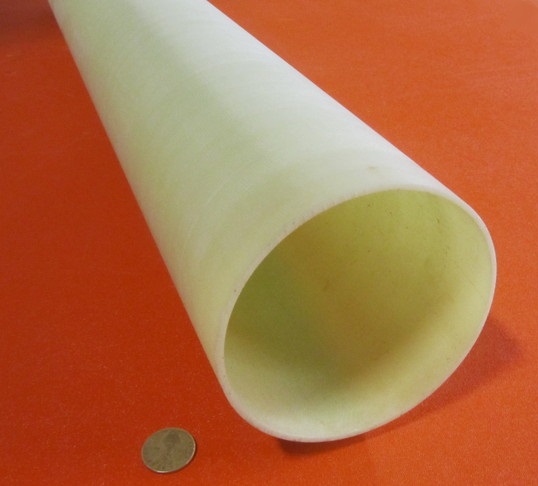

KM-10039 5.125 4.875 $130.41 6 Buy Now
KM-10015 5.187 4.937 $132.06 6 Buy Now
KM-1592 5.250 5.000 $133.70 6 Buy Now
KM-10013 5.312 5.062 $135.31 6 Buy Now
KM-10012 5.375 5.125 $136.96 6 Buy Now
KM-10011 5.437 5.187 $138.57 6 Buy Now
KM-10010 5.500 5.250 $140.21 6 Buy Now
KM-10001 5.562 5.312 $141.86 6 Buy Now
KM-10008 5.625 5.375 $143.47 6 Buy Now
KM-10016 5.687 5.437 $145.11 6 Buy Now
KM-1598 5.750 5.500 $146.72 6 Buy Now
KM-10005 5.812 5.562 $148.37 6 Buy Now
KM-10004 5.875 5.625 $149.98 6 Buy Now
KM-10003 5.937 5.687 $151.62 6 Buy Now
KM-10023 6.000 5.750 $153.27 6 Buy Now
KM-10007 6.062 5.812 $154.88 6 Buy Now
KM-10009 6.125 5.875 $156.52 6 Buy Now
KM-10031 6.187 5.937 $158.13 6 Buy Now
KM-1604 6.250 6.000 $159.78 6 Buy Now
KM-10029 6.312 6.062 $161.39 6 Buy Now
KM-10028 6.375 6.125 $163.03 6 Buy Now
KM-10027 6.437 6.187 $164.68 6 Buy Now
KM-10026 6.500 6.250 $166.29 6 Buy Now
KM-10017 6.562 6.312 $167.93 6 Buy Now
KM-10024 6.625 6.375 $169.54 6 Buy Now
KM-10032 6.687 6.437 $171.19 6 Buy Now
KM-10022 6.750 6.500 $172.83 6 Buy Now
KM-10021 6.812 6.562 $174.44 6 Buy Now
KM-10020 6.875 6.625 $176.09 6 Buy Now
KM-10019 6.937 6.687 $177.70 6 Buy Now
KM-10018 7.000 6.750 $179.34 6 Buy Now
KM-10080 7.062 6.812 $180.95 6 Buy Now
KM-10130 7.125 6.875 $182.60 6 Buy Now
KM-10050 7.187 6.937 $184.24 6 Buy Now
KM-10112 7.250 7.000 $185.85 6 Buy Now
KM-10111 7.312 7.062 $187.50 6 Buy Now
KM-10110 7.375 7.125 $189.11 6 Buy Now
KM-10109 7.437 7.187 $190.75 6 Buy Now
KM-10108 7.500 7.250 $192.40 6 Buy Now
KM-10099 7.562 7.312 $194.01 6 Buy Now
KM-10106 7.625 7.375 $195.65 6 Buy Now
KM-10114 7.687 7.437 $197.26 6 Buy Now
KM-10104 7.750 7.500 $198.91 6 Buy Now
KM-10103 7.812 7.562 $200.52 6 Buy Now
KM-10102 7.875 7.625 $202.16 6 Buy Now
KM-10101 7.937 7.687 $203.81 6 Buy Now
KM-10100 8.000 7.750 $205.42 3 Buy Now
KM-10122 8.062 7.812 $207.06 6 Buy Now
KM-10124 8.125 7.875 $208.67 6 Buy Now
KM-10107 8.187 7.937 $210.32 6 Buy Now
KM-10129 8.250 8.000 $211.93 3 Buy Now
KM-10128 8.312 8.062 $213.57 6 Buy Now
KM-9968 8.375 8.125 $215.22 6 Buy Now
KM-10127 8.437 8.187 $216.83 6 Buy Now
KM-10126 8.500 8.250 $218.47 3 Buy Now
KM-9892 8.562 8.312 $220.08 6 Buy Now
KM-9891 8.625 8.375 $221.73 6 Buy Now
KM-9890 8.687 8.437 $223.37 6 Buy Now
KM-9889 8.750 8.500 $224.98 3 Buy Now
KM-9888 8.812 8.562 $226.63 6 Buy Now
KM-9641 8.875 8.625 $228.24 3 Buy Now
KM-9887 8.937 8.687 $229.88 6 Buy Now
KM-9781 9.000 8.750 $231.49 3 Buy Now
KM-9780 9.062 8.812 $233.14 6 Buy Now
KM-9779 9.125 8.875 $234.78 3 Buy Now
KM-9778 9.187 8.937 $236.39 3 Buy Now
KM-9777 9.250 9.000 $238.04 3 Buy Now
KM-9776 9.312 9.062 $239.65 3 Buy Now
KM-9775 9.375 9.125 $241.29 3 Buy Now
KM-9773 9.500 9.250 $244.55 3 Buy Now
KM-9774 9.437 9.187 $242.94 3 Buy Now
KM-9760 9.562 9.312 $246.19 3 Buy Now
KM-9771 9.625 9.375 $247.80 3 Buy Now
KM-9783 9.687 9.437 $249.45 3 Buy Now
KM-9769 9.750 9.500 $251.06 3 Buy Now
KM-9768 9.812 9.562 $252.70 3 Buy Now
KM-9767 9.875 9.625 $254.35 3 Buy Now
KM-9766 9.937 9.687 $255.96 3 Buy Now
KM-9765 10.000 9.750 $257.60 3 Buy Now
KM-9764 10.062 9.812 $259.21 3 Buy Now
KM-9763 10.125 9.875 $260.86 3 Buy Now
KM-9762 10.187 9.937 $262.47 3 Buy Now
KM-9794 10.250 10.000 $264.11 3 Buy Now
KM-9770 10.312 10.062 $265.76 3 Buy Now
KM-9772 10.375 10.125 $267.37 3 Buy Now
KM-9806 10.437 10.187 $269.01 3 Buy Now
KM-9805 10.500 10.250 $270.62 3 Buy Now
KM-9804 10.562 10.312 $272.27 3 Buy Now
KM-9803 10.625 10.375 $273.91 3 Buy Now
KM-9802 10.687 10.437 $275.52 3 Buy Now
KM-9801 10.750 10.500 $277.17 3 Buy Now
KM-9800 10.812 10.562 $278.78 3 Buy Now
KM-9799 10.875 10.625 $280.42 3 Buy Now
KM-9798 10.937 10.687 $282.03 3 Buy Now
KM-9797 11.000 10.750 $283.68 3 Buy Now
KM-9784 11.062 10.812 $285.32 3 Buy Now
KM-9795 11.125 10.875 $286.93 3 Buy Now
KM-9807 11.187 10.937 $288.58 3 Buy Now
KM-9793 11.250 11.000 $290.19 3 Buy Now
KM-9792 11.312 11.062 $291.83 3 Buy Now
KM-9791 11.375 11.125 $293.48 3 Buy Now
KM-9790 11.437 11.187 $295.09 3 Buy Now
KM-9789 11.500 11.250 $296.73 3 Buy Now
KM-9788 11.562 11.312 $298.34 3 Buy Now
KM-9787 11.625 11.375 $299.99 3 Buy Now
KM-9785 11.750 11.500 $303.24 3 Buy Now
KM-9748 11.812 11.562 $304.89 3 Buy Now
KM-9713 11.875 11.625 $306.50 3 Buy Now
KM-9761 11.937 11.687 $308.14 3 Buy Now
KM-9733 12.000 11.750 $309.75 3 Buy Now
KM-9732 12.062 11.812 $311.40 3 Buy Now
KM-9731 12.125 11.875 $313.01 3 Buy Now
KM-9730 12.187 11.937 $314.65 3 Buy Now
KM-9729 12.250 12.000 $316.30 3 Buy Now
KM-9728 12.312 12.062 $317.91 3 Buy Now
KM-9727 12.375 12.125 $319.55 3 Buy Now
KM-9726 12.437 12.187 $321.16 3 Buy Now
KM-9725 12.500 12.250 $322.81 3 Buy Now
KM-9712 12.562 12.312 $324.45 3 Buy Now
KM-9723 12.625 12.375 $326.06 3 Buy Now
KM-9735 12.687 12.437 $327.71 3 Buy Now
KM-9716 12.750 12.500 $329.31 3 Buy Now
KM-9715 12.812 12.562 $330.96 3 Buy Now
KM-9714 12.875 12.625 $332.57 3 Buy Now
KM-9746 12.937 12.687 $334.22 3 Buy Now
KM-9722 13.000 12.750 $335.86 3 Buy Now
KM-9724 13.062 12.812 $337.47 3 Buy Now
KM-9758 13.125 12.875 $339.12 3 Buy Now
KM-9757 13.187 12.937 $340.73 3 Buy Now
KM-9756 13.250 13.000 $342.37 3 Buy Now
KM-9755 13.312 13.062 $344.02 3 Buy Now
KM-9754 13.375 13.125 $345.63 3 Buy Now
KM-9753 13.437 13.187 $347.27 3 Buy Now
KM-9752 13.500 13.250 $348.88 3 Buy Now
KM-9751 13.562 13.312 $350.53 3 Buy Now
KM-9750 13.625 13.375 $352.14 3 Buy Now
KM-9749 13.687 13.437 $353.78 3 Buy Now
KM-9736 13.750 13.500 $355.43 3 Buy Now
KM-9747 13.812 13.562 $357.04 3 Buy Now
KM-9759 13.875 13.625 $358.68 3 Buy Now
KM-9745 13.937 13.687 $360.29 3 Buy Now
KM-9744 14.000 13.750 $361.94 3 Buy Now
KM-9743 14.062 13.812 $363.55 3 Buy Now
KM-9742 14.125 13.875 $365.19 3 Buy Now
KM-9741 14.187 13.937 $366.84 3 Buy Now
KM-9740 14.250 14.000 $368.45 3 Buy Now
KM-9739 14.312 14.062 $370.09 3 Buy Now
KM-9738 14.375 14.125 $371.70 3 Buy Now
KM-9830 14.437 14.187 $373.35 3 Buy Now
KM-9734 14.500 14.250 $374.99 3 Buy Now
KM-9796 14.562 14.312 $376.60 3 Buy Now
KM-9886 14.625 14.375 $378.25 3 Buy Now
KM-9875 14.687 14.437 $379.86 3 Buy Now
KM-9884 14.750 14.500 $381.50 3 Buy Now
KM-9893 14.812 14.562 $383.11 3 Buy Now
KM-9882 14.875 14.625 $384.76 3 Buy Now
KM-9881 14.937 14.687 $386.40 3 Buy Now
KM-9880 15.000 14.750 $388.01 3 Buy Now
KM-9879 15.062 14.812 $389.66 3 Buy Now
KM-9878 15.125 14.875 $391.27 3 Buy Now
KM-9877 15.187 14.937 $392.91 3 Buy Now
KM-9902 15.250 15.000 $394.56 3 Buy Now
KM-9883 15.312 15.062 $396.17 3 Buy Now
KM-9885 15.375 15.125 $397.81 3 Buy Now
KM-9438 15.437 15.187 $399.42 3 Buy Now
KM-9911 15.500 15.250 $401.07 3 Buy Now
KM-9910 15.562 15.312 $402.68 3 Buy Now
KM-9909 15.625 15.375 $404.32 3 Buy Now
KM-9908 15.687 15.437 $405.97 3 Buy Now
KM-9907 15.750 15.500 $407.58 3 Buy Now
KM-9906 15.812 15.562 $409.22 3 Buy Now
KM-9905 15.875 15.625 $410.83 3 Buy Now
KM-9894 15.937 15.687 $412.48 3 Buy Now
KM-9903 16.000 15.750 $414.09 3 Buy Now
KM-9912 16.062 15.812 $415.73 3 Buy Now
KM-9901 16.125 15.875 $417.38 3 Buy Now
KM-9900 16.187 15.937 $418.99 3 Buy Now
KM-9899 16.250 16.000 $420.63 3 Buy Now
KM-9898 16.312 16.062 $422.24 3 Buy Now
KM-9897 16.375 16.125 $423.89 3 Buy Now
KM-9896 16.437 16.187 $425.53 3 Buy Now
KM-9873 16.500 16.250 $427.14 3 Buy Now
KM-9904 16.562 16.312 $428.79 3 Buy Now
KM-9876 16.625 16.375 $430.40 3 Buy Now
KM-9854 16.687 16.437 $432.04 3 Buy Now
KM-9853 16.750 16.500 $433.65 3 Buy Now
KM-9852 16.812 16.562 $435.30 3 Buy Now
KM-9851 16.875 16.625 $436.94 3 Buy Now
KM-9850 16.937 16.687 $438.55 3 Buy Now
KM-9849 17.000 16.750 $440.20 3 Buy Now
KM-9848 17.062 16.812 $441.81 3 Buy Now
KM-9838 17.125 16.875 $443.45 3 Buy Now
KM-10944 17.187 16.937 $445.10 3 Buy Now
KM-10943 17.250 17.000 $446.71 3 Buy Now
KM-10942 17.312 17.062 $448.35 3 Buy Now
KM-10941 17.375 17.125 $449.96 3 Buy Now
KM-10940 17.437 17.187 $451.61 3 Buy Now
KM-10930 17.500 17.250 $453.22 3 Buy Now
KM-10938 17.562 17.312 $454.86 3 Buy Now
KM-10946 17.625 17.375 $456.51 3 Buy Now
KM-10936 17.687 17.437 $458.12 3 Buy Now
KM-10935 17.750 17.500 $459.76 3 Buy Now
KM-10934 17.812 17.562 $461.37 3 Buy Now
KM-10933 17.875 17.625 $463.02 3 Buy Now
KM-10932 17.937 17.687 $464.63 3 Buy Now
KM-10931 18.000 17.750 $466.27 3 Buy Now
KM-10905 18.062 17.812 $467.92 3 Buy Now
KM-10880 18.125 17.875 $469.53 3 Buy Now
KM-10914 18.187 17.937 $471.17 3 Buy Now
KM-10893 18.250 18.000 $472.78 3 Buy Now
KM-10892 18.312 18.062 $474.43 3 Buy Now
KM-10891 18.375 18.125 $476.07 3 Buy Now
KM-10890 18.437 18.187 $477.68 3 Buy Now
KM-10889 18.500 18.250 $479.33 3 Buy Now
KM-10879 18.562 18.312 $480.94 3 Buy Now
KM-10887 18.625 18.375 $482.58 3 Buy Now
KM-10895 18.687 18.437 $484.19 3 Buy Now
KM-10885 18.750 18.500 $485.84 3 Buy Now
KM-10884 18.812 18.562 $487.48 3 Buy Now
KM-10883 18.875 18.625 $489.09 3 Buy Now
KM-10882 18.937 18.687 $490.74 3 Buy Now
KM-10881 19.000 18.750 $562.68 3 Buy Now
KM-10903 19.062 18.812 $493.99 3 Buy Now
KM-10886 19.125 18.875 $495.64 3 Buy Now
KM-10888 19.187 18.937 $497.25 3 Buy Now
KM-10911 19.250 19.000 $498.89 3 Buy Now
KM-10910 19.312 19.062 $500.50 3 Buy Now
KM-10909 19.375 19.125 $502.15 3 Buy Now
KM-10908 19.437 19.187 $503.76 3 Buy Now
KM-10907 19.500 19.250 $505.40 3 Buy Now
KM-10906 19.562 19.312 $507.05 3 Buy Now
KM-10896 19.625 19.375 $508.66 3 Buy Now
KM-10904 19.687 19.437 $510.30 3 Buy Now
KM-10912 19.750 19.500 $511.91 3 Buy Now
KM-10902 19.812 19.562 $513.56 3 Buy Now
KM-10901 19.875 19.625 $515.17 3 Buy Now
KM-10900 19.937 19.687 $516.81 3 Buy Now
KM-10899 20.000 19.750 $518.46 3 Buy Now









nominal inches,
diameter

plus or minus tolerance, inches

ID inside diameter

OD outside diameter

steel
mandrel

built-up
mandrel

.125" -.749"

.003"

-

.005"

.750" - 1.999"

.004"

-

.005"

2.000" - 4.000"

.006"

-

.008"



*turned

*as wound

4.001" - 12.000"

.010"

-

.025"

plus only

12.001" - 18.000"

.030"

.060"

.030"

plus only

18.001" - 24.000"

.040"

.075"

.035"

plus only

24.001" - 48.000"

.060"

.090"

.040"

plus only

*Note: tubing over 8.000" OD supplied as wound (turned OD quoted on request)
