G11/FR5 High Temp. Glass Reinforced Epoxy - .093" Wall Thickness

G11 FR5 .093 Inch Thick Tubes

G11/FR5 Glass Reinforced Epoxy - natural (yellow green to amber) Technical Data Sheet
This grade is similar to G10/FR4, with the addition of a higher operating temperature and some improved mechanical strength at elevated temperatures.

The main difference between NEMA Grades G11 and FR5 is that FR5 is a fire retardant grade of G11. Therefore, FR5 can be safely substituted when G11 is called for, while G11 can never be substituted where FR5 is called for. (NEMA G-11 certs to MIL-I-24768/3 GEB, IEC 60893-3 Type 2 EP GC 203; FR5 certifies to Mil-I-24768/28 GEB-F.)

  Chemical Resistance Chart

.031" (1/32") Wall Thickness .062" (1/16")Wall Thickness .093" (3/32")Wall Thickness .125" (1/8")Wall Thickness .187" (3/16")Wall Thickness
.250" (1/4")Wall Thickness .375" (3/8")Wall Thickness .500" (1/2")Wall Thickness .750" (3/4")WallThickness 1.00" Wall Thickness (Max. Possible)



.093" Wall Thickness G11 FR5 Tubes
Stock # OD Inches ID Inches Price/Ft Min Ft to Order Purchase Online
KM-1481 0.375 0.187 $21.95 24 Buy Now
KM-1485 0.437 0.250 $23.77 21 Buy Now
KM-1489 0.500 0.312 $28.77 18 Buy Now
KM-1493 0.562 0.375 $32.06 15 Buy Now
KM-1497 0.625 0.437 $35.00 15 Buy Now
KM-1501 0.687 0.500 $24.78 21 Buy Now
KM-11030 0.750 0.562 $22.12 30 Buy Now
KM-1512 0.812 0.625 $28.04 18 Buy Now
KM-11016 0.872 0.687 $24.64 30 Buy Now
KM-11063 0.937 0.750 $26.60 30 Buy Now
KM-11067 1.000 0.812 $27.58 24 Buy Now
KM-1517K 1.062 0.875 $35.32 15 Buy Now
KM-11069 1.125 0.930 $31.40 24 Buy Now
KM-11066 1.187 1.100 $32.10 24 Buy Now

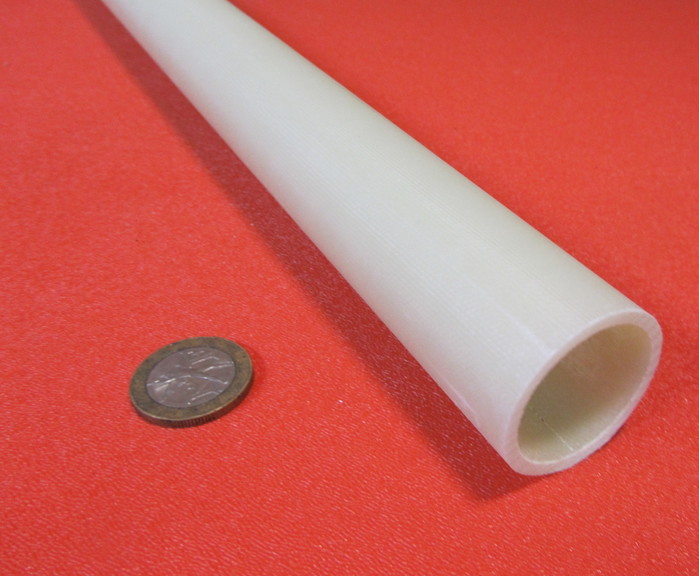

KM-11071 1.250 1.062 $33.92 24 Buy Now

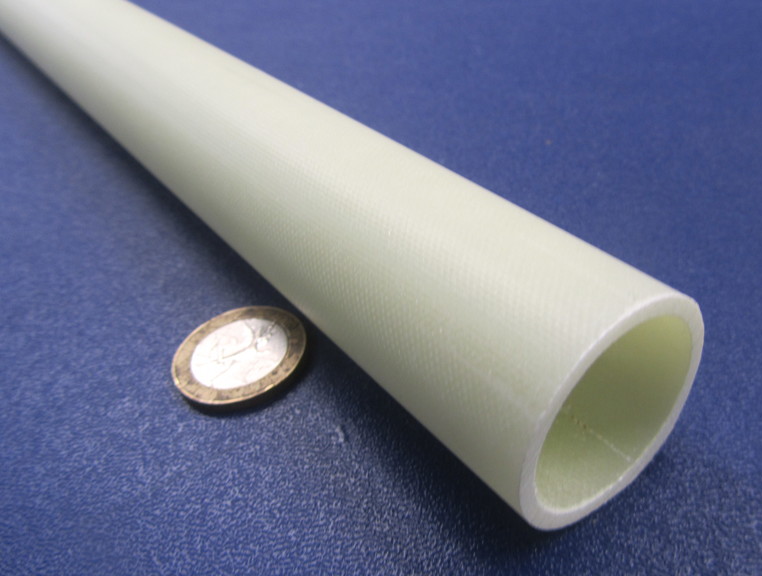

KM-11072 1.312 1.125 $35.77 21 Buy Now
KM-11073 1.375 1.187 $37.59 21 Buy Now
KM-11074 1.437 1.250 $37.98 21 Buy Now
KM-11075 1.500 1.312 $39.73 21 Buy Now
KM-11079 1.562 1.375 $41.51 21 Buy Now
KM-11080 1.625 1.437 $43.26 18 Buy Now
KM-11078 1.687 1.500 $45.05 18 Buy Now
KM-11077 1.750 1.562 $46.80 18 Buy Now
KM-11076 1.812 1.625 $46.69 18 Buy Now
KM-11070 1.875 1.687 $48.41 18 Buy Now
KM-11056 1.937 1.750 $48.09 18 Buy Now
KM-11050 2.000 1.812 $47.67 12 Buy Now
KM-11051 2.062 1.875 $49.21 12 Buy Now
KM-11052 2.125 1.937 $50.79 12 Buy Now
KM-11053 2.187 2.000 $52.33 12 Buy Now
KM-11058 2.250 2.062 $53.90 12 Buy Now
KM-11054 2.312 2.125 $55.48 12 Buy Now
KM-11055 2.375 2.187 $57.02 9 Buy Now
KM-11065 2.437 2.250 $56.04 9 Buy Now
KM-11057 2.500 2.312 $57.54 9 Buy Now
KM-11049 2.562 2.375 $59.05 9 Buy Now
KM-11059 2.625 2.437 $60.52 9 Buy Now
KM-11060 2.687 2.500 $59.19 9 Buy Now
KM-11061 2.750 2.562 $60.62 9 Buy Now
KM-11062 2.812 2.625 $62.06 9 Buy Now
KM-11024 2.875 2.687 $63.49 9 Buy Now
KM-10962 2.937 2.750 $64.89 9 Buy Now
KM-10965 3.000 2.812 $63.18 9 Buy Now
KM-10966 3.062 2.875 $64.54 9 Buy Now
KM-10974 3.125 2.937 $65.91 9 Buy Now
KM-10975 3.187 3.000 $67.24 9 Buy Now
KM-10976 3.250 3.062 $68.60 9 Buy Now
KM-10977 3.312 3.125 $66.47 9 Buy Now
KM-10978 3.375 3.187 $67.76 9 Buy Now
KM-10979 3.437 3.250 $69.06 9 Buy Now
KM-10956 3.500 3.312 $70.35 9 Buy Now
KM-10954 3.562 3.375 $71.65 9 Buy Now
KM-10971 3.625 3.437 $72.94 9 Buy Now
KM-10949 3.687 3.500 $74.20 9 Buy Now
KM-11007 3.750 3.562 $75.50 9 Buy Now
KM-10951 3.812 3.625 $76.79 9 Buy Now
KM-11046 3.875 3.687 $78.09 9 Buy Now
KM-10953 3.937 3.750 $79.38 9 Buy Now
KM-10963 4.000 3.812 $80.68 9 Buy Now
KM-10955 4.062 3.875 $81.97 9 Buy Now
KM-10947 4.125 3.937 $83.27 9 Buy Now
KM-10957 4.187 4.000 $84.53 6 Buy Now
KM-10958 4.250 4.062 $85.82 6 Buy Now
KM-10959 4.312 4.125 $87.12 6 Buy Now
KM-10960 4.375 4.187 $88.41 6 Buy Now
KM-10961 4.437 4.250 $89.71 6 Buy Now
KM-10982 4.500 4.312 $91.00 6 Buy Now
KM-10948 4.562 4.375 $92.30 6 Buy Now
KM-10985 4.625 4.437 $93.59 6 Buy Now
KM-10986 4.687 4.500 $94.85 6 Buy Now
KM-10987 4.750 4.562 $96.15 6 Buy Now
KM-10997 4.812 4.625 $97.44 6 Buy Now
KM-10989 4.875 4.687 $98.74 6 Buy Now
KM-10981 4.937 4.750 $100.03 6 Buy Now
KM-10991 5.000 4.812 $101.33 6 Buy Now
KM-10992 5.062 4.875 $102.62 6 Buy Now
KM-10993 5.125 4.937 $103.92 6 Buy Now
KM-10994 5.187 5.000 $105.18 6 Buy Now
KM-10995 5.250 5.062 $106.47 6 Buy Now
KM-10996 5.312 5.125 $107.77 6 Buy Now
KM-10876 5.375 5.187 $109.06 6 Buy Now
KM-10589 5.437 5.250 $110.36 6 Buy Now
KM-10626 5.500 5.312 $111.65 6 Buy Now
KM-10627 5.562 5.375 $112.95 6 Buy Now
KM-10628 5.625 5.437 $114.24 6 Buy Now
KM-10629 5.687 5.500 $115.50 6 Buy Now
KM-10630 5.750 5.562 $116.80 6 Buy Now
KM-10631 5.812 5.625 $118.09 6 Buy Now
KM-10641 5.875 5.687 $119.39 6 Buy Now
KM-10633 5.937 5.750 $120.68 6 Buy Now
KM-10625 6.000 5.812 $121.98 6 Buy Now
KM-10635 6.062 5.875 $123.27 6 Buy Now
KM-10636 6.125 5.937 $124.57 6 Buy Now
KM-10637 6.187 6.000 $125.83 6 Buy Now
KM-10638 6.250 6.062 $127.12 6 Buy Now
KM-10639 6.312 6.125 $128.42 6 Buy Now
KM-10640 6.375 6.187 $129.71 6 Buy Now
KM-10617 6.437 6.250 $131.01 6 Buy Now
KM-10615 6.500 6.312 $132.03 6 Buy Now
KM-10632 6.562 6.375 $133.60 6 Buy Now
KM-10610 6.625 6.437 $134.89 6 Buy Now
KM-10792 6.687 6.500 $136.15 6 Buy Now
KM-10612 6.750 6.562 $137.45 6 Buy Now
KM-10874 6.812 6.625 $138.74 6 Buy Now
KM-10613 6.875 6.687 $140.04 6 Buy Now
KM-10614 6.937 6.750 $141.33 6 Buy Now
KM-10624 7.000 6.812 $142.63 6 Buy Now
KM-10616 7.062 6.875 $143.92 6 Buy Now
KM-10608 7.125 6.937 $145.22 6 Buy Now
KM-10618 7.187 7.000 $146.48 6 Buy Now
KM-10619 7.250 7.062 $146.48 6 Buy Now
KM-10620 7.312 7.125 $149.07 6 Buy Now
KM-10621 7.375 7.187 $150.36 6 Buy Now
KM-10622 7.437 7.250 $143.68 6 Buy Now
KM-10609 7.500 7.312 $152.95 6 Buy Now
KM-10634 7.562 7.375 $154.95 6 Buy Now
KM-10660 7.625 7.437 $155.54 6 Buy Now
KM-10661 7.687 7.500 $156.80 6 Buy Now
KM-10662 7.750 7.562 $158.10 6 Buy Now
KM-10663 7.812 7.625 $159.39 6 Buy Now
KM-10664 7.875 7.687 $160.69 6 Buy Now
KM-10665 7.937 7.750 $161.98 6 Buy Now
KM-10675 8.000 7.812 $163.28 6 Buy Now
KM-10667 8.062 7.875 $164.57 6 Buy Now
KM-10659 8.125 7.937 $165.87 6 Buy Now
KM-10669 8.187 8.000 $167.13 6 Buy Now
KM-10670 8.250 8.062 $168.42 6 Buy Now
KM-10671 8.312 8.125 $169.72 6 Buy Now
KM-10672 8.375 8.187 $171.08 6 Buy Now
KM-10673 8.437 8.250 $172.31 6 Buy Now
KM-10674 8.500 8.312 $173.60 6 Buy Now
KM-10651 8.562 8.375 $174.90 6 Buy Now
KM-10649 8.625 8.437 $176.19 6 Buy Now
KM-10666 8.687 8.500 $177.45 6 Buy Now
KM-10644 8.750 8.562 $178.75 6 Buy Now
KM-10645 8.812 8.625 $180.04 6 Buy Now
KM-10646 8.875 8.687 $181.34 6 Buy Now
KM-10647 8.937 8.750 $182.63 6 Buy Now
KM-10648 9.000 8.812 $183.93 6 Buy Now
KM-10658 9.062 8.875 $185.22 6 Buy Now
KM-10650 9.125 8.937 $186.52 6 Buy Now
KM-10642 9.187 9.000 $187.81 6 Buy Now
KM-10652 9.250 9.062 $189.07 6 Buy Now
KM-10653 9.312 9.125 $190.37 6 Buy Now
KM-10654 9.375 9.187 $191.66 6 Buy Now
KM-10655 9.437 9.250 $192.96 6 Buy Now
KM-10656 9.500 9.312 $194.25 6 Buy Now
KM-10592 9.562 9.375 $195.55 6 Buy Now
KM-10668 9.625 9.437 $196.84 6 Buy Now
KM-10623 9.687 9.500 $198.14 6 Buy Now
KM-10558 9.750 9.562 $199.40 6 Buy Now
KM-10559 9.812 9.625 $200.69 6 Buy Now
KM-10560 9.875 9.687 $201.99 6 Buy Now
KM-10561 9.937 9.750 $203.28 6 Buy Now
KM-10562 10.000 9.812 $204.58 6 Buy Now
KM-10563 10.062 9.875 $205.87 6 Buy Now
KM-10573 10.125 9.937 $207.17 6 Buy Now
KM-10565 10.187 10.000 $208.46 6 Buy Now
KM-10557 10.250 10.062 $209.72 6 Buy Now
KM-10567 10.312 10.125 $211.02 6 Buy Now
KM-10568 10.375 10.187 $212.31 6 Buy Now
KM-10569 10.437 10.250 $213.61 6 Buy Now
KM-10570 10.500 10.312 $214.90 6 Buy Now
KM-10571 10.562 10.375 $216.20 6 Buy Now
KM-10549 10.625 10.437 $217.49 6 Buy Now
KM-10566 10.687 10.500 $218.79 3 Buy Now
KM-10564 10.750 10.562 $220.05 6 Buy Now
KM-10542 10.812 10.625 $221.34 6 Buy Now
KM-10543 10.875 10.687 $222.64 3 Buy Now
KM-10544 10.937 10.750 $223.93 3 Buy Now
KM-10545 11.000 10.812 $225.23 3 Buy Now
KM-10556 11.125 10.937 $227.82 3 Buy Now
KM-10548 11.187 11.000 $229.11 3 Buy Now
KM-10541 11.250 11.062 $230.37 3 Buy Now
KM-10550 11.312 11.125 $231.67 3 Buy Now
KM-10551 11.375 11.187 $232.96 3 Buy Now
KM-10552 11.437 11.250 $234.26 3 Buy Now
KM-10553 11.500 11.312 $235.55 3 Buy Now
KM-10554 11.562 11.375 $236.85 3 Buy Now
KM-10555 11.625 11.437 $238.14 3 Buy Now
KM-10575 11.687 11.500 $239.44 3 Buy Now
KM-10600 11.750 11.562 $240.70 3 Buy Now
KM-10572 11.812 11.625 $241.99 3 Buy Now
KM-10593 11.875 11.687 $243.29 3 Buy Now
KM-10594 11.937 11.750 $244.58 3 Buy Now
KM-10595 12.000 11.812 $245.88 3 Buy Now
KM-10596 12.062 11.875 $247.17 3 Buy Now
KM-10597 12.125 11.937 $248.47 3 Buy Now
KM-10607 12.187 12.000 $249.76 3 Buy Now
KM-10599 12.250 12.062 $251.02 3 Buy Now
KM-10591 12.312 12.125 $252.32 3 Buy Now
KM-10601 12.375 12.187 $253.61 3 Buy Now
KM-10602 12.437 12.250 $254.91 3 Buy Now
KM-10603 12.500 12.312 $256.20 3 Buy Now
KM-10604 12.562 12.375 $257.50 3 Buy Now
KM-10605 12.625 12.437 $258.79 3 Buy Now
KM-10606 12.687 12.500 $260.09 3 Buy Now
KM-10583 12.750 12.562 $261.35 3 Buy Now
KM-10581 12.812 12.625 $262.64 3 Buy Now
KM-10598 12.875 12.687 $263.94 3 Buy Now
KM-10576 12.937 12.750 $265.23 3 Buy Now
KM-10577 13.000 12.812 $266.53 3 Buy Now
KM-10578 13.062 12.875 $267.82 3 Buy Now
KM-10579 13.125 12.937 $269.12 3 Buy Now
KM-10580 13.187 13.000 $270.41 3 Buy Now
KM-10590 13.250 13.062 $271.67 3 Buy Now
KM-10582 13.312 13.125 $272.97 3 Buy Now
KM-10574 13.375 13.187 $274.26 3 Buy Now
KM-10584 13.437 13.250 $275.56 3 Buy Now
KM-10585 13.500 13.312 $276.85 3 Buy Now
KM-10586 13.562 13.375 $278.15 3 Buy Now
KM-10587 13.625 13.437 $279.44 3 Buy Now
KM-10588 13.687 13.500 $280.74 3 Buy Now
KM-10682 13.750 13.562 $282.00 3 Buy Now
KM-10547 13.812 13.625 $283.29 3 Buy Now
KM-10657 13.875 13.687 $284.59 3 Buy Now
KM-10761 13.937 13.750 $285.88 3 Buy Now
KM-10762 14.000 13.812 $287.18 3 Buy Now
KM-10763 14.062 13.875 $288.47 3 Buy Now
KM-10764 14.125 13.937 $289.77 3 Buy Now
KM-10765 14.187 14.000 $291.06 3 Buy Now
KM-10766 14.250 14.062 $292.32 3 Buy Now
KM-10776 14.312 14.125 $293.62 3 Buy Now
KM-8503 14.375 14.187 $294.91 3 Buy Now
KM-8502 14.437 14.250 $296.21 3 Buy Now
KM-8501 14.500 14.312 $297.50 3 Buy Now
KM-8500 14.562 14.375 $298.80 3 Buy Now
KM-8499 14.625 14.437 $300.09 3 Buy Now
KM-8498 14.687 14.500 $301.39 3 Buy Now
KM-8524 14.750 14.562 $302.65 3 Buy Now
KM-8504 14.812 14.625 $303.94 3 Buy Now
KM-8506 14.875 14.687 $305.24 3 Buy Now
KM-8534 14.937 14.750 $306.53 3 Buy Now
KM-8533 15.000 14.812 $307.83 3 Buy Now
KM-8532 15.062 14.875 $309.12 3 Buy Now
KM-8531 15.125 14.937 $310.42 3 Buy Now
KM-8527 15.187 15.000 $311.71 3 Buy Now
KM-10187 15.250 15.062 $313.01 3 Buy Now
KM-10186 15.312 15.125 $314.27 3 Buy Now
KM-10185 15.375 15.187 $315.56 3 Buy Now
KM-10184 15.437 15.250 $316.86 3 Buy Now
KM-10183 15.500 15.312 $318.15 3 Buy Now
KM-10182 15.562 15.375 $319.45 3 Buy Now
KM-10163 15.625 15.437 $320.74 3 Buy Now
KM-10138 15.687 15.500 $322.04 3 Buy Now
KM-10171 15.750 15.562 $323.33 3 Buy Now
KM-10145 15.812 15.625 $324.59 3 Buy Now
KM-10144 15.875 15.687 $325.89 3 Buy Now
KM-10143 15.937 15.750 $327.18 3 Buy Now
KM-10142 16.000 15.812 $328.48 3 Buy Now
KM-10141 16.062 15.875 $329.77 3 Buy Now
KM-10132 16.125 15.937 $331.07 3 Buy Now
KM-10139 16.187 16.000 $332.36 3 Buy Now
KM-10147 16.250 16.062 $336.66 3 Buy Now
KM-10137 16.312 16.125 $334.92 3 Buy Now
KM-10136 16.375 16.187 $336.21 3 Buy Now
KM-10135 16.437 16.250 $337.51 3 Buy Now
KM-10134 16.500 16.312 $338.80 3 Buy Now
KM-10133 16.562 16.375 $340.10 3 Buy Now
KM-10155 16.625 16.437 $341.39 3 Buy Now
KM-10157 16.687 16.500 $342.69 3 Buy Now
KM-10140 16.750 16.562 $343.98 3 Buy Now
KM-10162 16.812 16.625 $345.24 3 Buy Now
KM-10161 16.875 16.687 $346.54 3 Buy Now
KM-10160 16.937 16.750 $347.83 3 Buy Now
KM-10159 17.000 16.812 $349.13 3 Buy Now
KM-10158 17.062 16.875 $350.42 3 Buy Now
KM-10148 17.125 16.937 $351.72 3 Buy Now
KM-10156 17.187 17.000 $353.01 3 Buy Now
KM-10164 17.250 17.062 $354.31 3 Buy Now
KM-10154 17.312 17.125 $355.57 3 Buy Now
KM-10153 17.375 17.187 $356.86 3 Buy Now
KM-10152 17.437 17.250 $358.16 3 Buy Now
KM-10151 17.500 17.312 $359.45 3 Buy Now
KM-10150 17.562 17.375 $360.75 3 Buy Now
KM-10212 17.625 17.437 $362.04 3 Buy Now
KM-10146 17.687 17.500 $363.34 3 Buy Now
KM-10196 17.750 17.562 $364.63 3 Buy Now
KM-10245 17.812 17.625 $365.89 3 Buy Now
KM-10244 17.875 17.687 $367.19 3 Buy Now
KM-10243 17.937 17.750 $368.48 3 Buy Now
KM-10242 18.000 17.812 $369.78 3 Buy Now
KM-10241 18.062 17.875 $371.07 3 Buy Now
KM-10240 18.125 17.937 $372.37 3 Buy Now
KM-10231 18.187 18.000 $373.66 3 Buy Now
KM-10238 18.250 18.062 $374.96 3 Buy Now
KM-10246 18.312 18.125 $376.22 3 Buy Now
KM-10236 18.375 18.187 $377.51 3 Buy Now
KM-10235 18.437 18.250 $378.81 3 Buy Now
KM-10234 18.500 18.312 $380.10 3 Buy Now
KM-10233 18.562 18.375 $381.40 3 Buy Now
KM-10232 18.625 18.437 $382.69 3 Buy Now
KM-10254 18.687 18.500 $383.99 3 Buy Now
KM-9845 18.750 18.562 $385.28 3 Buy Now
KM-10256 18.812 18.625 $386.54 3 Buy Now
KM-10239 18.875 18.687 $387.84 3 Buy Now
KM-10261 18.937 18.750 $389.13 3 Buy Now
KM-10260 19.000 18.812 $390.43 3 Buy Now
KM-10259 19.062 18.875 $391.72 3 Buy Now
KM-10258 19.125 18.937 $393.02 3 Buy Now
KM-10257 19.187 19.000 $394.31 3 Buy Now
KM-10247 19.250 19.062 $395.61 3 Buy Now
KM-10255 19.312 19.125 $396.87 3 Buy Now
KM-10263 19.375 19.187 $398.16 3 Buy Now
KM-10253 19.437 19.250 $399.46 3 Buy Now
KM-10252 19.500 19.312 $400.75 3 Buy Now
KM-10251 19.562 19.375 $402.05 3 Buy Now
KM-10250 19.625 19.437 $403.34 3 Buy Now
KM-10249 19.687 19.500 $404.64 3 Buy Now
KM-10248 19.750 19.562 $405.93 3 Buy Now
KM-10229 19.812 19.625 $407.19 3 Buy Now
KM-10204 19.875 19.687 $408.49 3 Buy Now
KM-10237 19.937 19.750 $409.78 3 Buy Now
KM-10211 20.000 19.812 $411.08 3 Buy Now









nominal inches,
diameter

plus or minus (±) tolerance, inches

ID inside diameter

OD outside diameter

steel
mandrel

built-up
mandrel

.125" -.749"

.003"

-

.005"

.750" - 1.999"

.004"

-

.005"

2.000" - 4.000"

.006"

-

.008"



*turned

*as wound

4.001" - 12.000"

.010"

-

.025"

plus only

12.001" - 18.000"

.030"

.060"

.030"

plus only

18.001" - 24.000"

.040"

.075"

.035"

plus only

24.001" - 48.000"

.060"

.090"

.040"

plus only

*Note: tubing over 8.000" OD supplied as wound (turned OD quoted on request)
