G11-FR5 High Temp. Glass Reinforced Epoxy Tubes .062" Wall Thickness

G11 FR5 Tubes .062 inch Wall

G11FR5 Glass Reinforced Epoxy Tubes - natural (yellow green to amber) Technical Data Sheet
This grade is similar to G10/FR4, with the addition of a higher operating temperature and some improved mechanical strength at elevated temperatures.

The main difference between NEMA Grades G11 and FR5 is that FR5 is a fire retardant grade of G11. Therefore, FR5 can be safely substituted when G11 is called for, while G11 can never be substituted where FR5 is called for. (NEMA G-11 certs to MIL-I-24768/3 GEB, IEC 60893-3 Type 2 EP GC 203; FR5 certifies to Mil-I-24768/28 GEB-F.)

  Chemical Resistance Chart

.031" (1/32") Wall Thickness .062" (1/16")Wall Thickness .093" (3/32")Wall Thickness .125" (1/8")Wall Thickness .187" (3/16")Wall Thickness
.250" (1/4")Wall Thickness .375" (3/8")Wall Thickness .500" (1/2")Wall Thickness .750" (3/4")WallThickness 1.00" Wall Thickness (Max. Possible)



.062" Wall G11-FR5 Tubes
Stock # OD Inch ID Inch Price/Foot Min Ft for Order Purchase Online
KM-1478 0.250 0.125 $14.84 33 Buy Now

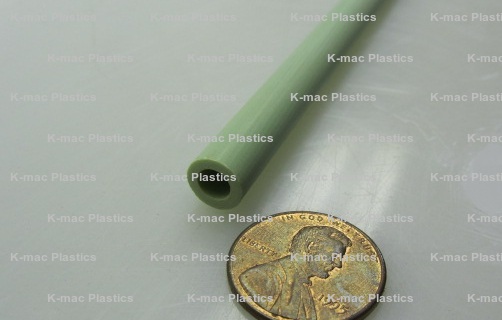

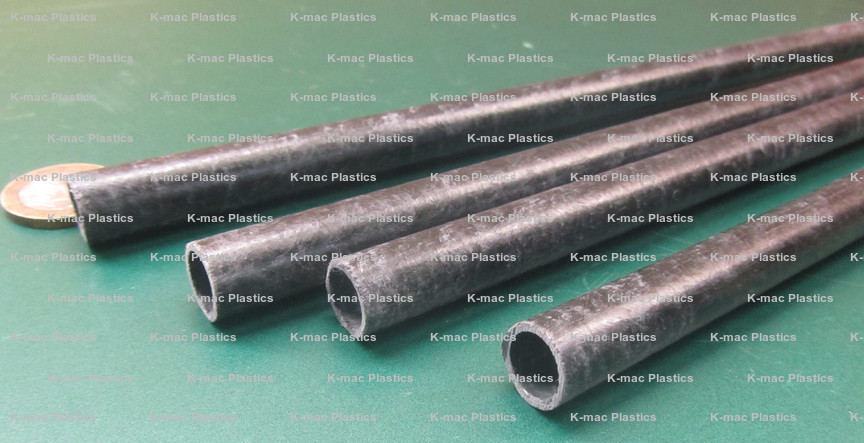

KM-1480 0.312 0.187 $29.40 21 Buy Now
KM-1484 0.375 0.250 $30.94 21 Buy Now

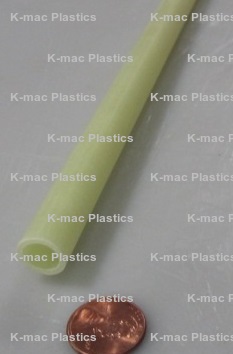

KM-1488 0.437 0.312 $33.29 24 Buy Now

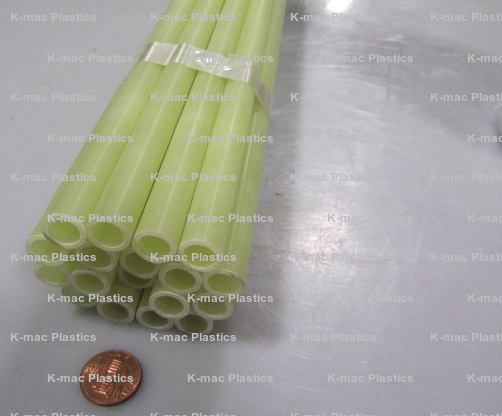

KM-1492 0.500 0.375 $34.83 21 Buy Now

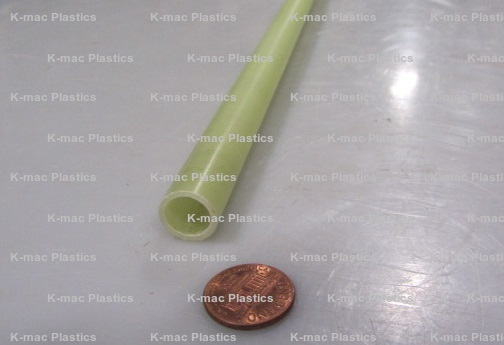

KM-1496 0.562 0.437 $36.37 18 Buy Now

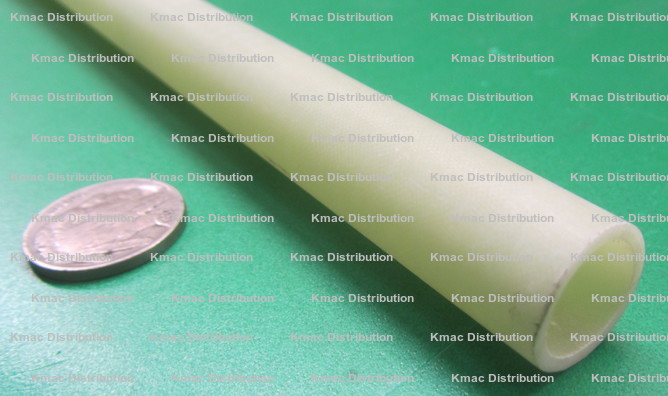

KM-1500 0.625 0.500 $35.18 24 Buy Now

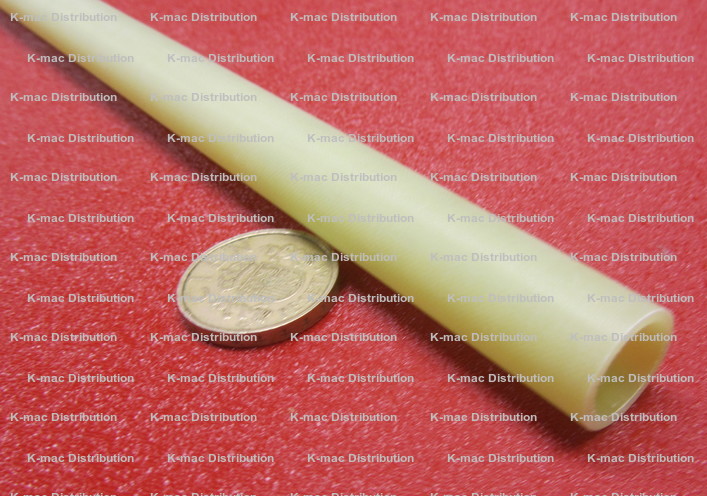

KM-1506 0.687 0.562 $27.97 24 Buy Now

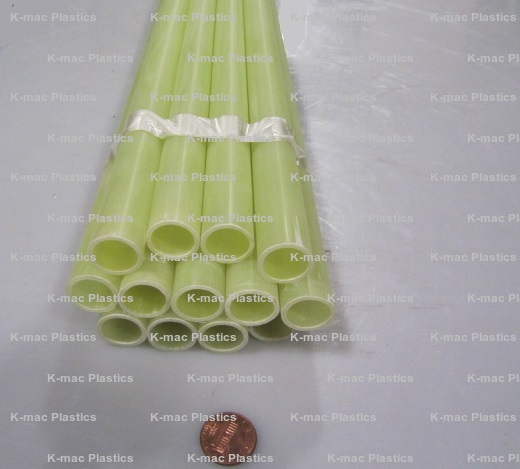

KM-1511K 0.750 0.625 $23.94 27 Buy Now
KM-1517 0.812 0.687 $25.20 21 Buy Now
KM-1510K 0.875 0.750 $21.04 21 Buy Now
KM-8525 0.937 0.812 $22.02 30 Buy Now
KM-1516 1.000 0.875 $34.41 18 Buy Now
KM-8523 1.062 0.937 $23.03 30 Buy Now
KM-1522 1.125 1.000 $23.70 21 Buy Now

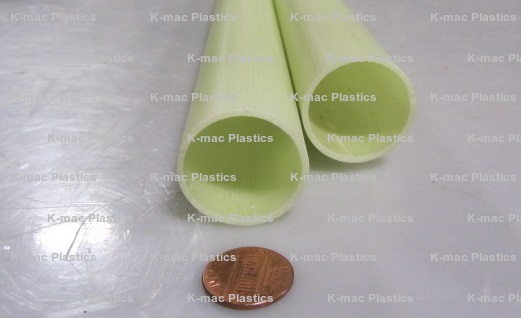

KM-8521 1.187 1.062 $25.10 30 Buy Now
KM-8520 1.250 1.125 $25.62 18 Buy Now
KM-8519 1.312 1.187 $26.95 18 Buy Now
KM-1527 1.375 1.250 $28.32 21 Buy Now
KM-8517 1.437 1.312 $28.67 18 Buy Now
KM-8486 1.500 1.375 $29.96 18 Buy Now
KM-8457 1.562 1.437 $31.29 18 Buy Now
KM-1532 1.625 1.500 $32.59 18 Buy Now
KM-8473 1.687 1.562 $32.73 18 Buy Now
KM-8472 1.750 1.625 $29.96 18 Buy Now
KM-8471 1.812 1.687 $32.73 18 Buy Now
KM-1537 1.875 1.750 $33.88 15 Buy Now
KM-8469 1.937 1.812 $35.04 18 Buy Now
KM-8468 2.000 1.875 $36.23 18 Buy Now
KM-8467 2.062 1.937 $37.38 18 Buy Now
KM-1542 2.125 2.000 $38.57 15 Buy Now
KM-9223 2.187 2.062 $39.37 18 Buy Now
KM-9224 2.250 2.125 $39.31 18 Buy Now
KM-9225 2.312 2.187 $40.43 18 Buy Now
KM-1547 2.375 2.250 $41.58 15 Buy Now
KM-9227 2.437 2.312 $42.70 15 Buy Now
KM-9228 2.500 2.375 $43.82 15 Buy Now
KM-9229 2.562 2.437 $44.94 15 Buy Now
KM-1552 2.625 2.500 $46.06 12 Buy Now
KM-9231 2.687 2.562 $47.18 15 Buy Now
KM-9232 2.750 2.625 $48.30 15 Buy Now
KM-9233 2.812 2.687 $47.46 15 Buy Now
KM-1557 2.875 2.750 $48.51 12 Buy Now
KM-9235 2.937 2.812 $49.60 15 Buy Now
KM-9221 3.000 2.875 $48.58 15 Buy Now
KM-9237 3.062 2.937 $49.60 15 Buy Now
KM-1562 3.125 3.000 $50.65 12 Buy Now
KM-9239 3.187 3.062 $51.66 15 Buy Now
KM-9240 3.250 3.125 $52.71 15 Buy Now
KM-9241 3.312 3.187 $53.73 15 Buy Now
KM-1566 3.375 3.250 $54.78 12 Buy Now
KM-9243 3.437 3.312 $55.79 15 Buy Now
KM-9244 3.500 3.375 $56.84 12 Buy Now
KM-9245 3.562 3.437 $57.86 12 Buy Now
KM-1571 3.625 3.500 $58.91 12 Buy Now
KM-9247 3.687 3.562 $59.92 12 Buy Now
KM-9248 3.750 3.625 $60.97 12 Buy Now
KM-9249 3.812 3.687 $62.02 12 Buy Now
KM-9206 3.875 3.750 $63.04 9 Buy Now
KM-9204 3.937 3.812 $64.09 12 Buy Now
KM-9234 4.000 3.875 $62.27 12 Buy Now
KM-9193 4.062 3.937 $63.28 12 Buy Now
KM-1581 4.125 4.000 $64.26 9 Buy Now
KM-9195 4.187 4.062 $65.24 12 Buy Now
KM-9196 4.250 4.125 $66.22 12 Buy Now
KM-9197 4.312 4.187 $67.24 12 Buy Now
KM-9198 4.375 4.250 $68.72 12 Buy Now
KM-9199 4.437 4.312 $69.20 12 Buy Now
KM-9200 4.500 4.375 $70.18 9 Buy Now
KM-9201 4.562 4.437 $71.19 9 Buy Now
KM-1586 4.625 4.500 $72.17 9 Buy Now
KM-9203 4.687 4.562 $73.15 9 Buy Now
KM-9220 4.750 4.625 $74.13 9 Buy Now
KM-9717 4.812 4.687 $75.15 9 Buy Now
KM-9718 4.875 4.750 $76.13 9 Buy Now
KM-9719 4.937 4.812 $77.11 9 Buy Now
KM-9720 5.000 4.875 $74.55 9 Buy Now
KM-9721 5.062 4.937 $71.89 9 Buy Now
KM-1591 5.125 5.000 $72.80 9 Buy Now
KM-10870 5.187 5.062 $73.68 9 Buy Now
KM-10878 5.250 5.125 $74.59 9 Buy Now
KM-10868 5.312 5.187 $75.50 9 Buy Now
KM-10867 5.375 5.250 $76.37 9 Buy Now
KM-10866 5.437 5.312 $77.28 9 Buy Now
KM-10865 5.500 5.375 $78.19 9 Buy Now
KM-10864 5.562 5.437 $79.07 9 Buy Now
KM-1597 5.625 5.500 $79.98 9 Buy Now
KM-10837 5.687 5.562 $80.89 9 Buy Now
KM-10812 5.750 5.625 $81.76 9 Buy Now
KM-10846 5.812 5.687 $82.67 9 Buy Now
KM-10825 5.875 5.750 $83.58 9 Buy Now
KM-10824 5.937 5.812 $84.46 9 Buy Now
KM-10823 6.000 5.875 $85.37 9 Buy Now
KM-10822 6.062 5.937 $81.97 9 Buy Now
KM-1603 6.125 6.000 $82.81 6 Buy Now
KM-10811 6.187 6.062 $83.65 9 Buy Now
KM-10819 6.250 6.125 $84.53 9 Buy Now
KM-10827 6.312 6.187 $85.37 9 Buy Now
KM-10817 6.375 6.250 $86.24 9 Buy Now
KM-10816 6.437 6.312 $87.08 9 Buy Now
KM-10815 6.500 6.375 $87.92 9 Buy Now

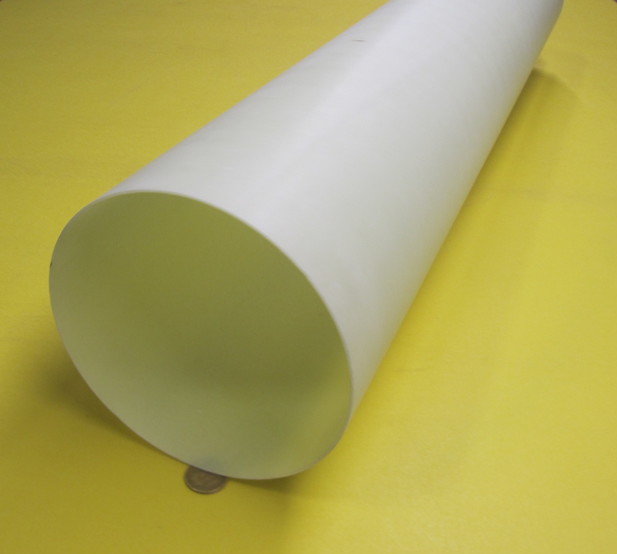

KM-10814 6.562 6.437 $88.80 9 Buy Now

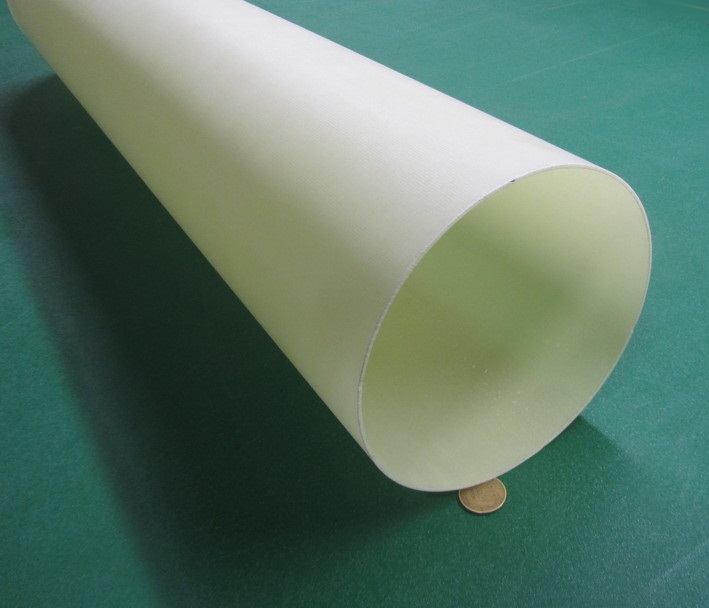

KM-10813 6.625 6.500 $89.64 9 Buy Now

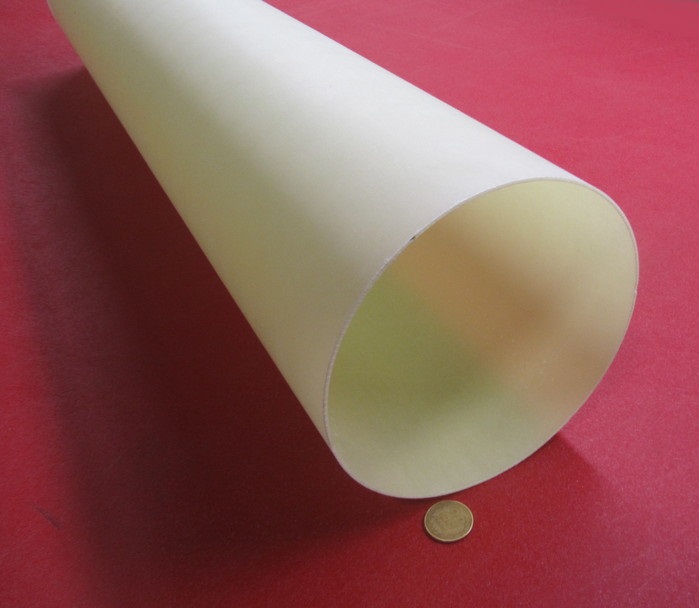

KM-10835 6.687 6.562 $90.48 9 Buy Now
KM-10818 6.750 6.625 $91.35 9 Buy Now

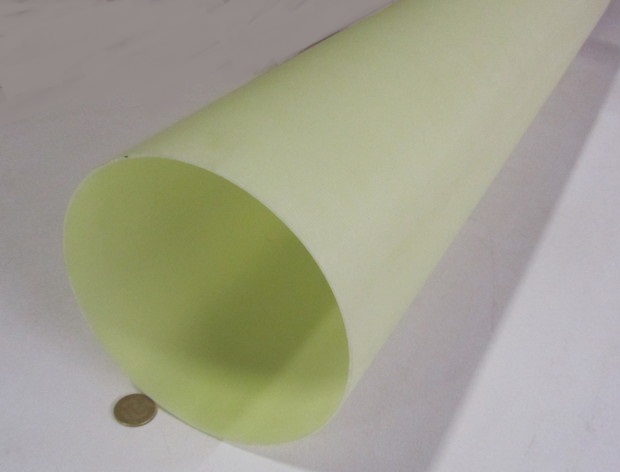

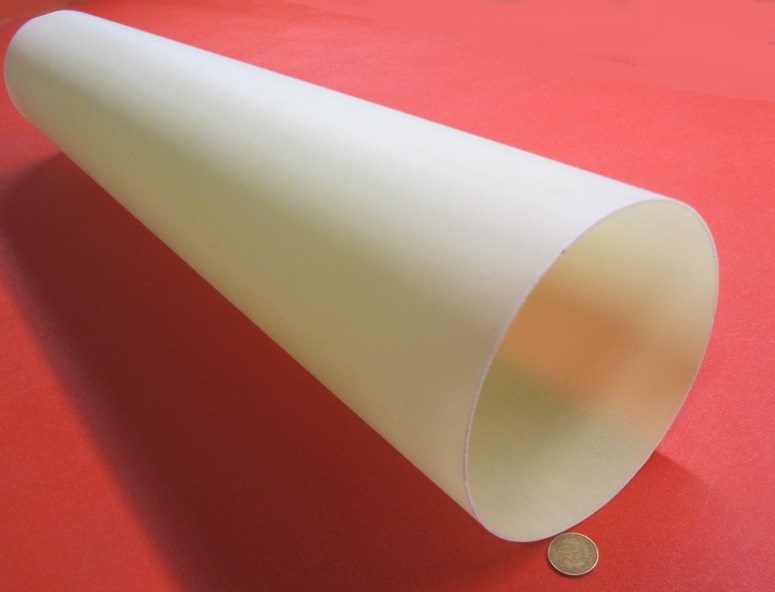

KM-10820 6.812 6.687 $92.19 9 Buy Now
KM-10843 6.875 6.750 $93.07 9 Buy Now
KM-10842 6.937 6.812 $93.91 9 Buy Now
KM-10841 7.000 6.875 $89.78 9 Buy Now
KM-10840 7.062 6.937 $90.58 9 Buy Now
KM-10839 7.125 7.000 $91.39 9 Buy Now
KM-10838 7.187 7.062 $92.19 9 Buy Now
KM-10828 7.250 7.125 $93.00 9 Buy Now
KM-10836 7.312 7.187 $93.80 9 Buy Now
KM-10844 7.375 7.250 $94.64 9 Buy Now
KM-10834 7.437 7.312 $95.45 9 Buy Now
KM-10833 7.500 7.375 $96.25 9 Buy Now
KM-10832 7.562 7.437 $97.06 9 Buy Now
KM-10831 7.625 7.500 $97.86 9 Buy Now
KM-10830 7.687 7.562 $98.67 6 Buy Now
KM-10894 7.750 7.625 $99.47 6 Buy Now
KM-10826 7.812 7.687 $100.28 6 Buy Now
KM-10871 7.875 7.750 $101.08 6 Buy Now
KM-10928 7.937 7.812 $101.89 6 Buy Now
KM-10927 8.000 7.875 $102.73 6 Buy Now
KM-10926 8.062 7.937 $103.53 6 Buy Now
KM-10925 8.125 8.000 $104.34 6 Buy Now
KM-10924 8.187 8.062 $105.14 6 Buy Now
KM-10923 8.250 8.125 $105.95 6 Buy Now
KM-10913 8.312 8.187 $106.75 6 Buy Now
KM-10921 8.375 8.250 $107.56 6 Buy Now
KM-10929 8.437 8.312 $108.36 6 Buy Now
KM-10919 8.500 8.375 $109.17 6 Buy Now
KM-10918 8.562 8.437 $110.01 6 Buy Now
KM-10917 8.625 8.500 $110.81 6 Buy Now
KM-10916 8.687 8.562 $111.62 6 Buy Now
KM-10915 8.750 8.625 $112.42 6 Buy Now
KM-10937 8.812 8.687 $113.23 6 Buy Now
KM-10920 8.875 8.750 $114.03 6 Buy Now
KM-10922 8.937 8.812 $114.84 6 Buy Now





nominal inches,
diameter

plus or minus (±) tolerance, inches

ID inside diameter

OD outside diameter

steel
mandrel

built-up
mandrel

.125" -.749"

.003"

-

.005"

.750" - 1.999"

.004"

-

.005"

2.000" - 4.000"

.006"

-

.008"



*turned

*as wound

4.001" - 12.000"

.010"

-

.025"

plus only

12.001" - 18.000"

.030"

.060"

.030"

plus only

18.001" - 24.000"

.040"

.075"

.035"

plus only

24.001" - 48.000"

.060"

.090"

.040"

plus only

*Note: tubing over 8.000" OD supplied as wound (turned OD quoted on request)
