G10/FR4 Tubes Glass Reinforced Epoxy - .500" Wall

G10 FR4 Tubes .500 inch wall thickness

(Micarta) (High Pressure Laminates) G10/FR4 Glass Reinforced Epoxy - natural (yellowish to light green) Technical Data Sheet    Chemical Resistance Chart
The most versatile all-around laminate and composite, this grade is a continuous glass woven fabric base impregnated with an epoxy resin binder. It has extremely high mechanical strength, good dielectric loss properties, and good electric strength properties, both wet and dry.
NEMA G-10 certs to MIL-I-24768/2 GEE, IPC 4101/20, IEC 60893-3 Type 2 EP GC 201
NEMA FR-4 certs to MIL-I-24768/27 GEE-F, IPC 4101/21, IEC 60893-3 Type 2 EP GC 202



.031" (1/32") Wall Thickness .062" (1/16")Wall Thickness .093" (3/32")Wall Thickness .125" (1/8")Wall Thickness .187" (3/16")Wall Thickness
.250" (1/4")Wall Thickness .375" (3/8")Wall Thickness .500" (1/2")Wall Thickness .750" (3/4")WallThickness 1.00" Wall Thickness (Max. Possible)



G10 FR4 Tubes .500" Wall Thickness
**Minimum's Apply, Non Stocked Items

Unless Otherwise noted 3 Ft Minimums are required, ** Indicates a 6 Ft Minimum

Stock #

Outside Diameter Inches

Inside Diameter Inches

Price/ft

Purchase Online

KM-7410**

1.50

0.500

$90.11

Buy Now

KM-7310**

1.625

0.625

$101.34

Buy Now

KM-7311**

1.75

0.750

$112.61

Buy Now

KM-7319**

1.875

0.875

$123.87

Buy Now

KM-7403

2.00

1.000

$135.14

Buy Now

KM-7404

2.125

1.125

$146.40

Buy Now

KM-7406

2.25

1.250

$157.66

Buy Now

KM-7408

2.375

1.375

$168.93

Buy Now

KM-1403

2.50

1.500

$180.19

Buy Now

KM-7500

2.625

1.625

$191.46

Buy Now

KM-1408

2.75

1.750

$202.72

Buy Now

KM-7411

2.875

1.875

$213.98

Buy Now

KM-1413

3.00

2.000

$225.25

Buy Now

KM-7412

3.125

2.125

$236.51

Buy Now

KM-1418

3.25

2.250

$240.16

Buy Now

KM-7413

3.375

2.375

$243.81

Buy Now

KM-1423

3.50

2.500

$250.27

Buy Now

KM-7414

3.625

2.625

$256.70

Buy Now

KM-1428

3.75

2.750

$265.31

Buy Now

KM-7415

3.875

2.875

$275.07

Buy Now

KM-1433

4.00

3.000

$284.83

Buy Now

KM-7420

4.125

3.125

$326.59

Buy Now

KM-1438

4.25

3.250

$337.86

Buy Now

KM-7497

4.375

3.375

$349.12

Buy Now

KM-1443

4.50

3.500

$360.38

Buy Now

KM-7407

4.625

3.625

$371.65

Buy Now

KM-1448

4.75

3.750

$382.91

Buy Now

KM-7445

4.875

3.875

$394.18

Buy Now

KM-1452

5.00

4.000

$405.44

Buy Now

KM-7496

5.125

4.125

$416.70

Buy Now

KM-7495

5.250

4.250

$421.57

Buy Now

KM-7494

5.375

4.375

$424.90

Buy Now

KM-1457

5.50

4.500

$427.68

Buy Now

KM-7493

5.625

4.625

$432.96

Buy Now

KM-7486

5.750

4.750

$438.14

Buy Now

KM-7492

5.875

4.875

$445.89

Buy Now

KM-1462

6.00

5.000

$453.95

Buy Now

KM-7491

6.125

5.125

$462.08

Buy Now

KM-7490

6.25

5.250

$472.35

Buy Now

KM-7489

6.375

5.375

$482.62

Buy Now

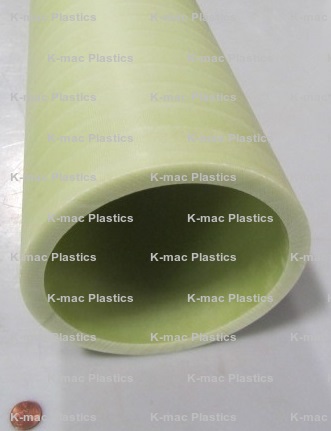

KM-1468

6.50

5.500

$492.90

Buy Now

KM-7488

6.625

5.625

$503.17

Buy Now

KM-7487

6.75

5.750

$513.41

Buy Now

KM-7518

6.875

5.875

$523.68

Buy Now

KM-1474

7.00

6.000

$536.42

Buy Now

KM-7526

7.125

6.125

$544.22

Buy Now

KM-7525

7.25

6.250

$554.50

Buy Now

KM-7524

7.375

6.375

$564.77

Buy Now

KM-7635

7.50

6.500

$575.04

Buy Now

KM-7522

7.625

6.625

$585.31

Buy Now

KM-7544

7.75

6.750

$595.58

Buy Now

KM-7519

7.875

6.875

$605.82

Buy Now

KM-7529

8.00

7.000

$616.10

Buy Now

KM-7517

8.125

7.125

$626.37

Buy Now

KM-7516

8.25

7.250

$636.64

Buy Now

KM-7515

8.375

7.375

$646.91

Buy Now

KM-7514

8.50

7.500

$657.18

Buy Now

KM-7513

8.625

7.625

$667.46

Buy Now

KM-7512

8.75

7.750

$677.73

Buy Now

KM-7520

8.875

7.875

$688.00

Buy Now

KM-7535

9.00

8.000

$698.24

Buy Now

KM-7543

9.125

8.125

$708.51

Buy Now

KM-7542

9.25

8.250

$718.78

Buy Now

KM-7541

9.375

8.375

$729.06

Buy Now

KM-7540

9.50

8.500

$739.33

Buy Now

KM-7539

9.625

8.625

$749.60

Buy Now

KM-7538

9.75

8.750

$759.87

Buy Now

KM-7527

9.875

8.875

$770.14

Buy Now

KM-7536

10.00

9.000

$780.42

Buy Now

KM-7528

10.125

9.125

$790.66

Buy Now

KM-7534

10.25

9.250

$800.93

Buy Now

KM-7533

10.375

9.375

$811.20

Buy Now

KM-7532

10.50

9.500

$821.47

Buy Now

KM-7531

10.625

9.625

$831.74

Buy Now

KM-7530

10.75

9.750

$842.02

Buy Now

KM-7509

10.875

9.875

$852.29

Buy Now

KM-7537

11.00

10.000

$862.56

Buy Now

KM-7565

11.125

10.125

$872.83

Buy Now

KM-7511

11.25

10.250

$883.07

Buy Now

KM-7572

11.375

10.375

$893.34

Buy Now

KM-7571

11.50

10.500

$903.62

Buy Now

KM-7570

11.625

10.625

$913.89

Buy Now

KM-7569

11.75

10.750

$924.16

Buy Now

KM-7568

11.875

10.875

$934.43

Buy Now

KM-7574

12.00

11.000

$944.70

Buy Now

KM-7566

12.125

11.125

$954.98

Buy Now

KM-7575

12.25

11.250

$965.25

Buy Now

KM-7564

12.375

11.375

$975.49

Buy Now

KM-7563

12.50

11.500

$985.76

Buy Now

KM-7562

12.625

11.625

$996.03

Buy Now

KM-7561

12.75

11.750

$1,006.30

Buy Now

KM-7560

12.875

11.875

$1,016.58

Buy Now

KM-7559

13.00

12.000

$1,026.85

Buy Now

KM-7567

13.125

12.125

$1,037.12

Buy Now

KM-7582

13.25

12.250

$1,047.39

Buy Now

KM-7523

13.375

12.375

$1,057.66

Buy Now

KM-7508

13.50

12.500

$1,067.90

Buy Now

KM-7507

13.625

12.625

$1,078.18

Buy Now

KM-7506

13.75

12.750

$1,088.45

Buy Now

KM-7505

13.875

12.875

$1,098.72

Buy Now

KM-7504

14.00

13.000

$1,108.99

Buy Now

KM-7573

14.125

13.125

$1,119.26

Buy Now

KM-7502

14.25

13.250

$1,129.54

Buy Now

KM-7510

14.375

13.375

$1,139.81

Buy Now

KM-7581

14.50

13.500

$1,150.08

Buy Now

KM-7580

14.625

13.625

$1,160.32

Buy Now

KM-7579

14.75

13.750

$1,170.59

Buy Now

KM-7578

14.875

13.875

$1,180.86

Buy Now

KM-7577

15.00

14.000

$1,191.14

Buy Now

KM-7576

15.125

14.125

$1,201.41

Buy Now

KM-7503

15.25

14.250

$1,211.68

Buy Now

KM-7610

15.375

14.375

$1,221.95

Buy Now

KM-7602

15.50

14.500

$1,232.22

Buy Now

KM-7628

15.625

14.625

$1,242.50

Buy Now

KM-7629

15.75

14.750

$1,252.74

Buy Now

KM-7630

15.875

14.875

$1,263.01

Buy Now

KM-7631

16.00

15.000

$1,273.28

Buy Now

KM-7632

16.125

15.125

$1,283.55

Buy Now

KM-7545

16.25

15.250

$1,293.82

Buy Now

KM-7634

16.375

15.375

$1,304.10

Buy Now

KM-7626

16.50

15.500

$1,314.37

Buy Now

KM-7609

16.625

15.625

$1,324.64

Buy Now

KM-7619

16.75

15.750

$1,334.91

Buy Now

KM-7607

16.875

15.875

$1,345.15

Buy Now

KM-7605

17.00

16.000

$1,372.93

Buy Now

KM-7604

17.125

16.125

$1,365.70

Buy Now

KM-7603

17.25

16.250

$1,375.97

Buy Now

KM-7633

17.375

16.375

$1,386.24

Buy Now

KM-7620

17.50

16.500

$1,396.51

Buy Now

KM-7618

17.625

16.625

$1,406.78

Buy Now

KM-7617

17.75

16.750

$1,417.06

Buy Now

KM-7616

17.875

16.875

$1,427.33

Buy Now

KM-7615

18.00

17.000

$1,437.57

Buy Now

KM-7614

18.125

17.125

$1,447.84

Buy Now

KM-7613

18.25

17.250

$1,458.11

Buy Now

KM-7627

18.375

17.375

$1,468.38

Buy Now

KM-7611

18.50

17.500

$1,478.66

Buy Now

KM-7606

18.625

17.625

$1,488.93

Buy Now

KM-7621

18.75

17.750

$1,499.20

Buy Now

KM-7622

18.875

17.875

$1,509.47

Buy Now

KM-7623

19.00

18.000

$1,519.74

Buy Now

KM-7624

19.125

18.125

$1,529.98

Buy Now

KM-7625

19.25

18.250

$1,540.26

Buy Now

KM-7521

19.375

18.375

$1,550.53

Buy Now

KM-7612

19.50

18.500

$1,560.80

Buy Now

KM-7553

19.625

18.625

$1,571.07

Buy Now

KM-7601

19.75

18.750

$1,581.34

Buy Now

KM-7585

19.875

18.875

$1,591.62

Buy Now

KM-7608

20.00

19.000

$1,601.89

Buy Now

KM-7583

20.125

19.125

$1,612.16

Buy Now

KM-7558

20.25

19.250

$1,622.40

Buy Now

KM-7557

20.375

19.375

$1,632.67

Buy Now

KM-7556

20.50

19.500

$1,642.94

Buy Now

KM-7587

20.625

19.625

$1,653.22

Buy Now

KM-7554

20.75

19.750

$1,663.49

Buy Now

KM-7586

20.875

19.875

$1,673.76

Buy Now

KM-7552

21.00

20.000

$1,684.03

Buy Now

KM-7551

21.125

20.125

$1,694.30

Buy Now

KM-7550

21.25

20.250

$1,714.82

Buy Now

KM-7549

21.375

20.375

$1,725.09

Buy Now

KM-7548

21.50

20.500

$1,735.36

Buy Now

KM-7547

21.625

20.625

$1,745.63

Buy Now

KM-7546

21.75

20.750

$1,755.90

Buy Now

KM-7555

21.875

20.875

$1,766.18

Buy Now

KM-7599

22.00

21.000

$1,776.45

Buy Now

KM-7589

22.125

21.125

$1,786.72

Buy Now

KM-7590

22.25

21.250

$1,796.99

Buy Now

KM-7591

22.375

21.375

$1,807.23

Buy Now

KM-7600

22.50

21.500

$1,817.50

Buy Now

KM-7592

22.625

21.625

$1,827.78

Buy Now

KM-7593

22.75

21.750

$1,838.05

Buy Now

KM-7596

22.875

21.875

$1,848.32

Buy Now

KM-7595

23.00

22.000

$1,851.33

Buy Now

KM-7594

23.125

22.125

$1,858.59

Buy Now

KM-7584

23.25

22.250

$1,868.86

Buy Now

KM-7597

23.375

22.375

$1,879.14

Buy Now

KM-7588

23.50

22.500

$1,889.41

Buy Now

KM-7598

23.75

22.750

$1,899.65

Buy Now

KM-7636

24.00

23.000

$1,930.46

Buy Now

nominal inches,
diameter

plus or minus (±) tolerance, inches

ID inside diameter

OD outside diameter

steel
mandrel

built-up
mandrel

.125" -.749"

.003"

-

.005"

.750" - 1.999"

.004"

-

.005"

2.000" - 4.000"

.006"

-

.008"



*turned

*as wound

4.001" - 13.000"

.010"

-

.025"

plus only

12.001" - 18.000"

.030"

.060"

.030"

plus only

18.001" - 24.000"

.040"

.075"

.035"

plus only

24.001" - 48.000"

.060"

.090"

.040"

plus only

*Note: tubing over 8.000" OD supplied as wound (turned OD quoted on request)
