G10FR4 Tubes Glass Reinforced Epoxy - .031" Wall

G10 FR4 Tubes .031 Inch Wall

(Micarta) (High Pressure Laminates) G10/FR4 Glass Reinforced Epoxy - natural (yellowish to light green) Technical Data Sheet    Chemical Resistance Chart
The most versatile all-around laminate and composite, this grade is a continuous glass woven fabric base impregnated with an epoxy resin binder. It has extremely high mechanical strength, good dielectric loss properties, and good electric strength properties, both wet and dry.
NEMA G-10 certs to MIL-I-24768/2 GEE, IPC 4101/20, IEC 60893-3 Type 2 EP GC 201
NEMA FR-4 certs to MIL-I-24768/27 GEE-F, IPC 4101/21, IEC 60893-3 Type 2 EP GC 202

.031" (1/32") Wall Thickness .062" (1/16")Wall Thickness .093" (3/32")Wall Thickness .125" (1/8")Wall Thickness .187" (3/16")Wall Thickness
.250" (1/4")Wall Thickness .375" (3/8")Wall Thickness .500" (1/2")Wall Thickness .750" (3/4")WallThickness 1.00" Wall Thickness (Max. Possible)



G10 FR4 Tubes .031" Wall
**Minimum's Apply, Non Stocked Item
Tolerances (Note: Pricing for Over 4.00" Diameter Wound Only)
Stock # Outside Diameter Inches Inside Diameter Inches Price/ft Min Purchase Purchase Online
KM-1331 0.188 0.125 $18.15 21 ft Buy Now
KM-1333  0.250 0.188 $10.26 6 ft Buy Now
KM-3115V  0.281 0.218 $13.56 30 ft Buy Now
KM-1337 0.312 0.250 $13.58 24 ft Buy Now
KM-1341 0.375 0.312 $13.61 6 ft Buy Now
KM-1345 0.437 0.375 $14.88 6 ft Buy Now
KM-1349 0.500 0.437 $15.70 27 ft Buy Now
KM-1353 0.562 0.500 $15.84 6 ft Buy Now

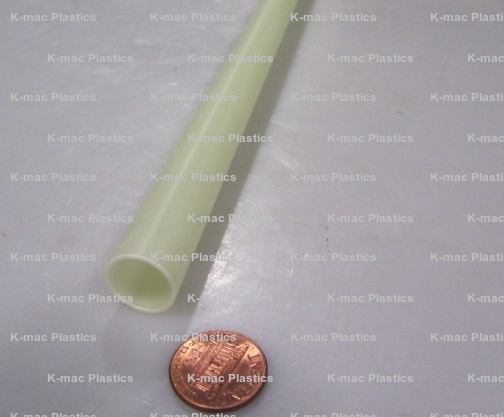

KM-1359 0.625 0.563 $15.95 18 ft Buy Now

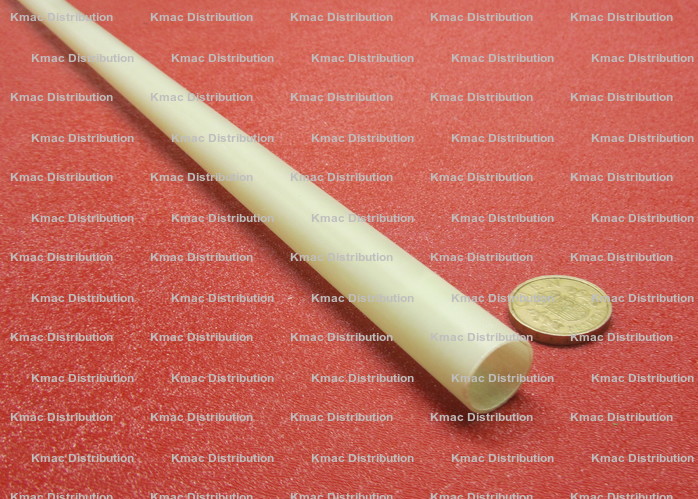

KM-1364 0.687 0.625 $13.36 18 ft Buy Now

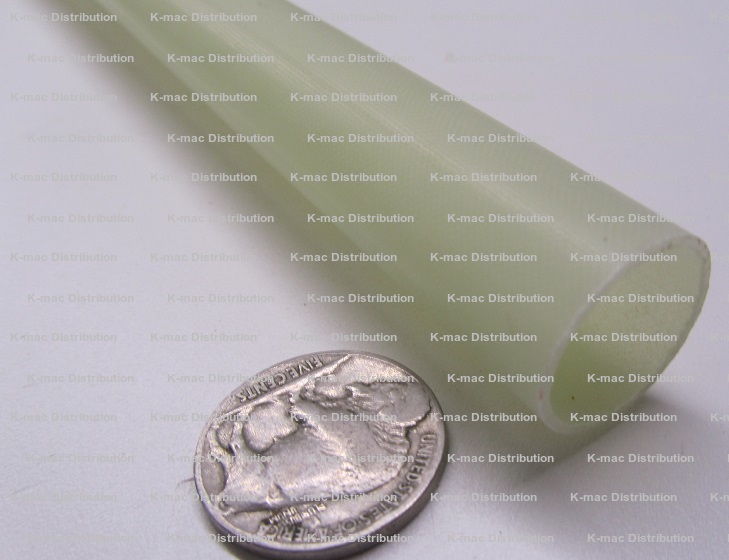

KM-1370 0.750 0.688 $13.86 30 ft Buy Now

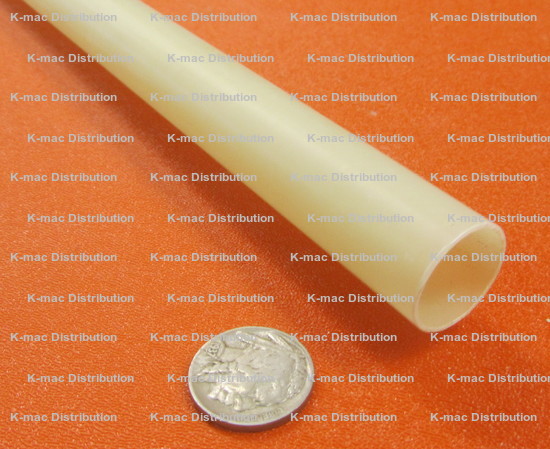

KM-1373 0.812 0.750 $14.05 27 ft Buy Now

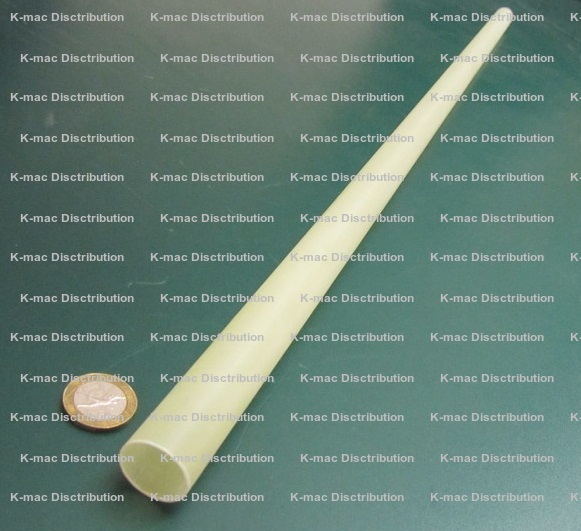

KM-1286V 0.875 0.812 $14.25 24 ft Buy Now

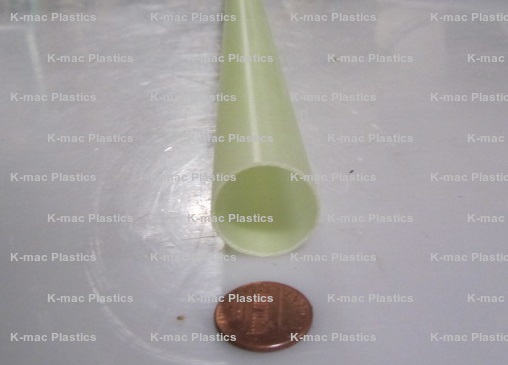

KM-1378 0.937 0.875 $14.86 24 ft Buy Now

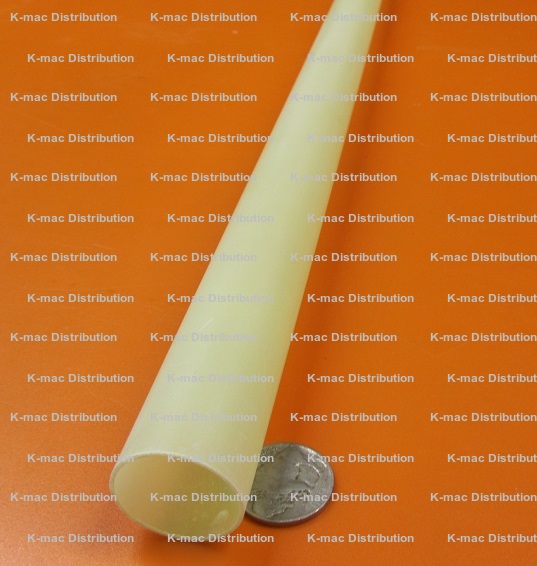

KM-5828 1.000 0.937 $15.03 24 ft Buy Now

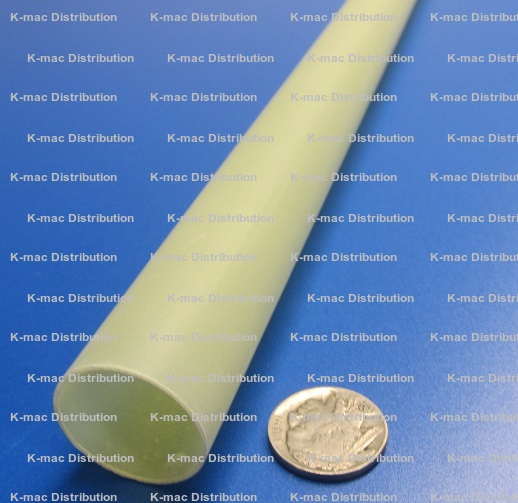

KM-5835 1.031 0.969 $15.13 24 ft Buy Now

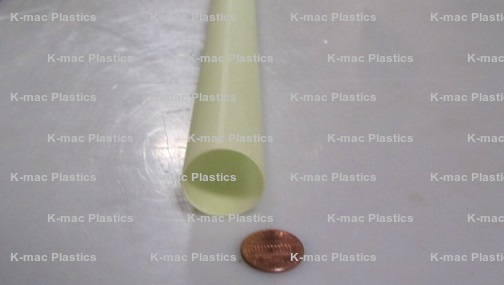

KM-5198 1.062 1.000 $15.25 24 ft Buy Now

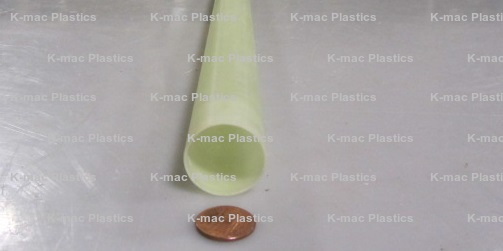

KM-5837 1.094 1.031 $15.81 21 ft Buy Now
KM-5838 1.125 1.062 $16.02 21 ft Buy Now
KM-5839 1.156 1.094 $16.18 21 ft Buy Now
KM-5840 1.187 1.125 $16.34 21 ft Buy Now
KM-5841 1.250 1.187 $17.22 18 ft Buy Now
KM-5842 1.312 1.250 $18.10 18 ft Buy Now
KM-5843 1.375 1.312 $18.98 18 ft Buy Now
KM-5844 1.437 1.375 $19.86 18 ft Buy Now
KM-5845 1.500 1.437 $20.74 18 ft Buy Now
KM-5846 1.562 1.500 $21.62 18 ft Buy Now
KM-5847 1.625 1.562 $22.50 18 ft Buy Now
KM-5848 1.687 1.625 $23.38 15 ft Buy Now
KM-5829 1.750 1.687 $24.22 15 ft Buy Now
KM-5849 1.812 1.750 $25.14 15 ft Buy Now

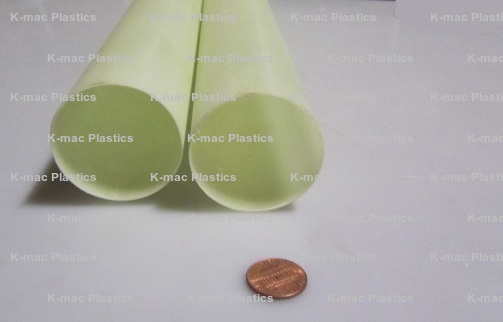

KM-5850 1.937 1.875 $26.92 15 ft Buy Now
KM-5851 2.031 1.969 $27.58 12 ft Buy Now
KM-5852 2.094 2.031 $29.12 12 ft Buy Now
KM-5853 2.125 2.062 $29.56 12 ft Buy Now
KM-5854 2.156 2.094 $30.00 12 ft Buy Now

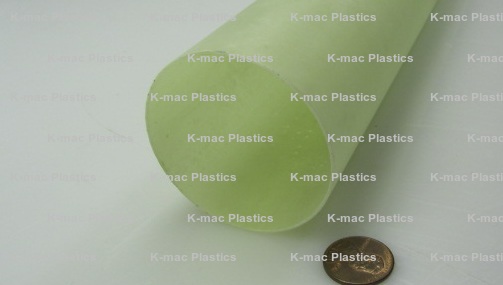

KM-5855 2.187 2.125 $30.44 12 ft Buy Now

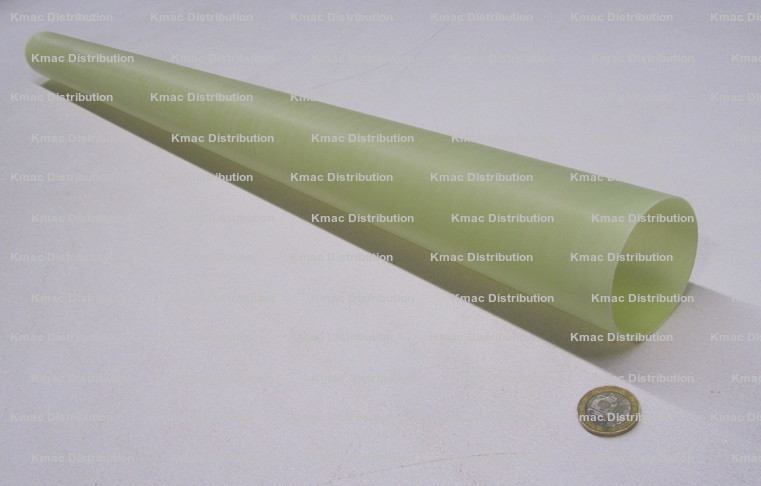

KM-5856 2.250 2.187 $31.32 12 ft Buy Now
KM-5857 2.312 2.250 $32.20 12 ft Buy Now

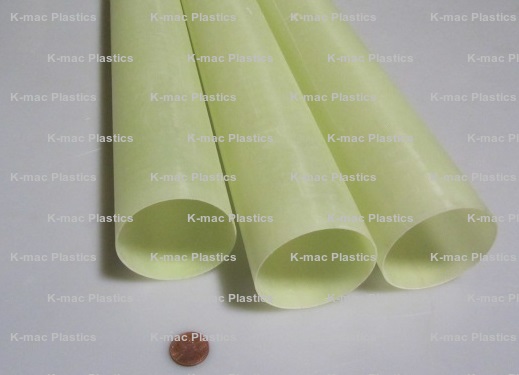

KM-4624 2.375 2.312 $33.39 12 ft Buy Now
KM-5858 2.437 2.375 $33.96 12 ft Buy Now
KM-5859 2.500 2.437 $34.87 12 ft Buy Now
KM-5860 2.562 2.500 $35.72 12 ft Buy Now
KM-5861 2.625 2.562 $36.63 9 ft Buy Now
KM-5862 2.687 2.625 $37.51 9 ft Buy Now
KM-5863 2.750 2.687 $38.39 9 ft Buy Now
KM-5864 2.812 2.750 $39.27 9 ft Buy Now
KM-5865 2.937 2.875 $41.03 9 ft Buy Now
.031" Walls are not available in OD's = to or larger than 3.00"

nominal inches,
diameter

plus or minus (±) tolerance, inches

ID inside diameter

OD outside diameter

steel
mandrel

built-up
mandrel

.125" -.749"

.003"

-

.005"

.750" - 1.999"

.004"

-

.005"

2.000" - 4.000"

.006"

-

.008"
