FR Acrylic+PVC - Kydex® T - DKE400

FR Acrylic/PVC is a flame-retardant thermoformable sheet that is UL rated 94V-O (or 5V).
It also has very high impact strength (15-18 Izod) compared to FR-ABS flame retardant sheet (6.0 Izod) and has good heat deflection temperature (173°F).

Applications

•Housings

•Belt Guards

•Tanning bed exteriors

•Internal component parts

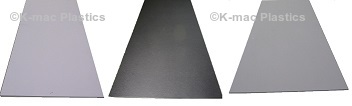

Kydex 100 Sheet Kydex Kydex Gray, Black or White


KYDEX® T Acrylic/PVC Flame Retardant UL Rated V-O, 5V

Kydex T Property Data

Thickness (in.) Length (in.) Width (in.) Color Part # Price Per Sheet Order Online
0.060 48 96 Black KS-4016 $324.75 Add to Order Ships Freight
0.125 12 12 Black, White or Gray KS-1078 $15.90 Add to Order
0.125 12 24 Black, White or Gray KS-1079 $28.19 Add to Order
0.125 24 24 Black, White or Gray KS-1081 $55.01 Add to Order
0.125 24 48 Black, White or Gray KS-1082 $107.33 Add to Order
0.125 48 96 Black KS-4011 $400.85 Add to Order Ships Freight
0.187 48 96 Black KS-4021 $545.40 Add to Order Ships Freight
0.250 12 12 Black, White or Gray KS-1083 $28.55 Add to Order
0.250 12 24 Black, White or Gray KS-1084 $50.60 Add to Order
0.250 24 24 Black, White or Gray KS-1086 $98.98 Add to Order
0.250 24 48 Black, White or Gray KS-1087 $192.67 Add to Order
0.250 48 96 White or Gray KS-2002A $719.57 Add to Order Ships Freight
0.250 48 96 Black KS-2002A $719.57 Add to Order Ships Freight
Rev. 10-22, 05-22, 07-21, 06-21
PROPERTY TEST METHOD VALUE
Specific Gravity ASTM D-792 1.35
Tensile Strength, N/mm ASTM D-638 42
Elongation at Break, %   160
Flexural Strength, N/mm ASTM D-790 64
Modulus / Elasticity, N/mm   2319
Rockwell Hardness, R ASTM D-785 94
Notched Izod Impact Resistance, 23°C,J/m ASTM D-256 953
Taber Abrasion Resistance, wt loss gms, 1000 cycles ASTM D-1044 0.038%
Heat Deflection Temperature, HDT, @1.8 N/mm, annealed,°C ASTM D-648 78°
Flammability Underwriter's Lab. UL Standard 94 V-0, 5V
Flammability Fed. Aviation Admin. FAR 25.853a
(Replaces par b)
Pass
Motor Veh. Sfty Std. MVSS 302 Pass
Radiant Panel ASTM E-162 22.5
Forming Temperature   163-200°C
