G10FR4 Glass Reinforced Epoxy Phenolic Copper Clad Sheet



Copper Clad Sheet- G10FR4 Glass Reinforced Epoxy -

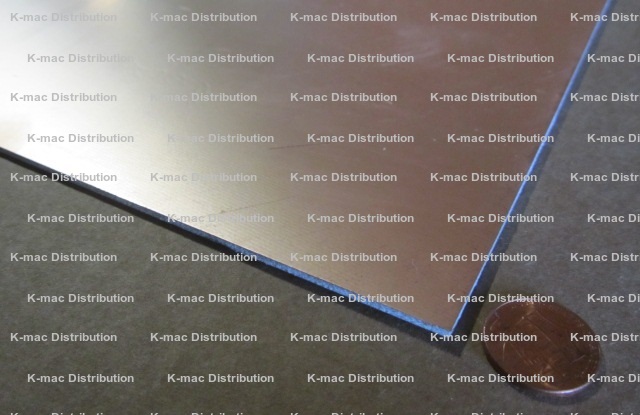

copper clad g10fr4

Technical Data

Copper Clad G10FR4 Phenolic Sheet

Military Specifications and Underwriters Laboratories (UL) Ratings UL 94V0 MIL-I-24768

Operating Temp. 201º F to 300º F

Lead Times May Apply

Thickness (in.) Width (in.) Length (in.) Oz Copper # Sides Cladded Part # Min Order Qty Price Order Online
.005" 36 48 2 One Side Copper KS-16051 6 $172.80 Add to Order
.005" 36 48 1 One Side Copper KS-16027 7 $135.87 Add to Order
.005" 36 48 1/2 One Side Copper KS-16110 7 $132.37 Add to Order
.005" 36 48 1/2 Two Sided Copper KS-16099 6 $162.61 Add to Order
.005" 36 48 1 Two Sided Copper KS-16066 6 $166.11 Add to Order
.005" 36 48 2 Two Sided Copper KS-16064 4 $223.09 Add to Order
.008" 36 48 1 One Side Copper KS-16110Q 5 $141.96 Add to Order
.008" 36 48 2 One Side Copper KS-16110X 5 $192.92 Add to Order
.010" 36 48 2 One Side Copper KS-16052 5 $199.92 Add to Order
.010" 36 48 1 One Side Copper KS-16028 6 $161.42 Add to Order
.010" 36 48 1/2 One Side Copper KS-16111 6 $157.92 Add to Order
.010" 36 48 1 Two Sided Copper KS-16014 5 $191.66 Add to Order
.010" 36 48 1/2 Two Sided Copper KS-16013 5 $188.16 Add to Order
.010" 36 48 2 Two Sided Copper KS-16065 4 $248.64 Add to Order
.013" 36 48 1 Two Sided Copper KS-16008X 7 $267.51 Add to Order
.015" 36 48 2 One Side Copper KS-16053 5 $204.93 Add to Order
.015" 36 48 1 One Side Copper KS-16029 6 $169.61 Add to Order
.015" 36 48 1/2 One Side Copper KS-16121 6 $162.61 Add to Order
.015" 36 48 1 Two Sided Copper KS-16097 5 $196.35 Add to Order
.015" 36 48 1/2 Two Sided Copper KS-16016 5 $192.85 Add to Order
.015" 36 48 2 Two Sided Copper KS-16042 4 $253.26 Add to Order
.020" 36 48 2 One Side Copper KS-16054 5 $224.91 Add to Order
.020" 36 48 1 One Side Copper KS-16030 5 $188.44 Add to Order
.020" 36 48 1/2 One Side Copper KS-16113 5 $181.44 Add to Order
.020" 36 48 1 Two Sided Copper KS-16006 5 $215.18 Add to Order
.020" 36 48 1/2 Two Sided Copper KS-16017 5 $211.68 Add to Order
.020" 36 48 2 Two Sided Copper KS-16059 4 $272.16 Add to Order
.025" 36 48 2 One Side Copper KS-16055 4 $254.17 Add to Order
.025" 36 48 1 One Side Copper KS-16007 5 $194.04 Add to Order
.025" 36 48 1/2 One Side Copper KS-16105 5 $187.04 Add to Order
.025" 36 48 1 Two Sided Copper KS-15998 4 $220.78 Add to Order
.025" 36 48 1/2 Two Sided Copper KS-16018 4 $217.28 Add to Order
.025" 36 48 2 Two Sided Copper KS-16057 3 $299.71 Add to Order

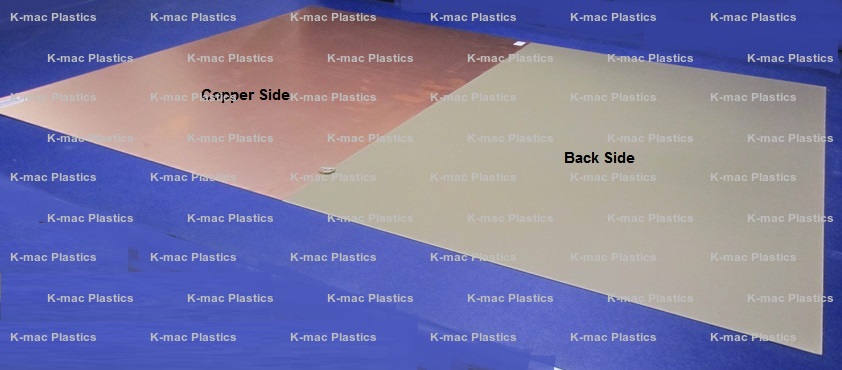

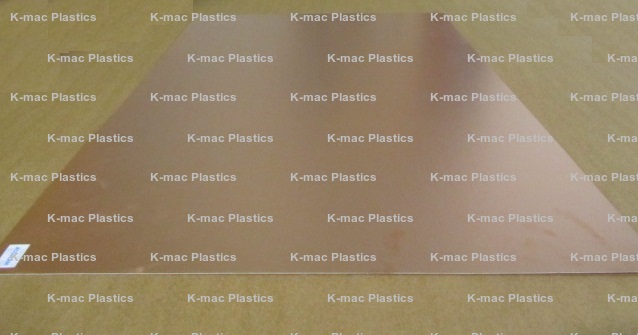

.031" 24 36 1 One Side Copper KS-5248K 1 $101.20 Add to Order

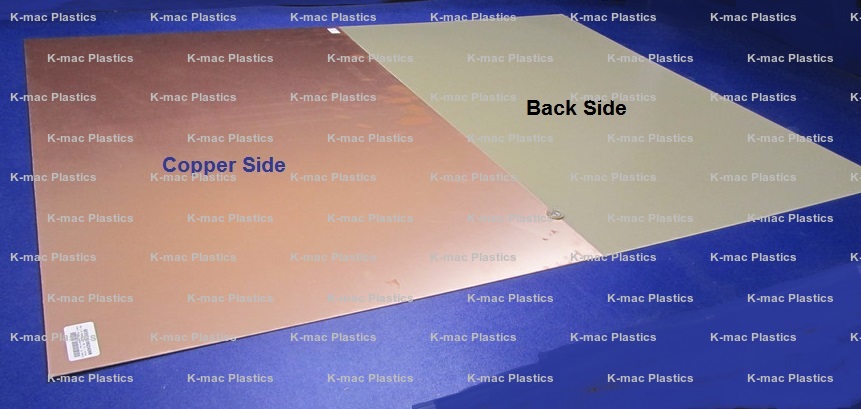

.031" 24 36 1 Two Side Copper KS-5246K 1 $117.60 Add to Order
.031" 36 48 2 One Side Copper KS-16056 4 $230.86 Add to Order
.031" 36 48 1 One Side Copper KS-16024 5 $215.99 Add to Order
.031" 36 48 1/2 One Side Copper KS-16115 5 $208.99 Add to Order
.031" 36 48 1 Two Sided Copper KS-16008 4 $242.73 Add to Order
.031" 36 48 1/2 Two Sided Copper KS-16019 4 $239.23 Add to Order
.031" 36 48 2 Two Sided Copper KS-16034 4 $277.76 Add to Order
.047" 36 48 2 One Side Copper KS-16067 4 $263.48 Add to Order
.047" 36 48 1 One Side Copper KS-16022 4 $228.24 Add to Order
.047" 36 48 1/2 One Side Copper KS-16116 5 $217.74 Add to Order
.047" 36 48 1 Two Sided Copper KS-16009 4 $251.47 Add to Order
.047" 36 48 1/2 Two Sided Copper KS-16020 4 $247.98 Add to Order
.047" 36 48 2 Two Sided Copper KS-16035 4 $308.46 Add to Order
.062" 36 48 2 One Side Copper KS-16058 3 $340.94 Add to Order
.062" 36 48 1 One Side Copper KS-15999 3 $294.14 Add to Order
.062" 36 48 1/2 One Side Copper KS-16117 4 $290.64 Add to Order
.062" 36 48 1 Two Sided Copper KS-16010 3 $324.38 Add to Order
.062" 36 48 1/2 Two Sided Copper KS-16021 3 $320.88 Add to Order
.062" 36 48 2 Two Sided Copper KS-16036 3 $381.36 Add to Order

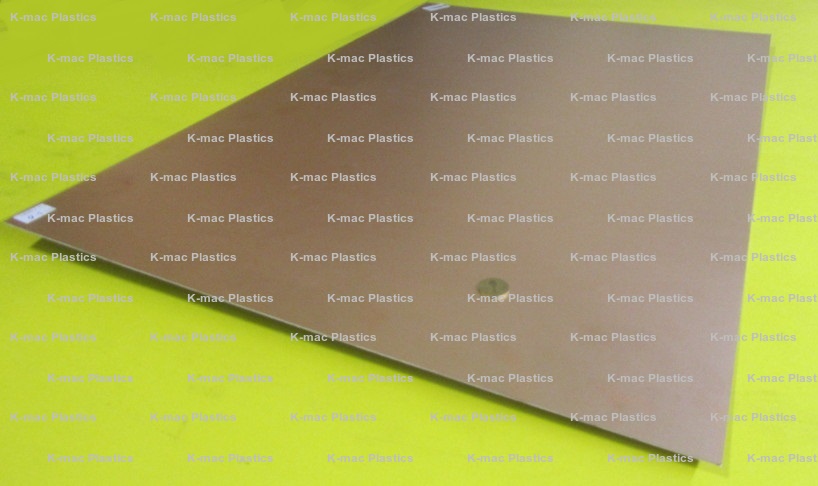

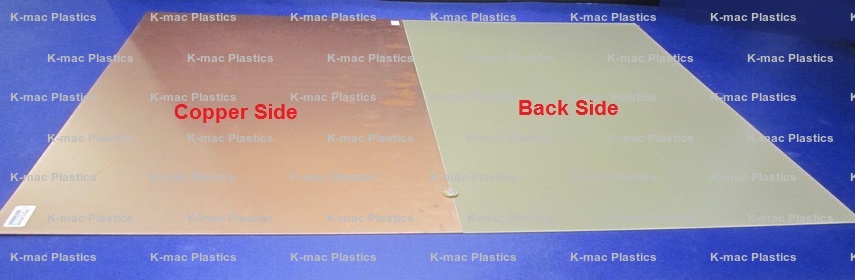

.062" 24 36 1 One Side Copper KS-5249K 1 $132.88 Add to Order

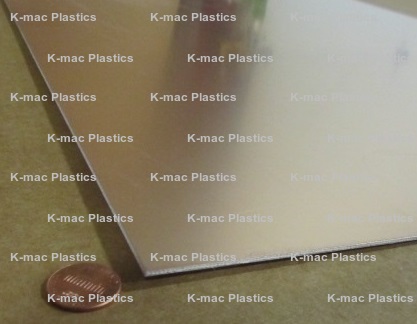

.062" 24 36 1 Two Side Copper KS-5247K 1 $152.16 Add to Order
.080" 36 48 1/2 Two Side Copper KS-5247KP 2 $318.36 Add to Order
.093" 36 48 2 One Side Copper KS-16050 2 $446.42 Add to Order
.093" 36 48 1 One Side Copper KS-16000 2 $429.24 Add to Order
.093" 36 48 1/2 One Side Copper KS-16118 3 $422.24 Add to Order
.093" 36 48 1 Two Sided Copper KS-16011 2 $455.98 Add to Order
.093" 36 48 1/2 Two Sided Copper KS-16025 3 $452.48 Add to Order
.093" 36 48 2 Two Sided Copper KS-16037 2 $512.96 Add to Order
.125" 36 48 2 One Side Copper KS-16060 2 $385.56 Add to Order
.125" 36 48 1 One Side Copper KS-16001 2 $544.74 Add to Order
.125" 36 48 1/2 One Side Copper KS-16131 2 $534.24 Add to Order
.125" 36 48 1 Two Sided Copper KS-16012 2 $569.38 Add to Order
.125" 36 48 1/2 Two Sided Copper KS-16032 2 $564.48 Add to Order
.125" 36 48 2 Two Sided Copper KS-16038 2 $624.96 Add to Order
.156" 36 48 2 One Side Copper KS-16061 2 $796.11 Add to Order
.156" 36 48 1 One Side Copper KS-16002 2 $729.54 Add to Order
.156" 36 48 1/2 One Side Copper KS-16119 2 $719.04 Add to Order
.156" 36 48 1 Two Sided Copper KS-16040 2 $752.78 Add to Order
.156" 36 48 1/2 Two Sided Copper KS-16023 3 $749.28 Add to Order
.156" 36 48 2 Two Sided Copper KS-16039 2 $809.76 Add to Order
.187" 36 48 2 One Side Copper KS-16062 2 $941.05 Add to Order
.187" 36 48 1 One Side Copper KS-16003 1 $862.47 Add to Order
.187" 36 48 1/2 One Side Copper KS-16122 2 $855.47 Add to Order
.187" 36 48 1 Two Sided Copper KS-16005 2 $889.21 Add to Order
.187" 36 48 1/2 Two Sided Copper KS-16015 1 $885.71 Add to Order
.187" 36 48 2 Two Sided Copper KS-16049 1 $946.19 Add to Order
.250" 36 48 2 One Side Copper KS-16063 1 $1218.56 Add to Order
.250" 36 48 1 One Side Copper KS-16004 1 $1127.14 Add to Order
.250" 36 48 1/2 One Side Copper KS-16124 2 $1116.64 Add to Order
.250" 36 48 1 Two Sided Copper KS-16031 2 $1150.38 Add to Order
.250" 36 48 1/2 Two Sided Copper KS-16026 1 $1146.88 Add to Order
.250" 36 48 2 Two Sided Copper KS-16041 1 $1207.36 Add to Order

Peel Strength:
1 Oz : 9 Lbs/in
2 Oz : 12 Lbs/in
Volume Resistivity Megaohn/CM C- 96/35/90 : 3.6 x 107
Water Absorbtion % D-24/23 : .06%
Dielectric KV D-48/50 : 43.0
Dielectric Strength 320 V/Mil at 1/8" Thickness
Dielectric Contstant D/24/23 : 4.37
Dissipation Factor : .014
Flexural Strength LW : 68,200 PSI
Flexural Strength CW : 64,400 PSI
Tensile Strength LW : 40,000 PSI
Tensile Strength CW : 35,000 PSI
Impact Strength 7.5 Ft Lbs/In Flatwise
Impact Strength 5.5 Ft Lbs/In Edgewise
Coefficiant of Linear Expansion : 10 x 10-6 In/In/oC
