6.00" Outside Width Channels
304 SS: Annealed. Operating Temperature -320° to 1600° F, ASTM A276, A479. 30,000 PSI Yield Sold in lengths of 84".
Aluminum 6061-T6: ASTM B308, AMS-QQA-200/16, ASME-5B308. Can be Heat Treated. Non Magnetic. Operating Temperature -320° to 300° F
Steel A-36: General Purpose, weldable, machinable.
Fiberglass: High Strength, Non Conductive, Paintable. Operating Temperature: -45° to +140° F. Sold in 5' lengths
6.00" Outside Width Channels |
||||||

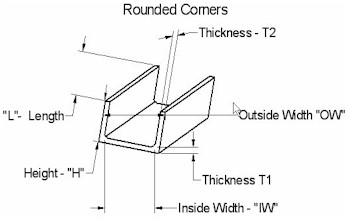

| Part # | Material | Thickness T1 | Height | Length | Price Each | Order Online |
|---|---|---|---|---|---|---|
| Channel-194 | 304 Stainless Steel | .250" | 3.00" | 84" | $1311.90 | Add to Order |
| Channel-232 | 304 Stainless Steel | .250" | 3.00" | 288" R/L | $3579.86 | * |
| Channel-196 | 304 Stainless Steel | .375" | 3.00" | 84" | $1778.46 | Add to Order |
| Channel-231 | 304 Stainless Steel | .343" | 1.90" | 288" R/L | $2737.12 | * |
| Channel-243 | Aluminum 6061-T6 | .170" | 2.60" | 300" | $573.55 | * |
| Channel-258 | Aluminum 6061-T6 | .200" | 1.92" | 300" | $556.01 | * |
| Channel-244 | Aluminum 6061-T6 | .210" | 3.25" | 300" | $754.53 | * |
| Channel-259 | Aluminum 6061-T6 | .225" | 1.945" | 300" | $603.75 | * |
| Channel-260 | Aluminum 6061-T6 | .314" | 2.034" | 300" | $724.26 | * |
| Channel-256 | Aluminum 6061-T6 | .325" | 1.885" | 300" | $626.40 | * |
| Channel-261 | Aluminum 6061-T6 | .438" | 2.157" | 300" | $859.04 | * |
| Channel-031 | Steel A-36 | .200" | 1.92" | 240" | $187.62 | * |
| Channel-034 | Steel A-36 | .200" | 1.92" | 300" | $213.82 | * |
| Channel-036 | Steel A-36 | .200" | 1.92" | 360" | $263.46 | * |
| Channel-039 | Steel A-36 | .200" | 1.92" | 600" | $446.50 | * |
| Channel-040 | Steel A-36 | .200" | 1.92" | 720" | $549.56 | * |
| Channel-041 | Steel A-36 | .200" | 1.92" | 300" | $256.48 | * |
| Channel-042 | Steel A-36 | .314" | 2.034" | 240" | $233.32 | * |
| Channel-043 | Steel A-36 | .314" | 2.034" | 480" | $446.46 | * |
| Channel-046 | Steel A-36 | .437" | 2.157" | 480" | $576.16 | * |
| Channel-033 | Steel A-36 | .200" | 1.92" | 240" | $210.42 | * |
| Channel-035 | Steel A-36 | .200" | 1.92" | 300" | $160.10 | * |
| Channel-037 | Steel A-36 | .200" | 1.92" | 480" | $353.26 | * |
| Channel-128 | Steel A-36 | .310" | 2.497" | 240" | $338.88 | * |
| Channel-129 | Steel A-36 | .310" | 2.497" | 480" | $665.76 | * |
| Channel-130 | Steel A-36 | .310" | 2.497" | 240" | $456.02 | * |
| Channel-131 | Steel A-36 | .316" | 2.941" | 240" | $418.58 | * |
| Channel-132 | Steel A-36 | .340" | 3.50" | 240" | $414.02 | * |
| Channel-133 | Steel A-36 | .340" | 3.50" | 480" | $815.80 | * |
| Channel-134 | Steel A-36 | .375" | 3.00" | 240" | $440.10 | * |
| Channel-135 | Steel A-36 | .375" | 3.00" | 480" | $878.24 | * |
| Channel-136 | Steel A-36 | .379" | 3.504" | 240" | $484.92 | * |
| Channel-137 | Steel A-36 | .379" | 3.504" | 480" | $967.68 | * |
| Channel-045 | Steel A-36 | .437" | 2.157" | 240" | $280.80 | * |
| Channel-202 | Aluminum 6061 | T1 = .170" - T2= .290" | 2.50" | 60" | $295.47 | Add to Order |
| Channel-207 | Aluminum 6061 | T1 = .210" - T2= .350" | 3.25" | 60" | $400.16 | Add to Order |
| Channel-320 | Fiberglass-FR Grey | .250" | 1.625" | 60" | $127.48 | * |
| Channel-317 | Fiberglass-Grey | .250" | 1.625" | 60" | $109.06 | Add to Order |
| Channel-386 | Fiberglass- Olive Green | .250" | 1.63" | 60" | $94.80 | * |
| Channel-323 | Fiberglass-VE Beige | .250" | 1.625" | 60" | $162.70 | * |
| Rev. 06-21 | ||||||
