Canvas C Fabric Reinforced Phenolic Tubes .500" Wall Thickness

  CE Canvas Tubes .500 Inch Wall

Canvas C Fabric Reinforced Phenolic Tubes - natural (light tan to brown) Technical Data Sheet
This grade is composed of a continuous cotton woven cloth impregnated with a phenolic resin binder. This grade contains a medium weave canvas and is known primarily for it's mechanical properties. This grade is not recommended for primary insulation.

NEMA grades C  Canvas Cotton-Cloth Reinforced Phenolic -- natural color is typically light tan to brown. C grades are composed of a continuous cotton woven cloth impregnated with a phenolic resin binder. These grades contain a medium weave canvas and are known primarily for their mechanical properties. These grades are not recommended for primary electrical insulation.

NEMA C certs to Mil-I-13768/16 FBM, IEC 60893-3 Type 4, PF CC 201
 Chemical Resistance Chart

C  Tubes    C/CE Sheets  C/CE Bar Stock

Wall Thickness Options
.031" .062" .093" .125"
.187" .250" .375" .500"
.750" 1.00"




.500" Wall Thickness  C Tubes
Stock # OD Inches ID Inches Min. Feet to Purchase  Price Per Foot Purchase Online
KM-16240 1.500 .500 12 $32.30 Buy Now
KM-16239 1.562 .562 12 $34.10 Buy Now
KM-16238 1.625 .625 12 $35.88 Buy Now
KM-16237 1.688 .687 9 $37.63 Buy Now
KM-16236 1.750 .750 9 $39.33 Buy Now
KM-16235 1.812 .812 9 $41.03 Buy Now
KM-16234 1.875 .875 9 $42.70 Buy Now
KM-16221 1.937 .937 9 $44.35 Buy Now
KM-4633 2.000 1.000 9 $36.76 Buy Now
KM-16243 2.062 1.062 9 $47.80 Buy Now
KM-16230 2.125 1.125 9 $49.63 Buy Now
KM-16229 2.188 1.187 9 $51.45 Buy Now
KM-16228 2.250 1.250 9 $53.25 Buy Now
KM-16227 2.312 1.312 9 $55.08 Buy Now
KM-16226 2.375 1.375 6 $56.88 Buy Now
KM-16225 2.437 1.437 6 $58.65 Buy Now
KM-2066 2.500 1.500 6 $60.45 Buy Now
KM-16223 2.562 1.562 6 $62.23 Buy Now
KM-16188 2.625 1.625 6 $64.00 Buy Now
KM-16242 2.688 1.687 6 $65.78 Buy Now
KM-2071 2.750 1.750 6 $67.55 Buy Now
KM-16175 2.812 1.812 6 $69.30 Buy Now
KM-16174 2.875 1.875 6 $71.05 Buy Now
KM-16173 2.937 1.937 6 $72.80 Buy Now
KM-2076 3.000 2.000 6 $74.53 Buy Now
KM-16171 3.062 2.062 6 $76.25 Buy Now
KM-16170 3.125 2.125 6 $77.98 Buy Now
KM-16169 3.188 2.187 6 $79.70 Buy Now
KM-2081 3.250 2.250 6 $81.43 Buy Now
KM-16167 3.312 2.312 6 $83.13 Buy Now
KM-16155 3.375 2.375 6 $84.83 Buy Now
KM-16165 3.437 2.437 6 $86.50 Buy Now
KM-2086 3.500 2.500 6 $88.20 Buy Now
KM-16163 3.562 2.562 6 $89.88 Buy Now
KM-16162 3.625 2.625 6 $91.55 Buy Now
KM-16161 3.687 2.687 6 $93.20 Buy Now
KM-2091 3.750 2.750 6 $94.88 Buy Now
KM-16159 3.812 2.812 6 $96.53 Buy Now
KM-16158 3.875 2.875 6 $98.18 Buy Now
KM-16157 3.937 2.937 6 $99.80 Buy Now
KM-2096 4.000 3.000 6 $101.45 Buy Now
KM-16164 4.062 3.062 6 $103.25 Buy Now
KM-16166 4.125 3.125 3 $105.08 Buy Now
KM-16197 4.187 3.187 3 $106.88 Buy Now
KM-2101 4.250 3.250 3 $108.70 Buy Now
KM-16195 4.312 3.312 3 $110.50 Buy Now
KM-16194 4.375 3.375 3 $112.30 Buy Now
KM-16193 4.437 3.437 3 $114.13 Buy Now
KM-2106 4.500 3.500 3 $115.93 Buy Now
KM-16191 4.562 3.562 3 $117.75 Buy Now
KM-16190 4.625 3.625 3 $119.55 Buy Now
KM-16189 4.687 3.687 3 $121.38 Buy Now

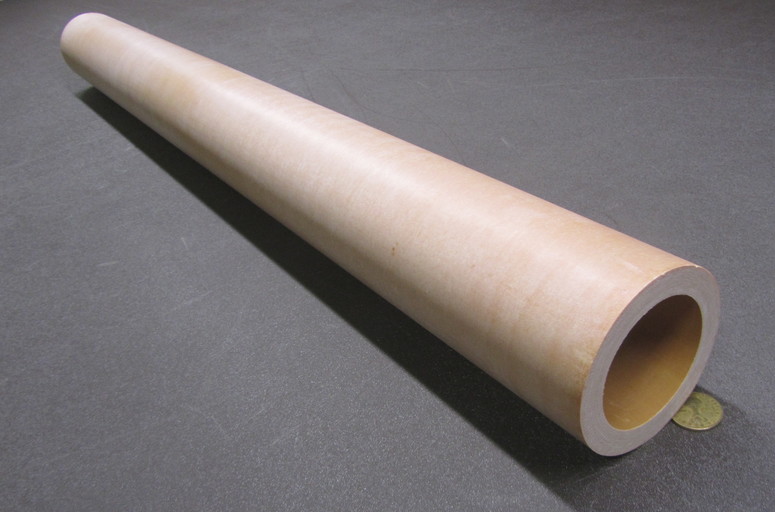

KM-2111 4.750 3.750 3 $123.18 Buy Now

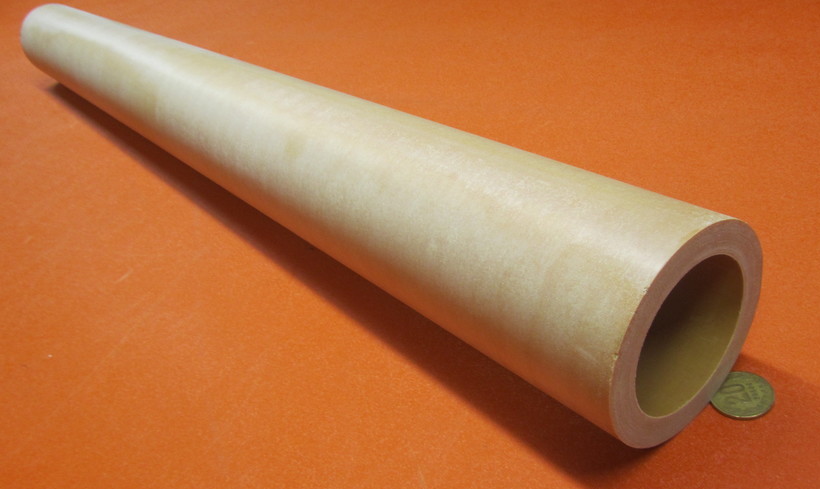

KM-16187 4.812 3.812 3 $125.00 Buy Now

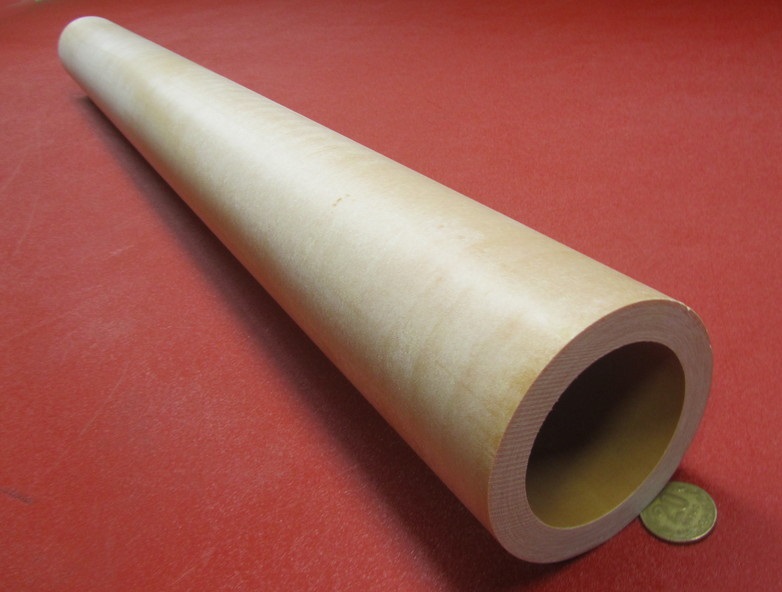

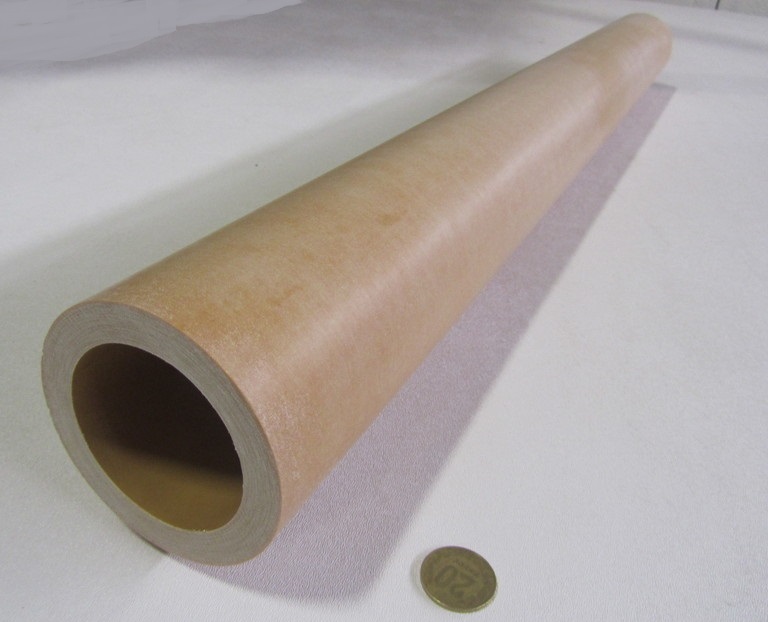

KM-16198 4.875 3.875 3 $126.80 Buy Now
KM-16185 4.937 3.937 3 $128.63 Buy Now
KM-2115 5.000 4.000 3 $130.43 Buy Now
KM-16183 5.062 4.062 3 $132.23 Buy Now

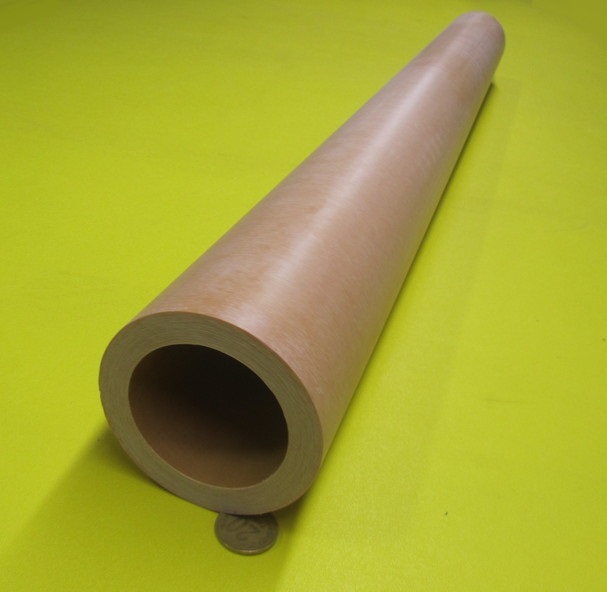

KM-16182 5.125 4.125 3 $134.05 Buy Now

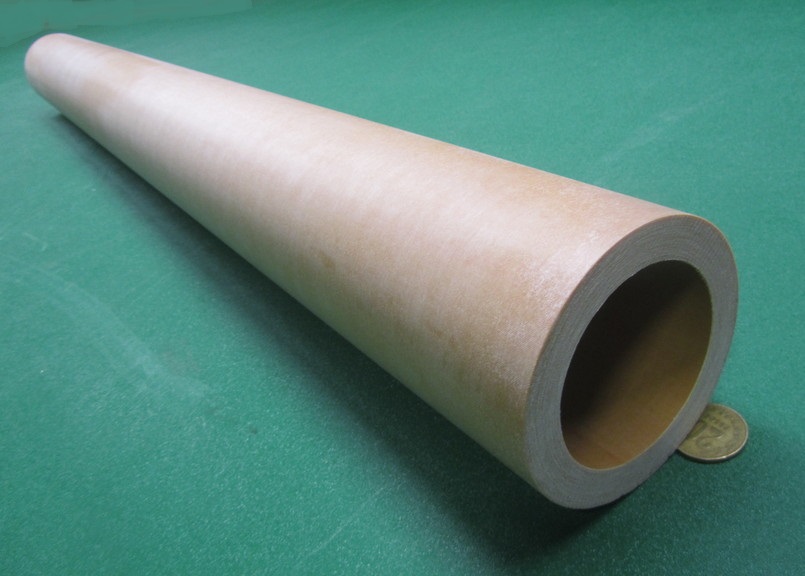

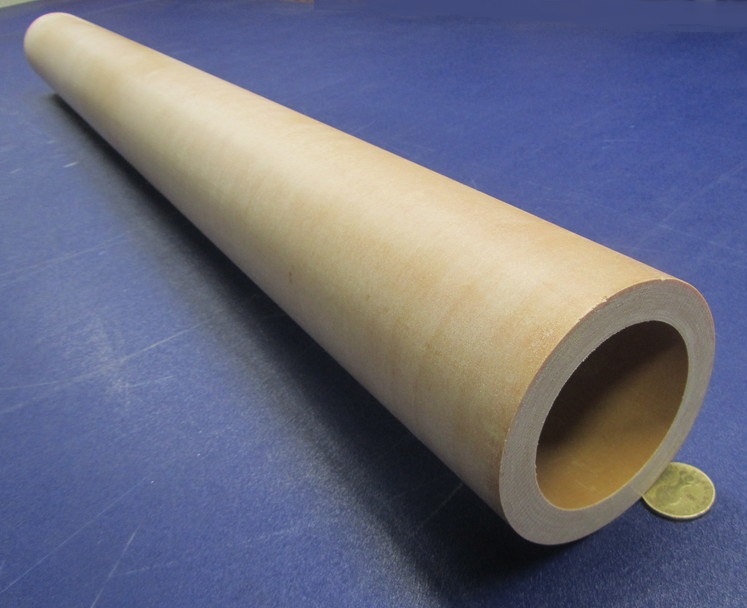

KM-16181 5.187 4.187 3 $135.85 Buy Now
KM-16180 5.250 4.250 3 $137.68 Buy Now
KM-16179 5.312 4.312 3 $139.48 Buy Now
KM-16178 5.375 4.375 3 $141.30 Buy Now
KM-16264 5.437 4.438 3 $143.10 Buy Now
KM-2120 5.500 4.500 3 $144.93 Buy Now
KM-17916 5.562 4.562 3 $146.73 Buy Now
KM-17917 5.625 4.625 3 $148.55 Buy Now
KM-17918 5.688 4.687 3 $150.35 Buy Now
KM-17919 5.750 4.750 3 $152.18 Buy Now
KM-17920 5.812 4.812 3 $153.98 Buy Now
KM-17921 5.875 4.875 3 $155.78 Buy Now
KM-18055 5.938 4.937 3 $157.60 Buy Now
KM-2125 6.000 5.000 3 $159.40 Buy Now
KM-16332 6.063 5.062 3 $161.50 Buy Now
KM-16222 6.125 5.125 3 $163.63 Buy Now
KM-16308 6.187 5.187 3 $165.73 Buy Now
KM-16307 6.250 5.250 3 $167.85 Buy Now
KM-16306 6.312 5.313 3 $169.98 Buy Now
KM-16305 6.375 5.375 3 $172.10 Buy Now
KM-16304 6.437 5.437 3 $174.25 Buy Now
KM-2131 6.500 5.500 3 $176.38 Buy Now
KM-16302 6.562 5.562 3 $178.53 Buy Now
KM-16301 6.625 5.625 3 $180.70 Buy Now
KM-16289 6.688 5.687 3 $182.85 Buy Now
KM-16299 6.750 5.750 3 $185.03 Buy Now
KM-16310 6.812 5.812 3 $187.20 Buy Now
KM-16297 6.875 5.875 3 $189.40 Buy Now
KM-16296 6.938 5.937 3 $191.58 Buy Now
KM-2137 7.000 6.000 3 $193.78 Buy Now
KM-16294 7.062 6.062 3 $195.98 Buy Now
KM-16293 7.125 6.125 3 $198.20 Buy Now

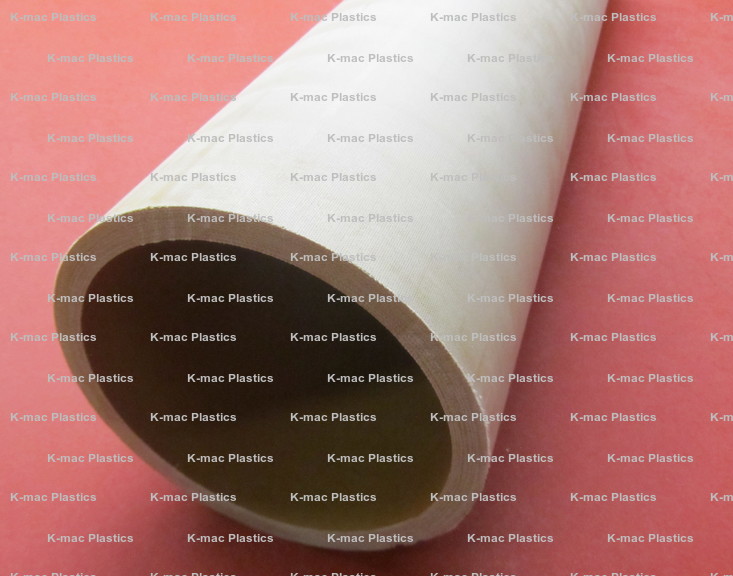

KM-16292 7.187 6.187 3 $200.40 Buy Now

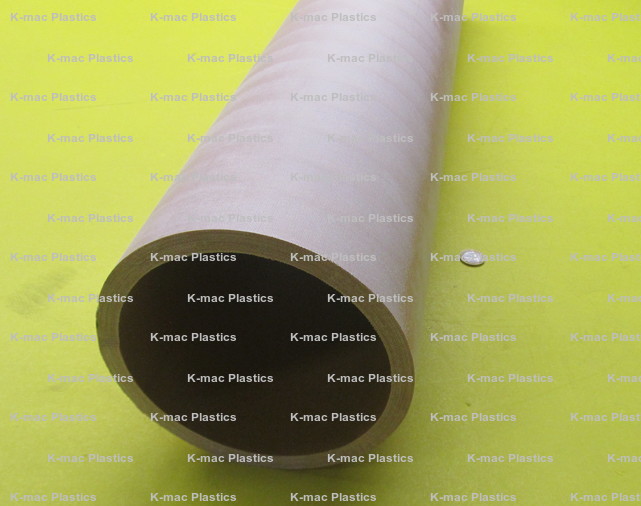

KM-16291 7.250 6.250 3 $202.63 Buy Now

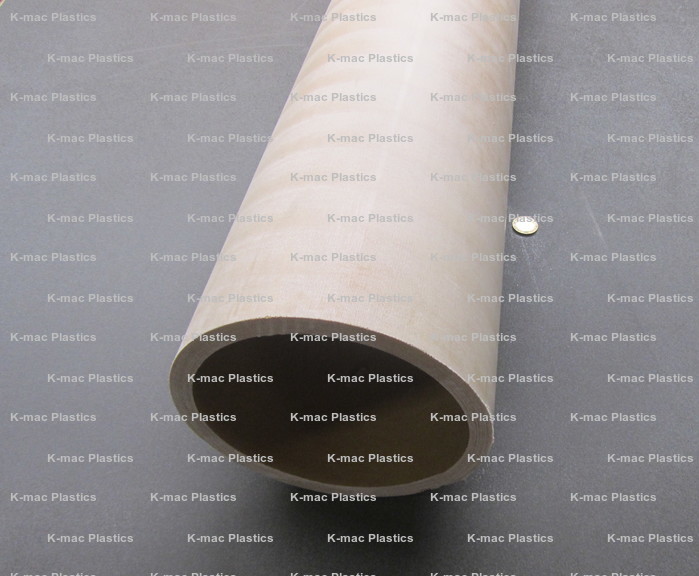

KM-16290 7.312 6.312 3 $204.85 Buy Now

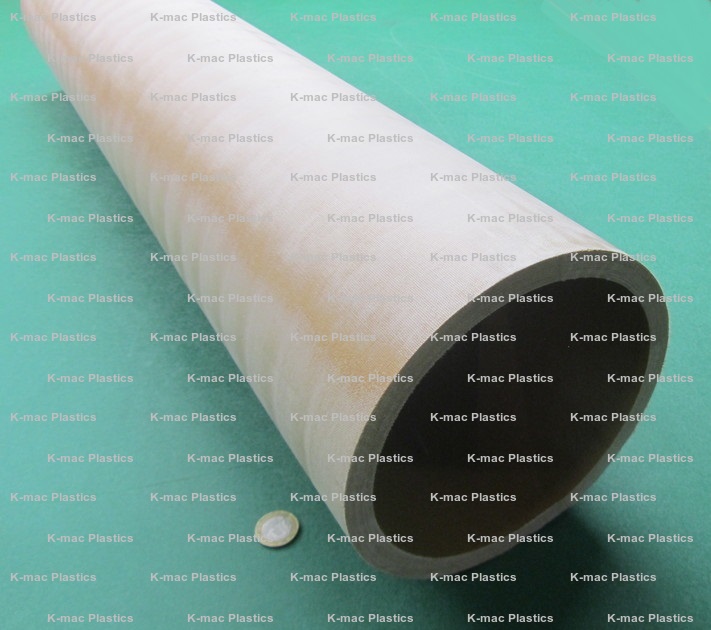

KM-16321 7.375 6.375 3 $207.10 Buy Now

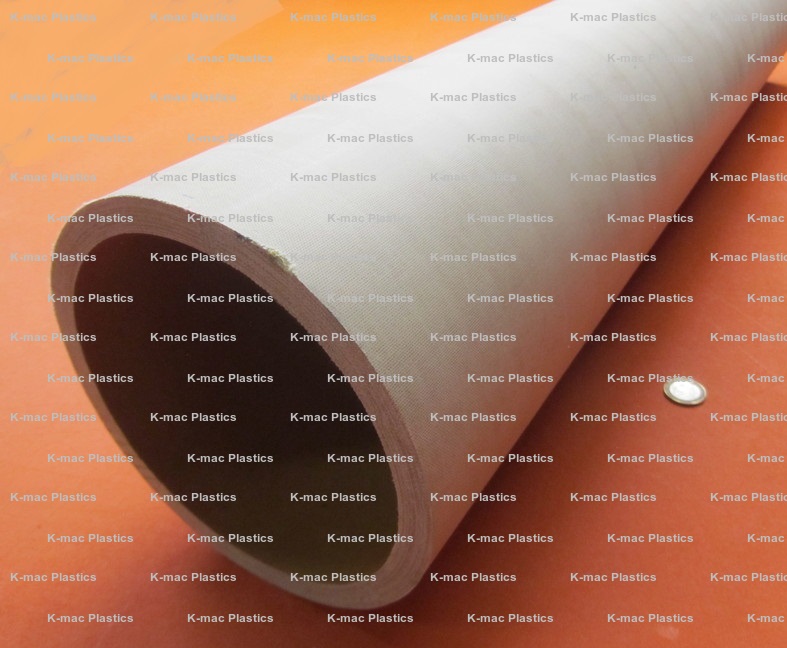

KM-16323 7.437 6.437 3 $209.33 Buy Now

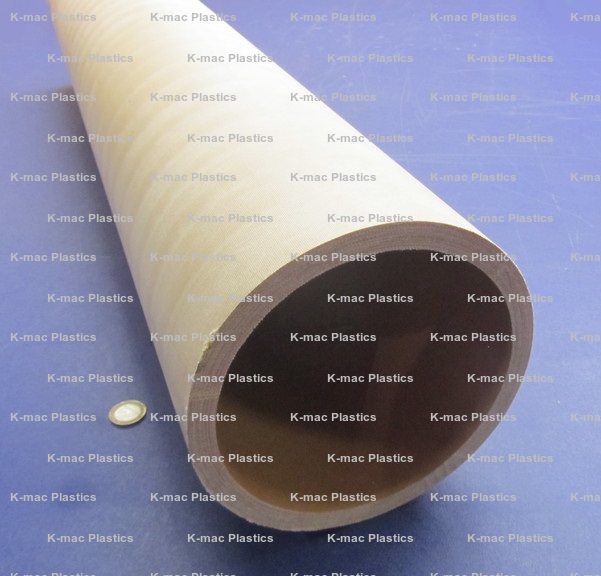

KM-16300 7.500 6.500 3 $211.58 Buy Now
KM-16331 7.562 6.562 3 $213.83 Buy Now
KM-16330 7.625 6.625 3 $216.10 Buy Now
KM-16329 7.688 6.687 3 $218.38 Buy Now
KM-16328 7.750 6.750 3 $220.63 Buy Now
KM-16327 7.812 6.812 3 $222.93 Buy Now
KM-16326 7.875 6.875 3 $225.20 Buy Now
KM-16325 7.938 6.938 3 $227.50 Buy Now
KM-16324 8.000 7.000 3 $229.80 Buy Now
KM-16311 8.062 7.062 3 $231.08 Buy Now
KM-16322 8.125 7.125 3 $232.38 Buy Now
KM-16333 8.188 7.187 3 $233.63 Buy Now
KM-16320 8.250 7.250 3 $234.90 Buy Now
KM-16319 8.312 7.312 3 $236.15 Buy Now
KM-16318 8.375 7.375 3 $237.70 Buy Now
KM-16317 8.437 7.437 3 $239.25 Buy Now
KM-16316 8.500 7.500 3 $240.80 Buy Now
KM-16315 8.562 7.562 3 $242.35 Buy Now
KM-16314 8.625 7.625 3 $243.90 Buy Now
KM-16313 8.688 7.687 3 $245.45 Buy Now
KM-16312 8.750 7.750 3 $246.98 Buy Now
KM-16287 8.812 7.812 3 $248.50 Buy Now
KM-16253 8.875 7.875 3 $250.03 Buy Now
KM-16298 8.938 7.937 3 $251.70 Buy Now
KM-16263 9.000 8.000 3 $253.40 Buy Now
KM-16262 9.062 8.062 3 $319.08 Buy Now
KM-16261 9.125 8.125 3 $321.40 Buy Now
KM-16260 9.188 8.187 3 $323.73 Buy Now
KM-16259 9.250 8.250 3 $326.08 Buy Now
KM-16258 9.312 8.312 3 $328.40 Buy Now
KM-16257 9.375 8.375 3 $330.73 Buy Now
KM-16256 9.437 8.437 3 $333.05 Buy Now
KM-16244 9.500 8.500 3 $335.38 Buy Now
KM-16254 9.563 8.562 3 $337.70 Buy Now
KM-16265 9.625 8.625 3 $340.05 Buy Now
KM-16252 9.688 8.687 3 $342.38 Buy Now
KM-16251 9.750 8.75 3 $344.70 Buy Now
KM-16250 9.812 8.812 3 $347.03 Buy Now
KM-16249 9.875 8.875 3 $349.35 Buy Now
KM-16248 9.937 8.937 3 $351.68 Buy Now
KM-16247 10.00 9.000 3 $354.03 Buy Now
KM-16246 10.062 9.062 3 $356.35 Buy Now
KM-16245 10.125 9.125 3 $358.68 Buy Now
KM-16276 10.187 9.187 3 $361.00 Buy Now
KM-16278 10.250 9.250 3 $363.33 Buy Now
KM-16255 10.313 9.312 3 $365.65 Buy Now
KM-16286 10.375 9.375 3 $367.98 Buy Now
KM-16285 10.437 9.437 3 $370.33 Buy Now
KM-16284 10.500 9.500 3 $372.65 Buy Now
KM-16283 10.563 9.562 3 $374.98 Buy Now
KM-16282 10.625 9.625 3 $377.30 Buy Now
KM-16281 10.688 9.687 3 $379.63 Buy Now
KM-16280 10.750 9.750 3 $381.95 Buy Now
KM-16279 10.813 9.813 3 $384.30 Buy Now
KM-16266 10.875 9.875 3 $386.63 Buy Now
KM-16277 10.937 9.937 3 $388.95 Buy Now
KM-16288 11.000 10.000 3 $391.28 Buy Now
KM-16275 11.062 10.062 3 $392.25 Buy Now
KM-16274 11.125 10.125 3 $393.18 Buy Now
KM-16273 11.188 10.187 3 $394.13 Buy Now
KM-16272 11.250 10.250 3 $395.03 Buy Now
KM-16271 11.313 10.312 3 $395.93 Buy Now
KM-16270 11.375 10.375 3 $396.80 Buy Now
KM-16269 11.437 10.437 3 $397.68 Buy Now
KM-16268 11.500 10.500 3 $398.53 Buy Now
KM-16133 11.562 10.562 3 $399.35 Buy Now
KM-16309 11.625 10.625 3 $400.18 Buy Now
KM-16156 11.687 10.687 3 $400.98 Buy Now
KM-16041 11.750 10.750 3 $401.75 Buy Now
KM-16040 11.812 10.812 3 $402.53 Buy Now
KM-16039 11.875 10.875 3 $403.28 Buy Now
KM-16038 11.937 10.937 3 $404.03 Buy Now
KM-16037 12.000 11.000 3 $404.73 Buy Now
KM-16036 12.062 11.062 3 $405.43 Buy Now
KM-16035 12.125 11.125 3 $406.13 Buy Now
KM-16034 12.187 11.187 3 $406.80 Buy Now
KM-16033 12.250 11.250 3 $407.45 Buy Now
KM-16021 12.313 11.312 3 $408.10 Buy Now
KM-16031 12.375 11.375 3 $408.73 Buy Now
KM-16042 12.437 11.437 3 $409.33 Buy Now
KM-16029 12.500 11.500 3 $409.90 Buy Now
KM-16028 12.562 11.562 3 $410.48 Buy Now
KM-16027 12.625 11.625 3 $411.05 Buy Now
KM-16026 12.687 11.687 3 $411.58 Buy Now
KM-16025 12.750 11.750 3 $412.10 Buy Now
KM-16024 12.812 11.812 3 $412.63 Buy Now
KM-16023 12.875 11.875 3 $409.90 Buy Now
KM-16022 12.937 11.937 3 $412.50 Buy Now
KM-16053 13.000 12.000 3 $415.13 Buy Now
KM-16055 13.062 12.062 3 $417.73 Buy Now
KM-16032 13.125 12.125 3 $420.35 Buy Now
KM-16063 13.187 12.187 3 $422.98 Buy Now
KM-16062 13.250 12.250 3 $425.60 Buy Now
KM-16061 13.312 12.312 3 $428.25 Buy Now
KM-16060 13.375 12.375 3 $430.88 Buy Now
KM-16059 13.437 12.437 3 $433.53 Buy Now
KM-16058 13.500 12.500 3 $436.18 Buy Now
KM-16057 13.562 12.562 3 $438.83 Buy Now
KM-16056 13.625 12.625 3 $441.50 Buy Now
KM-16043 13.687 12.687 3 $444.18 Buy Now
KM-16054 13.750 12.750 3 $446.85 Buy Now
KM-16065 13.812 12.813 3 $449.53 Buy Now
KM-16052 13.875 12.875 3 $452.20 Buy Now
KM-16051 13.937 12.937 3 $454.90 Buy Now
KM-16050 14.000 13.000 3 $457.58 Buy Now
KM-16049 14.062 13.062 3 $460.28 Buy Now
KM-16048 14.125 13.125 3 $462.98 Buy Now
KM-16047 14.187 13.187 3 $465.70 Buy Now
KM-16046 14.250 13.250 3 $468.40 Buy Now
KM-16045 14.312 13.312 3 $471.13 Buy Now
KM-16010 14.375 13.375 3 $473.85 Buy Now
KM-16064 14.437 13.437 3 $476.60 Buy Now
KM-16030 14.500 13.500 3 $479.33 Buy Now
KM-15997 14.562 13.562 3 $482.08 Buy Now
KM-15996 14.625 13.625 3 $484.83 Buy Now
KM-15995 14.687 13.6877 3 $487.58 Buy Now
KM-15994 14.750 13.750 3 $492.68 Buy Now
KM-15993 14.812 13.812 3 $494.83 Buy Now
KM-15992 14.875 13.875 3 $497.00 Buy Now
KM-15991 14.937 13.937 3 $499.15 Buy Now
KM-15990 15.000 14.000 3 $501.30 Buy Now
KM-15989 15.062 14.062 3 $503.48 Buy Now
KM-15977 15.125 14.125 3 $505.63 Buy Now
KM-15987 15.187 14.187 3 $507.80 Buy Now
KM-15998 15.250 14.250 3 $509.95 Buy Now
KM-15985 15.312 14.312 3 $512.13 Buy Now
KM-15984 15.375 14.375 3 $514.28 Buy Now
KM-15983 15.437 14.437 3 $516.43 Buy Now
KM-15982 15.500 14.500 3 $518.60 Buy Now
KM-15981 15.562 14.562 3 $520.75 Buy Now
KM-15980 15.625 14.625 3 $522.93 Buy Now
KM-15979 15.687 14.687 3 $525.08 Buy Now
KM-16008 15.750 14.750 3 $527.25 Buy Now
KM-17983 15.812 14.812 3 $529.40 Buy Now
KM-15986 15.875 14.875 3 $531.58 Buy Now
KM-17984 15.937 14.937 3 $533.73 Buy Now
KM-15988 16.000 15.000 3 $535.88 Buy Now
KM-16019 16.062 15.062 3 $538.05 Buy Now
KM-16018 16.125 15.125 3 $540.20 Buy Now
KM-16017 16.187 15.187 3 $542.38 Buy Now
KM-16016 16.250 15.250 3 $544.53 Buy Now
KM-16015 16.312 15.312 3 $546.70 Buy Now
KM-16014 16.375 15.375 3 $548.85 Buy Now
KM-16013 16.437 15.437 3 $551.00 Buy Now
KM-16012 16.500 15.500 3 $553.18 Buy Now
KM-16011 16.562 15.562 3 $555.33 Buy Now
KM-15999 16.625 15.625 3 $557.50 Buy Now
KM-16009 16.687 15.687 3 $559.65 Buy Now
KM-16020 16.750 15.750 3 $561.83 Buy Now
KM-16007 16.812 15.812 3 $563.98 Buy Now
KM-16006 16.875 15.875 3 $566.13 Buy Now
KM-16005 16.937 15.937 3 $568.30 Buy Now
KM-16004 17.000 16.000 3 $570.45 Buy Now
KM-16003 17.062 16.062 3 $572.63 Buy Now
KM-16002 17.125 16.125 3 $574.78 Buy Now
KM-16001 17.187 16.187 3 $576.95 Buy Now
KM-16067 17.250 16.250 3 $579.10 Buy Now
KM-15978 17.312 16.312 3 $581.25 Buy Now
KM-16044 17.375 16.375 3 $583.43 Buy Now
KM-16130 17.437 16.437 3 $585.58 Buy Now
KM-16129 17.500 16.500 3 $587.75 Buy Now
KM-16128 17.562 16.562 3 $589.90 Buy Now
KM-16127 17.625 16.625 3 $592.08 Buy Now
KM-16126 17.687 16.687 3 $594.23 Buy Now
KM-16125 17.750 16.750 3 $596.38 Buy Now
KM-16124 17.812 16.812 3 $598.55 Buy Now
KM-16123 17.875 16.875 3 $600.70 Buy Now
KM-16122 17.937 16.937 3 $602.88 Buy Now
KM-16110 18.000 17.000 3 $605.03 Buy Now
KM-16120 18.062 17.062 3 $607.20 Buy Now
KM-16131 18.125 17.125 3 $609.35 Buy Now
KM-16118 18.187 17.187 3 $611.53 Buy Now
KM-16117 18.250 17.250 3 $613.68 Buy Now
KM-16116 18.312 17.312 3 $615.83 Buy Now
KM-16115 18.375 17.375 3 $618.00 Buy Now
KM-18012 18.437 17.437 3 $620.15 Buy Now
KM-18142 18.500 17.500 3 $622.33 Buy Now
KM-18143 18.562 17.562 3 $624.48 Buy Now
KM-18144 18.625 17.625 3 $626.65 Buy Now
KM-18145 18.687 17.687 3 $628.80 Buy Now
KM-18146 18.750 17.750 3 $630.95 Buy Now
KM-18147 18.812 17.812 3 $633.13 Buy Now
KM-18148 18.875 17.875 3 $635.28 Buy Now
KM-18149 18.937 17.937 3 $637.45 Buy Now
KM-16114 19.000 18.000 3 $639.60 Buy Now
KM-16113 19.062 18.062 3 $641.78 Buy Now
KM-16112 19.125 18.125 3 $643.93 Buy Now
KM-16111 19.187 18.187 3 $646.08 Buy Now
KM-16142 19.250 18.250 3 $648.25 Buy Now
KM-16144 19.312 18.312 3 $650.40 Buy Now
KM-16121 19.375 18.375 3 $652.58 Buy Now
KM-16152 19.437 18.437 3 $654.73 Buy Now
KM-16151 19.500 18.500 3 $656.90 Buy Now
KM-16150 19.562 18.563 3 $659.05 Buy Now
KM-16149 19.625 18.625 3 $661.20 Buy Now
KM-16148 19.687 19.687 3 $663.38 Buy Now
KM-16147 19.750 18.750 3 $665.53 Buy Now
KM-16146 19.812 18.812 3 $667.70 Buy Now
KM-16145 19.875 18.875 3 $669.85 Buy Now
KM-16132 19.937 18.937 3 $672.03 Buy Now
KM-16143 20.000 19.000 3 $674.18 Buy Now



nominal inches,
diameter

plus or minus (±) tolerance, inches

ID inside diameter

OD outside diameter

steel
mandrel

built-up
mandrel

.125" -.749"

.003"

-

.005"

.750" - 1.999"

.004"

-

.005"

2.000" - 4.000"

.006"

-

.008"



*turned

*as wound

4.001" - 12.000"

.010"

-

.025"

plus only

12.001" - 18.000"

.030"

.060"

.030"

plus only

18.001" - 24.000"

.040"

.075"

.035"

plus only

24.001" - 48.000"

.060"

.090"

.040"

plus only

*Note: tubing over 8.000" OD supplied as wound (turned OD quoted on request)
