Canvas C Fabric Reinforced Phenolic Tubes .250" Wall Thickness

CE Canvas Tubes .250 Inch Wall

Canvas C Fabric Reinforced Phenolic Tubes - natural (light tan to brown) Technical Data Sheet
This grade is composed of a continuous cotton woven cloth impregnated with a phenolic resin binder. This grade contains a medium weave canvas and is known primarily for it's mechanical properties. This grade is not recommended for primary insulation.

NEMA grades C Canvas Cotton-Cloth Reinforced Phenolic -- natural color is typically light tan to brown. C grades are composed of a continuous cotton woven cloth impregnated with a phenolic resin binder. These grades contain a medium weave canvas and are known primarily for their mechanical properties. These grades are not recommended for primary electrical insulation.

NEMA C certs to Mil-I-13768/16 FBM, IEC 60893-3 Type 4, PF CC 201
 Chemical Resistance Chart

C Tubes    C/CE Sheets  C/CE Bar Stock

Wall Thickness Options
.031" .062" .093" .125"
.187" .250" .375" .500"
.750" 1.00"

.250" Wall - Canvas Tubes
Stock # OD Inches ID Inches Min. Feet to Purchase  Price Per Foot Purchase Online
KM-5018 .750 .250 3 $31.44 Buy Now
KM-5173 .813 .313 3 $59.65 Buy Now
KM-5172 .875 .375 3 $55.08 Buy Now
KM-2025 1.000 .500 24 $14.28 Buy Now
KM-2030 1.063 .562 24 $15.38 Buy Now
KM-2036 1.125 .625 21 $16.48 Buy Now
KM-16387 1.187 .687 21 $17.55 Buy Now
KM-2045 1.250 .750 21 $18.60 Buy Now
KM-16353 1.312 .812 18 $19.65 Buy Now
KM-2050 1.375 .875 18 $20.68 Buy Now
KM-16351 1.437 .937 18 $21.70 Buy Now
KM-2056 1.500 1.000 15 $22.70 Buy Now
KM-16349 1.562 1.062 15 $23.70 Buy Now
KM-16348 1.625 1.125 15 $24.68 Buy Now
KM-16347 1.688 1.187 15 $25.65 Buy Now
KM-2060 1.750 1.250 15 $26.60 Buy Now
KM-16334 1.812 1.312 15 $27.53 Buy Now
KM-16344 1.875 1.375 12 $28.45 Buy Now
KM-16355 1.937 1.437 12 $29.35 Buy Now
KM-2064 2.000 1.500 12 $30.25 Buy Now
KM-16341 2.062 1.562 12 $31.13 Buy Now
KM-16340 2.125 1.625 12 $32.00 Buy Now
KM-16339 2.188 1.687 12 $32.85 Buy Now
KM-2069 2.250 1.750 12 $33.70 Buy Now
KM-16337 2.312 1.812 12 $34.53 Buy Now
KM-16336 2.375 1.875 12 $35.33 Buy Now
KM-16365 2.437 1.937 12 $36.13 Buy Now
KM-2074 2.500 2.000 12 $36.93 Buy Now
KM-16345 2.562 2.062 9 $37.68 Buy Now
KM-16376 2.625 2.125 9 $38.45 Buy Now
KM-16375 2.688 2.187 9 $39.18 Buy Now
KM-2079 2.750 2.250 9 $39.93 Buy Now
KM-16373 2.812 2.312 9 $40.63 Buy Now
KM-16372 2.875 2.375 9 $41.33 Buy Now
KM-16371 2.937 2.437 9 $42.03 Buy Now
KM-2084 3.000 2.500 9 $42.70 Buy Now
KM-16369 3.062 2.562 9 $43.63 Buy Now
KM-16368 3.125 2.625 9 $44.58 Buy Now
KM-16356 3.188 2.687 9 $45.50 Buy Now
KM-2089 3.250 2.750 9 $46.43 Buy Now
KM-16377 3.312 2.812 9 $47.35 Buy Now

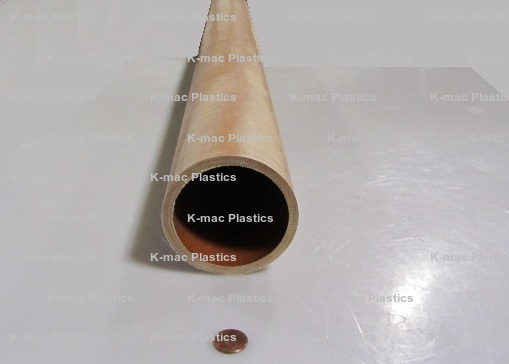

KM-16364 3.375 2.875 9 $48.28 Buy Now
KM-16363 3.437 2.937 9 $49.20 Buy Now
KM-2094 3.500 3.000 9 $50.13 Buy Now
KM-16361 3.562 3.062 9 $51.05 Buy Now
KM-16360 3.625 3.125 9 $51.98 Buy Now
KM-16359 3.687 3.187 9 $52.88 Buy Now
KM-2099 3.750 3.250 9 $53.80 Buy Now
KM-16424 3.812 3.312 9 $54.73 Buy Now
KM-16335 3.875 3.375 9 $55.63 Buy Now
KM-16401 3.937 3.437 6 $56.55 Buy Now
KM-2104 4.000 3.500 6 $57.45 Buy Now
KM-16516 4.062 3.562 6 $58.35 Buy Now
KM-16515 4.125 3.625 6 $59.28 Buy Now
KM-16514 4.187 3.687 6 $60.18 Buy Now
KM-2109 4.250 3.750 6 $61.08 Buy Now
KM-16512 4.312 3.812 6 $61.98 Buy Now
KM-16511 4.375 3.875 6 $62.88 Buy Now
KM-16510 4.437 3.937 6 $63.78 Buy Now
KM-2114 4.500 4.000 6 $64.68 Buy Now
KM-16467 4.562 4.062 6 $65.58 Buy Now
KM-16507 4.625 4.125 6 $66.45 Buy Now
KM-16518 4.687 4.187 6 $67.35 Buy Now
KM-16505 4.750 4.250 6 $68.25 Buy Now
KM-16504 4.812 4.312 6 $69.13 Buy Now
KM-16503 4.875 4.438 6 $70.03 Buy Now
KM-16502 4.937 4.500 6 $70.90 Buy Now
KM-2119 5.000 4.500 6 $71.78 Buy Now
KM-16500 5.062 4.562 6 $72.70 Buy Now
KM-16469 5.125 4.625 6 $73.60 Buy Now
KM-16468 5.187 4.687 6 $74.53 Buy Now
KM-16529 5.250 4.750 6 $75.43 Buy Now
KM-16531 5.312 4.812 6 $76.35 Buy Now
KM-16508 5.375 4.875 6 $77.25 Buy Now
KM-16539 5.437 4.937 6 $78.18 Buy Now
KM-2124 5.500 5.000 6 $79.08 Buy Now
KM-16537 5.562 5.062 6 $79.98 Buy Now
KM-16536 5.625 5.125 6 $80.88 Buy Now
KM-16535 5.688 5.187 6 $81.80 Buy Now
KM-16534 5.750 5.250 6 $82.70 Buy Now
KM-16533 5.812 5.313 6 $83.60 Buy Now
KM-16532 5.875 5.375 6 $84.50 Buy Now
KM-16519 5.938 5.437 6 $85.40 Buy Now
KM-2130 6.000 5.500 6 $86.30 Buy Now
KM-16541 6.063 6.562 6 $87.20 Buy Now
KM-16528 6.125 5.625 6 $88.10 Buy Now
KM-16527 6.187 5.687 6 $89.00 Buy Now
KM-16526 6.250 5.750 6 $89.90 Buy Now
KM-16525 6.312 5.812 6 $90.80 Buy Now
KM-16524 6.375 5.875 6 $91.70 Buy Now
KM-16523 6.437 5.937 6 $92.60 Buy Now
KM-2136 6.500 6.000 6 $93.48 Buy Now
KM-18184 6.562 6.062 6 $94.38 Buy Now
KM-16521 6.625 6.125 6 $95.28 Buy Now
KM-16456 6.688 6.187 6 $96.18 Buy Now
KM-16540 6.750 6.250 6 $97.05 Buy Now
KM-16506 6.812 6.312 6 $97.95 Buy Now
KM-16443 6.875 6.375 6 $98.83 Buy Now
KM-16442 6.938 6.437 6 $99.73 Buy Now
KM-16441 7.000 6.500 6 $100.63 Buy Now
KM-16440 7.062 6.562 6 $101.68 Buy Now
KM-16439 7.125 6.625 6 $102.75 Buy Now
KM-16438 7.187 6.687 6 $103.83 Buy Now
KM-16437 7.250 6.750 6 $104.88 Buy Now
KM-16436 7.312 6.812 6 $105.95 Buy Now
KM-16435 7.375 6.875 6 $107.03 Buy Now
KM-16423 7.437 6.938 3 $108.10 Buy Now
KM-16433 7.500 7.000 3 $109.20 Buy Now
KM-16444 7.562 7.062 3 $110.28 Buy Now
KM-16431 7.625 7.125 3 $111.35 Buy Now
KM-16430 7.688 7.187 3 $112.45 Buy Now
KM-16429 7.750 7.250 3 $113.55 Buy Now
KM-16428 7.812 7.312 3 $114.63 Buy Now
KM-16427 7.875 7.375 3 $115.73 Buy Now
KM-16426 7.938 7.437 3 $116.83 Buy Now
KM-16425 8.000 7.500 3 $117.93 Buy Now
KM-16454 8.062 7.562 3 $119.03 Buy Now
KM-16432 8.125 7.625 3 $120.13 Buy Now
KM-16434 8.188 7.687 3 $121.25 Buy Now
KM-16465 8.250 7.750 3 $122.35 Buy Now
KM-16464 8.312 7.812 3 $123.48 Buy Now
KM-16463 8.375 7.875 3 $124.58 Buy Now
KM-16462 8.437 7.937 3 $125.70 Buy Now
KM-16461 8.500 8.000 3 $126.83 Buy Now
KM-16460 8.562 8.062 3 $127.95 Buy Now
KM-16459 8.625 8.125 3 $129.05 Buy Now
KM-16458 8.688 8.187 3 $130.20 Buy Now
KM-16457 8.750 8.250 3 $131.33 Buy Now
KM-16445 8.812 8.312 3 $132.45 Buy Now
KM-16455 8.875 8.375 3 $133.58 Buy Now
KM-16466 8.938 8.437 3 $134.73 Buy Now
KM-16453 9.000 8.500 3 $135.85 Buy Now
KM-16452 9.062 8.562 3 $191.58 Buy Now
KM-16451 9.125 8.625 3 $192.93 Buy Now
KM-16450 9.188 8.687 3 $194.28 Buy Now
KM-16449 9.250 8.750 3 $195.65 Buy Now
KM-16448 9.312 8.812 3 $197.00 Buy Now
KM-16447 9.375 8.875 3 $198.35 Buy Now
KM-17985 9.437 8.937 3 $199.73 Buy Now
KM-16219 9.500 9.000 3 $201.08 Buy Now
KM-17368 9.563 9.062 3 $202.43 Buy Now
KM-17986 9.625 9.125 3 $203.80 Buy Now
KM-17957 9.688 9.187 3 $205.15 Buy Now
KM-17978 9.750 9.250 3 $206.50 Buy Now
KM-17976 9.812 9.312 3 $207.88 Buy Now
KM-17947 9.875 9.375 3 $209.23 Buy Now
KM-17948 9.937 9.437 3 $210.58 Buy Now
KM-17949 10.000 9.500 3 $211.95 Buy Now
KM-17950 10.062 9.562 3 $213.30 Buy Now
KM-17951 10.125 9.625 3 $214.65 Buy Now
KM-17952 10.187 9.687 3 $216.03 Buy Now
KM-17953 10.250 9.750 3 $217.38 Buy Now
KM-17954 10.313 9.813 3 $218.73 Buy Now
KM-17966 10.375 9.875 3 $220.10 Buy Now
KM-17956 10.437 9.937 3 $221.45 Buy Now
KM-17946 10.500 10.000 3 $222.80 Buy Now
KM-17958 10.563 10.062 3 $224.18 Buy Now
KM-17959 10.625 10.125 3 $225.53 Buy Now
KM-17960 10.688 10.187 3 $226.88 Buy Now
KM-17961 10.750 10.250 3 $228.25 Buy Now
KM-17962 10.813 10.312 3 $229.60 Buy Now
KM-17963 10.875 10.375 3 $230.95 Buy Now
KM-17964 10.937 10.437 3 $232.33 Buy Now
KM-17965 11.000 10.500 3 $233.68 Buy Now
KM-17990 11.062 10.562 3 $235.05 Buy Now
KM-18022 11.125 10.625 3 $236.40 Buy Now
KM-17987 11.188 10.687 3 $237.75 Buy Now
KM-18013 11.250 10.750 3 $239.13 Buy Now
KM-18014 11.313 10.812 3 $240.48 Buy Now
KM-18015 11.375 10.875 3 $241.83 Buy Now
KM-18016 11.437 10.937 3 $243.20 Buy Now
KM-18017 11.500 11.000 3 $244.55 Buy Now
KM-18018 11.562 11.062 3 $245.90 Buy Now
KM-18019 11.625 11.125 3 $247.28 Buy Now
KM-18032 11.687 11.187 3 $248.63 Buy Now
KM-18021 11.750 11.250 3 $249.98 Buy Now
KM-18011 11.812 11.312 3 $251.35 Buy Now
KM-18023 11.875 11.375 3 $252.70 Buy Now
KM-18024 11.937 11.437 3 $254.05 Buy Now
KM-18025 12.000 11.500 3 $255.43 Buy Now
KM-18026 12.062 11.562 3 $256.78 Buy Now
KM-18027 12.125 11.625 3 $258.13 Buy Now
KM-18028 12.187 11.687 3 $259.50 Buy Now
KM-18029 12.250 11.750 3 $260.85 Buy Now
KM-18030 12.313 11.812 3 $262.20 Buy Now
KM-18031 12.375 11.875 3 $263.58 Buy Now
KM-18000 12.437 11.937 3 $264.93 Buy Now
KM-17998 12.500 12.000 3 $266.28 Buy Now
KM-18020 12.562 12.062 3 $267.65 Buy Now
KM-17991 12.625 12.125 3 $269.00 Buy Now
KM-17992 12.687 12.187 3 $270.35 Buy Now
KM-17993 12.750 12.250 3 $271.73 Buy Now
KM-17994 12.812 12.312 3 $273.08 Buy Now
KM-17995 12.875 12.375 3 $274.45 Buy Now
KM-17996 12.937 12.437 3 $275.80 Buy Now
KM-17997 13.000 12.500 3 $277.15 Buy Now
KM-18010 13.062 12.562 3 $278.53 Buy Now
KM-17999 13.125 12.625 3 $279.88 Buy Now
KM-17989 13.187 12.687 3 $281.23 Buy Now
KM-18001 13.250 12.750 3 $282.60 Buy Now
KM-18002 13.312 12.813 3 $283.95 Buy Now
KM-18003 13.375 12.875 3 $285.30 Buy Now
KM-18004 13.437 12.937 3 $286.68 Buy Now
KM-18005 13.500 13.000 3 $288.03 Buy Now
KM-18006 13.562 13.062 3 $289.38 Buy Now
KM-18007 13.625 13.125 3 $290.75 Buy Now
KM-18008 13.687 13.187 3 $292.10 Buy Now
KM-18009 13.750 13.250 3 $293.45 Buy Now
KM-17925 13.812 13.312 3 $294.83 Buy Now
KM-17868 13.875 13.375 3 $296.18 Buy Now
KM-17955 13.937 13.437 3 $297.53 Buy Now
KM-17882 14.000 13.500 3 $298.90 Buy Now
KM-17883 14.062 13.562 3 $300.25 Buy Now
KM-17884 14.125 13.625 3 $301.60 Buy Now
KM-18173 14.187 13.687 3 $302.98 Buy Now
KM-17885 14.250 13.750 3 $304.33 Buy Now
KM-18171 14.312 13.812 3 $305.68 Buy Now
KM-17886 14.375 13.875 3 $307.05 Buy Now
KM-17887 14.437 13.937 3 $308.40 Buy Now
KM-17888 14.500 14.000 3 $309.75 Buy Now
KM-17901 14.562 14.062 3 $311.13 Buy Now
KM-17890 14.625 14.125 3 $312.48 Buy Now
KM-17880 14.687 14.187 3 $313.83 Buy Now
KM-17892 14.750 14.250 3 $315.20 Buy Now
KM-17893 14.812 14.312 3 $316.55 Buy Now
KM-17894 14.875 14.375 3 $317.93 Buy Now
KM-17895 14.937 14.437 3 $319.28 Buy Now
KM-17896 15.000 14.500 3 $320.63 Buy Now
KM-17897 15.062 14.562 3 $322.00 Buy Now
KM-17898 15.125 14.625 3 $323.35 Buy Now
KM-17899 15.187 14.687 3 $324.70 Buy Now
KM-17870 15.250 14.750 3 $326.08 Buy Now
KM-17891 15.312 14.812 3 $327.43 Buy Now
KM-17889 15.375 14.875 3 $328.78 Buy Now
KM-17860 15.437 14.937 3 $330.15 Buy Now
KM-17861 15.500 15.000 3 $331.50 Buy Now
KM-17862 15.562 15.062 3 $332.85 Buy Now
KM-17863 15.625 15.125 3 $334.23 Buy Now
KM-17864 15.687 15.187 3 $335.58 Buy Now
KM-17865 15.750 15.250 3 $336.93 Buy Now
KM-17866 15.812 15.312 3 $338.30 Buy Now
KM-17867 15.875 15.375 3 $339.65 Buy Now
KM-17879 15.937 15.437 3 $341.00 Buy Now
KM-17869 16.000 15.500 3 $342.38 Buy Now
KM-17859 16.062 15.562 3 $343.73 Buy Now
KM-17871 16.125 15.625 3 $345.08 Buy Now
KM-17872 16.187 15.687 3 $346.45 Buy Now
KM-17873 16.250 15.750 3 $347.80 Buy Now
KM-17874 16.312 15.812 3 $349.15 Buy Now
KM-17875 16.375 15.875 3 $350.53 Buy Now
KM-17876 16.437 15.937 3 $351.88 Buy Now
KM-17877 16.500 16.000 3 $353.23 Buy Now
KM-17878 16.562 16.062 3 $354.60 Buy Now
KM-17903 16.625 16.125 3 $355.95 Buy Now
KM-17935 16.687 16.187 3 $357.30 Buy Now
KM-17900 16.750 16.250 3 $358.68 Buy Now
KM-17926 16.812 16.312 3 $360.03 Buy Now
KM-17927 16.875 16.375 3 $361.40 Buy Now
KM-17928 16.937 16.437 3 $362.75 Buy Now
KM-17929 17.000 16.500 3 $364.10 Buy Now
KM-17930 17.062 16.562 3 $365.48 Buy Now
KM-17931 17.125 16.625 3 $366.83 Buy Now
KM-17932 17.187 16.687 3 $368.18 Buy Now
KM-17945 17.250 16.750 3 $369.55 Buy Now
KM-17934 17.312 16.812 3 $370.90 Buy Now
KM-17924 17.375 16.875 3 $372.25 Buy Now
KM-17936 17.437 16.937 3 $373.63 Buy Now
KM-17937 17.500 17.000 3 $374.98 Buy Now
KM-17938 17.562 17.062 3 $376.33 Buy Now
KM-17939 17.625 17.125 3 $377.70 Buy Now
KM-17940 17.687 17.187 3 $379.05 Buy Now
KM-18134 17.750 17.250 3 $380.40 Buy Now
KM-18135 17.812 17.312 3 $381.78 Buy Now
KM-18136 17.875 17.375 3 $383.13 Buy Now
KM-18137 17.937 17.437 3 $384.48 Buy Now
KM-18138 18.000 17.500 3 $385.85 Buy Now
KM-18139 18.062 17.562 3 $387.20 Buy Now
KM-18164 18.125 17.625 3 $388.55 Buy Now
KM-18196 18.187 17.687 3 $389.93 Buy Now
KM-18161 18.250 17.750 3 $391.28 Buy Now
KM-18187 18.312 17.812 3 $392.63 Buy Now
KM-18188 18.375 17.875 3 $394.00 Buy Now
KM-18189 18.437 17.937 3 $395.35 Buy Now
KM-18190 18.500 18.000 3 $396.70 Buy Now
KM-18191 18.562 18.062 3 $398.08 Buy Now
KM-18192 18.625 18.125 3 $399.43 Buy Now
KM-18193 18.687 18.187 3 $400.78 Buy Now
KM-18206 18.750 18.250 3 $402.15 Buy Now
KM-18195 18.812 18.312 3 $403.50 Buy Now
KM-18185 18.875 18.375 3 $404.88 Buy Now
KM-18197 18.937 18.437 3 $406.23 Buy Now
KM-18198 19.000 18.500 3 $407.58 Buy Now
KM-18199 19.062 18.563 3 $408.95 Buy Now
KM-18200 19.125 18.625 3 $410.30 Buy Now
KM-18201 19.187 19.687 3 $411.65 Buy Now
KM-18202 19.250 18.750 3 $413.03 Buy Now
KM-18203 19.312 18.812 3 $414.38 Buy Now
KM-18204 19.375 18.937 3 $415.73 Buy Now
KM-18205 19.437 18.937 3 $417.10 Buy Now
KM-18174 19.500 19.000 3 $418.45 Buy Now
KM-18172 19.562 19.062 3 $419.80 Buy Now
KM-18194 19.625 19.125 3 $421.18 Buy Now
KM-18165 19.687 19.187 3 $422.53 Buy Now
KM-18166 19.750 19.250 3 $423.88 Buy Now
KM-18167 19.812 19.312 3 $425.25 Buy Now
KM-18168 19.875 19.375 3 $426.60 Buy Now
KM-18169 19.937 19.437 3 $427.95 Buy Now
KM-18170 20.000 19.500 3 $429.33 Buy Now



nominal inches,
diameter

plus or minus (±) tolerance, inches

ID inside diameter

OD outside diameter

steel
mandrel

built-up
mandrel

.125" -.749"

.003"

-

.005"

.750" - 1.999"

.004"

-

.005"

2.000" - 4.000"

.006"

-

.008"



*turned

*as wound

4.001" - 12.000"

.010"

-

.025"

plus only

12.001" - 18.000"

.030"

.060"

.030"

plus only

18.001" - 24.000"

.040"

.075"

.035"

plus only

24.001" - 48.000"

.060"

.090"

.040"

plus only

*Note: tubing over 8.000" OD supplied as wound (turned OD quoted on request)
