Canvas C Fabric Reinforced Phenolic Tubes .125" Wall Thickness

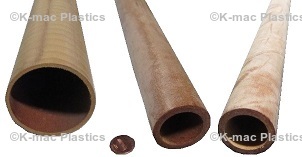

CE Canvas Tubes .125" Wall

Canvas C Fabric Reinforced Phenolic Tubes - natural (light tan to brown) Technical Data Sheet
This grade is composed of a continuous cotton woven cloth impregnated with a phenolic resin binder. This grade contains a medium weave canvas and is known primarily for it's mechanical properties. This grade is not recommended for primary insulation.

NEMA grades C Canvas Cotton-Cloth Reinforced Phenolic -- natural color is typically light tan to brown. C grades are composed of a continuous cotton woven cloth impregnated with a phenolic resin binder. These grades contain a medium weave canvas and are known primarily for their mechanical properties. These grades are not recommended for primary electrical insulation.

NEMA C certs to Mil-I-13768/16 FBM, IEC 60893-3 Type 4, PF CC 201
 Chemical Resistance Chart

C Tubes    C/CE Sheets  C/CE Bar Stock

Wall Thickness Options
.031" .062" .093" .125"
.187" .250" .375" .500"
.750" 1.00"

.125" Wall Thickness - Canvas Tubes
Stock # OD Inches ID Inches Min. Feet to Purchase  Price Per Foot Purchase Online
KM-2003 .438 .187 9 $7.80 Buy Now
KM-2007 .500 .250 9 $8.63 Buy Now
KM-2011 .563 .312 6 $11.45 Buy Now
KM-2015 .625 .375 6 $9.93 Buy Now
KM-2019 .688 .437 30 $11.18 Buy Now
KM-2023 .750 .500 42 $8.08 Buy Now
KM-2028 .813 .562 42 $8.40 Buy Now
KM-2034 .875 .625 39 $8.93 Buy Now
KM-2039 .938 .687 39 $9.43 Buy Now
KM-2043 1.00 .750 36 $9.98 Buy Now
KM-17758 1.062 .812 33 $10.43 Buy Now
KM-2048 1.125 .875 33 $10.88 Buy Now
KM-2054 1.250 1.000 30 $11.65 Buy Now
KM-17762 1.312 1.062 30 $11.98 Buy Now
KM-15977J 1.375 1.125 30 $12.30 Buy Now
KM-17764 1.437 1.187 30 $12.58 Buy Now
KM-2058 1.500 1.250 27 $13.10 Buy Now
KM-17766 1.562 1.312 27 $13.63 Buy Now
KM-17767 1.625 1.375 27 $14.15 Buy Now
KM-17768 1.688 1.437 24 $14.68 Buy Now
KM-2063 1.750 1.500 24 $15.18 Buy Now
KM-17770 1.812 1.562 24 $15.70 Buy Now
KM-17739 1.875 1.625 24 $16.20 Buy Now
KM-17737 1.937 1.687 21 $16.68 Buy Now
KM-2068 2.000 1.750 21 $17.18 Buy Now
KM-17730 2.062 1.812 21 $17.65 Buy Now
KM-17731 2.125 1.875 21 $18.15 Buy Now
KM-17732 2.188 1.937 21 $18.63 Buy Now
KM-2073 2.250 2.000 18 $19.08 Buy Now
KM-17734 2.312 2.062 18 $19.55 Buy Now
KM-17735 2.375 2.125 18 $20.00 Buy Now
KM-17736 2.437 2.187 18 $20.45 Buy Now
KM-2078 2.500 2.250 18 $20.90 Buy Now
KM-17738 2.562 2.312 18 $21.33 Buy Now
KM-17728 2.625 2.375 18 $21.78 Buy Now
KM-17740 2.688 2.437 18 $22.20 Buy Now
KM-2083 2.750 2.500 18 $22.63 Buy Now
KM-17742 2.812 2.562 15 $23.05 Buy Now
KM-17743 2.875 2.625 15 $23.45 Buy Now
KM-17744 2.937 2.687 15 $23.85 Buy Now
KM-2088 3.000 2.750 15 $24.25 Buy Now
KM-17746 3.062 2.812 15 $24.65 Buy Now
KM-17747 3.125 2.875 15 $25.03 Buy Now
KM-17748 3.188 2.937 15 $25.43 Buy Now
KM-2093 3.250 3.000 15 $25.80 Buy Now
KM-18778 3.312 3.062 15 $26.18 Buy Now
KM-18822 3.375 3.125 15 $26.53 Buy Now
KM-18812 3.437 3.187 15 $26.90 Buy Now
KM-2098 3.500 3.250 15 $27.25 Buy Now
KM-18828 3.562 3.312 15 $27.73 Buy Now
KM-18818 3.625 3.375 15 $28.20 Buy Now
KM-18817 3.687 3.437 12 $28.65 Buy Now
KM-2103 3.750 3.500 12 $29.13 Buy Now
KM-18815 3.812 3.562 12 $29.60 Buy Now
KM-18814 3.875 3.625 12 $30.05 Buy Now
KM-18800 3.937 3.687 12 $30.53 Buy Now
KM-2108 4.000 3.750 12 $30.98 Buy Now
KM-18825 4.062 3.812 12 $31.45 Buy Now
KM-18826 4.125 3.875 12 $31.90 Buy Now
KM-18827 4.187 3.937 12 $32.38 Buy Now
KM-2113 4.250 4.000 12 $32.83 Buy Now
KM-18802 4.312 4.062 12 $33.28 Buy Now
KM-18819 4.375 4.125 12 $33.73 Buy Now
KM-18797 4.437 4.187 12 $34.20 Buy Now
KM-18798 4.500 4.250 12 $34.65 Buy Now
KM-18839 4.562 4.312 12 $35.10 Buy Now
KM-18799 4.625 4.375 12 $35.55 Buy Now
KM-18821 4.687 4.438 12 $36.00 Buy Now
KM-2118 4.750 4.500 12 $36.45 Buy Now
KM-18811 4.812 4.562 12 $36.90 Buy Now
KM-18803 4.875 4.625 12 $37.33 Buy Now
KM-18795 4.937 4.687 12 $37.78 Buy Now
KM-18805 5.000 4.750 12 $38.23 Buy Now
KM-18806 5.062 4.812 9 $38.68 Buy Now
KM-18807 5.125 4.875 9 $39.10 Buy Now
KM-18808 5.187 4.937 9 $39.55 Buy Now
KM-2123 5.250 5.000 9 $39.98 Buy Now
KM-18810 5.312 5.062 9 $40.43 Buy Now
KM-18796 5.375 5.125 9 $40.85 Buy Now
KM-18837 5.437 5.187 9 $41.30 Buy Now
KM-18847 5.500 5.250 9 $41.73 Buy Now
KM-18211 5.562 5.313 9 $42.15 Buy Now
KM-18848 5.625 5.375 9 $42.60 Buy Now
KM-18849 5.688 5.437 9 $43.03 Buy Now
KM-2129 5.750 5.500 9 $43.45 Buy Now
KM-18851 5.812 5.562 9 $43.88 Buy Now
KM-18852 5.875 5.625 9 $44.30 Buy Now
KM-18863 5.938 5.687 9 $44.73 Buy Now

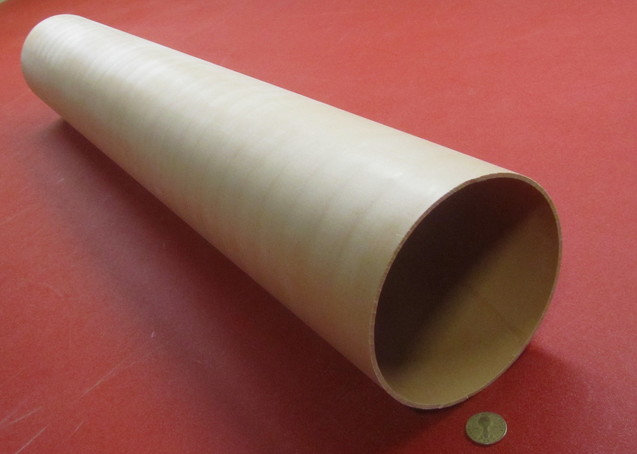

KM-18854 6.000 5.750 9 $45.15 Buy Now
KM-18846 6.063 5.812 9 $45.58 Buy Now
KM-18856 6.125 5.875 9 $46.00 Buy Now
KM-18857 6.187 5.937 9 $46.43 Buy Now
KM-2135 6.250 6.000 9 $46.85 Buy Now
KM-18859 6.312 6.062 9 $47.25 Buy Now
KM-18861 6.375 6.125 9 $47.68 Buy Now
KM-18862 6.437 6.187 9 $48.10 Buy Now
KM-18855 6.500 6.250 9 $48.50 Buy Now
KM-18836 6.562 6.312 9 $48.93 Buy Now
KM-18838 6.625 6.375 9 $49.33 Buy Now
KM-18830 6.688 6.437 9 $49.75 Buy Now
KM-18853 6.750 6.500 9 $50.15 Buy Now
KM-18832 6.812 6.562 9 $50.55 Buy Now
KM-18833 6.875 6.625 9 $50.95 Buy Now
KM-18834 6.938 6.687 9 $51.38 Buy Now
KM-18835 7.000 6.750 9 $51.78 Buy Now
KM-18831 7.062 6.812 9 $52.18 Buy Now
KM-18844 7.125 6.875 9 $52.58 Buy Now
KM-18843 7.187 6.938 9 $52.98 Buy Now
KM-18842 7.250 7.000 9 $53.38 Buy Now
KM-18841 7.312 7.062 9 $53.78 Buy Now
KM-18840 7.375 7.125 9 $54.18 Buy Now
KM-18829 7.437 7.187 9 $54.58 Buy Now
KM-18845 7.500 7.250 9 $54.98 Buy Now
KM-18860 7.562 7.312 9 $55.35 Buy Now
KM-18813 7.625 7.375 9 $55.75 Buy Now
KM-18299 7.688 7.437 6 $56.15 Buy Now
KM-18406 7.750 7.500 6 $56.53 Buy Now
KM-18405 7.812 7.562 6 $56.93 Buy Now
KM-18404 7.875 7.625 6 $57.30 Buy Now
KM-18403 7.938 7.687 6 $57.70 Buy Now
KM-18402 8.000 7.750 6 $58.08 Buy Now
KM-18401 8.062 7.812 6 $58.48 Buy Now
KM-18400 8.125 7.875 6 $58.85 Buy Now
KM-18390 8.188 7.937 6 $59.23 Buy Now
KM-18398 8.250 8.000 6 $59.60 Buy Now
KM-18407 8.312 8.062 6 $60.00 Buy Now
KM-18396 8.375 8.125 6 $60.38 Buy Now
KM-18395 8.437 8.187 6 $60.75 Buy Now
KM-18394 8.500 8.250 6 $61.13 Buy Now
KM-18393 8.562 8.312 6 $61.50 Buy Now
KM-18392 8.625 8.375 6 $61.88 Buy Now
KM-18391 8.688 8.437 6 $62.23 Buy Now
KM-18416 8.750 8.500 6 $62.60 Buy Now
KM-18418 8.812 8.562 6 $62.98 Buy Now
KM-18399 8.875 8.625 6 $63.35 Buy Now
KM-18424 8.938 8.687 6 $63.70 Buy Now
KM-18423 9.000 8.750 6 $64.08 Buy Now
KM-18422 9.062 8.812 3 $123.98 Buy Now
KM-18421 9.125 8.875 3 $125.00 Buy Now
KM-18420 9.188 8.937 3 $126.05 Buy Now
KM-18419 9.250 9.000 3 $127.10 Buy Now
KM-18408 9.312 9.062 3 $128.15 Buy Now
KM-18417 9.375 9.125 3 $129.20 Buy Now
KM-18426 9.437 9.187 3 $130.25 Buy Now
KM-18415 9.500 9.250 3 $131.30 Buy Now
KM-18414 9.563 9.312 3 $132.38 Buy Now
KM-18413 9.625 9.375 3 $133.43 Buy Now
KM-18412 9.688 9.437 3 $134.50 Buy Now
KM-18411 9.750 9.500 3 $135.55 Buy Now
KM-18410 9.812 9.562 3 $136.63 Buy Now
KM-18381 9.875 9.625 3 $137.70 Buy Now
KM-18425 9.937 9.687 3 $138.78 Buy Now
KM-18397 10.000 9.750 3 $139.85 Buy Now
KM-18370 10.062 9.813 3 $140.93 Buy Now
KM-18369 10.125 9.875 3 $142.00 Buy Now
KM-18368 10.187 9.937 3 $143.10 Buy Now
KM-18367 10.250 10.000 3 $144.18 Buy Now
KM-18366 10.313 10.062 3 $145.25 Buy Now
KM-18365 10.375 10.125 3 $146.35 Buy Now
KM-18364 10.437 10.187 3 $147.45 Buy Now
KM-18354 10.500 10.250 3 $148.55 Buy Now
KM-18362 10.563 10.312 3 $149.63 Buy Now
KM-18371 10.625 10.375 3 $150.73 Buy Now
KM-18360 10.688 10.437 3 $151.85 Buy Now
KM-18359 10.750 10.500 3 $152.95 Buy Now
KM-18358 10.813 10.562 3 $154.05 Buy Now
KM-18357 10.875 10.625 3 $155.15 Buy Now
KM-18356 10.937 10.687 3 $156.28 Buy Now
KM-18379 11.000 10.750 3 $157.60 Buy Now
KM-18361 11.062 10.812 3 $158.50 Buy Now
KM-18363 11.125 10.875 3 $159.40 Buy Now
KM-18388 11.188 10.937 3 $160.33 Buy Now
KM-18387 11.250 11.000 3 $161.23 Buy Now
KM-18386 11.313 11.062 3 $162.13 Buy Now
KM-18385 11.375 11.125 3 $163.03 Buy Now
KM-18384 11.437 11.187 3 $163.95 Buy Now
KM-18383 11.500 11.250 3 $164.85 Buy Now
KM-18382 11.562 11.312 3 $165.75 Buy Now
KM-18372 11.625 11.375 3 $166.65 Buy Now
KM-18380 11.687 11.437 3 $167.55 Buy Now
KM-18389 11.750 11.500 3 $168.48 Buy Now
KM-18378 11.812 11.562 3 $169.38 Buy Now
KM-18377 11.875 11.625 3 $170.28 Buy Now
KM-18376 11.937 11.687 3 $171.18 Buy Now
KM-18375 12.000 11.750 3 $172.10 Buy Now
KM-18374 12.062 11.812 3 $173.00 Buy Now
KM-18373 12.125 11.875 3 $173.90 Buy Now
KM-18443 12.187 11.937 3 $174.80 Buy Now
KM-18499 12.250 12.000 3 $175.70 Buy Now
KM-18409 12.313 12.062 3 $176.63 Buy Now
KM-18479 12.375 12.125 3 $177.53 Buy Now
KM-18478 12.437 12.187 3 $178.43 Buy Now
KM-18477 12.500 12.250 3 $179.33 Buy Now
KM-18476 12.562 12.312 3 $180.25 Buy Now
KM-18475 12.625 12.375 3 $181.15 Buy Now
KM-18474 12.687 12.437 3 $182.05 Buy Now
KM-18464 12.750 12.500 3 $182.95 Buy Now
KM-18472 12.812 12.562 3 $183.88 Buy Now
KM-18481 12.875 12.625 3 $184.78 Buy Now
KM-18470 12.937 12.687 3 $185.68 Buy Now
KM-18469 13.000 12.750 3 $186.58 Buy Now
KM-18468 13.062 12.813 3 $186.83 Buy Now
KM-18467 13.125 12.875 3 $187.05 Buy Now
KM-18466 13.187 12.937 3 $187.28 Buy Now
KM-18465 13.250 13.000 3 $187.48 Buy Now
KM-18490 13.312 13.062 3 $187.70 Buy Now
KM-18492 13.375 13.125 3 $187.90 Buy Now
KM-18473 13.437 13.187 3 $188.10 Buy Now
KM-18498 13.500 13.250 3 $188.30 Buy Now
KM-18497 13.562 13.312 3 $188.48 Buy Now
KM-18496 13.625 13.375 3 $188.65 Buy Now
KM-18495 13.687 13.437 3 $189.53 Buy Now
KM-18494 13.750 13.500 3 $190.40 Buy Now
KM-18493 13.812 13.562 3 $191.28 Buy Now
KM-18482 13.875 13.625 3 $192.15 Buy Now
KM-18491 13.937 13.687 3 $193.03 Buy Now
KM-18500 14.000 13.750 3 $193.90 Buy Now
KM-18489 14.062 13.812 3 $194.78 Buy Now
KM-18488 14.125 13.875 3 $195.65 Buy Now
KM-18487 14.187 13.937 3 $196.50 Buy Now
KM-18486 14.250 14.000 3 $197.38 Buy Now
KM-18485 14.312 14.062 3 $198.25 Buy Now
KM-18484 14.375 14.125 3 $199.13 Buy Now
KM-18483 14.437 14.187 3 $200.00 Buy Now
KM-18462 14.500 14.250 3 $200.88 Buy Now
KM-18434 14.562 14.312 3 $201.75 Buy Now
KM-18471 14.625 14.375 3 $202.63 Buy Now
KM-18442 14.687 14.437 3 $203.50 Buy Now
KM-18441 14.750 14.500 3 $204.38 Buy Now
KM-18440 14.812 14.562 3 $205.25 Buy Now
KM-18439 14.875 14.625 3 $206.13 Buy Now
KM-18438 14.937 14.687 3 $207.00 Buy Now
KM-18437 15.000 14.750 3 $207.88 Buy Now
KM-18427 15.062 14.812 3 $208.75 Buy Now
KM-18435 15.125 14.875 3 $209.63 Buy Now
KM-18444 15.187 14.937 3 $210.48 Buy Now
KM-18433 15.250 15.000 3 $211.35 Buy Now
KM-18432 15.312 15.062 3 $212.23 Buy Now
KM-18431 15.375 15.125 3 $213.10 Buy Now
KM-18430 15.437 15.187 3 $213.98 Buy Now
KM-18429 15.500 15.250 3 $214.85 Buy Now
KM-18428 15.562 15.312 3 $215.73 Buy Now
KM-18453 15.625 15.375 3 $216.60 Buy Now
KM-18455 15.687 15.437 3 $217.48 Buy Now
KM-18436 15.750 15.500 3 $218.35 Buy Now
KM-18461 15.812 15.562 3 $219.23 Buy Now
KM-18460 15.875 15.625 3 $220.10 Buy Now
KM-18459 15.937 15.687 3 $220.98 Buy Now
KM-18458 16.000 15.750 3 $221.85 Buy Now
KM-18457 16.062 15.812 3 $222.73 Buy Now
KM-18456 16.125 15.875 3 $223.58 Buy Now
KM-18445 16.187 15.937 3 $224.45 Buy Now
KM-18454 16.250 16.000 3 $225.33 Buy Now
KM-18463 16.312 16.062 3 $226.20 Buy Now
KM-18452 16.375 16.125 3 $227.08 Buy Now
KM-18451 16.437 16.187 3 $227.95 Buy Now
KM-18450 16.500 16.250 3 $228.83 Buy Now
KM-18449 16.562 16.312 3 $229.70 Buy Now
KM-18448 16.625 16.375 3 $230.58 Buy Now
KM-18447 16.687 16.437 3 $231.45 Buy Now
KM-18446 16.750 16.500 3 $232.33 Buy Now
KM-18333 16.812 16.562 3 $233.20 Buy Now
KM-18208 16.875 16.625 3 $234.08 Buy Now
KM-18355 16.937 16.687 3 $234.95 Buy Now
KM-18258 17.000 16.750 3 $235.83 Buy Now
KM-18257 17.062 16.812 3 $236.70 Buy Now
KM-18256 17.125 16.875 3 $237.55 Buy Now
KM-18255 17.187 16.937 3 $238.43 Buy Now
KM-18254 17.250 17.000 3 $239.30 Buy Now
KM-18253 17.312 17.062 3 $240.18 Buy Now
KM-18243 17.375 17.125 3 $241.05 Buy Now
KM-18251 17.437 17.187 3 $241.93 Buy Now
KM-18260 17.500 17.250 3 $242.80 Buy Now
KM-18249 17.562 17.312 3 $243.68 Buy Now
KM-18248 17.625 17.375 3 $244.55 Buy Now
KM-18247 17.687 17.437 3 $245.43 Buy Now
KM-18246 17.750 17.500 3 $246.30 Buy Now
KM-18245 17.812 17.562 3 $247.18 Buy Now
KM-18244 17.875 17.625 3 $248.05 Buy Now
KM-18269 17.937 17.687 3 $248.93 Buy Now
KM-18271 18.000 17.750 3 $249.80 Buy Now
KM-18252 18.062 17.812 3 $250.65 Buy Now
KM-18277 18.125 17.875 3 $251.53 Buy Now
KM-18276 18.187 17.937 3 $252.40 Buy Now
KM-18275 18.250 18.000 3 $253.28 Buy Now
KM-18274 18.312 18.062 3 $254.15 Buy Now
KM-18273 18.375 18.125 3 $255.03 Buy Now
KM-18272 18.437 18.187 3 $255.90 Buy Now
KM-18261 18.500 18.250 3 $256.78 Buy Now
KM-18270 18.562 18.312 3 $257.65 Buy Now
KM-18279 18.625 18.375 3 $258.53 Buy Now
KM-18268 18.687 18.437 3 $259.40 Buy Now
KM-18267 18.750 18.500 3 $260.28 Buy Now
KM-18266 18.812 18.563 3 $261.15 Buy Now
KM-18265 18.875 18.625 3 $262.03 Buy Now
KM-18264 18.937 19.687 3 $262.90 Buy Now
KM-18263 19.000 18.750 3 $263.78 Buy Now
KM-18234 19.062 18.812 3 $264.63 Buy Now
KM-18278 19.125 18.875 3 $265.50 Buy Now
KM-18250 19.187 18.937 3 $266.38 Buy Now
KM-18223 19.250 19.000 3 $267.25 Buy Now
KM-18222 19.312 19.062 3 $268.13 Buy Now
KM-18221 19.375 19.125 3 $269.00 Buy Now
KM-18220 19.500 19.250 3 $270.75 Buy Now
KM-18219 19.562 19.312 3 $271.63 Buy Now
KM-18218 19.625 13.375 3 $272.50 Buy Now
KM-18217 19.687 19.437 3 $273.38 Buy Now
KM-18207 19.750 19.500 3 $274.25 Buy Now
KM-18215 19.812 19.562 3 $275.13 Buy Now
KM-18224 19.875 19.625 3 $276.00 Buy Now
KM-18213 19.937 19.687 3 $276.88 Buy Now
KM-18212 20.000 19.750 3 $277.73 Buy Now





nominal inches,
diameter

plus or minus (±) tolerance, inches

ID inside diameter

OD outside diameter

steel
mandrel

built-up
mandrel

.125" -.749"

.003"

-

.005"

.750" - 1.999"

.004"

-

.005"

2.000" - 4.000"

.006"

-

.008"



*turned

*as wound

4.001" - 12.000"

.010"

-

.025"

plus only

12.001" - 18.000"

.030"

.060"

.030"

plus only

18.001" - 24.000"

.040"

.075"

.035"

plus only

24.001" - 48.000"

.060"

.090"

.040"

plus only

*Note: tubing over 8.000" OD supplied as wound (turned OD quoted on request)
