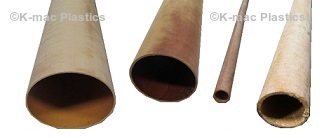

Canvas Fabric Reinforced Phenolic Tubes - 1/16" Wall
NEMA Grades C and CE Canvas-Cloth Reinforced Phenolic has a natural color of light tan to brown. C and CE grades are composed of a continuous cotton woven cloth impregnated with a phenolic resin binder. These grades contain a medium weave canvas and are known primarily for their mechanical properties. These grades are not recommended for primary electrical insulation.
NEMA C certs to Mil-I-24768/16 FBM, IEC
60893-3 Type 4, PF CC 201
NEMA CE certs to Mil-I-24768/14 FBG, IEC 60893-3 Type 4, PF CC 203
Tube Tolerances •
Technical Data Sheet •
Chemical Resistance Chart
Tubes are manufactured in random lengths from 30" to 36".
Our pricing and minimum orders are based on the 36".
Tubes can also be produced in 42" to 48" random lengths for the same per-foot price.
Measured lengths of 36"±1" and 48"±1" are also available (call for pricing)
| .062" Wall Thickness CE Canvas Tubes | |||||
| Part # | OD (in.) | ID (in.) | Minimum to Order | Price Per Foot | Order Online |
|---|---|---|---|---|---|
| KM-2001 | .313 | .187 | 9 Feet | $6.15 | Add to Order |
| KM-2005 | .375 | .250 | 9 Feet | $7.15 | Add to Order |
| KM-2009 | .438 | .312 | 9 Feet | $9.00 | Add to Order |
| KM-2013 | .500 | .375 | 72 Feet | $7.57 | Add to Order |
| KM-2021 | .625 | .500 | 63 Feet | $15.93 | Add to Order |
| KM-2027 | .688 | .562 | 60 Feet | $16.73 | Add to Order |
| KM-2032 | .750 | .625 | 60 Feet | $17.50 | Add to Order |
| KM-2038 | .813 | .687 | 57 Feet | $18.30 | Add to Order |

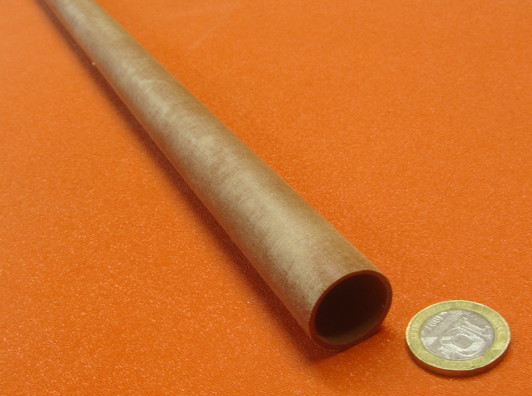

| KM-2041 | .875 | .750 | 51 Feet | $19.63 | Add to Order |

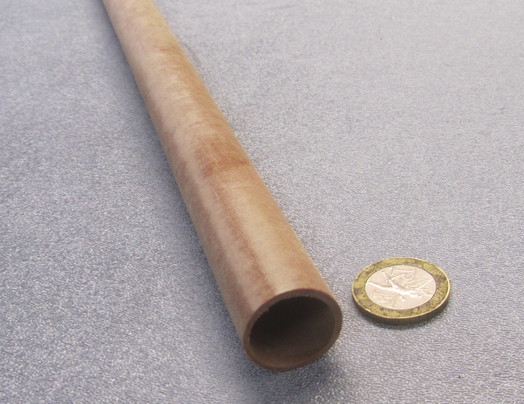

| KM-18751 | .938 | .812 | 51 Feet | $20.43 | Add to Order |
| KM-2046 | 1.00 | .875 | 48 Feet | $21.25 | Add to Order |
| KM-18739 | 1.062 | .937 | 48 Feet | $22.05 | Add to Order |
| KM-2052 | 1.125 | 1.00 | 45 Feet | $22.85 | Add to Order |
| KM-18757 | 1.187 | 1.062 | 45 Feet | $23.65 | Add to Order |
| KM-18746 | 1.250 | 1.125 | 42 Feet | $24.47 | Add to Order |
| KM-18745 | 1.312 | 1.187 | 42 Feet | $25.28 | Add to Order |
| KM-2057 | 1.375 | 1.250 | 39 Feet | $26.10 | Add to Order |
| KM-18743 | 1.437 | 1.312 | 39 Feet | $26.90 | Add to Order |
| KM-18742 | 1.500 | 1.375 | 39 Feet | $27.70 | Add to Order |
| KM-18741 | 1.562 | 1.437 | 36 Feet | $28.53 | Add to Order |
| KM-2062 | 1.625 | 1.500 | 36 Feet | $29.33 | Add to Order |
| KM-18627 | 1.688 | 1.562 | 36 Feet | $30.13 | Add to Order |
| KM-18502 | 1.750 | 1.625 | 33 Feet | $30.95 | Add to Order |
| KM-18649 | 1.812 | 1.687 | 33 Feet | $31.75 | Add to Order |
| KM-2067 | 1.875 | 1.750 | 33 Feet | $32.57 | Add to Order |
| KM-18551 | 1.937 | 1.812 | 30 Feet | $33.38 | Add to Order |
| KM-18550 | 2.00 | 1.875 | 30 Feet | $34.18 | Add to Order |
| KM-18549 | 2.062 | 1.937 | 30 Feet | $34.98 | Add to Order |
| KM-2072 | 2.125 | 2.00 | 30 Feet | $35.80 | Add to Order |
| KM-18547 | 2.188 | 2.062 | 30 Feet | $36.60 | Add to Order |

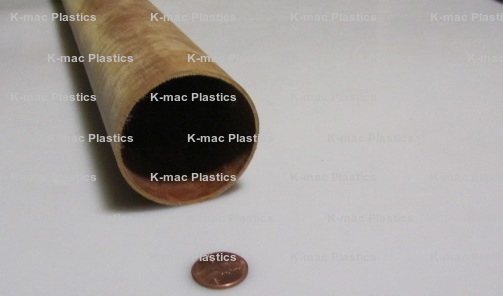

| KM-18537 | 2.25 | 2.125 | 27 Feet | $37.43 | Add to Order |
| KM-18545 | 2.312 | 2.187 | 27 Feet | $38.22 | Add to Order |
| KM-2077 | 2.375 | 2.250 | 27 Feet | $39.03 | Add to Order |
| KM-18543 | 2.437 | 2.312 | 27 Feet | $39.85 | Add to Order |
| KM-18542 | 2.50 | 2.375 | 27 Feet | $40.65 | Add to Order |
| KM-18541 | 2.562 | 2.437 | 27 Feet | $41.45 | Add to Order |
| KM-2082 | 2.625 | 2.50 | 24 Feet | $42.28 | Add to Order |
| KM-18539 | 2.688 | 2.562 | 24 Feet | $43.08 | Add to Order |
| KM-18538 | 2.75 | 2.625 | 24 Feet | $43.90 | Add to Order |
| KM-18563 | 2.812 | 2.687 | 24 Feet | $44.70 | Add to Order |
| KM-2087 | 2.875 | 2.750 | 24 Feet | $45.50 | Add to Order |
| KM-18546 | 2.937 | 2.812 | 24 Feet | $46.30 | Add to Order |
| KM-18571 | 3.000 | 2.875 | 24 Feet | $47.13 | Add to Order |
| KM-18570 | 3.062 | 2.937 | 21 Feet | $47.93 | Add to Order |
| KM-2092 | 3.125 | 3.00 | 21 Feet | $48.75 | Add to Order |
| KM-18568 | 3.188 | 3.062 | 21 Feet | $49.55 | Add to Order |
| KM-18567 | 3.25 | 3.125 | 21 Feet | $50.38 | Add to Order |
| KM-18566 | 3.312 | 3.187 | 21 Feet | $51.18 | Add to Order |
| KM-2097 | 3.375 | 3.250 | 21 Feet | $51.97 | Add to Order |
| KM-18564 | 3.437 | 3.312 | 21 Feet | $52.78 | Add to Order |
| KM-18573 | 3.500 | 3.375 | 21 Feet | $53.60 | Add to Order |
| KM-18562 | 3.562 | 3.437 | 21 Feet | $54.40 | Add to Order |
| KM-2102 | 3.625 | 3.50 | 21 Feet | $55.23 | Add to Order |
| KM-18560 | 3.687 | 3.562 | 18 Feet | $56.03 | Add to Order |
| KM-18559 | 3.75 | 3.625 | 18 Feet | $56.83 | Add to Order |
| KM-18558 | 3.812 | 3.687 | 18 Feet | $57.63 | Add to Order |
| KM-2107 | 3.875 | 3.750 | 18 Feet | $58.45 | Add to Order |
| KM-18528 | 3.937 | 3.812 | 18 Feet | $59.25 | Add to Order |
| KM-18572 | 4.00 | 3.875 | 18 Feet | $60.08 | Add to Order |
| KM-18544 | 4.062 | 3.937 | 18 Feet | $60.88 | Add to Order |
| KM-2112 | 4.125 | 4.00 | 18 Feet | $61.70 | Add to Order |
| KM-18516 | 4.187 | 4.062 | 18 Feet | $62.50 | Add to Order |
| KM-18515 | 4.25 | 4.125 | 18 Feet | $63.30 | Add to Order |
| KM-18514 | 4.312 | 4.187 | 18 Feet | $64.10 | Add to Order |
| KM-18513 | 4.375 | 4.250 | 18 Feet | $64.93 | Add to Order |
| KM-18512 | 4.437 | 4.312 | 18 Feet | $65.73 | Add to Order |
| KM-18511 | 4.500 | 4.375 | 18 Feet | $66.55 | Add to Order |
| KM-18501 | 4.562 | 4.438 | 15 Feet | $67.35 | Add to Order |
| KM-2117 | 4.625 | 4.500 | 15 Feet | $68.15 | Add to Order |
| KM-18518 | 4.687 | 4.562 | 15 Feet | $68.95 | Add to Order |
| KM-18507 | 4.75 | 4.625 | 15 Feet | $69.78 | Add to Order |
| KM-18506 | 4.812 | 4.687 | 15 Feet | $70.58 | Add to Order |
| KM-18505 | 4.875 | 4.750 | 15 Feet | $71.40 | Add to Order |
| KM-18504 | 4.937 | 4.812 | 15 Feet | $72.20 | Add to Order |

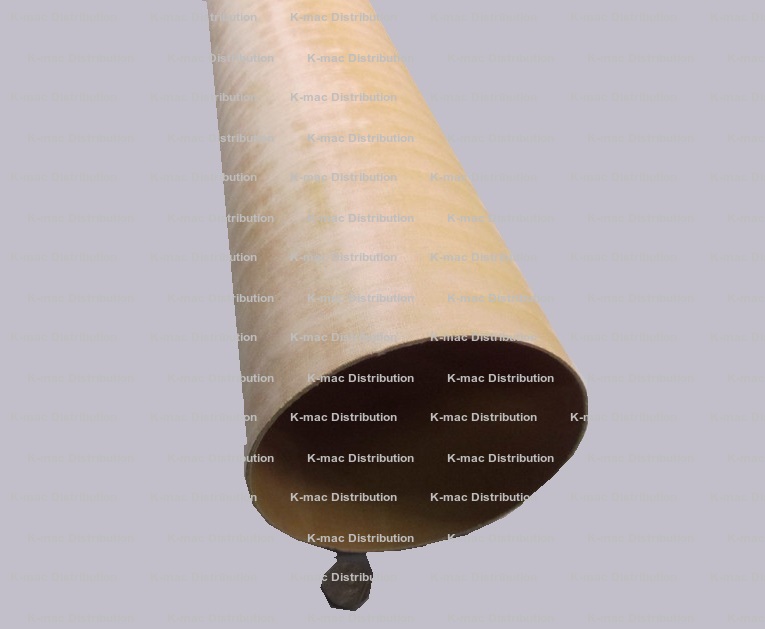

| KM-18503 | 5.00 | 4.875 | 15 Feet | $79.83 | Add to Order |
| KM-18526 | 5.062 | 4.937 | 15 Feet | $80.70 | Add to Order |
| KM-2122 | 5.125 | 5.00 | 15 Feet | $81.60 | Add to Order |
| KM-18510 | 5.187 | 5.062 | 15 Feet | $82.48 | Add to Order |
| KM-18535 | 5.25 | 5.125 | 12 Feet | $83.35 | Add to Order |
| KM-18534 | 5.312 | 5.187 | 12 Feet | $84.23 | Add to Order |

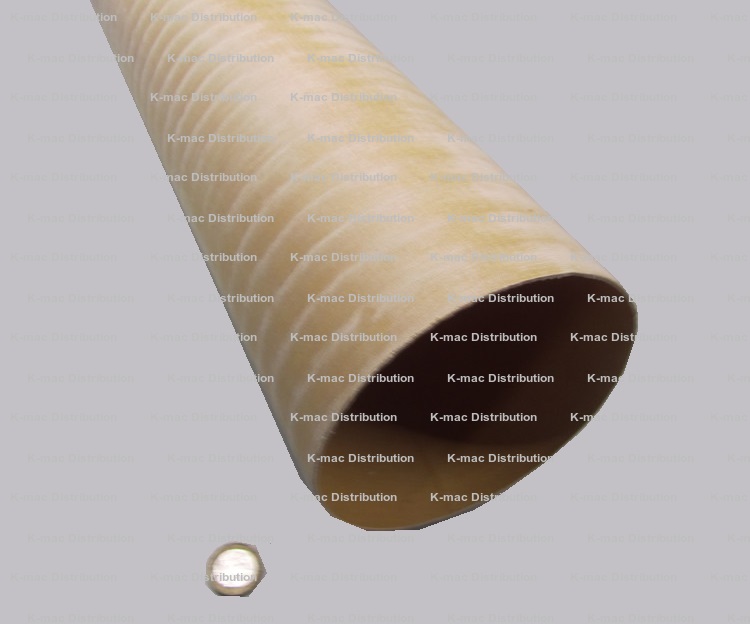

| KM-18533 | 5.375 | 5.250 | 12 Feet | $85.13 | Add to Order |
| KM-18532 | 5.437 | 5.313 | 12 Feet | $86.00 | Add to Order |
| KM-18531 | 5.50 | 5.375 | 12 Feet | $86.90 | Add to Order |
| KM-18530 | 5.562 | 5.437 | 12 Feet | $87.78 | Add to Order |
| KM-2128 | 5.625 | 5.50 | 12 Feet | $88.68 | Add to Order |
| KM-18529 | 5.688 | 5.562 | 12 Feet | $89.55 | Add to Order |

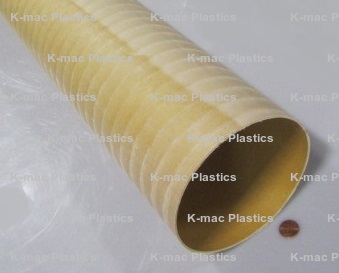

| KM-18519 | 5.75 | 5.625 | 12 Feet | $90.43 | Add to Order |

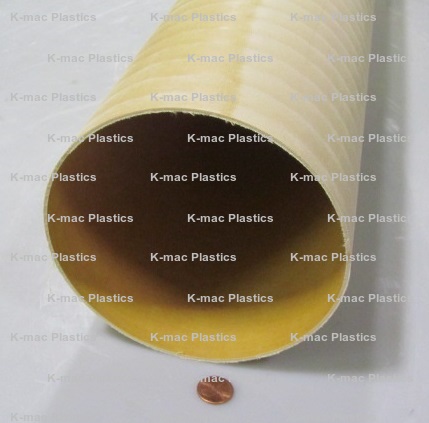

| KM-18527 | 5.812 | 5.687 | 12 Feet | $91.30 | Add to Order |
| KM-18536 | 5.875 | 5.750 | 12 Feet | $92.20 | Add to Order |
| KM-18525 | 5.938 | 5.812 | 12 Feet | $93.07 | Add to Order |
| KM-18524 | 6.00 | 5.875 | 12 Feet | $93.98 | Add to Order |
| KM-18523 | 6.063 | 5.937 | 12 Feet | $94.85 | Add to Order |
| KM-2134 | 6.125 | 6.00 | 12 Feet | $95.75 | Add to Order |
| KM-18521 | 6.187 | 6.062 | 15 Feet | $78.25 | Add to Order |
| KM-18520 | 6.250 | 6.125 | 15 Feet | $79.05 | Add to Order |
| KM-18590 | 6.312 | 6.187 | 15 Feet | $79.85 | Add to Order |
| KM-18646 | 6.375 | 6.250 | 15 Feet | $80.65 | Add to Order |
| KM-18556 | 6.437 | 6.312 | 15 Feet | $81.45 | Add to Order |
| KM-18626 | 6.50 | 6.375 | 15 Feet | $82.25 | Add to Order |
| KM-18625 | 6.562 | 6.437 | 15 Feet | $83.03 | Add to Order |
| KM-18624 | 6.625 | 6.500 | 12 Feet | $83.85 | Add to Order |
| KM-18623 | 6.688 | 6.562 | 12 Feet | $84.63 | Add to Order |
| KM-18622 | 6.750 | 6.625 | 12 Feet | $85.43 | Add to Order |
| KM-18611 | 6.812 | 6.687 | 12 Feet | $86.23 | Add to Order |
| KM-18619 | 6.875 | 6.750 | 12 Feet | $87.03 | Add to Order |
| KM-18628 | 6.938 | 6.812 | 12 Feet | $87.83 | Add to Order |
| KM-18617 | 7.00 | 6.875 | 12 Feet | $88.63 | Add to Order |
| KM-18616 | 7.062 | 6.938 | 12 Feet | $89.43 | Add to Order |
| KM-18615 | 7.125 | 7.000 | 12 Feet | $90.23 | Add to Order |
| KM-18614 | 7.187 | 7.062 | 12 Feet | $91.02 | Add to Order |
| KM-18613 | 7.250 | 7.125 | 12 Feet | $91.82 | Add to Order |
| KM-18612 | 7.312 | 7.187 | 12 Feet | $92.63 | Add to Order |
| KM-18637 | 7.375 | 7.250 | 12 Feet | $93.43 | Add to Order |
| KM-18639 | 7.437 | 7.312 | 12 Feet | $94.23 | Add to Order |
| KM-18620 | 7.50 | 7.375 | 12 Feet | $95.02 | Add to Order |
| KM-18645 | 7.562 | 7.437 | 12 Feet | $95.80 | Add to Order |
| KM-18644 | 7.625 | 7.500 | 12 Feet | $96.63 | Add to Order |
| KM-18643 | 7.688 | 7.562 | 12 Feet | $97.40 | Add to Order |
| KM-18642 | 7.750 | 7.625 | 12 Feet | $98.23 | Add to Order |
| KM-18641 | 7.812 | 7.687 | 12 Feet | $99.00 | Add to Order |
| KM-18640 | 7.875 | 7.750 | 12 Feet | $99.80 | Add to Order |
| KM-18629 | 7.938 | 7.812 | 12 Feet | $100.60 | Add to Order |
| KM-18638 | 8.000 | 7.875 | 12 Feet | $101.40 | Add to Order |
| KM-18647 | 8.062 | 7.937 | 12 Feet | $102.20 | Add to Order |
| KM-18636 | 8.125 | 8.000 | 12 Feet | $103.00 | Add to Order |
| KM-18634 | 8.250 | 8.125 | 12 Feet | $104.60 | Add to Order |
| KM-18633 | 8.312 | 8.187 | 12 Feet | $105.40 | Add to Order |
| KM-18632 | 8.375 | 8.250 | 12 Feet | $106.20 | Add to Order |
| KM-18631 | 8.437 | 8.312 | 12 Feet | $107.00 | Add to Order |
| KM-18630 | 8.500 | 8.375 | 12 Feet | $107.80 | Add to Order |
| KM-18609 | 8.562 | 8.437 | 12 Feet | $108.58 | Add to Order |
| KM-18581 | 8.625 | 8.500 | 12 Feet | $109.40 | Add to Order |
