Canvas C Grade Fabric Reinforced Phenolic Tubes .031" Wall Thickness

Canvas Phenolic Tubes .031" Wall

Canvas C Fabric Reinforced Phenolic Tubes - natural (light tan to brown) Technical Data Sheet
This grade is composed of a continuous cotton woven cloth impregnated with a phenolic resin binder. This grade contains a medium weave canvas and is known primarily for it's mechanical properties. This grade is not recommended for primary insulation.

NEMA grades C Canvas Cotton-Cloth Reinforced Phenolic -- natural color is typically light tan to brown. C grade are composed of a continuous cotton woven cloth impregnated with a phenolic resin binder. These grades contain a medium weave canvas and are known primarily for their mechanical properties. These grades are not recommended for primary electrical insulation.

NEMA C certs to Mil-I-13768/16 FBM, IEC 60893-3 Type 4, PF CC 201
 Chemical Resistance Chart

C  Tubes    C/CE Sheets  C/CE Bar Stock


Wall Thickness Options
.031" .062" .093" .125"
.187" .250" .375" .500"
.750" 1.00"

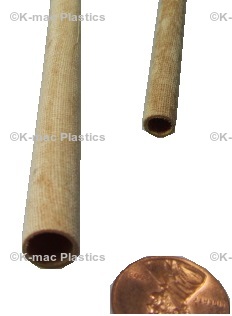

.031" Wall Thickness - Canvas Laminate Tubes
Stock # OD Inches ID Inches Wall Inches Min. Feet to Purchase Price Per Foot Purchase Online
KM-2000 .250 .187 0.031 6 7.95 Buy Now
KM-2004 .313 .250 0.031 6 8.95 Buy Now
KM-2008 .375 .312 0.031 6 9.28 Buy Now
KM-2012 .438 .375 0.031 6 9.53 Buy Now
KM-2016 .500 .437 0.031 30 12.60 Buy Now
KM-2020 .563 .500 0.031 6 10.03 Buy Now
KM-2026 .625 .562 0.031 27 13.85 Buy Now
KM-2031 .688 .625 0.031 6 14.38 Buy Now
KM-2037 .750 .687 0.031 27 14.10 Buy Now
KM-2040 .813 .750 0.031 18 16.05 Buy Now
KM-2051 1.063 1.00 0.031 18 18.60 Buy Now
KM-5058 1.562 1.500 0.031 12 36.00 Buy Now



nominal inches,meter

plus or minus (±) tolerance, inches

ID inside diameter

OD outside diameter

steel
mandrel

built-up
mandrel

.125" -.749"

.003"

-

.005"

.750" - 1.999"

.004"

-

.005"

2.000" - 4.000"

.006"

-

.008"



*turned

*as wound

4.001" - 12.000"

.010"

-

.025"

plus only

12.001" - 18.000"

.030"

.060"

.030"

plus only

18.001" - 24.000"

.040"

.075"

.035"

plus only

24.001" - 48.000"

.060"

.090"

.040"

plus only

*Note: tubing over 8.000" OD supplied as wound (turned OD quoted on request)
