Plastic Extruded Acrylic Tubes

Acrylic Tubes and Shapes
Acrylic shapes have been part of a wide range of applications in industry, product design, home furnishings, and displays. Clear, lightweight acrylic shapes enhance the beauty of any exhibit. Acrylic is easily fabricated without costly tooling charges, can be heat formed for a variety of desired effects, and is easily printed or embossed upon. Two grades are available; extruded and cast.

Extruded offers good clarity at an economical price and Cast offers consistent and superior clarity for more high tech applications. There are over 75 sizes of tubing, rods, shapes and geometric forms. Custom forms are available on request.

acrylic rod and tube





Acrylic Tubing
This UV stabilized tubing will not yellow or brittle significantly on exposure to sunlight.

Acrylic Chemical Resistance Chart

Technical Data Sheet



Acrylic Tube

Colored Acrylic Rods Colored Acrylic Tubes

Cast Acrylic Tubes   Square Extruded Acrylic Tubes

Acrylic Clear Round Extruded Tubing

Shipped in 6 Foot Standard Lengths

Tubes are shipped in Kraft Corrugated Tubes for protection from transit damage.  There is an additional package fee based on the diameter.

Part # OD (in.) ID (in.) Wall (in.) Minimum Order Price Per Foot Order Online
KM-671 .250 .125 .063 300' $0.22 Add to Order
KM-2140 .312 .187 .063 216' $0.32 Add to Order
KM-4603 .375 .125 .125 150' $0.63 Add to Order
KM-4604 .375 .250 .063 180' $0.37 Add to Order
KM-3100T .500 .187 .156 60' $1.74 Add to Order
KM-672 .500 .250 .125 96' $0.93 Add to Order
KM-821 .500 .375 .063 210' $0.55 Add to Order
KM-2143 .625 .375 .125 60' $1.25 Add to Order
KM-2142 .625 .500 .063 96' $0.70 Add to Order
KM-3100A .750 .250 .250 12' $6.29 Add to Order
KM-673 .750 .500 .125 60' $1.25 Add to Order
KM-2144 .750 .625 .063 96' $0.86 Add to Order
KM-3100B .875 .375 .250 12' $6.52 Add to Order
KM-2146 .875 .625 .125 54' $1.88 Add to Order
KM-2145 .875 .750 .063 96' $1.02 Add to Order
KM-8011 1.00 .500 .250 36' $4.49 Add to Order
KM-674 1.00 .750 .125 72' $1.37 Add to Order
KM-2147 1.00 .875 .063 72' $1.17 Add to Order
KM-7981 1.125 1.00 .062 48' $1.86 Add to Order
KM-3100C 1.25 .750 .250 12' $7.71 Add to Order
KM-2148 1.25 1.125 .062 48' $1.80 Add to Order
KM-675 1.25 1.00 .125 48' $2.82 Add to Order
KM-5743 1.375 1.125 .125 48' $3.35 Add to Order
KM-3100Q 1.50 .500 .500 6' $31.13 Add to Order
KM-2162 1.50 1.00 .250 24' $7.52 Add to Order
KM-2149 1.50 1.25 .125 30' $3.17 Add to Order
KM-2925A 1.625 1.375 .125 24' $4.52 Add to Order
KM-3100D 1.75 1.25 .250 12' $10.93 Add to Order
KM-2150 1.75 1.50 .125 36' $3.85 Add to Order
KM-7984 1.875 1.625 .125 24' $6.65 Add to Order
KM-5750 1.875 1.375 .250 18' - Special Order $10.46 Add to Order
KM-2163 2.00 1.50 .250 12' $9.96 Add to Order
KM-3100L 2.00 1.625 .187 12' $9.00 Add to Order
KM-2151 2.00 1.75 .125 36' $4.09 Add to Order
KM-7982 2.00 1.875 .062 36' $3.22 Add to Order
KM-5693 2.25 1.75 .250 12' $11.37 Add to Order
KM-676 2.25 2.00 .125 24' $5.03 Add to Order
KM-5747 2.375 1.875 .250 12' - Special Order $13.55 Add to Order
KM-2164 2.50 2.00 .250 12' $12.80 Add to Order
KM-2152 2.50 2.25 .125 18' - Special Order $5.63 Add to Order
KM-8012 2.75 2.25 .250 12' $16.59 Add to Order
KM-2153 2.75 2.50 .125 18' $7.39 Add to Order
KM-2165 3.00 2.50 .250 12' $18.25 Add to Order
KM-2154 3.00 2.75 .125 18' $6.81 Add to Order
KM-3100F 3.125 2.625 .250 6' $24.28 Add to Order
KM-3100E 3.25 2.75 .250 6' $26.04 Add to Order
KM-677 3.25 3.00 .125 12' $11.85 Add to Order
KM-2166 3.50 3.00 .250 6' $21.56 Add to Order
KM-2156 3.50 3.25 .125 6' $11.19 Add to Order
KM-8013 3.75 3.25 .250 6' $26.54 Add to Order
KM-2157 3.75 3.50 .125 6' $13.75 Add to Order
KM-2167 4.00 3.50 .250 6' $24.89 Add to Order
KM-3100M 4.00 3.625 .187 6' $23.55 Add to Order
KM-2158 4.00 3.75 .125 6' $12.86 Add to Order
KM-5748 4.25 3.75 .250 6' $25.48 Add to Order
KM-7985 4.25 4.00 .125 6' $15.64 Add to Order
KM-2168 4.50 4.00 .250 6' $28.20 Add to Order
KM-2159 4.50 4.25 .125 6' $14.52 Add to Order
KM-7986 4.75 4.50 .125 6' $17.53 Add to Order
KM-2169 5.00 4.50 .125 6' $31.52 Add to Order
KM-2160 5.00 4.75 .125 6' $17.42 Add to Order
KM-8014 5.25 4.75 .250 6' $37.86 Add to Order
KM-7987 5.25 5.00 .125 6' $21.88 Add to Order
KM-8015 5.50 5.00 .250 6' $39.91 Add to Order
KM-7988 5.50 5.25 .125 6' $22.93 Add to Order
KM-8016 6.00 5.50 .250 6' $43.52 Add to Order
KM-2161 6.00 5.75 .125 6' $31.79 Add to Order
KM-7990 6.50 6.25 .125 6' $49.68 Add to Order
KM-8017 7.00 6.50 .250 6' $78.01 Add to Order
KM-7991 7.00 6.75 .125 6' $55.87 Add to Order
KM-3100H 7.50 7.00 .250 6' $103.23 Add to Order
KM-7992 7.50 7.25 .125 6' $62.80 Add to Order
KM-8018 8.00 7.50 .250 6' $87.96 Add to Order
KM-7993 8.00 7.75 .125 6' $69.27 Add to Order
KM-3100K 8.50 8.00 .250 6' $103.23 Add to Order
KM-7994 8.50 8.25 .125 6' $78.15 Add to Order
KM-8019 9.00 8.50 .250 6' $103.84 Add to Order
KM-7995 9.00 8.75 .125 6' $85.29 Add to Order
KM-7996 9.50 9.25 .125 6' $90.98 Add to Order
KM-8021 10.00 9.50 .250 6' $136.09 Add to Order
KM-3100N 10.00 9.625 .187 6' $134.18 Add to Order
KM-7997 10.00 9.75 .125 6' $101.39 Add to Order
KM-8022 12.00 11.50 .250 6' $175.91 Add to Order
KM-7998 12.00 11.75 .125 6' $134.31 Add to Order
KM-24077 14.00 13.50 .250 6' $290.32 Add to Order
KM-24039 14.00 13.75 .125 6' $180.27 Add to Order

Cat Acrylic Tubes

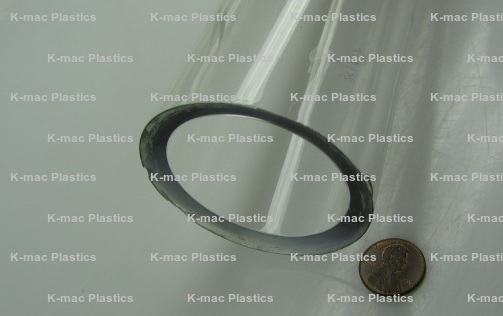

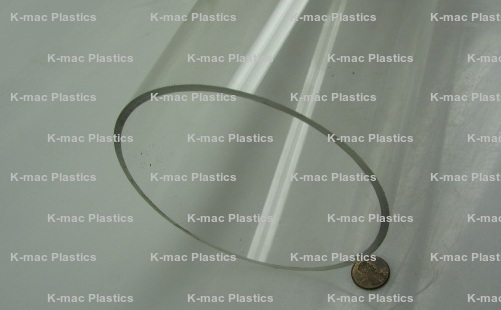

Cast Acrylic Round Tubes, Clear

5 Foot Standard Lengths, Unless Noted

* Available in 6 Foot Lengths

Part # OD (in.) ID (in.) Price Per Foot Order Online
KM-829 1.50 1.00 $81.06 Add to Order
KM-830 1.50 1.125 $71.82 Add to Order
KM-23683 1.50 1.187 $78.08 Add to Order

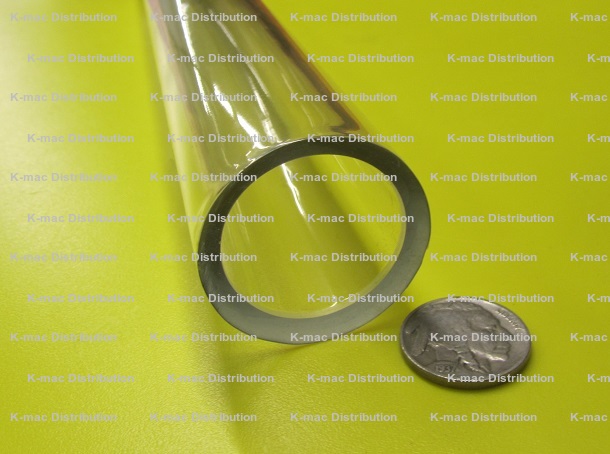

KM-831 1.50 1.25 $73.88 Add to Order
KM-832 1.75 1.250 $91.42 Add to Order

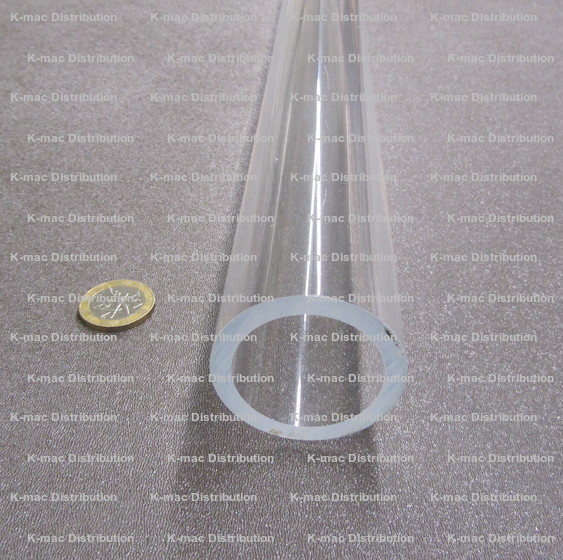

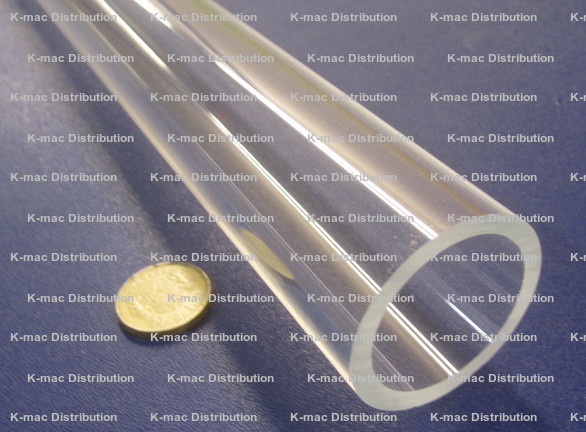

KM-833 1.75 1.375 $111.51 Add to Order
KM-834 1.75 1.50 $81.93 Add to Order

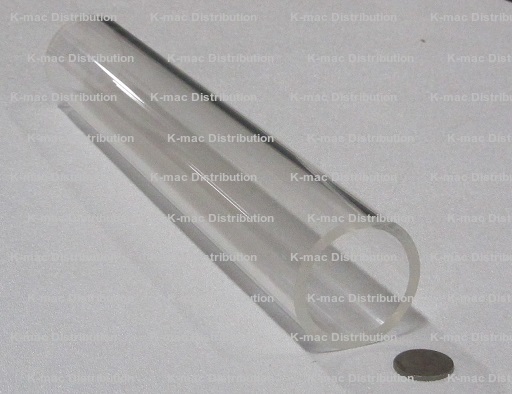

KM-835 2.00 1.50 $93.94 Add to Order

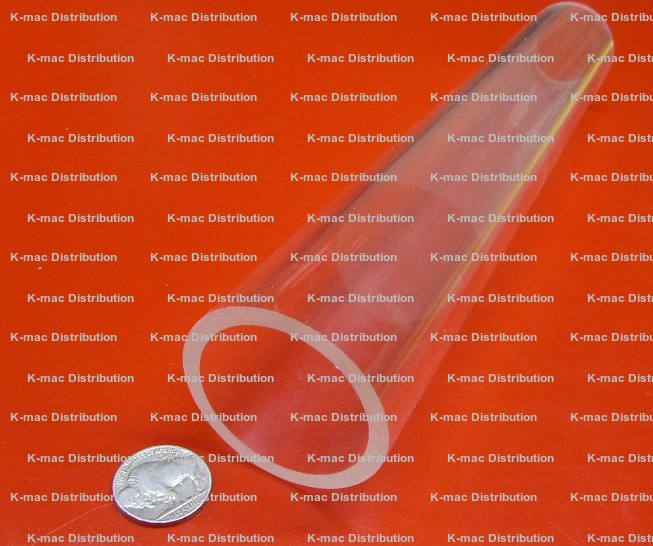

KM-836 2.00 1.625 $82.39 Add to Order
KM-837 2.00 1.75 $84.24 Add to Order
KM-838 2.25 1.75 $96.11 Add to Order
KM-839 2.25 2.00 $84.35 Add to Order

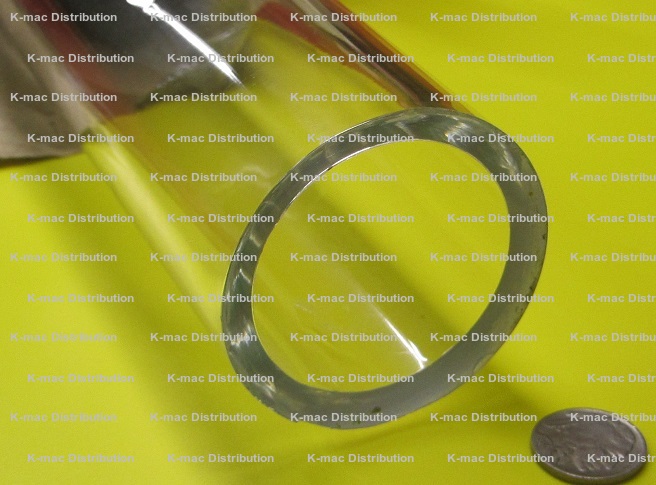

KM-840 2.50 2.00 $100.17 Add to Order
KM-841 2.50 2.125 $83.30 Add to Order
KM-842 2.50 2.25 $75.46 Add to Order
KM-843 2.75 2.25 $100.17 Add to Order

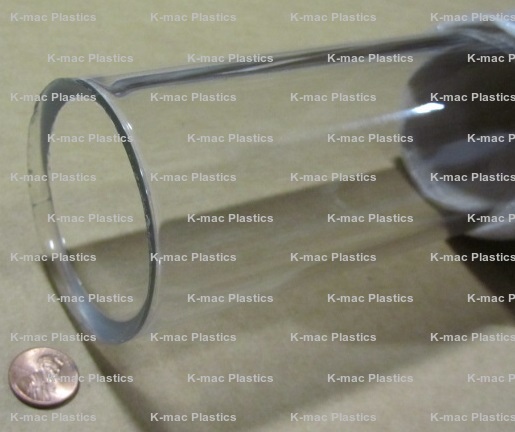

KM-844 2.75 2.375 $85.19 Add to Order
KM-845 2.75 2.50 $75.88 Add to Order

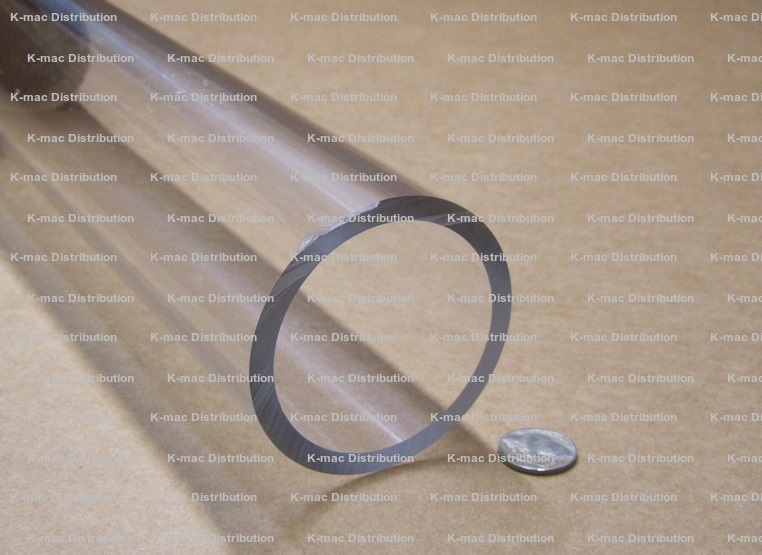

KM-846 3.00 2.50 $102.34 Add to Order

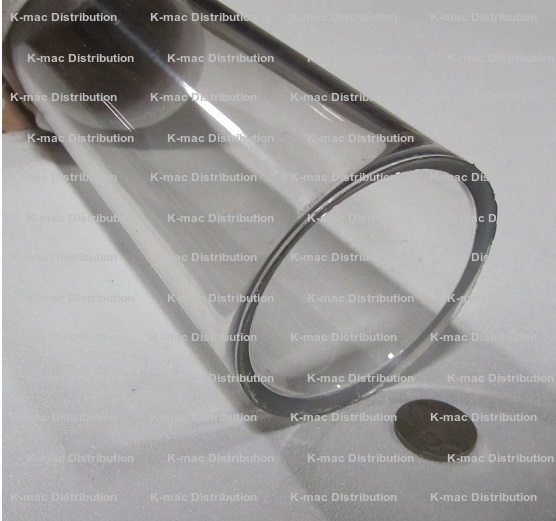

KM-849 3.00 2.625 $87.01 Add to Order

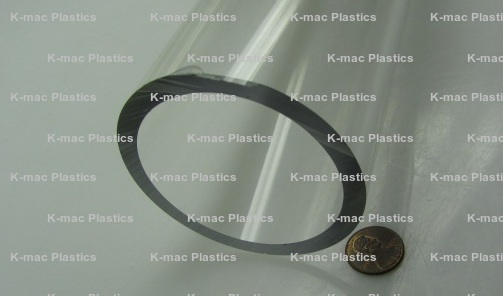

KM-850 3.00 2.75 $76.72 Add to Order
KM-854 3.00 3.50 $107.17 Add to Order

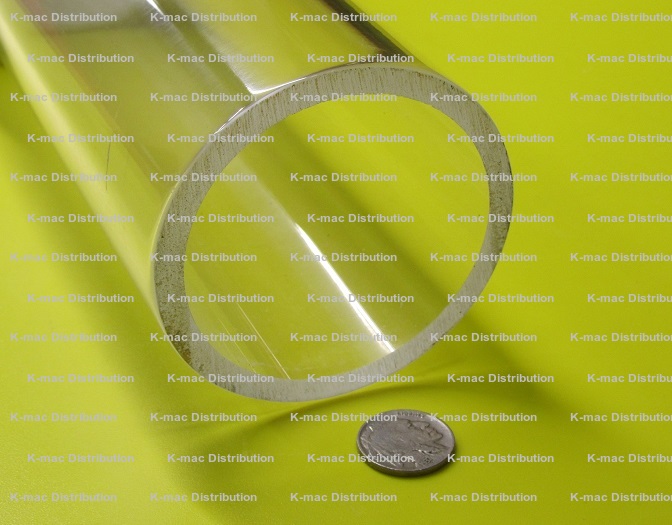

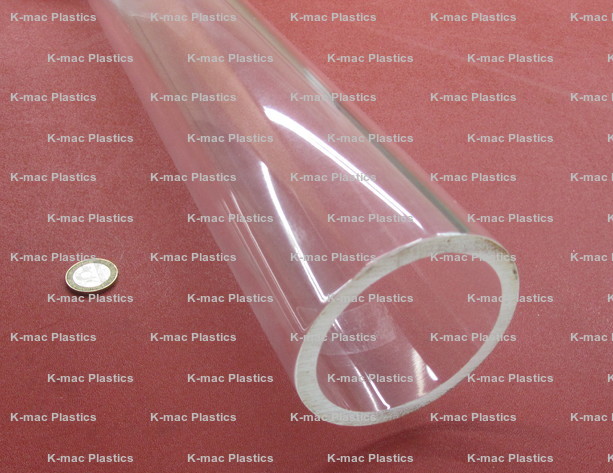

KM-851 3.25 2.75 $105.84 Add to Order
KM-852 3.25 2.875 $88.34 Add to Order

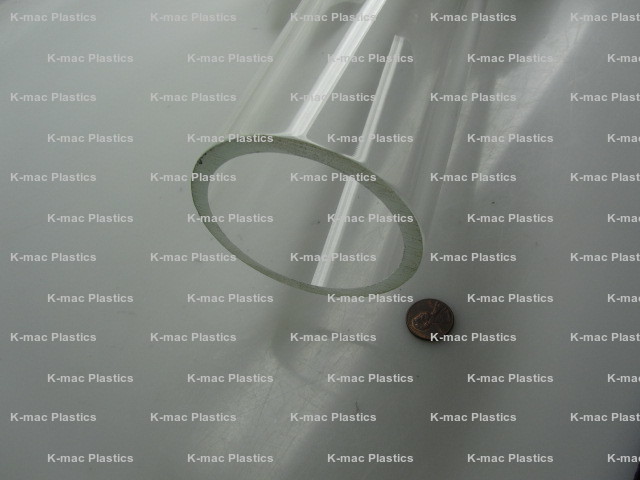

KM-853 3.25 3.00 $78.75 Add to Order

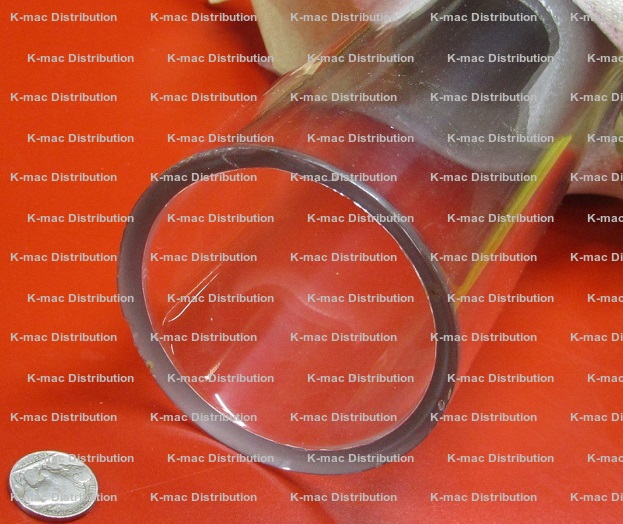

KM-854 3.50 3.00 $107.17 Add to Order

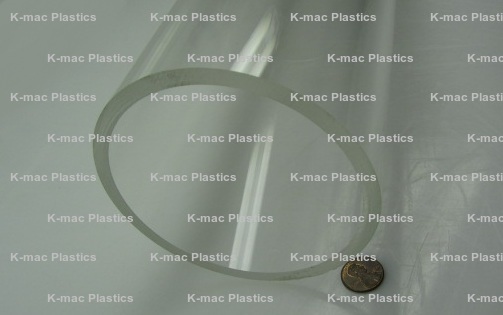

KM-855 3.50 3.125 $91.56 Add to Order

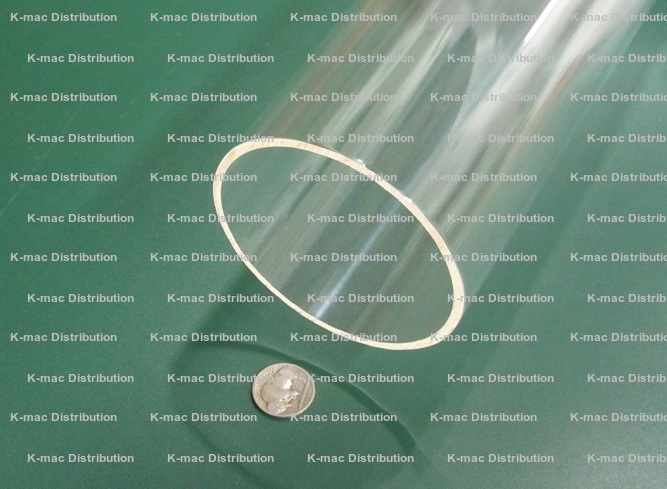

KM-856 3.50 3.25 $114.55 Add to Order
KM-5495X 3.75 3.25 $77.80 Add to Order
KM-2742 3.75 3.375 $101.94 Add to Order
KM-2737 3.75 3.50 $85.12 Add to Order
KM-857 4.00 3.25 $245.07 Add to Order
KM-861 4.00 3.50 $102.77 Add to Order
KM-862 4.00 3.625 $92.24 Add to Order
KM-860 4.00 3.75 $76.96 Add to Order
KM-2748 4.25 3.50 $237.25 Add to Order

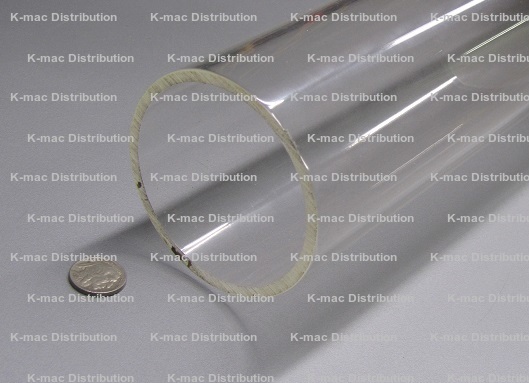

KM-2746 4.25 3.75 $106.08 Add to Order
KM-2743 4.25 3.875 $92.95 Add to Order
KM-2738 4.25 4.00 $81.54 Add to Order
KM-864 4.50 3.75 $239.98 Add to Order
KM-865 4.50 4.00 $107.25 Add to Order
KM-866 4.50 4.125 $103.95 Add to Order
KM-867 4.50 4.25 $85.47 Add to Order
KM-2750 4.75 4.00 $254.61 Add to Order
KM-2747 4.75 4.25 $113.23 Add to Order
KM-2744 4.75 4.375 $99.71 Add to Order
KM-2739 4.75 4.50 $83.84 Add to Order
KM-868 5.00 4.25 $289.45 Add to Order
KM-869 5.00 4.50 $122.78 Add to Order
KM-870 5.00 4.625 $112.35 Add to Order
KM-871 5.00 4.75 $91.91 Add to Order
KM-2758 5.25 4.875 $116.07 Add to Order
KM-2775 5.25 4.50 $309.89 Add to Order
KM-2767 5.25 4.75 $132.58 Add to Order
KM-2751 5.25 5.00 $92.56 Add to Order
KM-872 5.50 4.75 $317.48 Add to Order
KM-873 5.50 5.00 $130.52 Add to Order
KM-874 5.50 5.125 $116.36 Add to Order
KM-875 5.50 5.250 $93.29 Add to Order
KM-2776 5.75 5.00 $349.64 Add to Order
KM-2768 5.75 5.25 $131.62 Add to Order
KM-2759 5.75 5.375 $116.80 Add to Order
KM-2752 5.75 5.50 $94.68 Add to Order
KM-876 6.00 5.25 $348.06 Add to Order
KM-877 6.00 5.50 $137.90 Add to Order
KM-878 6.00 5.625 $118.55 Add to Order
KM-879 6.00 5.575 $98.12 Add to Order
KM-665 6.00 5.750 $96.80 Add to Order
KM-2777 6.50 5.75 $613.13 Add to Order
KM-2769 6.50 6.00 $145.64 Add to Order
KM-2760 6.50 6.125 $133.08 Add to Order
KM-2753 6.50 6.25 $122.49 Add to Order
KM-880 7.00 6.25 $628.38 Add to Order
KM-882 7.00 6.625 $139.80 Add to Order
KM-881 7.00 6.50 $153.88 Add to Order
KM-883 7.00 6.75 $126.51 Add to Order
KM-2778 7.50 6.75 $653.50 Add to Order
KM-2770 7.50 7.00 $176.22 Add to Order
KM-2761 7.50 7.125 $141.04 Add to Order
KM-2754 7.50 7.25 $132.93 Add to Order
KM-886 8.00 7.625 $148.85 Add to Order
KM-884 8.00 7.25 $682.92 Add to Order
KM-885 8.00 7.75 $201.33 Add to Order
KM-887 8.00 7.775 $144.25 Add to Order
KM-2779 8.50 7.75 $699.77 Add to Order
KM-2771 8.50 8.00 $260.25 Add to Order
KM-2762 8.50 8.125 $206.30 Add to Order
KM-2756 8.50 8.25 $154.47 Add to Order
KM-2763 9.00 8.625 $334.26 Add to Order
KM-668 9.00 8.75 $302.94 Add to Order
KM-2780 9.00 8.25 $1,140.56 Add to Order
KM-2772 9.00 8.50 $375.55 Add to Order
KM-2781 9.50 8.75 $1,180.08 Add to Order
KM-2773 9.50 9.00 $446.44 Add to Order
KM-2764 9.50 9.125 $428.09 Add to Order
KM-2757 9.50 9.25 $263.96 Add to Order
KM-5259 10.00 8.00 $9,654.04 Add to Order 6 Ft. Lengths Only
KM-888 10.00 9.00 $3,402.17 (2 Ft. Length) Add to Order
KM-2782 10.00 9.25 $689.98 Add to Order
KM-889 10.00 9.50 $368.31 Add to Order
KM-2765 10.00 9.625 $288.53 Add to Order
KM-890 10.00 9.75 $183.33 Add to Order
KM-891 10.50 9.50 $2,714.67 (2 Ft Length) Add to Order
KM-892 10.50 10.00 $1,692.34 (2 Ft Length) Add to Order
KM-893 10.50 10.25 $1,051.79 (2 Ft Length) Add to Order
KM-895 11.00 10.50 $2,076.00 (2 Ft Length) Add to Order
KM-894 11.00 10.00 $2,856.57 (2 Ft Length) Add to Order
KM-896 11.00 10.75 $944.76 (2 Ft Length) Add to Order
KM-897 11.50 10.50 $2,769.75 (2 Ft Length) Add to Order
KM-898 11.50 11.00 $1,829.93 (2 Ft Length) Add to Order
KM-900 12.00 11.00 $4,240.61 (2 Ft Length) Add to Order
KM-2783 12.00 11.25 $1,011.39 Add to Order
KM-901 12.00 11.50 $426.71 Add to Order
KM-2766 12.00 11.625 $413.50 Add to Order
KM-902 12.00 11.75 $255.06 Add to Order
KM-902Y 13.00 12.25 $7,206.80 (90" Length) Add to Order
KM-903 14.00 13.00 $4,076.72 (2 Ft Length) Add to Order
KM-23684 14.00 13.25 $1,688.73 (5 Ft Length) Add to Order
KM-904 14.00 13.50 $2,142.46 (2 Ft Length) Add to Order
KM-23681 14.00 13.625 $3,327.15 (5 Ft Length) Add to Order
KM-905 14.00 13.75 $1,775.17 (2 Ft Length) Add to Order
KM-907 15.00 14.50 $1,821.80 (2 Ft Length*) Add to Order
KM-908 15.00 14.75 $1,618.04 (2 Ft Length*) Add to Order
KM-909 16.00 15.00 $4,110.00 (2 Ft Length*) Add to Order
KM-910 16.00 15.50 $2,711.52(2 Ft Length*) Add to Order
KM-912 18.00 17.50 $2,290.37 (2 Ft Length*) Add to Order
KM-913 18.00 17.75 $1,816.47 (2 Ft Length*) Add to Order
KM-590X 20.00 18.00 $11,898.25 (4 ft Length) Crating Charge Applies
KM-5366P 20.00 19.00 $9,757.75 (4 ft Length) Crating Charge Applies
KM-5366 20.00 19.50 $16,377.80 (4 ft Length) Crating Charge Applies
KM-5356R 24.00 22.50 $10,147.50 ( 4 Ft Length) Crating Charge Applies
KM-7980 24.00 23.00 $7,024.15 (4 ft Length) Crating Charge Applies
KM-5356P 27.50 26.00 $23,773.05 (84" Length) Crating Charge Applies
KM-5356N 27.50 26.50 $17,003.70 (84" Length) Crating Charge Applies
KM-913G 27.50 27.00 $13,312.53 (4 Ft Length) Crating Charge Applies
KM-115T 32.60 31.85 $8,813.70 (4 Ft Length) Crating Charge Applies
KM-913Q 32.60 32.10 $8,016.52 (4 Ft Length) Crating Charge Applies
KM-23309 36.00 35.00 $12,038.00 (4 Ft Length) Crating Charge Applies
KM-5367 44.70 43.95 $23,841.85 (90" Length) Crating Charge Applies
KM-5333 44.70 43.20 $36,969.05 (90" Length) Crating Charge Applies
KM-5368 44.70 43.70 $29,685.65 (90" Length) Crating Charge Applies
KM-5358 44.70 42.70 $44,498.70 (90" Length) Crating Charge Applies
KM-5356 72.00 70.00 $50,283.75 (90" Length) Crating Charge Applies
KM-5356T 96.00 94.00 $98,262.00 (90" Length) Crating Charge Applies

Wall Thickness Tolerances:

.250" (+/-.045")

.375" (+/-.055")

.500" (+/-.065")

.750" (+/-.090")

Outside Diameter Tolerances:
1.50" to 3.00" (+/-.020")
3.25" to 3.75" (+/-.030")
4.0" to 12.0" (+/-.065")
13" to 18" (+/-.080")
20" to 27.5" (+/-.100")
32.6" (+.250"/-.100")
36" (+/-.100")
42.5" (+0.00"/-.280")
44.7" to 60" (+/-.100")
72" (+.100"/-.300")
96" (+.100"/-.500")

Square Acrylic Tubes

Acrylic Square Tubing

Only shipped in Full Lengths

Tubes are shipped in Kraft Corrugated Tubes for protection from transit damage.  There is an additional package fee based on the diameter.

Part # Outer Width Inner Width Length Minimum Order Price Each Order Online
KTBS-014B 0.375 in. 0.250 in. 6 ft 72' $3.24 Add to Order
KTBS-002 0.500 in. 0.375 in. 6 ft 90' $5.56 Add to Order
KTBS-057 0.625 in. 0.5 in. 6 ft 54' $7.13 Add to Order
KTBS-099 0.750 in. 0.5 in. 8 ft 48' $57.49 Add to Order
KTBS-001 0.750 in. 0.625 in. 6 ft 48' $8.69 Add to Order
KTBS-048 1 in. 0.875 in. 6 ft 48' $11.83 Add to Order
KTBS-090 1 in. 0.75 in. 6 ft 48' $64.85 Add to Order
KTBS-100 1.25 in. 1.125 in. 8 ft 48' $40.39 Add to Order
KTBS-049 1.25 in. 1 in. 6 ft 48' $27.34 Add to Order
KTBS-056 1.50 in. 1.25 in. 6 ft 18' $36.70 Add to Order
KTBS-107 1.75 in. 1.625 in. 8 ft 48' $45.34 Add to Order
KTBS-113 1.75 in. 1.5 8 ft 48' $79.40 Add to Order
KTBS-059 2 in. 1.75 in. 6 ft 12' $49.98 Add to Order
KTBS-051 2.25 in. 2 in. 6 ft 18' $53.86 Add to Order
KTBS-053 2.50 in. 2.25 in. 6 ft 12' $79.97 Add to Order
KTBS-052 3 in. 2.75 in. 6 ft 12' $94.93 Add to Order


Extruded Acrylic Square Bars Mfg'd by FuturPlast
