Acetal Tubes - Delrin®, Acetron®
Acetal has dimensional stability,
lower moisture absorption, and easier machinability than nylon, but is not as
good in slide wear.
It is FDA/USDA/NSF/3A Dairy Approved, has continuous-use
temperature of 180°F, and is available in Homopolymers- Delrin, and Copolymers- Acetron / Celcon.
Product Technical Data
Chemical Resistance Chart
|
Acetal Delrin® Tubes - White
ASTM D-4181 POM111, 21CFR177.2480, NSF61, ASTM-D-6100 S-POM111, USDA, 3A Tolerances OD +0.050", ID -0.050" |
|||||
| O.D. (in.) | I.D. (in.) | Wall (in.) | Part # | Price Per 60" Tube | Order Online |
|---|---|---|---|---|---|
| 0.250 | .125 | .0625 | KM-956 | $6.56 | Add to Order |
| 0.500 | .250 | .125 | KM-957 | $16.51 | Add to Order |
| 0.625 | .375 | .125 | KM-2319 | $27.20 | Add to Order |
| 0.625 | .500 | .062 | KM-959 | $23.01 | Add to Order |
| 0.625 | .250 | .187 | KM-958 | $32.68 | Add to Order |
| 0.750 | .250 | .250 | KM-960 | $50.74 | Add to Order |
| 0.750 | .500 | .125 | KM-961 | $41.39 | Add to Order |
| 0.875 | .625 | .125 | KM-2320 | $49.34 | Add to Order |
| 1.000 | .500 | .250 | KM-962 | $66.11 | Add to Order |
| 1.250 | .750 | .250 | KM-963 | $73.85 | Add to Order |
| 1.250 | 1.000 | .125 | KM-964 | $54.29 | Add to Order |
| 1.500 | 1.000 | .250 | KM-965 | $105.89 | Add to Order |
| 1.500 | 1.250 | .125 | KM-966 | $73.96 | Add to Order |
| 1.750 | 1.250 | .250 | KM-967 | $131.15 | Add to Order |
| 1.750 | 1.500 | .125 | KM-2321 | $95.40 | Add to Order |
| 2.00 | 1.500 | .250 | KM-968 | $151.04 | Add to Order |
| 2.00 | 1.750 | .125 | KM-969 | $122.98 | Add to Order |
| 2.25 | 2.000 | .125 | KM-970 | $129.43 | Add to Order |
| 2.50 | 2.000 | .250 | KM-971 | $221.24 | Add to Order |
| Rev. 09-26, 08-26, 07-25, 03-25 | |||||
|
Acetal Dupont Delrin® Tubes -
Black
Tolerances OD +0.050", ID -0.050" |
|||||
| O.D. (in.) | I.D. (in.) | Wall (in.) | Part # | Price Per 60" Tube | Order Online |
|---|---|---|---|---|---|
| 0.250 | .125 | .062 | KM-28000 | $21.00 | Add to Order |
| 0.500 | .250 | .125 | KM-28001 | $55.95 | Add to Order |
| 0.625 | .250 | .187 | KM-28002 | $86.25 | Add to Order |
| 0.625 | .500 | .062 | KM-28003 | $64.05 | Add to Order |
| 0.750 | .250 | .250 | KM-28004 | $125.85 | Add to Order |
| 0.750 | .500 | .125 | KM-28005 | $111.30 | Add to Order |
| 0.875 | .625 | .125 | KM-28006 | $100.65 | Add to Order |
| 1.00 | .500 | .250 | KM-28007 | $145.75 | Add to Order |
| 1.25 | .750 | .250 | KM-28008 | $159.36 | Add to Order |
| 1.25 | 1.00 | .125 | KM-28009 | $139.35 | Add to Order |
| 1.50 | 1.00 | .250 | KM-28010 | $171.88 | Add to Order |
| 1.50 | 1.25 | .125 | KM-28011 | $165.14 | Add to Order |
| 1.75 | 1.25 | .250 | KM-28012 | $226.00 | Add to Order |
| 1.75 | 1.50 | .125 | KM-28013 | $182.38 | Add to Order |
| 2.00 | 1.50 | .250 | KM-28014 | $265.13 | Add to Order |
| 2.00 | 1.75 | .125 | KM-28015 | $168.38 | Add to Order |
| 2.25 | 2.00 | .125 | KM-28016 | $210.63 | Add to Order |
| 2.50 | 2.00 | .250 | KM-28017 | $340.50 | Add to Order |
| Rev. 03-25, 04-23, 09-22, 12-21 | |||||
|
Acetal Copolymer Tubes White
Standard Length is 5 Feet Tolerances OD +0.050", ID -0.050" |
|||||
| O.D. | I.D. | Wall | Part # | Price Per Foot | Order Online |
|---|---|---|---|---|---|
| .250 | .125 | .063 | KM-4910 | $1.46 | Add to Order |
| .500 | .250 | .125 | KM-4909 | $4.82 | Add to Order |
| .625 | .250 | .188 | KM-4908 | $6.54 | Add to Order |
| .625 | .375 | .125 | KM-4907 | $5.44 | Add to Order |
| .625 | .500 | .063 | KM-4948 | $4.60 | Add to Order |
| .750 | .250 | .250 | KM-4918 | $8.75 | Add to Order |

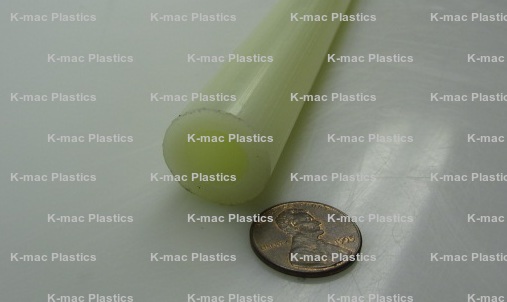

| .750 | .500 | .125 | KM-4920 | $8.28 | Add to Order |

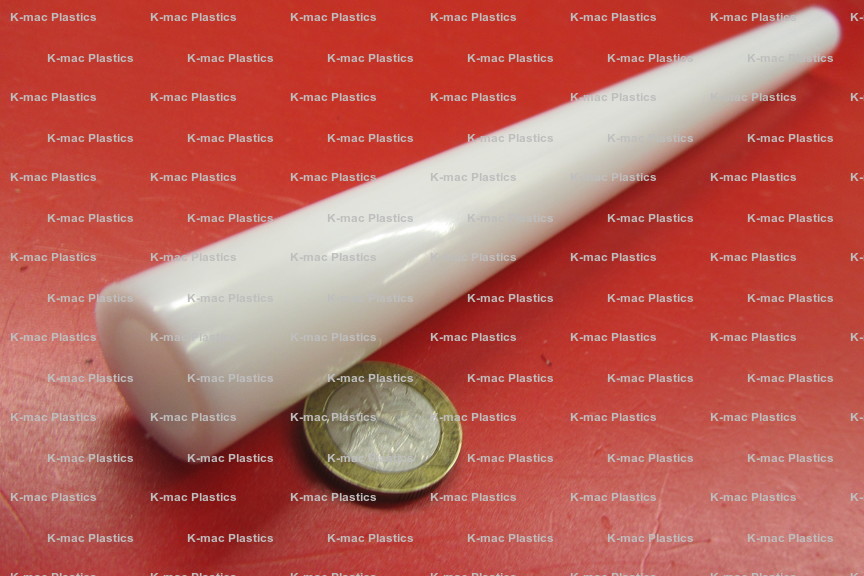

| .875 | .625 | .125 | KM-4963 | $9.57 | Add to Order |

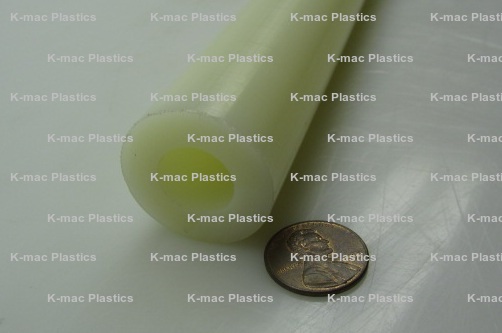

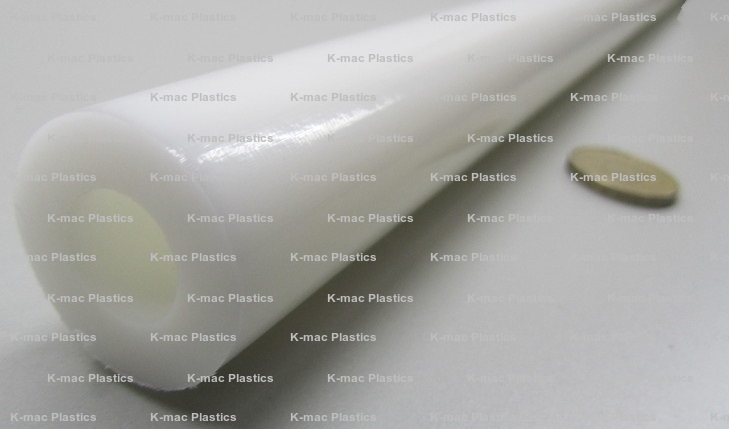

| 1.125 | .625 | .250 | KM-4961 | $15.97 | Add to Order |
| 1.00 | .500 | .250 | KM-4962 | $13.22 | Add to Order |
| 1.25 | .500 | .375 | KM-4960 | $19.76 | Add to Order |

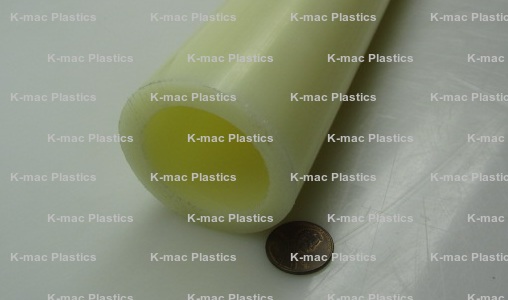

| 1.25 | 1.00 | .125 | KM-4958 | $10.86 | Add to Order |
| 1.50 | 1.00 | .250 | KM-4957 | $21.18 | Add to Order |
| 1.75 | 1.25 | .250 | KM-4956 | $26.23 | Add to Order |

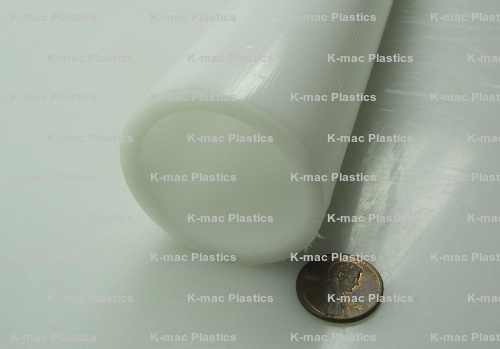

| 1.75 | 1.50 | .125 | KM-4955 | $19.07 | Add to Order |

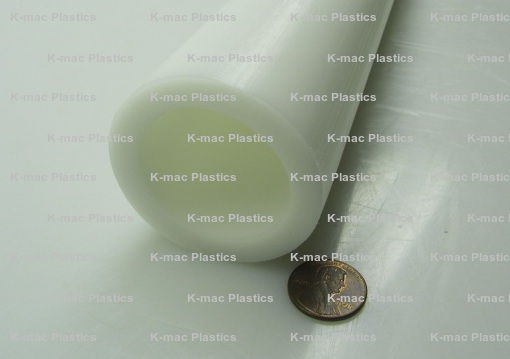

| 2.00 | 1.50 | .250 | KM-4954 | $30.21 | Add to Order |

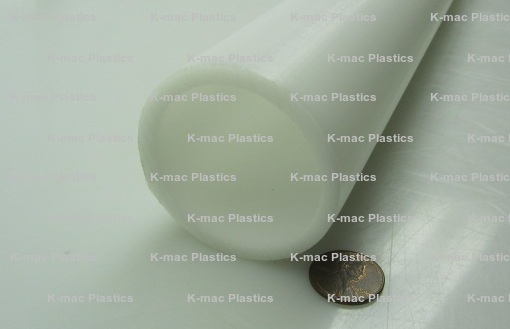

| 2.00 | 1.75 | .125 | KM-4953 | $24.60 | Add to Order |

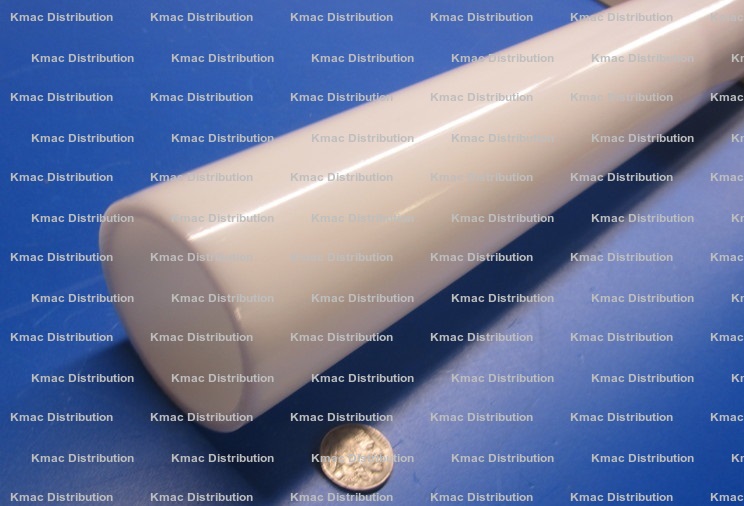

| 2.25 | 2.00 | .125 | KM-4952 | $25.89 | Add to Order |

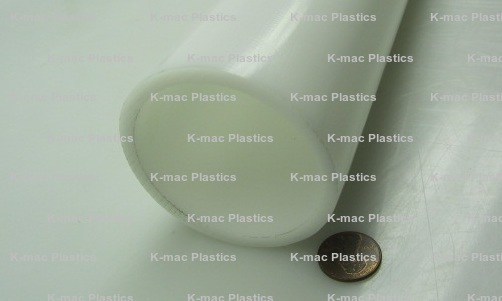

| 2.50 | 2.00 | .250 | KM-4951 | $44.25 | Add to Order |
| Rev. 09-26, 07-25, 04-23, 12-21 | |||||
