Delrin AF Tubes - PTFE Filled

Delrin Af Tubes

Technical Data Sheet

Chemical Resistance Chart

OD + Tolerance, ID - Tolerance for Machining.

ID has rough surface due to PTFE Fibers, Custom Extruded, Made to Order. Lead Times Apply

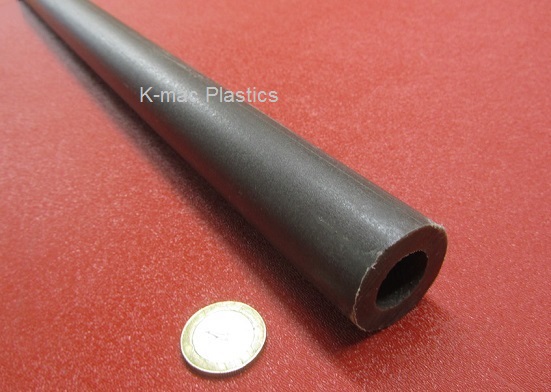

Delrin AF Hollow Tubes - Brown In Color
OD (in.) ID (in.) Wall (in.) Length Part # Price Each Order Online
.250 .125 .062 5 Feet KM-24136 $37.96 Add to Order
.500 .250 .125 5 Feet KM-24134 $114.92 Add to Order
.625 .250 .187 5 Feet KM-24131 $174.20 Add to Order
.625 .500 .062 5 Feet KM-24135 $105.69 Add to Order
.750 .250 .250 5 Feet KM-24130 $242.32 Add to Order
.750 .500 .125 5 Feet KM-24133 $180.05 Add to Order
1.00 .500 .250 5 Feet KM-24138 $316.29 Add to Order
1.25 .750 .250 5 Feet KM-24129 $414.70 Add to Order
1.25 1.00 .125 5 Feet KM-24132 $285.35 Add to Order
1.50 1.00 .250 5 Feet KM-24128 $487.76 Add to Order
2.00 1.50 .250 5 Feet KM-24127 $665.86 Add to Order
Rev. 12-21, 06-21
